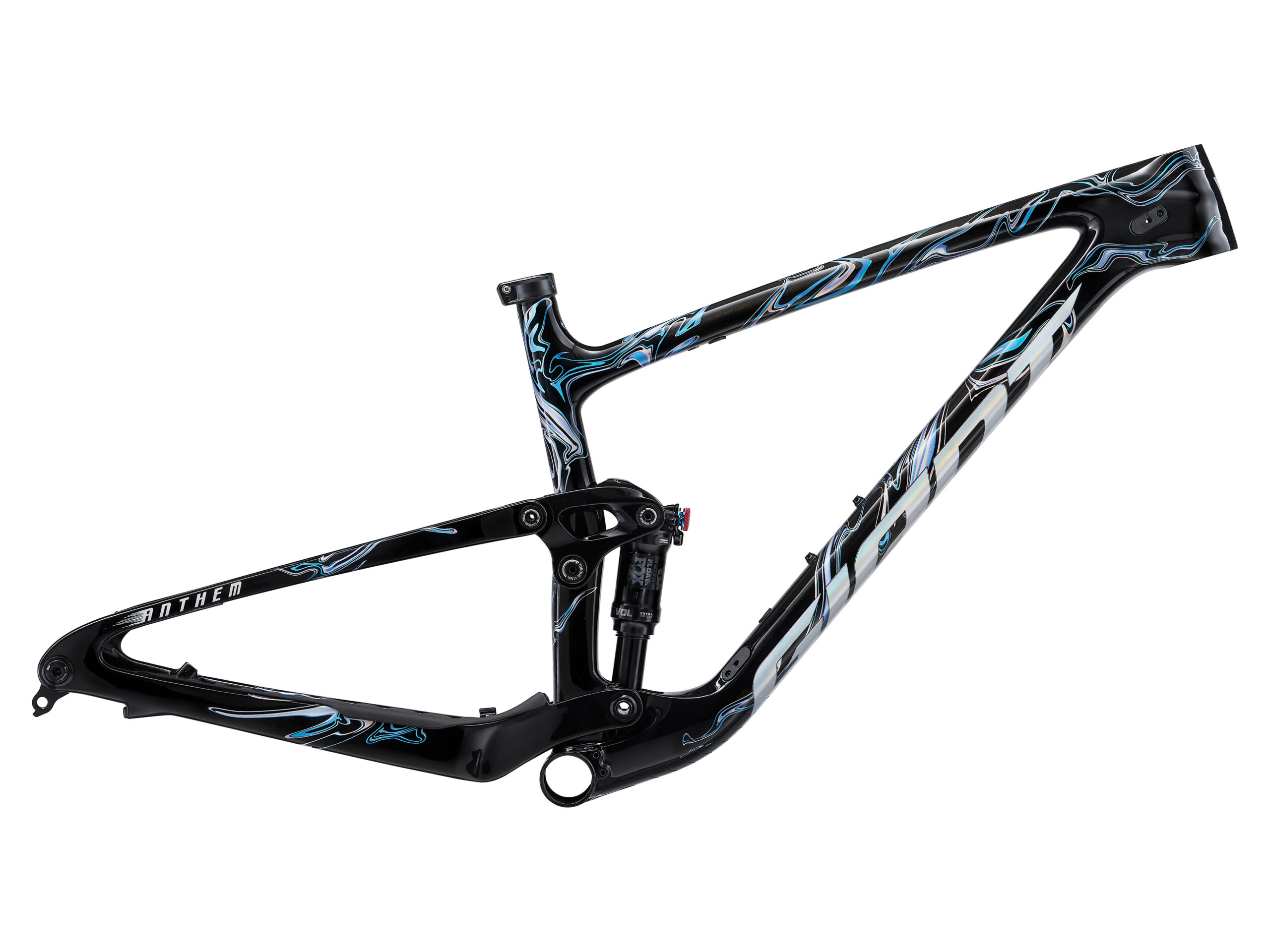

Anthem Advanced 29 Frameset
Anthem Advanced 29 Frameset - Image 2
Anthem Advanced 29 Frameset - Image 3
Anthem Advanced 29 Frameset - Image 4
Anthem Advanced 29 Frameset - Image 5
Anthem Advanced 29 Frameset - Image 6

Anthem Advanced 29 Frameset

€1,472.13

Clear
SKU: N/A Categories: , , Tag:

Additional information

Size

, , ,

Color

Specifications

Sizes S, M, L, XL
Colours Gloss Fluid Iridescence/Iris
Frame Advanced-grade composite front and rear triangles, 100mm FlexPoint Pro suspension, 12x148mm thru-axle, UDH
Fork Suitable for a 110mm fork.
Shock Fox Float SL Performance Elite, three-position remote, 165/45
Extras 2.4″ max tyre size, 34t max chainring size, Giant/MRP CS chain guide

Highlights

Barcode : 4711291105294

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 390 420 465 495
B SEAT TUBE ANGLE 75.5 75.5 75.5 75.5
C TOP TUBE LENGTH 572 604 626 653
D HEAD TUBE LENGTH 90 95 105 115
E HEAD TUBE ANGLE 67.5 67.5 67.5 67.5
F FORK RAKE 44 44 44 44
G TRAIL 109 109 109 109
H WHEEL BASE 1,127 1,159 1,183 1,212
I CHAIN STAY LENGTH 435 435 435 435
J BOTTOM BRACKET DROP 42 42 42 42
K STACK 589 593 603 612
L REACH 420 450 470 495
M STAND OVER HEIGHT 745 750 777 800
N HANDLEBAR WIDTH 760 760 760 760
O STEM LENGTH 60 70 70 70
P CRANK LENGTH DEC 170 175 175 175
Q WHEEL SIZE ALT 29" 29" 29" 29"

Technology and Features

Advanced Composite Technology
Advanced Forged Composite Technology
FlexPoint Pro Suspension Technology
