The devil is in the details. At CUBE we know that only too well, which is why the Aim Race’s 100mm suspension fork features a lockout – so you can reduce bob and bounce when you’re riding hard. With grippy tyres, powerful hydraulic disc brakes and the wide range of Shimano’s 2×8 gears, you’ve all you need to build your own adventure. And, with SizeSplit, there’s an Aim Race that’ll fit you perfectly.

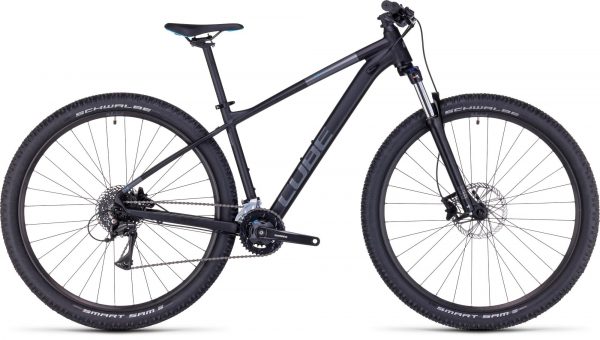

CUBE AIM RACE BLACK/AZURE 2024
€699.00
Additional information
| Weight | 14.3 kg |
|---|---|
| color | black/azure |
| size | L, M, S, XL, XS, XXL |
Specifications
| Sizes | L,M,S,XL,XS,XXL |
|---|---|
| Colours | black/azure |
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | SR Suntour XCT Disc, 100mm, Lockout |
| Shock | N/A |
| Handlebar | CUBE Rise Trail Bar, 680mm |
| Grips | ACID React |
| Stem | CUBE Peformance Stem Race, 31.8mm |
| Seatpost | CUBE Performance Post, 27.2mm |
| Saddle | Natural Fit Venec Lite |
| Pedals | ACID PP MTB |
| Shifters | Shimano SL-M315, Rapidfire-Plus |
| Front Derailleur | Shimano FD-M315, Top Swing, 31.8mm Clamp |
| Rear Derailleur | Shimano RD-M3020, 8-Speed |
| Brakes | Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160) |
| Brake Levers | N/A |
| Cassette | Shimano CS-HG31, 11-34T |
| Chain | KMC Z8.3 |
| Crankset | Shimano FC-M315, 36x22T, 170mm |
| Bottom Bracket | Thun Paso-ML, 73mm BSA |
| Rims | CUBE ZX20, 32H, Disc |
| Hubs | Shimano HB-TX505, QR, Centerlock | Tyres | Schwalbe Smart Sam, Active, 2.25 |
| Shock hardware | N/A |
| Headset | CUBE FPH868, Semi-Integrated |
| Bar extensions | N/A |
| Handlebar tape | N/A |
| Number of gears | 8 | Rear hub | Shimano FH-TX505, QR, Centerlock |
| Seat post clamp | CUBE Varioclose, 31.8mm |
| Front light | N/A |
| Rear light | N/A |
| Kickstand | N/A |
| Mudguard | N/A |
| Chain protection | N/A |
| Bell | N/A |
| Carrier | N/A |
| Engine | N/A |
| Battery | N/A |
| Charger | N/A |
| Display | N/A |
| Integratedbar/stem | N/A |
| Chain guide | N/A |
| Integrated shifters/brakelevers | N/A |
| Crankset chainring sizes | 36x26T |
| Gear Teeth | N/A |
| Wheelset (system wheels) | N/A |
| Net weight (kg) | 14.3 |
