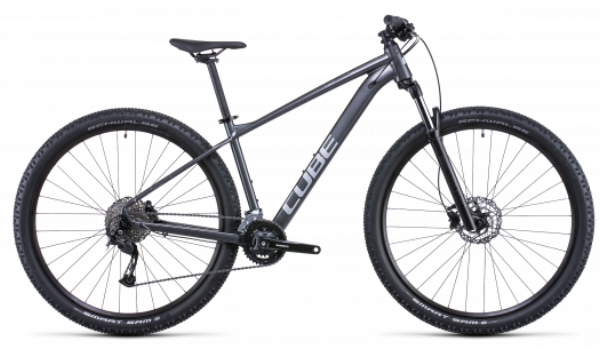

CUBE AIM SL GRAPHITE/METAL 2022

799.00

CUBE AIM SL GRAPHITE/METAL 2022

Clear
Ridetowork Quote
SKU: 501500 Category: Tag:

You know the saying, ‘power is nothing without control’? It’s the reason that the brand-new Aim SL features 100mm of smooth, RockShox-flavoured bump-swallowing travel ? with lockout. Combined with the strong Shimano hydraulic disc brakes, tapered head tube and grippy 2.25in tyres, it’s your guarantee of always being in full control, wherever your curiosity takes you. Wide-ranging Shimano 2×9 gears put the ideal ratio for any trail at your fingertips, and the frame’s internal cable routing even allows for a future dropper post upgrade. What’s holding you back?

Additional information

Weight 13.8 kg
color

graphite/metal

size

XS, S, M, L, XL, XXL

Specifications

Frame Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork RockShox Judy Silver TK Coil, 100mm, Lockout
Headset CUBE FPH868, Top 1 1/8″, Bottom 1 1/2″, Semi-Integrated
Stem CUBE Performance Stem Pro, 31.8mm
Handlebar CUBE Rise Trail Bar, 680mm
Grips Natural Fit Performance
Rear derailleur Shimano RD-M3100-SGS, 9-Speed
Front derailleur Shimano FD-M2020, Top Swing, 31.8mm Clamp
Shifters Shimano SL-M2010-9R, Rapidfire-Plus
Brake system Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Crankset Shimano FC-MT101, 36x22T
Crankset chainring sizes 36x22T
Cassette Shimano CS-HG201, 11-36T
Number of gears 18
Chain KMC X9
Rims CUBE ZX20, 32H, Disc
Front hub Shimano HB-TX505, QR, Centerlock
Rear hub Shimano FH-TX505, QR, Centerlock
Tires Schwalbe Smart Sam, Active, 2.25
Pedals CUBE PP MTB
Saddle Natural Fit Venec Lite
Seat post CUBE Performance Post, 27.2mm
Seat post = dropper Yes/No No
Seat post clamp CUBE Varioclose, 31.8mm
