A hardtail is a versatile beast, so it helps to have the right kit to get the most out of that versatility. That’s why, with the new Analog, we began by choosing Sram’s SX Eagle 1×12 transmission. With its huge range, ease of use and reliable performance, it’s the go-to for many keen riders. Paired with powerful Shimano hydraulic disc brakes and 100mm of travel from the RockShox Judy fork with lockout, it puts you in perfect control. Grippy 2.25in tyres, perfect sizing from our SizeSplit system and the option for a future dropper post upgrade complete the package.

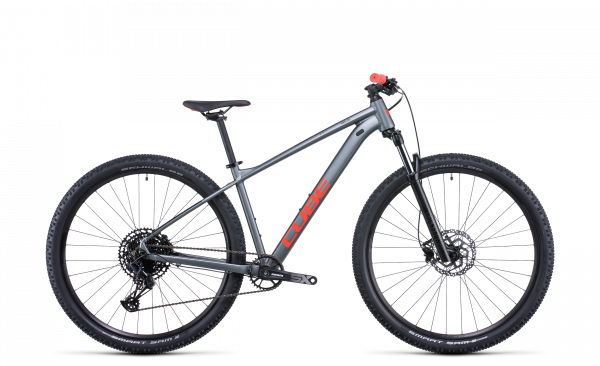

CUBE ANALOG FLASHGREY/RED 2022
€899.00
CUBE ANALOG FLASHGREY/RED 2022
Additional information
| Weight | 13.8 kg |
|---|---|
| color | flashgrey/red |
| size | XS, S, M, L, XL, XXL |
Specifications
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | RockShox Judy Silver TK Coil, 100mm, Lockout |
| Headset | CUBE FPH868, Top 1 1/8″, Bottom 1 1/2″, Semi-Integrated |
| Stem | CUBE Performance Stem SL, 31.8mm |
| Handlebar | CUBE Rise Trail Bar, 680mm |
| Grips | Natural Fit Performance |
| Rear derailleur | Sram SX Eagle™, 12-Speed |
| Shifters | Sram SX Eagle™ Trigger |
| Brake system | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/160) |
| Crankset | Sram SX Eagle™ Powerspline, 32T, 175mm |
| Crankset chainring sizes | 32T |
| Cassette | Sram PG-1210 Eagle™, 11-50T |
| Number of gears | 12 |
| Chain | Sram SX Eagle™ |
| Rims | CUBE ZX20, 32H, Disc |
| Front hub | Shimano HB-TX505, QR, Centerlock |
| Rear hub | Shimano FH-TX505, QR, Centerlock |
| Tires | Schwalbe Smart Sam, Active, 2.25 |
| Pedals | CUBE PP MTB |
| Saddle | Natural Fit Venec Lite |
| Seat post | CUBE Performance Post, 27.2mm |
| Seat post = dropper Yes/No | No |
| Seat post clamp | CUBE Varioclose, 31.8mm |
