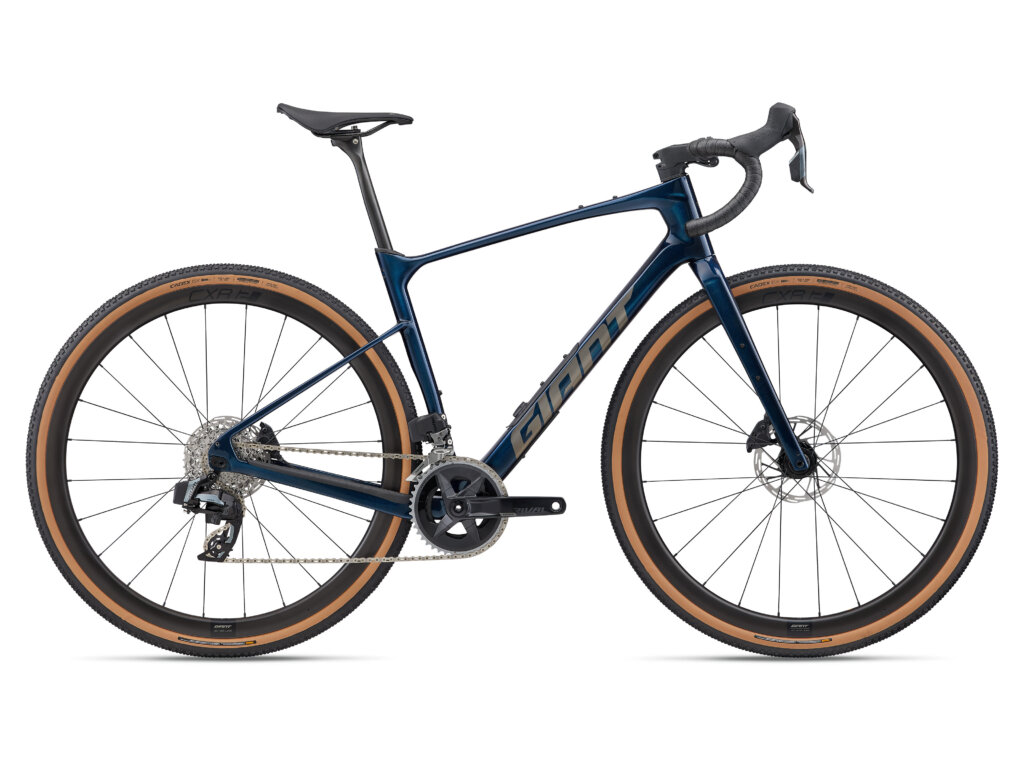

Revolt Advanced Pro 1

GRAVEL CRUSHER

Additional information

Size	L, M, ML, S, XL
Color	Ocean Twilight

Specifications

GRAVEL CRUSHER

Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.

Key Performance Factors

FAST AND VERSATILE
Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.

SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Sizes	XS, S, M, M/L, L, XL
Colours	Ocean Twilight/Chrome
Frame	Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork	Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar	Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips	Stratus Lite 3.0
Stem	Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost	Giant D-Fuse SLR, composite, -5/+15mm offset
Saddle	Giant Grit SL
Shifters	SRAM Rival AXS E1, 2×12
Front Derailleur	SRAM Rival AXS D1
Rear Derailleur	SRAM Rival AXS E1
Brakes	SRAM Rival AXS E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake Levers	SRAM Rival AXS E1 hydraulic
Cassette	SRAM Rival D1, 12-speed, 10×36
Chain	SRAM Rival E1
Crankset	SRAM Rival D1 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket	SRAM DUB, press fit
Rims	Giant CXR 2 WheelSystem, [F] 35mm, [R] 35mm
Hubs	[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
Spokes	Sapim CX-Ray
Tyres	CADEX GX, 700x40c, tubeless
Extras	Tubeless prepared, in-frame storage bag
Max Tire Clearance	53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.

Geometry

		S	M	ML	L	XL
A	SEAT TUBE LENGTH	450	470	490	510	530
B	SEAT TUBE ANGLE	73.5	73.5	73	73	73
C	TOP TUBE LENGTH	550	560	575	585	600
D	HEAD TUBE LENGTH	135	150	165	180	195
E	HEAD TUBE ANGLE	71	71.5	72	72	72
F	FORK RAKE	50	50	50	50	50
G	TRAIL	72	68	65	65	65
H	WHEEL BASE	1,020	1,026	1,031	1,041	1,056
I	CHAIN STAY LENGTH	425	425	425	425	425
J	BOTTOM BRACKET DROP	80	80	80	80	80
K	STACK	570	586	602	616	630
L	REACH	381	387	391	397	407
M	STAND OVER HEIGHT	740	757	774	791	807
N	HANDLEBAR WIDTH	420	440	440	460	460
O	STEM LENGTH	60	70	80	80	90
P	CRANK LENGTH DEC	170	172.5	172.5	175	175
Q	WHEEL SIZE ALT
