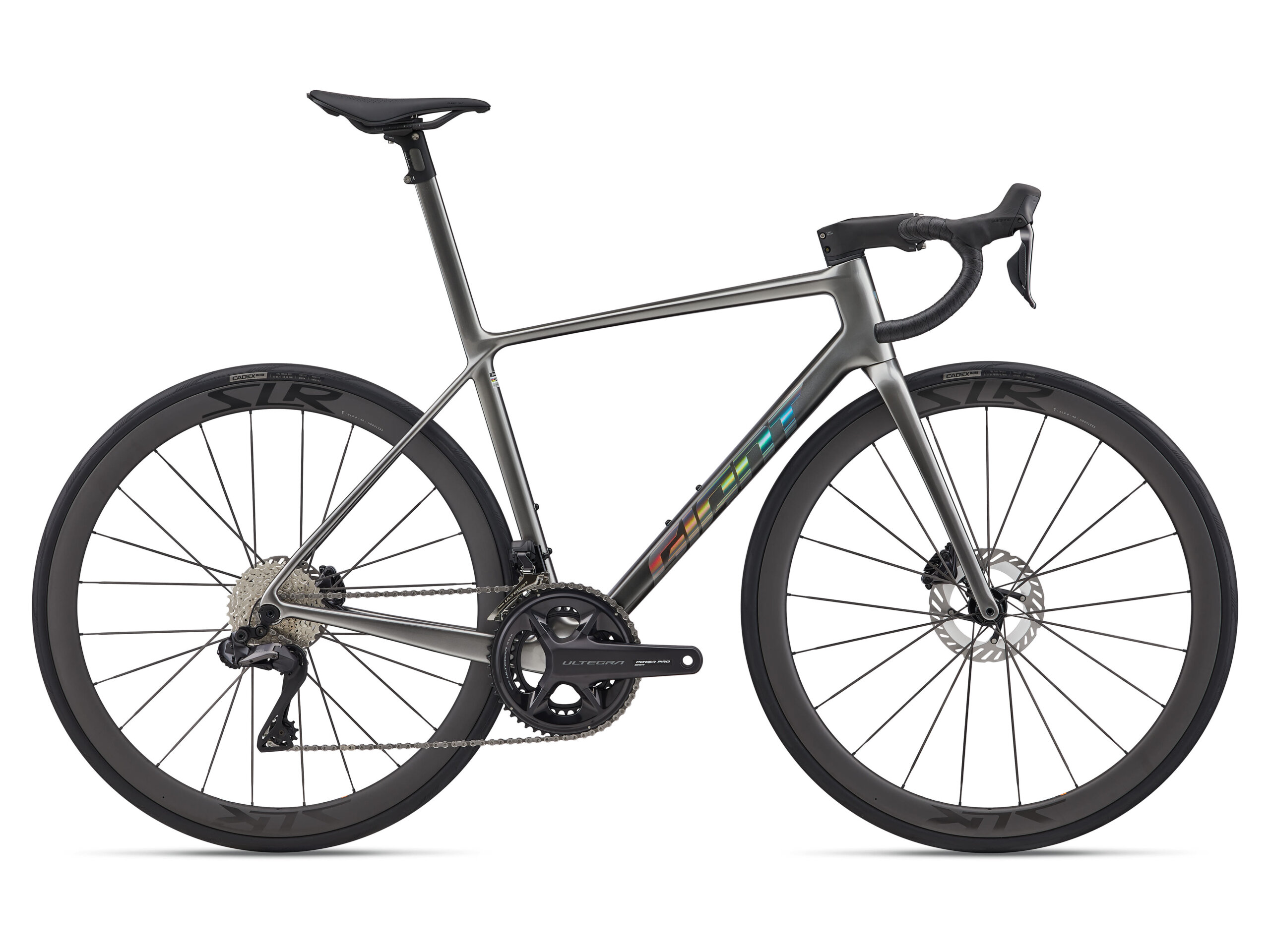

TCR Advanced SL 1

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

Category: Bikes, Performance & Racing, Road Bikes Tag: 3247, Apply Now, Giant

View

Size L, M, ML, S

Color Dark Chrome

Specifications

Key Performance Factors

SYSTEM OPTIMIZATION
The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup

WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS
From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

Sizes	XS, S, M, M/L, L, XL
Colours	Dark Chrome/Iris
Frame	Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
Fork	Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock	N/A
Handlebar	Giant Contact SLR XS:420/370mm, S:420/370mm, M:440/390mm, M/L:440/390mm, L:440/390mm, XL:440/390mm
Grips	Stratus Lite 2.0
Stem	Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost	Giant Integrated Seatpost, -5/+15mm offset
Saddle	Giant Fleet SLR
Shifters	Shimano Ultegra Di2
Front Derailleur	Shimano Ultegra Di2 FD-R8150
Rear Derailleur	Shimano Ultegra Di2 RD-R8150
Brakes	Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
Brake Levers	Shimano Ultegra Di2
Cassette	Shimano Ultegra, 12-speed, 11×34
Chain	Shimano CN-M8100
Crankset	Shimano Ultegra, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket	Shimano, press fit
Rims	Giant SLR 0 40 WheelSystem, [F]40mm, [R]40mm
Hubs	[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Spokes	Giant Aero Carbon Spoke
Tyres	CADEX Road Race GC, tubeless, 700x30mm, folding
Extras	computer mount, tubeless prepared, 33mm max tire size
Max Tire Clearance	33mm

Highlights

Barcode : 4711291221765

Geometry

		S	M	ML	L
A	SEAT TUBE LENGTH	710	740	770	800
B	SEAT TUBE ANGLE	74	73.5	73	73
C	TOP TUBE LENGTH	535	550	565	580
D	HEAD TUBE LENGTH	130	145	165	185
E	HEAD TUBE ANGLE	72.3	73	73	73
F	FORK RAKE	45	45	45	45
G	TRAIL	64	59.2	59.2	59.2
H	WHEEL BASE	977	980	991	1,006
I	CHAIN STAY LENGTH	405	405	405	405
J	BOTTOM BRACKET DROP	70	70	67	67
K	STACK	528	545	562	581
L	REACH	383	388	393	402
M	STAND OVER HEIGHT	734	752	768	786
N	HANDLEBAR WIDTH	420	440	440	440
O	STEM LENGTH	90	100	110	110
P	CRANK LENGTH DEC	165	170	170	172.5
Q	WHEEL SIZE ALT
