Colour | |
---|---|
Size |
€3,549.00
Features:

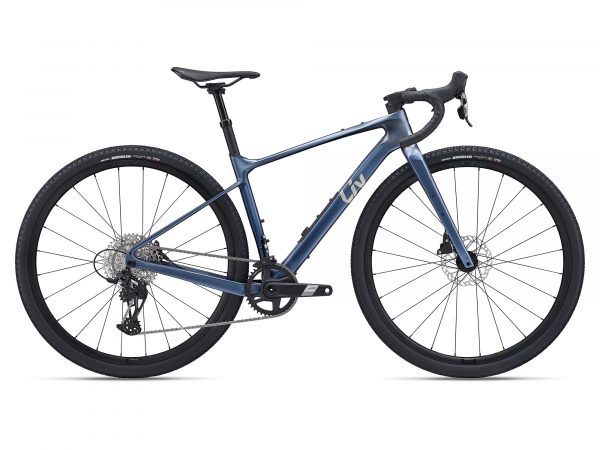

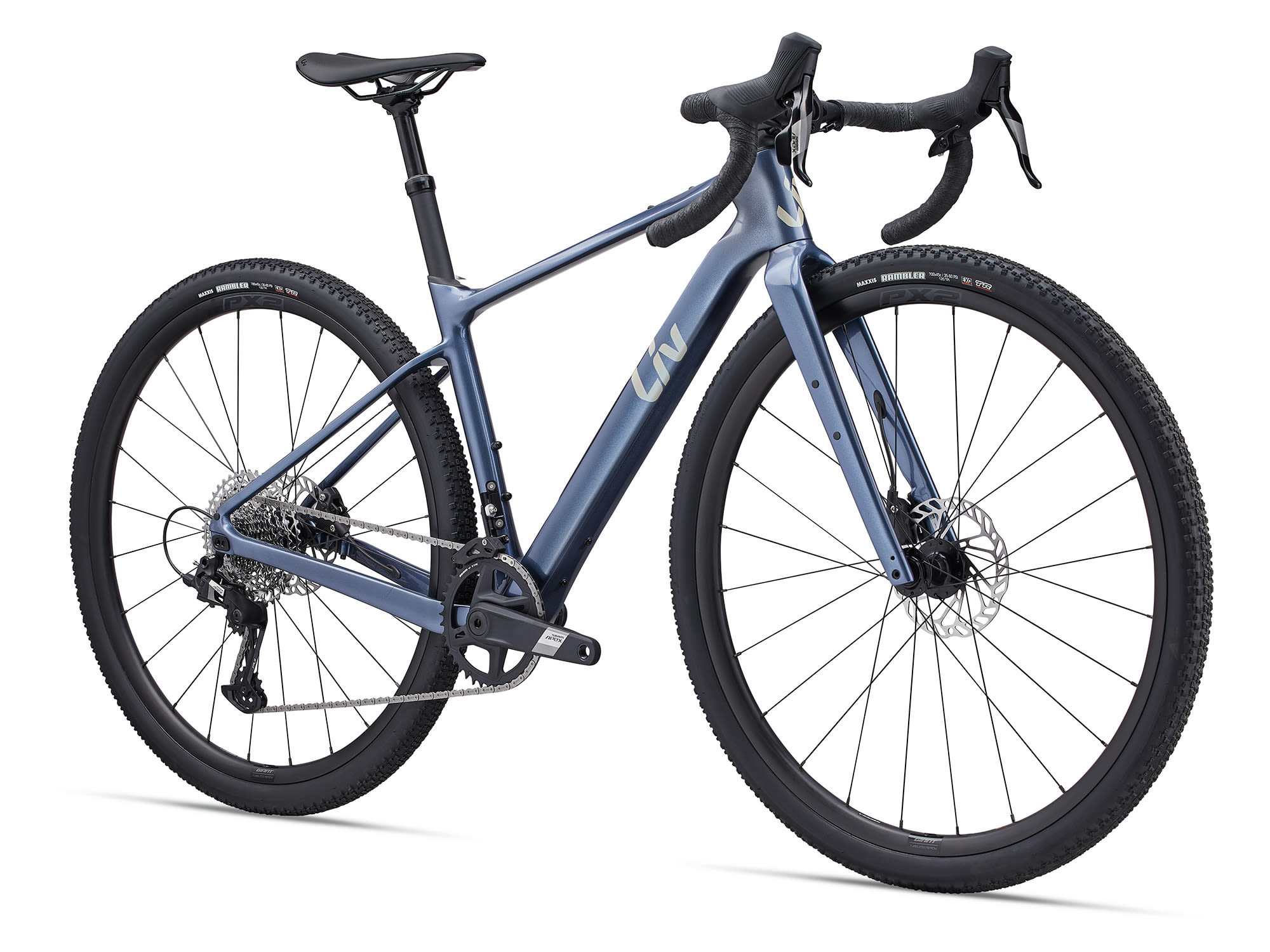

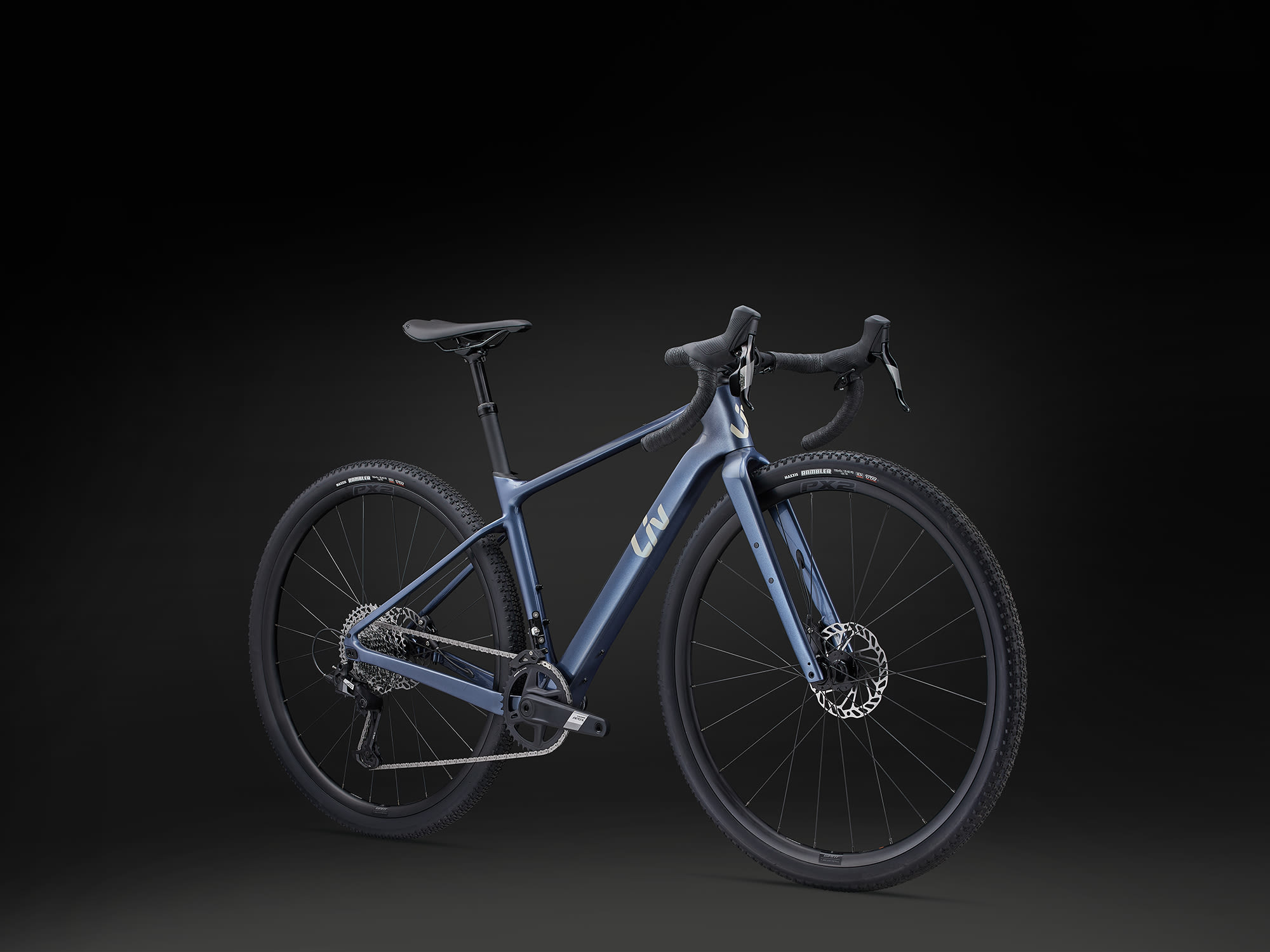

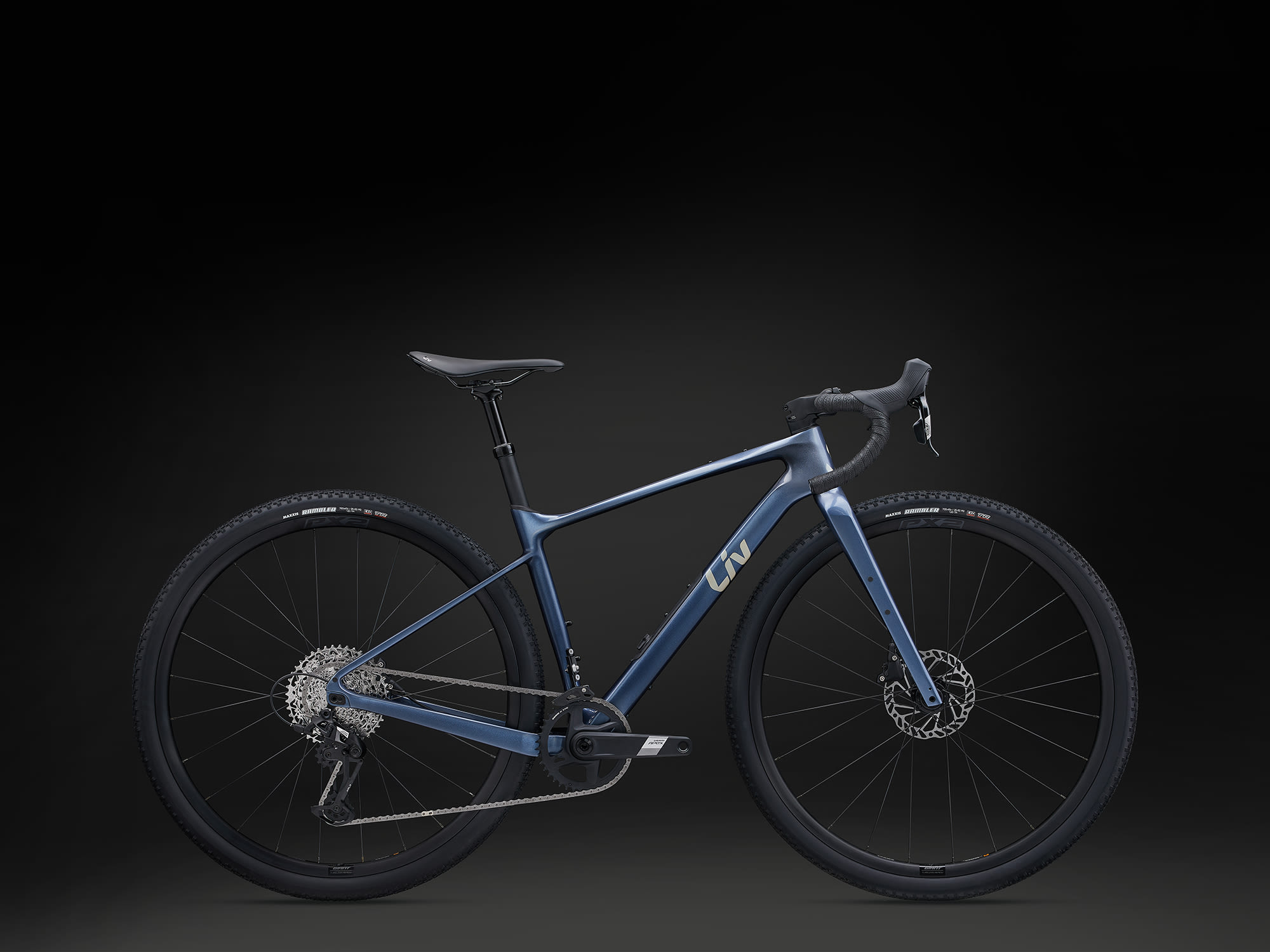

The Devote Advanced is your go-to for going fast, wherever the gravel muse may call you. Balancing speed and ruggedness, this versatile bike is ready for race day, rest day, and multi-day adventures.
Ultralight Agility

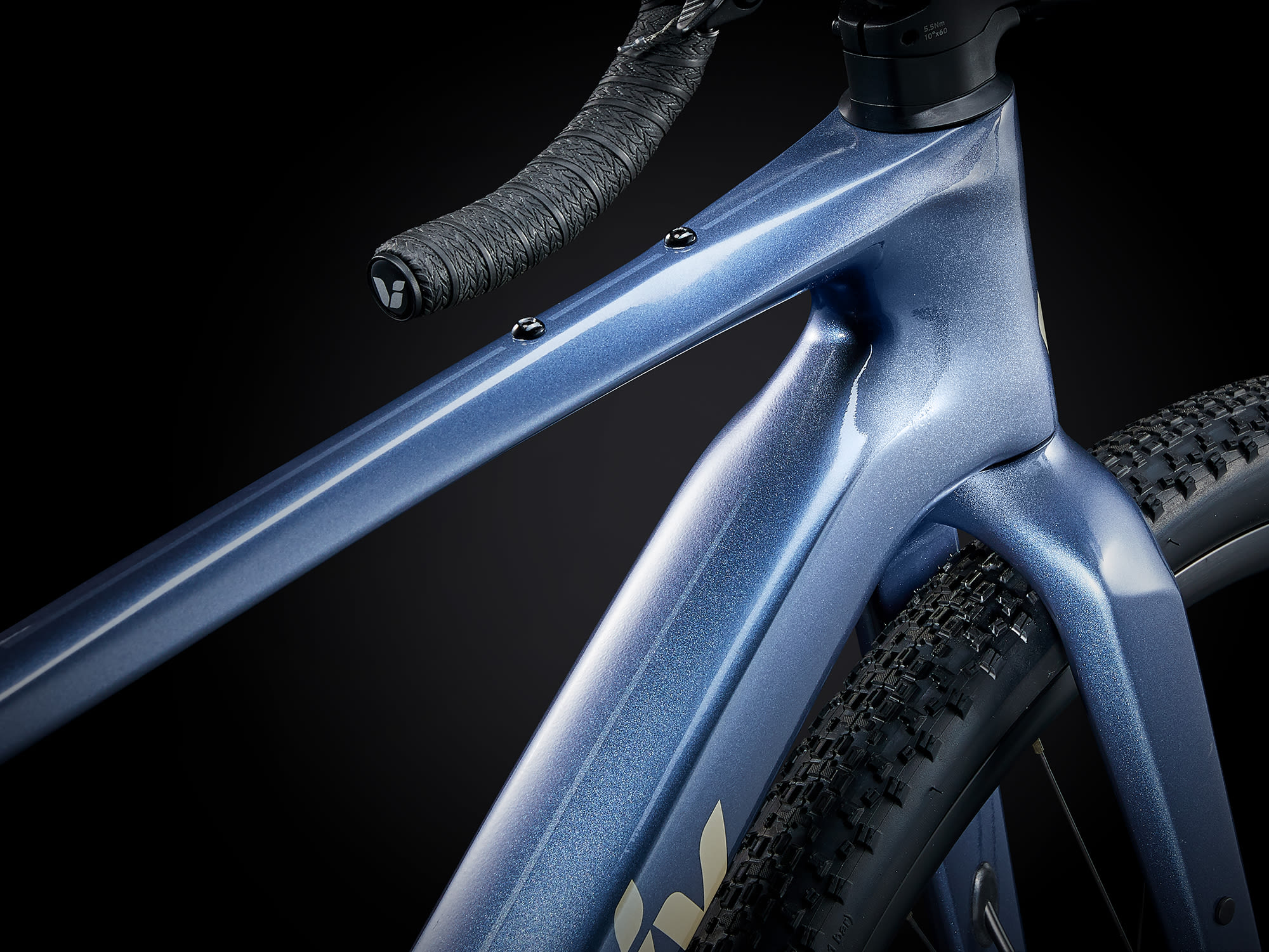

An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.
Superior Compliance and Control

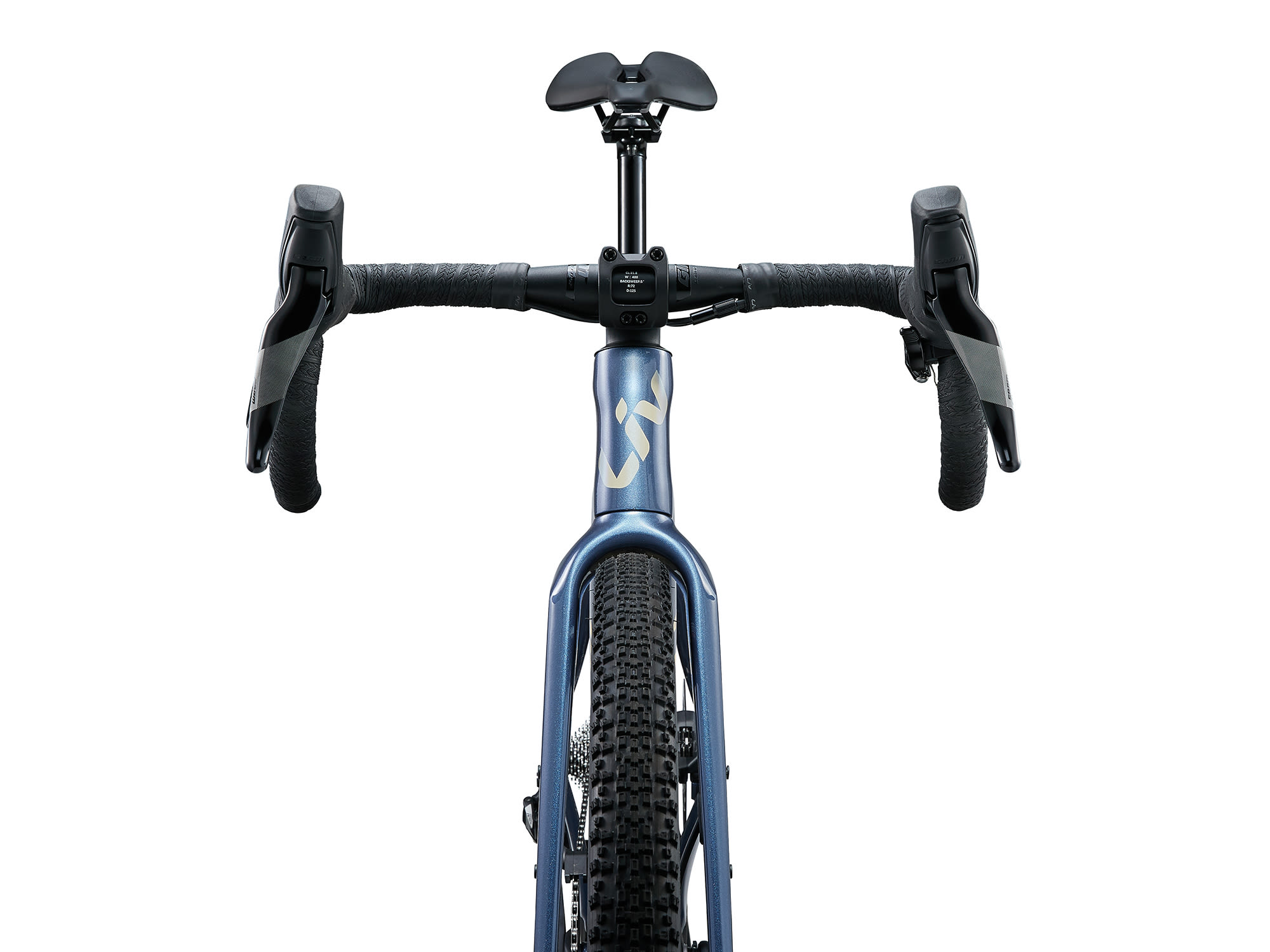

The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Unmatched Versatility

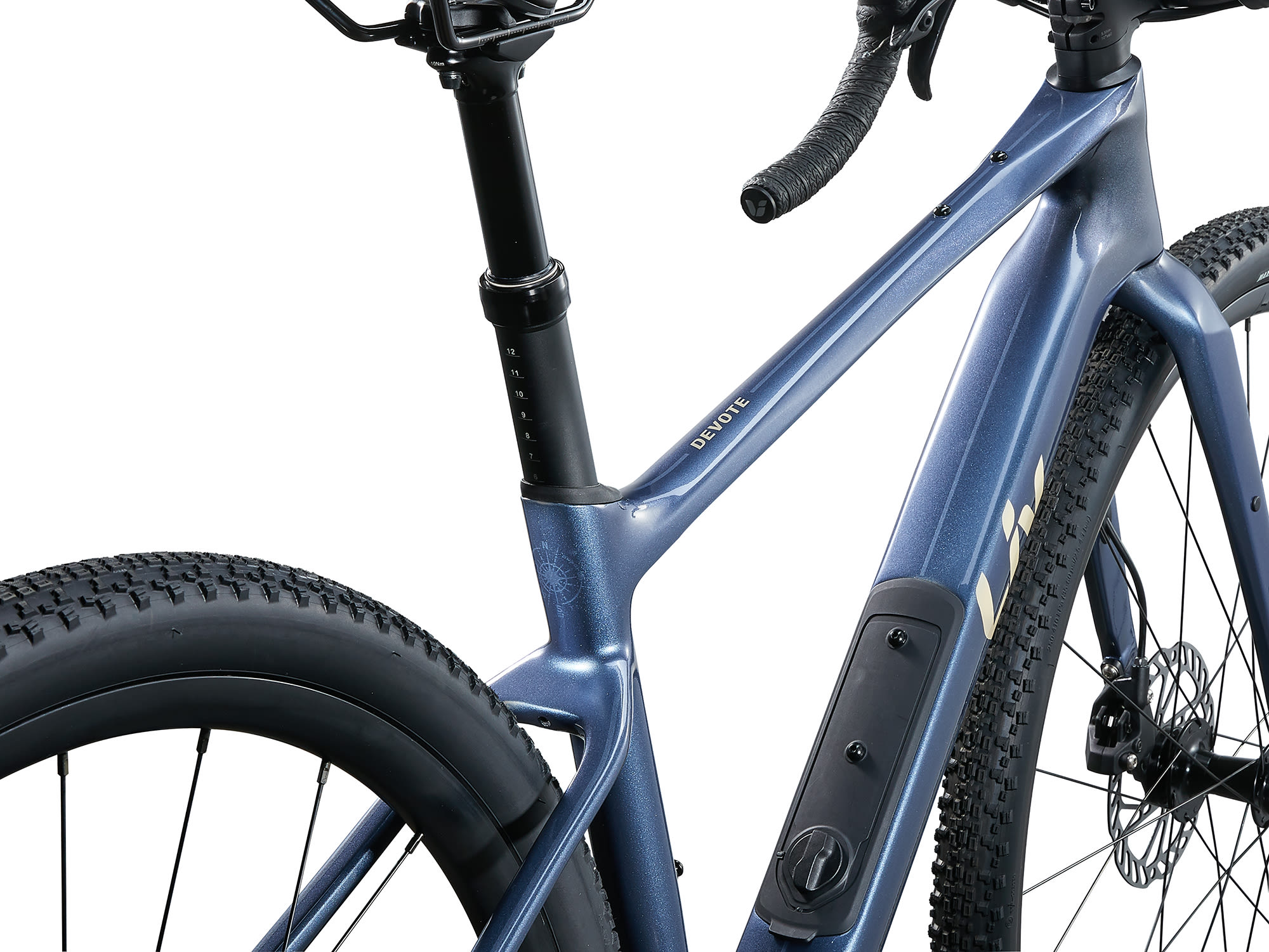

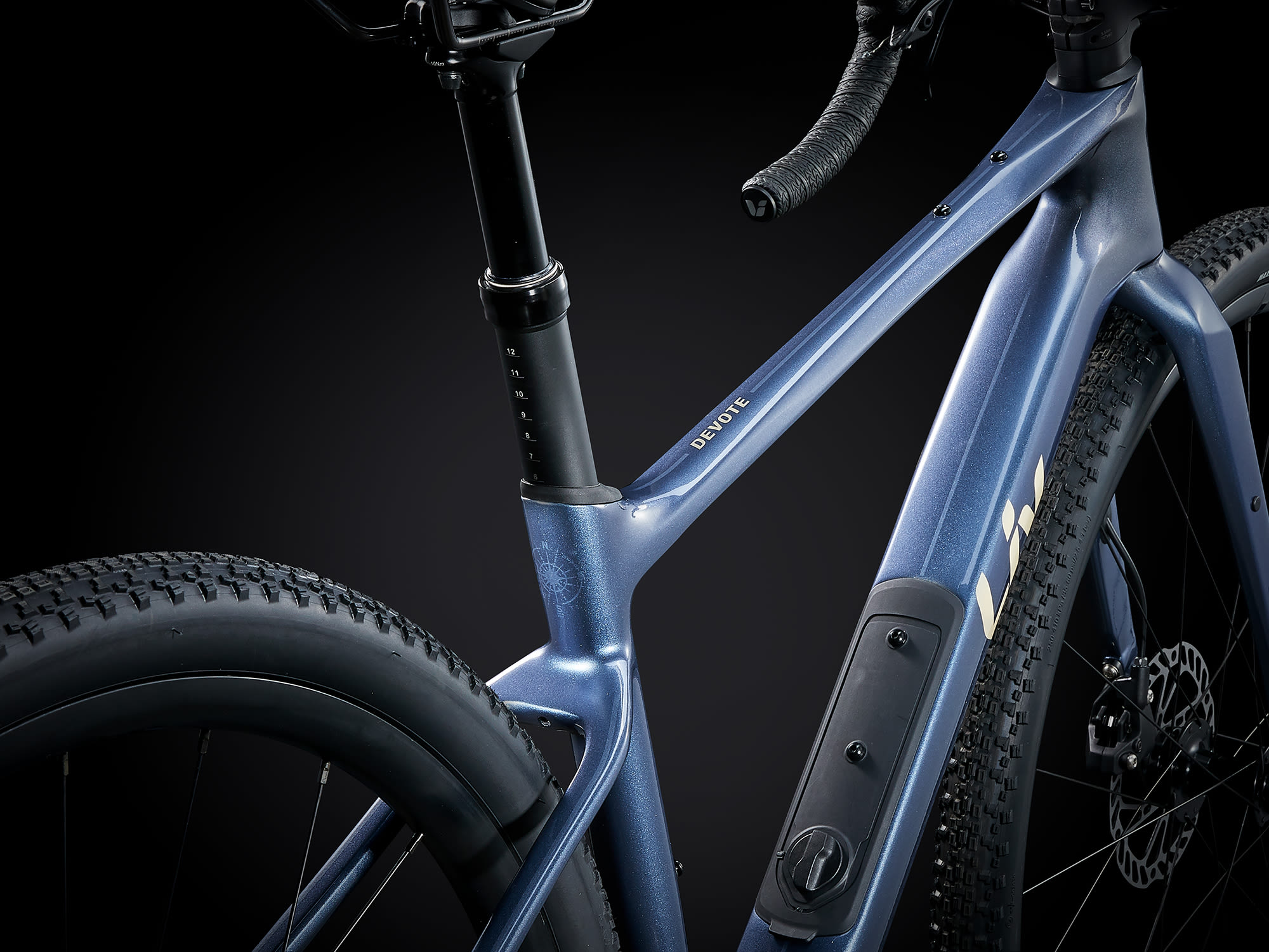

Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
Sizes | XS, S, M, L |
---|---|
Colours | Ice Age |
Frame | Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage, integrated cable routing |
Fork | Advanced-grade composite, full-composite OverDrive steerer, stainless steel bearings, 12mm thru-axle, flat mount disc |
Shock | N/A |
Handlebar | Giant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, alloy XS: 400mm, S: 400mm, M: 420mm, L: 420mm |
Grips | Liv All Condition |
Stem | Giant Contact AeroLight, -10 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm |
Seatpost | Post Moderne, dropper, 30mm suspension XS: 75mm, S: 75mm, M: 75mm, L: 100mm |
Saddle | Liv Approach |
Pedals | PEDALS NOT SUPPLIED |
Shifters | SRAM Apex, 1×12 |
Front Derailleur | N/A |
Rear Derailleur | SRAM Apex XPLR |
Brakes | SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
Brake Levers | SRAM Apex hydraulic, left lever dropper switch |

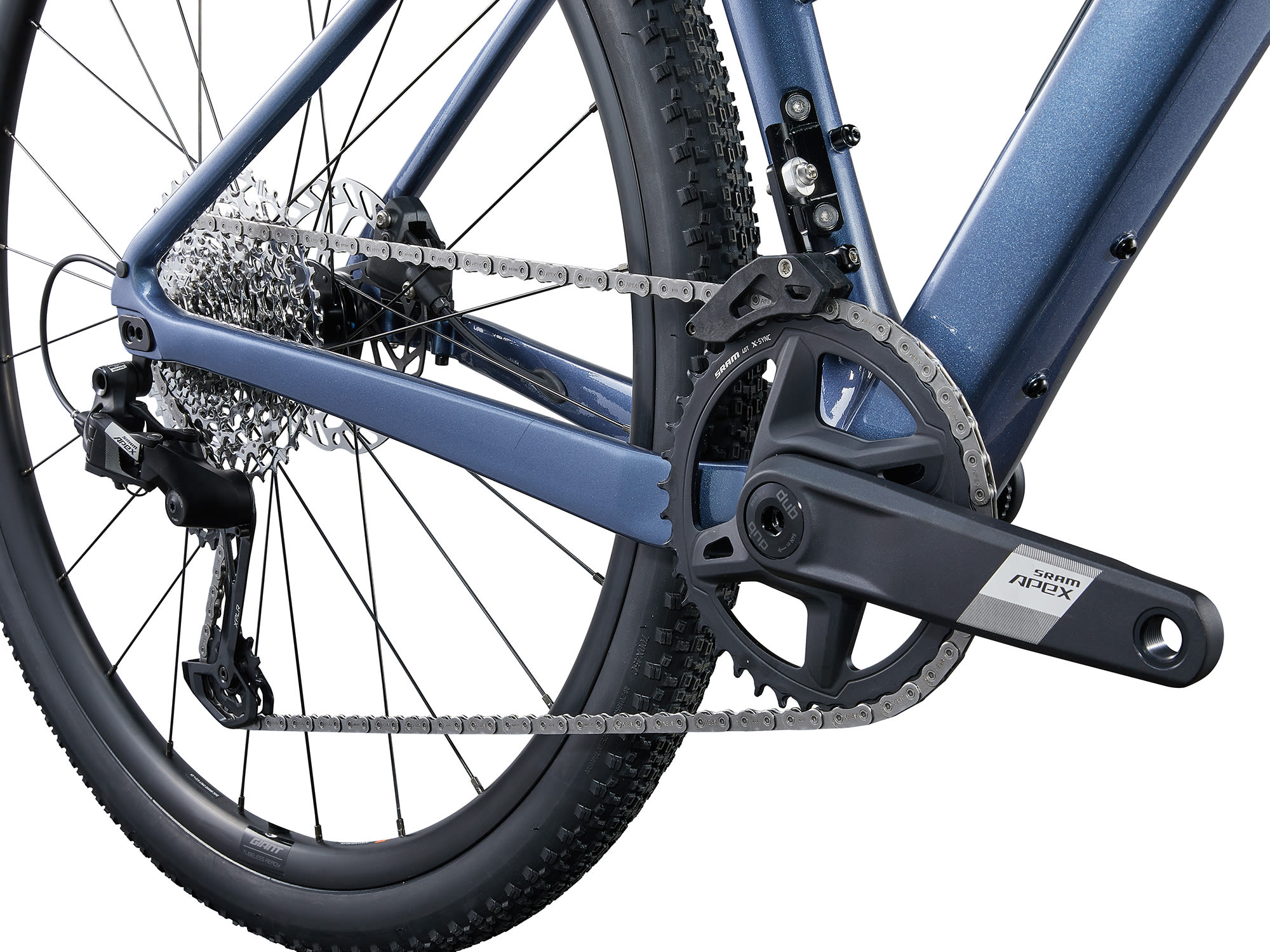

Cassette | SRAM PG-1231 D1 XPLR, 12-speed, 11×44 |
Chain | SRAM Apex 12SCN-APX-D1 |
Crankset | SRAM Apex 1 Wide, 40t XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm |
Bottom Bracket | SRAM DUB, press fit |
Rims | Giant P-X2 Disc wheelset, alloy |
Hubs | Giant alloy, 12mm thru-axle |
Spokes | Sapim |
Tyres | Maxxis Rambler, 700x45c, tubeless |
Extras | Giant 1x chain guide, factory tubeless set up, 53mm max tyre size in long flip chip position, 45mm max tyre size in short flip chip position, ISC clamp, integrated down tube storage bag |
Max Chainring Size | SRAM Wide 2x 43-30, 1x 44T. Shimano GRX 2x 48-31, 1x 42T |

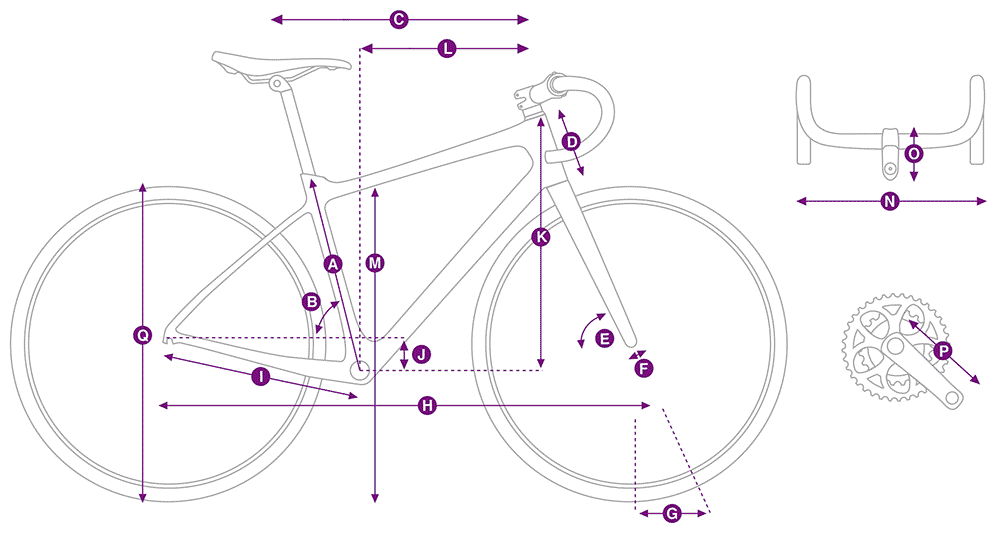

XS | S | L | M | ||
---|---|---|---|---|---|
A | SEAT TUBE LENGTH | 390 | 420 | 500 | 465 |
B | SEAT TUBE ANGLE | 74.5 | 74.5 | 74.5 | 74.5 |
C | TOP TUBE LENGTH | 525 | 535 | 555 | 545 |
D | HEAD TUBE LENGTH | 90 | 110 | 160 | 140 |
E | HEAD TUBE ANGLE | 70 | 70.5 | 71 | 71 |
F | FORK RAKE | 50 | 50 | 50 | 50 |
G | TRAIL | 78.4 | 75 | 71.6 | 71.6 |
H | WHEEL BASE | 1012 | 1019 | 1043 | 1026 |
I | CHAIN STAY LENGTH | 425 | 425 | 430 | 425 |
J | BOTTOM BRACKET DROP | 80 | 80 | 80 | 80 |
K | STACK | 523 | 544 | 593 | 574 |
L | REACH | 380 | 384 | 391 | 386 |
M | STAND OVER HEIGHT | 681 | 708 | 779 | 748 |
N | HANDLERBAR WIDTH | 400 | 400 | 420 | 420 |
O | STEM LENGTH | 50 | 60 | 80 | 70 |
P | CRANK LENGTH DEC | 165 | 170 | 172.5 | 172.5 |
Q | WHEEL SIZE ALT | 700 | 700 | 700 | 700 |
