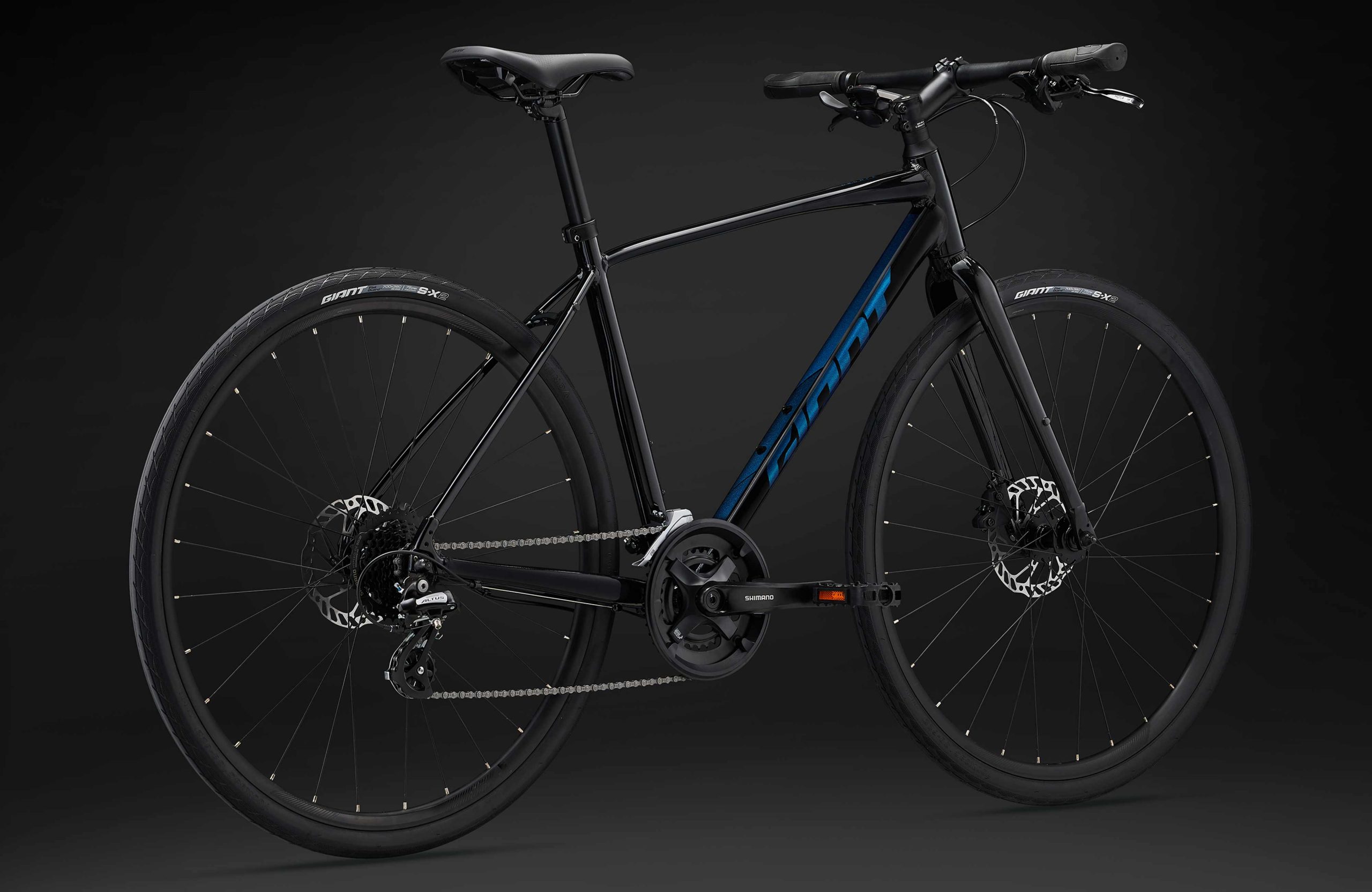

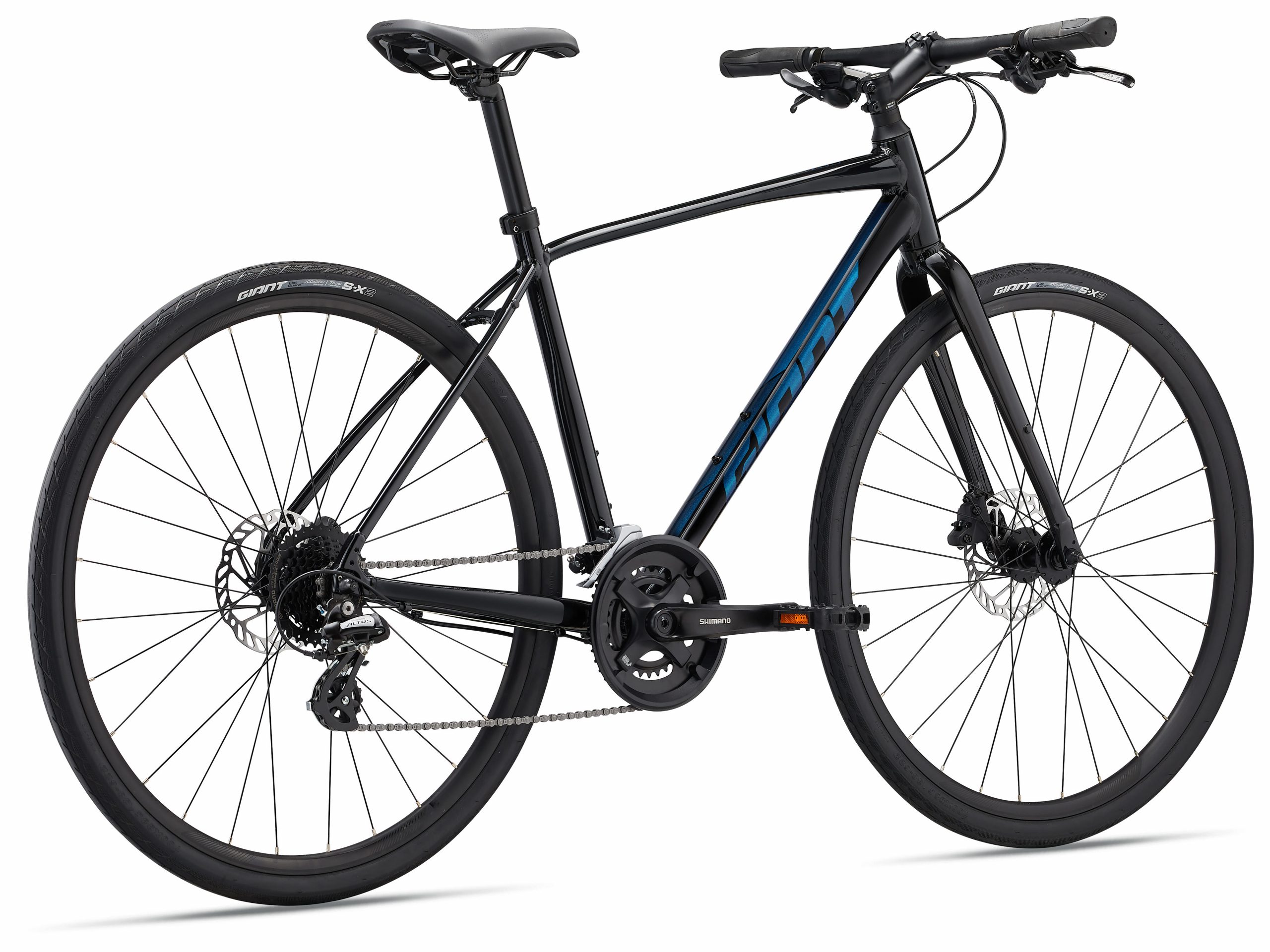

Escape Disc 2 (2024) | bike
Features:
Specifications
Commute to work, ride to class, find new adventures in your daily routine. This flat-bar all-rounder will get your legs spinning and inspire you to be active every day.
Key Performance Factors
Balanced and efficient
Lightweight ALUXX frame, fast-rolling 700c wheels, and confident upright positioning offer a balanced, efficient ride quality.
Versatile and capable
Powerful disc brakes and a wide range of gears help you increase your speed and tackle hills with more control.
Rugged reliability
Puncture-resistant tires and integrated rack mounts make it easier to carry your daily essentials or load up for weekend adventures.
| Sizes | S, M, L, XL |
|---|---|
| Colours | Gloss Black |
| Frame | ALUXX-grade aluminium, disc |
| Fork | Alloy, rack mount, disc |
| Shock | N/A |
| Handlebar | Giant Sport XC, 31.8mm |
| Grips | Giant ErgoContact |
| Stem | Giant Sport, 15-degree, 31.8mm |
| Seatpost | Giant D-Fuse, alloy S 300mm, M, L, XL 350mm |
| Saddle | Giant ErgoContact |
| Pedals | Giant Urban Fitness |
| Shifters | Shimano Altus, 2×8 |
| Front Derailleur | Shimano FD-TY606 |
| Rear Derailleur | Shimano Altus |
| Brakes | Tektro HD-R280 hydraulic disc, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Tektro HD-R280 |
| Cassette | Shimano CS-HG31, 11×34 |
| Chain | KMC Z8.3 |
| Crankset | Forged alloy, 30/46 |
| Bottom Bracket | cartridge |
| Rims | Giant double wall aluminium |
| Hubs | Alloy, 28h, QR |
| Spokes | Stainless steel |
| Tyres | Giant S-X2, puncture protect, 700x38c |
| Extras | 45mm max tyre size |
| Max Tire Clearance | – |
| Max Chainring Size | Double 46/30 Single 42t |

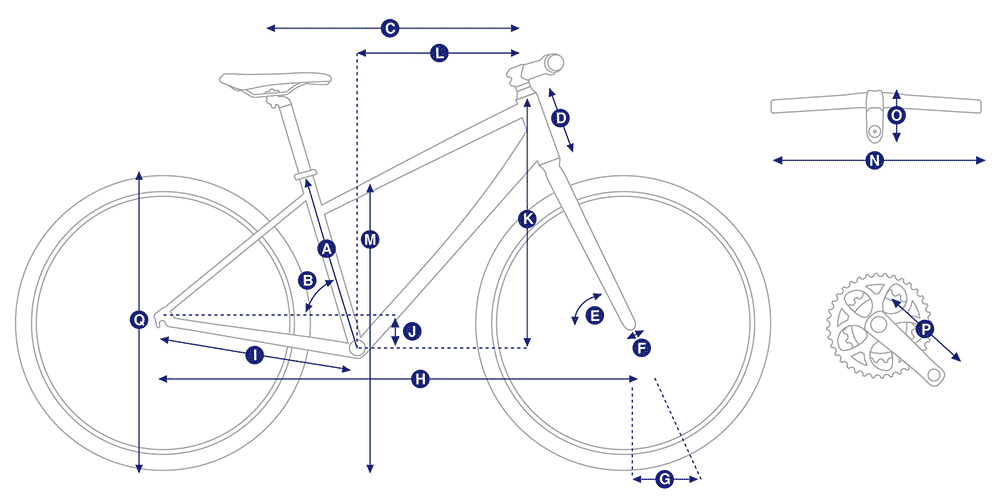

Geometry
| XL | S | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 585 | 430 | 485 | 535 |
| B | SEAT TUBE ANGLE | 73 | 73.5 | 73 | 73 |
| C | TOP TUBE LENGTH | 610 | 565 | 580 | 595 |
| D | HEAD TUBE LENGTH | 190 | 115 | 130 | 160 |
| E | HEAD TUBE ANGLE | 71 | 70 | 71 | 71 |
| F | FORK RAKE | 50 | 50 | 50 | 50 |
| G | TRAIL | 69.4 | 76 | 69.4 | 69.4 |
| H | WHEEL BASE | 1107 | 1074 | 1075 | 1091 |
| I | CHAIN STAY LENGTH | 445 | 445 | 445 | 445 |
| J | BOTTOM BRACKET DROP | 60 | 60 | 60 | 60 |
| K | STACK | 613 | 538 | 556 | 585 |
| L | REACH | 423 | 406 | 410 | 416 |
| M | STAND OVER HEIGHT | 842 | 714 | 754 | 799 |
| N | HANDLERBAR WIDTH | 690 | 640 | 640 | 690 |
| O | STEM LENGTH | 100 | 90 | 90 | 100 |
| P | CRANK LENGTH DEC | 175 | 170 | 170 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
