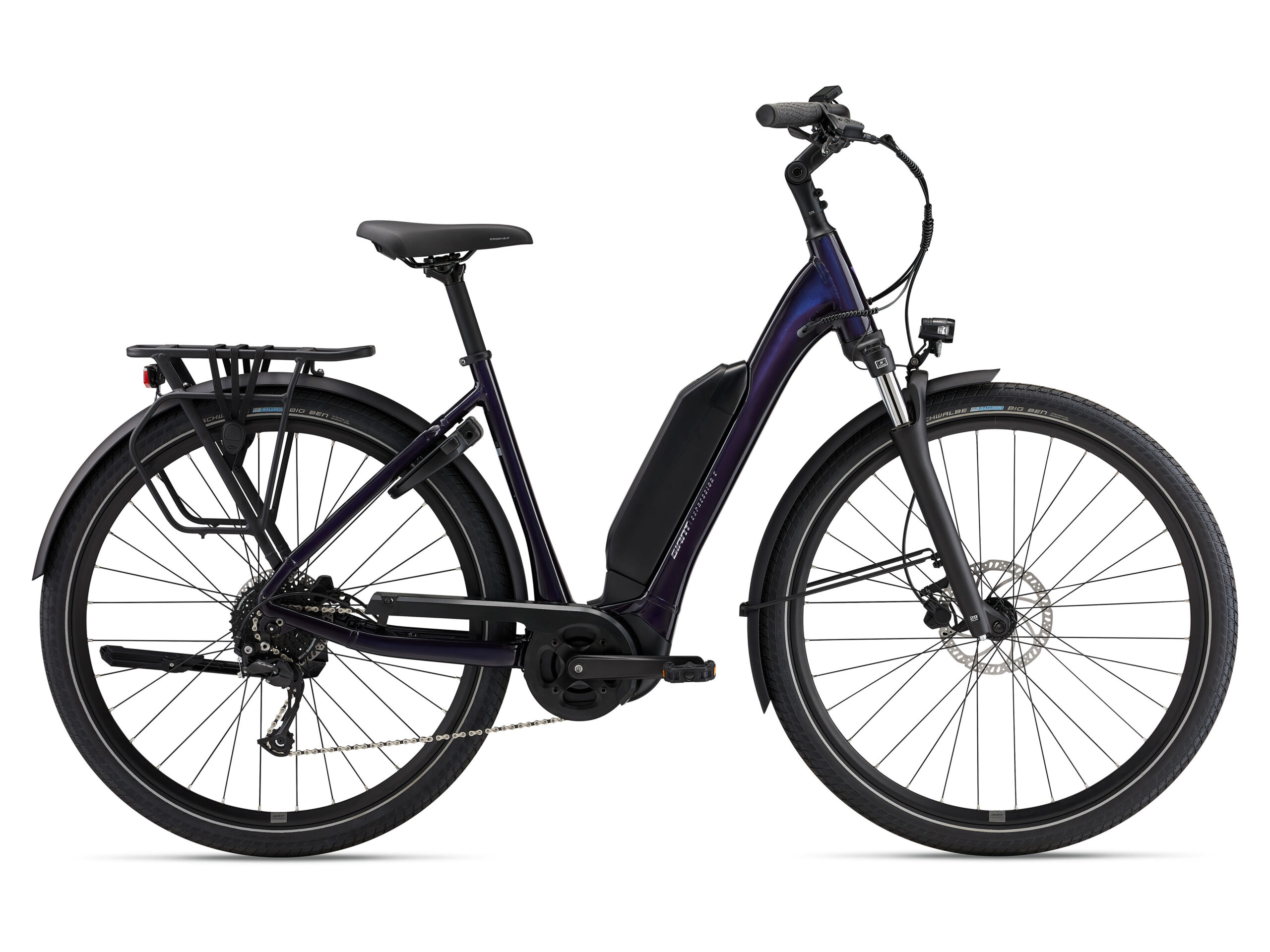

Expression E+ 2 (2024) | bike
€3,149.00
Features:
Specifications
Exhilarating yet relaxing. With smooth, powerful pedaling assistance and comfortable handling, the new Expression E+ is a motivating companion for commuting, fitness riding, or just pedaling for the fun of it.
Key Performance Factors
Smart support
The new SyncDrive Core 50Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output.
Comfort and control
A step-thru frame design with a 63mm suspension fork, suspension seatpost, powerful disc brakes and extra-wide 55mm tires combine for smooth confidence and control on a variety of road surfaces and conditions.
Full-Color Display
RideDash Evo (on select models) on the handlebar/stem area makes it easy to view ride data including speed, distance, battery level and navigation.
| Motor | Giant SyncDrive Core, 50Nm, Powered by Yamaha, PedalPlus 6-sensor technology |
|---|---|
| Controller | Giant RideControl Dash, Smart Assist automatic mode, 5 manual support levels, USB-C (10W) |
| Display | Giant RideControl Dash, high-angle visibility, full color LCD display |
| Battery | Giant EnergyPak 500Wh CO2 Neutral production |
| Charger | Giant EnergyPak 4A smart charger |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | S, M, L |
| Colours | Gloss Black Currant & Matte Early Espresso |
| Frame | ALUXX aluminium, monotube, Battery Semi Integrated, low step through design |
| Fork | SR Suntour Mobie A32 DS Coil, 63mm travel 100x15mm axle |
| Handlebar | Aluminium, 30° back sweep, 31.8x660mm |
| Grips | Comfort Ergo Microtech Plus |
| Stem | Aluminium angle adjustable stem |
| Seatpost | Aluminium |
| Saddle | Selle Royal Essenza Plus |
| Pedals | Wellgo C097, PP/ Kraton body, Anti-slip |
| Shifters | Shimano Altus 1×9 |
| Rear Derailleur | Shimano Alivio |
| Brakes | Tektro HD-M275, hydraulic disc, 180mm [F], 160mm [R] |
| Brake Levers | Tektro HD-M275 |
| Cassette | Shimano CS-HG200, 11-36T, 9-speed |
| Chain | KMC E9 Sport NP/BK, e-bike optimised |
| Crankset | Aluminium 38T |
| Rims | Giant Double Wall Aluminum 622×21 |
| Hubs | Shimano HB-TC500-15 100×15 [F], Shimano FH-QC300-HM [R] |
| Spokes | Stainless 14G(2.0mm) [F]Stainless 13-14G(2.3-2.0mm) butted [R] |
| Tyres | Schwalbe Big Ben 55-622 Wire Bead w/ reflective stripe |
| Extras | KSA18 direct mount kickstand |
| Lighting | Axa Blueline 30 LED [F]Axa Blue Line Steady E6 [R] |
| Lock | ABUS 4750X NR (w/o chip) LH OEM |
| Carrier | MIK rack. System bag & basket compatible |
Geometry
| S | M | L | S | M | L | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 450 | 500 | 550 | 450 | 500 | 550 |
| B | SEAT TUBE ANGLE | 71 | 71 | 71 | 71 | 71 | 71 |
| C | TOP TUBE LENGTH | 570 | 595 | 620 | 570 | 595 | 620 |
| D | HEAD TUBE LENGTH | 140 | 160 | 180 | 140 | 160 | 180 |
| E | HEAD TUBE ANGLE | 70 | 70 | 70 | 70 | 70 | 70 |
| F | FORK RAKE | 44 | 44 | 44 | 44 | 44 | 44 |
| G | TRAIL | 87.1 | 87.1 | 87.1 | 87.1 | 87.1 | 87.1 |
| H | WHEEL BASE | 728 | 754 | 779 | 728 | 754 | 779 |
| I | CHAIN STAY LENGTH | 470 | 470 | 470 | 470 | 470 | 470 |
| J | BOTTOM BRACKET DROP | 60 | 60 | 60 | 60 | 60 | 60 |
| K | STACK | 622 | 641 | 660 | 622 | 641 | 660 |
| L | REACH | 356 | 374 | 393 | 356 | 374 | 393 |
| M | STAND OVER HEIGHT | 515 | 515 | 515 | 515 | 515 | 515 |
| N | HANDLERBAR WIDTH | 690 | 690 | 690 | 690 | 690 | 690 |
| O | STEM LENGTH | 90 | 90 | 110 | 90 | 90 | 110 |
| P | CRANK LENGTH DEC | 170 | 170 | 170 | 170 | 170 | 170 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C | 700C |
