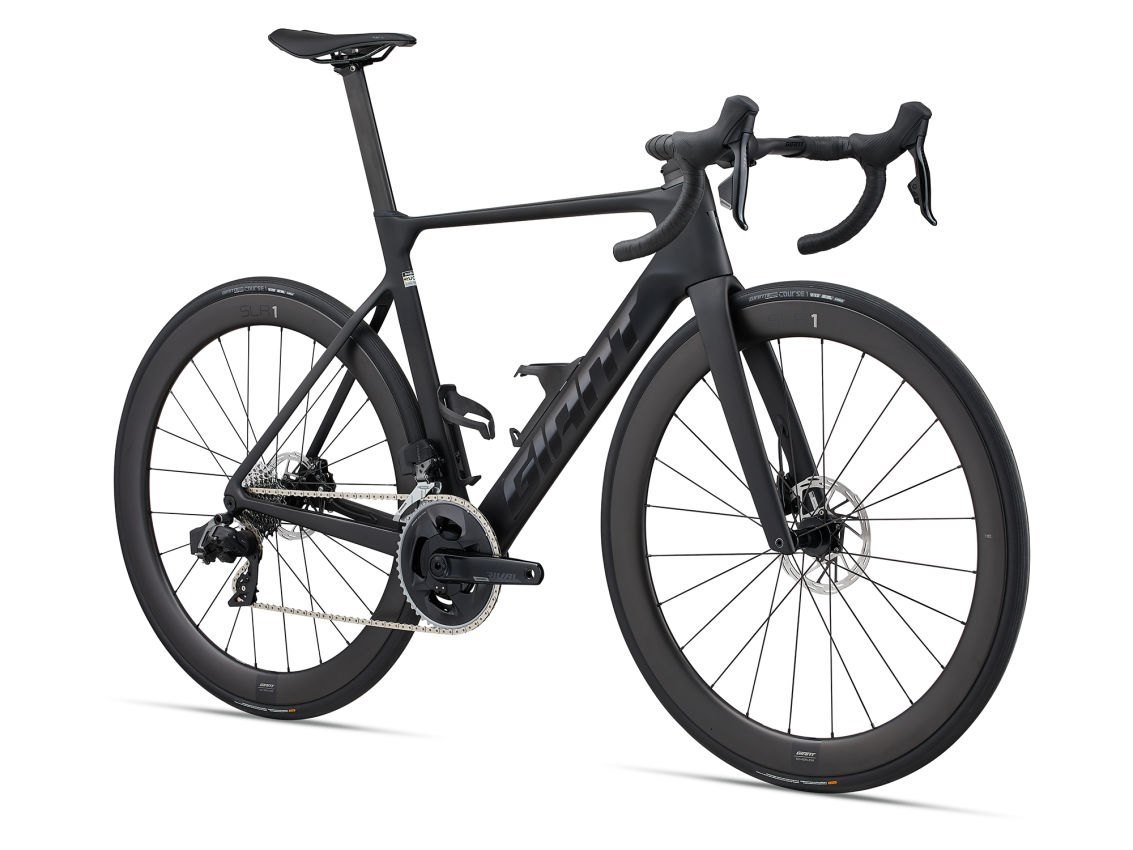

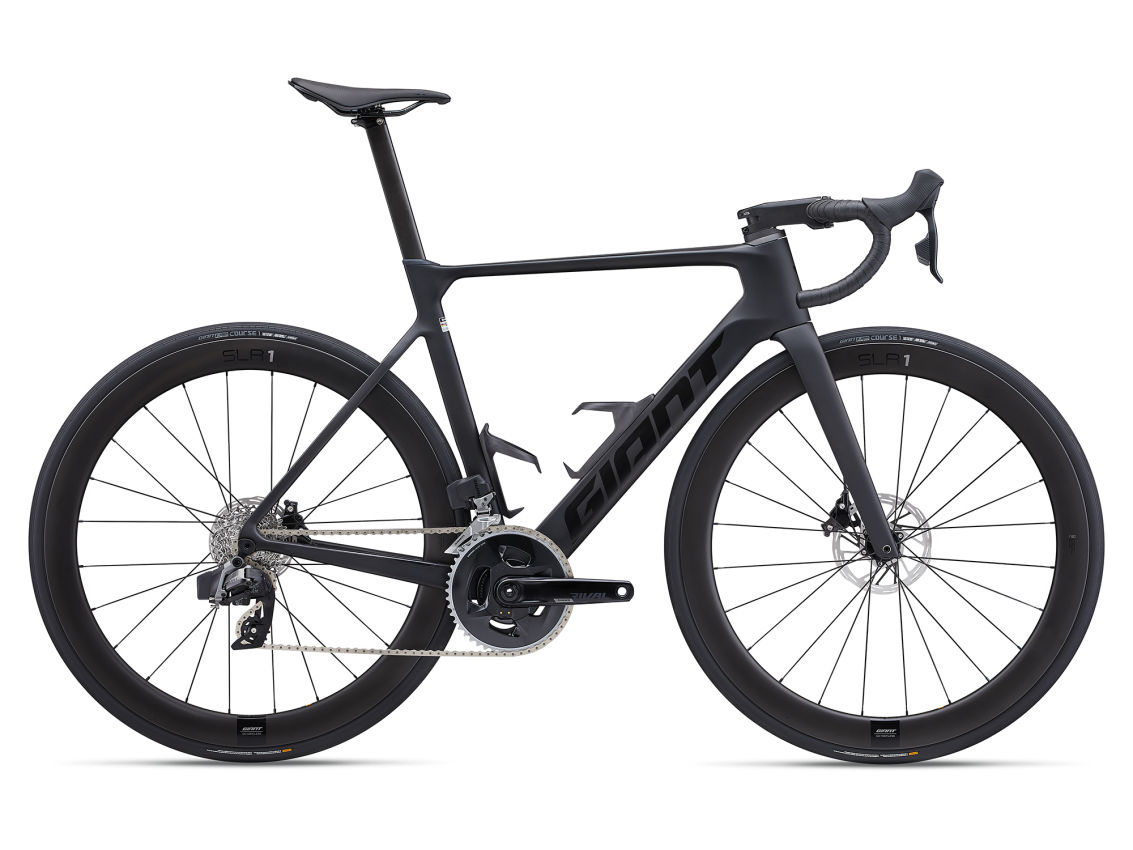

Propel Advanced Pro 1 (2024) | bike

6,299.00

Features:

Clear
SKU: N/A Categories: , ,

Additional information

Colour

Size

, , , ,

Specifications

This aero rocketship is built for speed when it matters most. It’s lighter than the previous generation and engineered to slice through wind. The result? Race-winning efficiency that puts you ahead of the pack.

Key Performance Factors

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.

Easier adjustability

All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency

Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s lighter than the previous generation for an even greater stiffness-to-weight ratio.

Sizes S, M, M/L, L, XL
Colours Matte Carbon/Gloss Black
Frame Advanced-grade composite, disc
Fork Advanced SL-grade composite, full-composite OverDrive Aero steerer, disc
Shock N/A
Handlebar Giant Contact SL Aero S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips Stratus Lite 2.0
Stem Giant Contact SL Aero S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost Giant Vector, composite, -5/+15mm offset
Saddle Giant Fleet SL
Pedals PEDALS NOT SUPPLIED
Shifters SRAM Rival eTap AXS 2×12
Front Derailleur SRAM Rival eTap AXS
Rear Derailleur SRAM Rival eTap AXS
Brakes SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
Brake Levers SRAM Rival eTap AXS hydraulic
Cassette SRAM Rival, 12-speed, 10×30
Chain SRAM Rival D1
Crankset SRAM Rival D1 DUB, 35/48 with Giant Power Halo power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket SRAM DUB, press fit
Rims Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
Hubs [F] Giant Low Friction Hub, CenterLock, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Spokes SAPIM CX-Ray
Tyres Giant Gavia Course 1, tubeless,700x25c (28mm), folding
Extras computer mount, water bottle cages, factory tubeless set up, 30mm max tyre size

Geometry

    S XL ML M L
A SEAT TUBE LENGTH 500 595 545 520 575
B SEAT TUBE ANGLE 74 72.5 73 73.5 73
C TOP TUBE LENGTH 535 600 565 550 580
D HEAD TUBE LENGTH 130 200 165 145 185
E HEAD TUBE ANGLE 72.3 73 73 73 73
F FORK RAKE 45 45 45 45 45
G TRAIL 62.5 57.8 57.8 57.8 57.8
H WHEEL BASE 977 1020 991 980 1006
I CHAIN STAY LENGTH 405 405 405 405 405
J BOTTOM BRACKET DROP 70 67 67 70 67
K STACK 528 596 562 545 581
L REACH 383 412 393 388 402
M STAND OVER HEIGHT 753 834 794 770 821
N HANDLERBAR WIDTH 400 440 420 420 440
O STEM LENGTH 90 120 110 100 110
P CRANK LENGTH DEC 170 175 172.5 172.5 175
Q WHEEL SIZE ALT 700C 700C 700C 700C 700C
