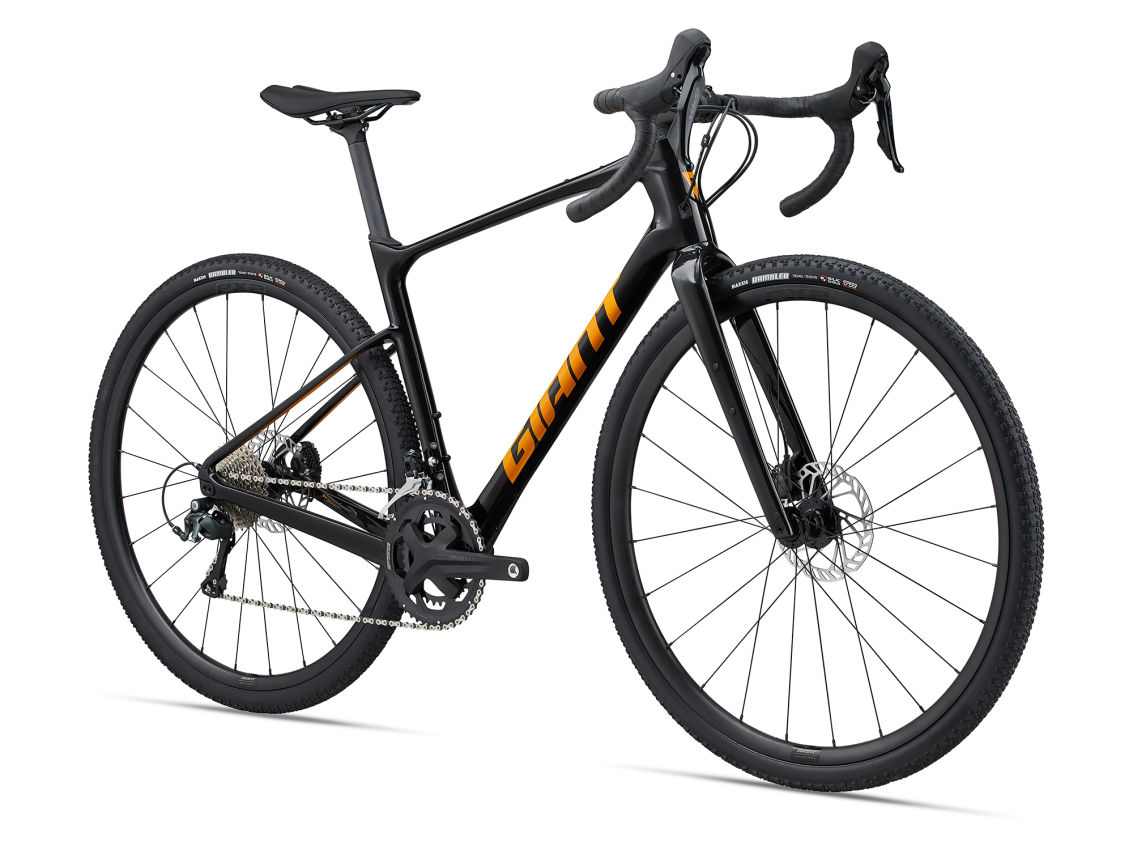

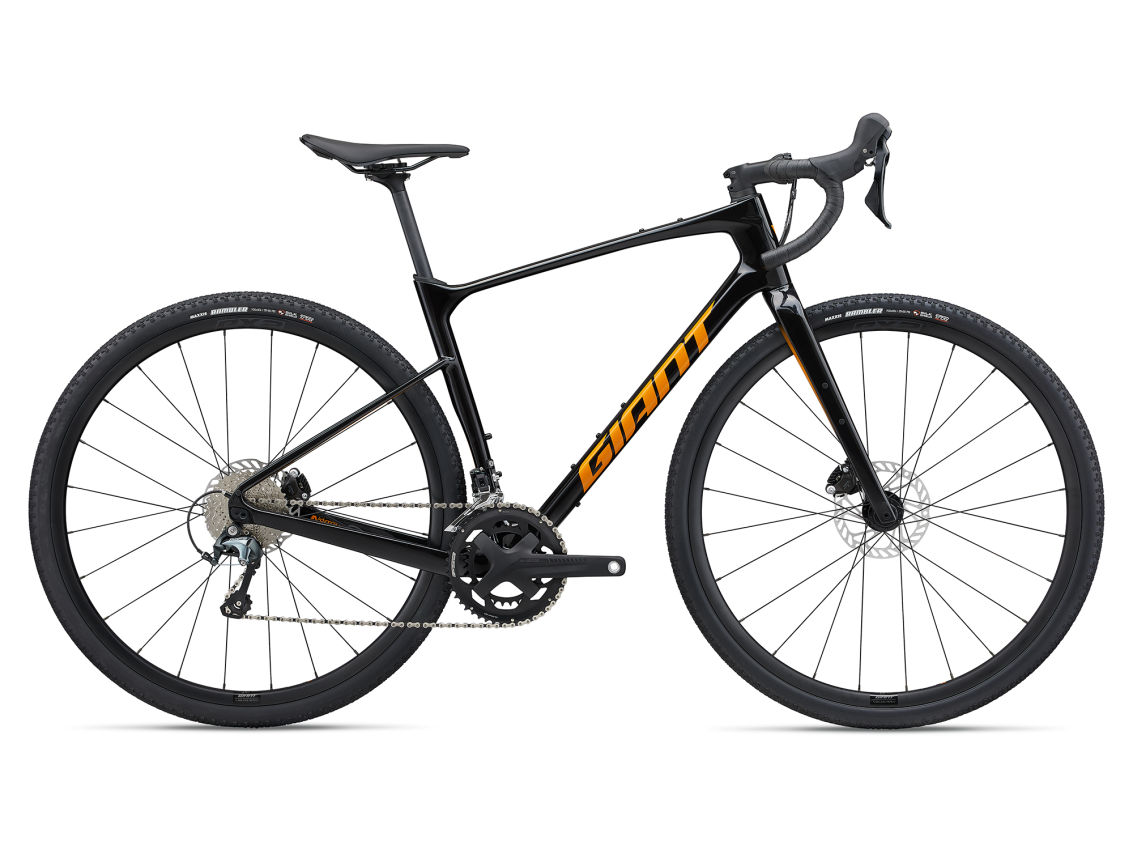

Revolt Advanced 3 (2024) | bike
€2,749.00
Features:
Specifications
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Key Performance Factors
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm.
| Sizes | S, M, M/L, L, XL |
|---|---|
| Colours | Gloss Metallic Black |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, composite, 14mm offset |
| Saddle | Giant Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano GRX RX-400, 2×10 |
| Front Derailleur | Shimano GRX-RX400 |
| Rear Derailleur | Shimano Tiagra |
| Brakes | Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano GRX RX-400 hydraulic |
| Cassette | Shimano Tiagra, 11×34 |
| Chain | KMC X10-1 |
| Crankset | FSA Omega, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-X2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Maxxis Rambler, 700x40c, tubeless |
| Extras | Factory tubeless set up, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position |
| Max Chainring Size | SRAM Wide 2x 43-30, 1x 46T. Shimano GRX 2x 48-31, 1x 42T |
Geometry
| L | S | XL | M | ML | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 510 | 450 | 530 | 470 | 490 |
| B | SEAT TUBE ANGLE | 73 | 73.5 | 73 | 73.5 | 73 |
| C | TOP TUBE LENGTH | 585 | 550 | 600 | 560 | 575 |
| D | HEAD TUBE LENGTH | 180 | 135 | 195 | 150 | 165 |
| E | HEAD TUBE ANGLE | 72 | 71 | 72 | 71.5 | 72 |
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL | 65 | 72 | 65 | 68 | 65 |
| H | WHEEL BASE | 1041 | 1020 | 1056 | 1026 | 1031 |
| I | CHAIN STAY LENGTH | 425 | 425 | 425 | 425 | 425 |
| J | BOTTOM BRACKET DROP | 80 | 80 | 80 | 80 | 80 |
| K | STACK | 616 | 570 | 630 | 586 | 602 |
| L | REACH | 397 | 381 | 407 | 387 | 391 |
| M | STAND OVER HEIGHT | 791 | 740 | 807 | 757 | 774 |
| N | HANDLERBAR WIDTH | 460 | 420 | 460 | 440 | 440 |
| O | STEM LENGTH | 80 | 60 | 90 | 70 | 80 |
| P | CRANK LENGTH DEC | 175 | 170 | 175 | 172.5 | 172.5 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C |
