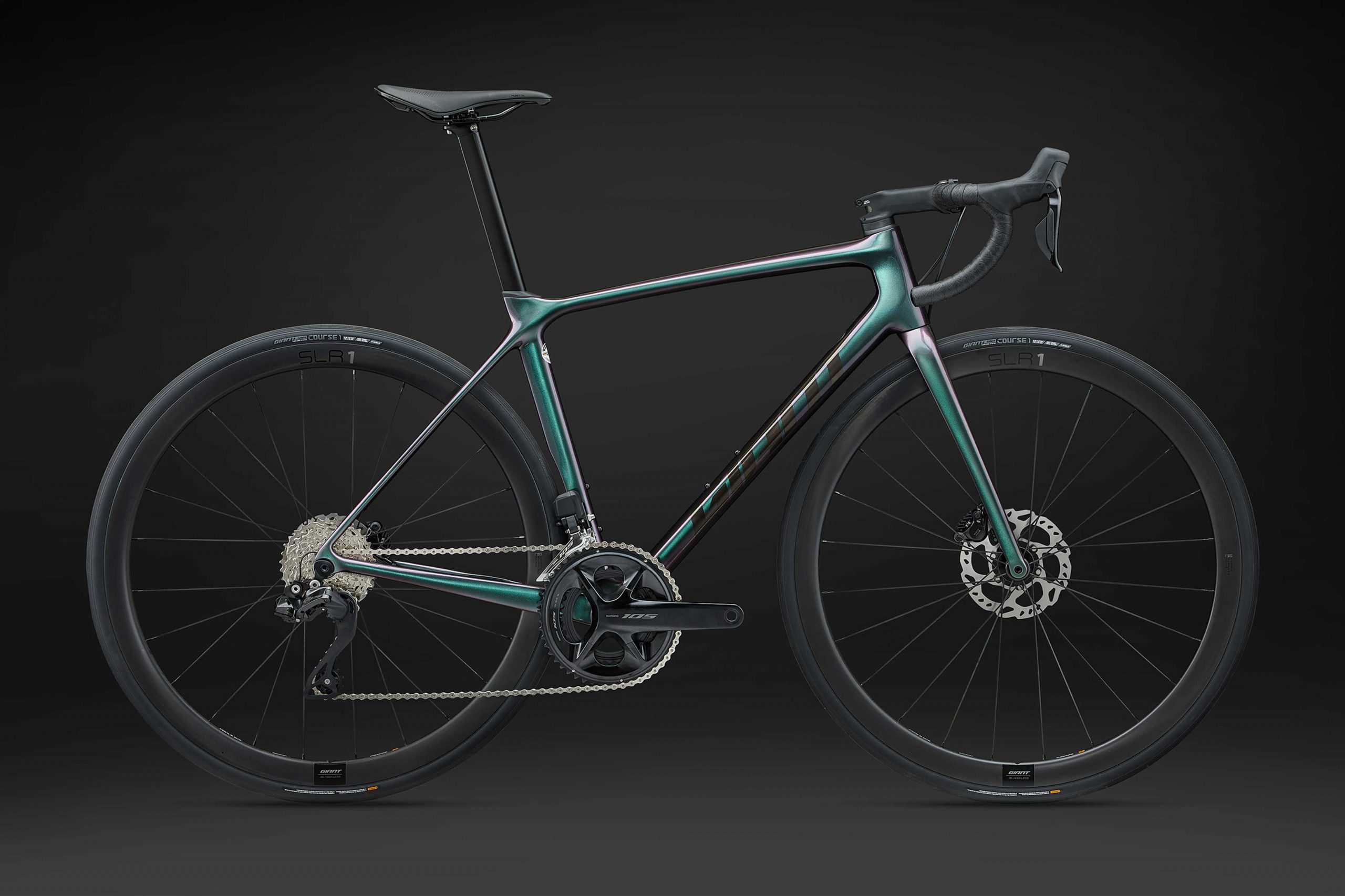

TCR Advanced Pro Disc 1 Di2 (2024) | bike

5,299.00

Features:

Clear
SKU: N/A Categories: , ,

Additional information

Colour

Size

, , , ,

Specifications

Climb, corner and descend with greater speed, more control and maximum efficiency. From the mountains to the flats, in all conditions, this lightweight composite road racer takes you to the next level.

Key Performance Factors

Class-leading efficiency

Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mount brakes and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance al

Sizes S, M, M/L, L, XL
Colours Gloss Dark Iridescent/Chrome

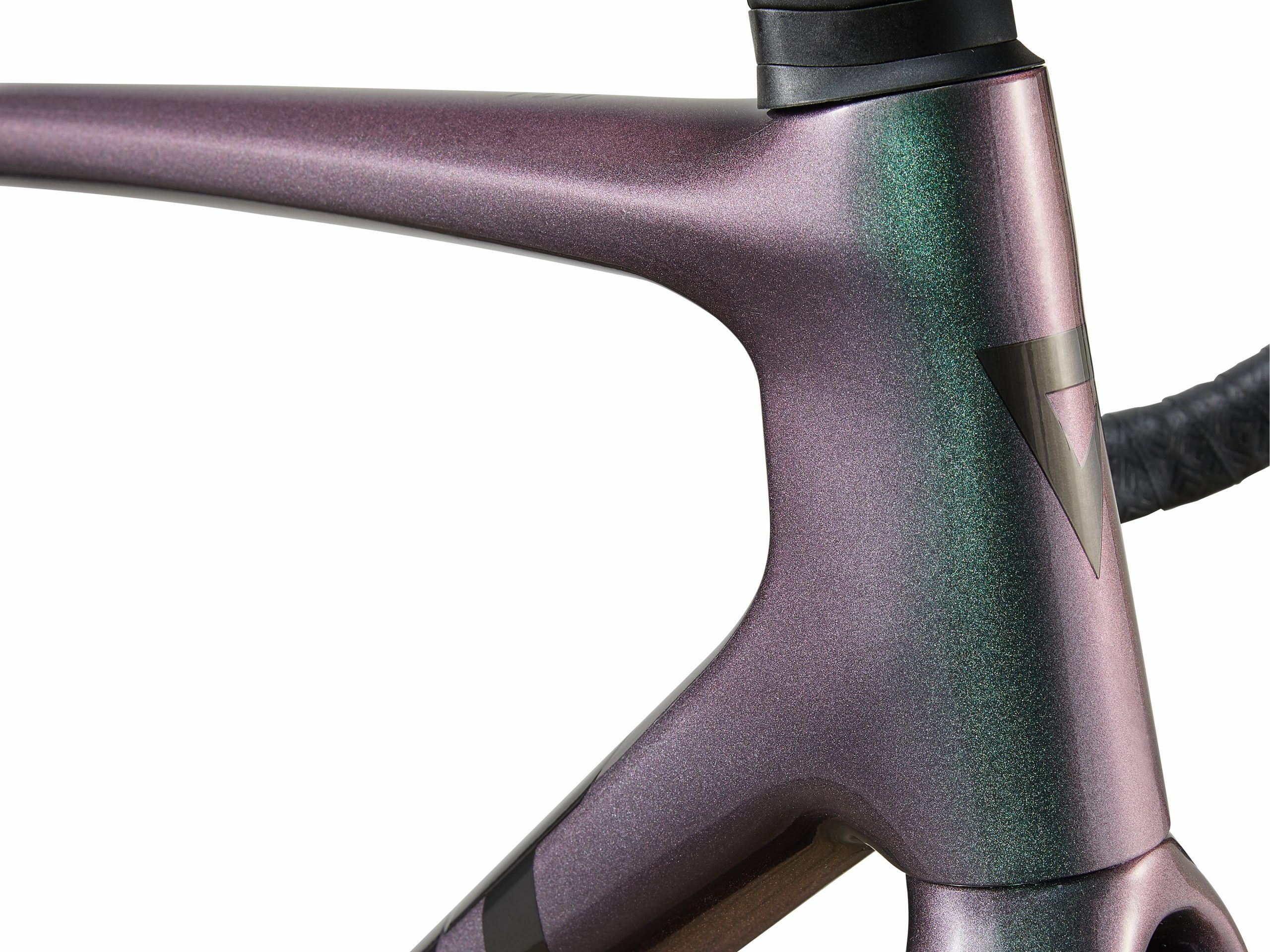

Frame Advanced-grade composite, disc
Fork Advanced-grade composite, full-composite OverDrive 2 steerer, disc
Shock N/A
Handlebar Giant Contact SL S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips Stratus Lite 2.0
Stem Giant Contact SL S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost Giant Variant, composite, -5/+15mm offset
Saddle Giant Fleet SL
Pedals PEDALS NOT SUPPLIED
Shifters Shimano 105 Di2 2×12
Front Derailleur Shimano 105 Di2
Rear Derailleur Shimano 105 Di2
Brakes Shimano 105 Di2 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
Brake Levers Shimano 105 Di2
Cassette Shimano 105, 36/52 with Giant Power Pro power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Chain KMC X12
Crankset Shimano 105 with Power Pro power meter, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket Shimano, press fit
Rims Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Spokes Sapim CX-Ray
Tyres Giant Gavia Course 1, tubeless, 700x25c (28mm), folding
Extras computer mount, factory tubeless set up, 32mm max tyre size

Geometry

    S L XL M ML
A SEAT TUBE LENGTH 445 530 560 470 500
B SEAT TUBE ANGLE 74 73 72.5 73.5 73
C TOP TUBE LENGTH 535 580 600 550 565
D HEAD TUBE LENGTH 130 185 200 145 165
E HEAD TUBE ANGLE 72.3 73 73 73 73
F FORK RAKE 45 45 45 45 45
G TRAIL 64 59.2 59.2 59.2 59.2
H WHEEL BASE 977 1006 1020 980 991
I CHAIN STAY LENGTH 405 405 405 405 405
J BOTTOM BRACKET DROP 70 67 67 70 67
K STACK 528 581 596 545 562
L REACH 383 402 412 388 393
M STAND OVER HEIGHT 725 800 816 747 773
N HANDLERBAR WIDTH 400 440 440 420 420
O STEM LENGTH 90 110 120 100 110
P CRANK LENGTH DEC 170 175 175 172.5 172.5
Q WHEEL SIZE ALT 700C 700C 700C 700C 700C
