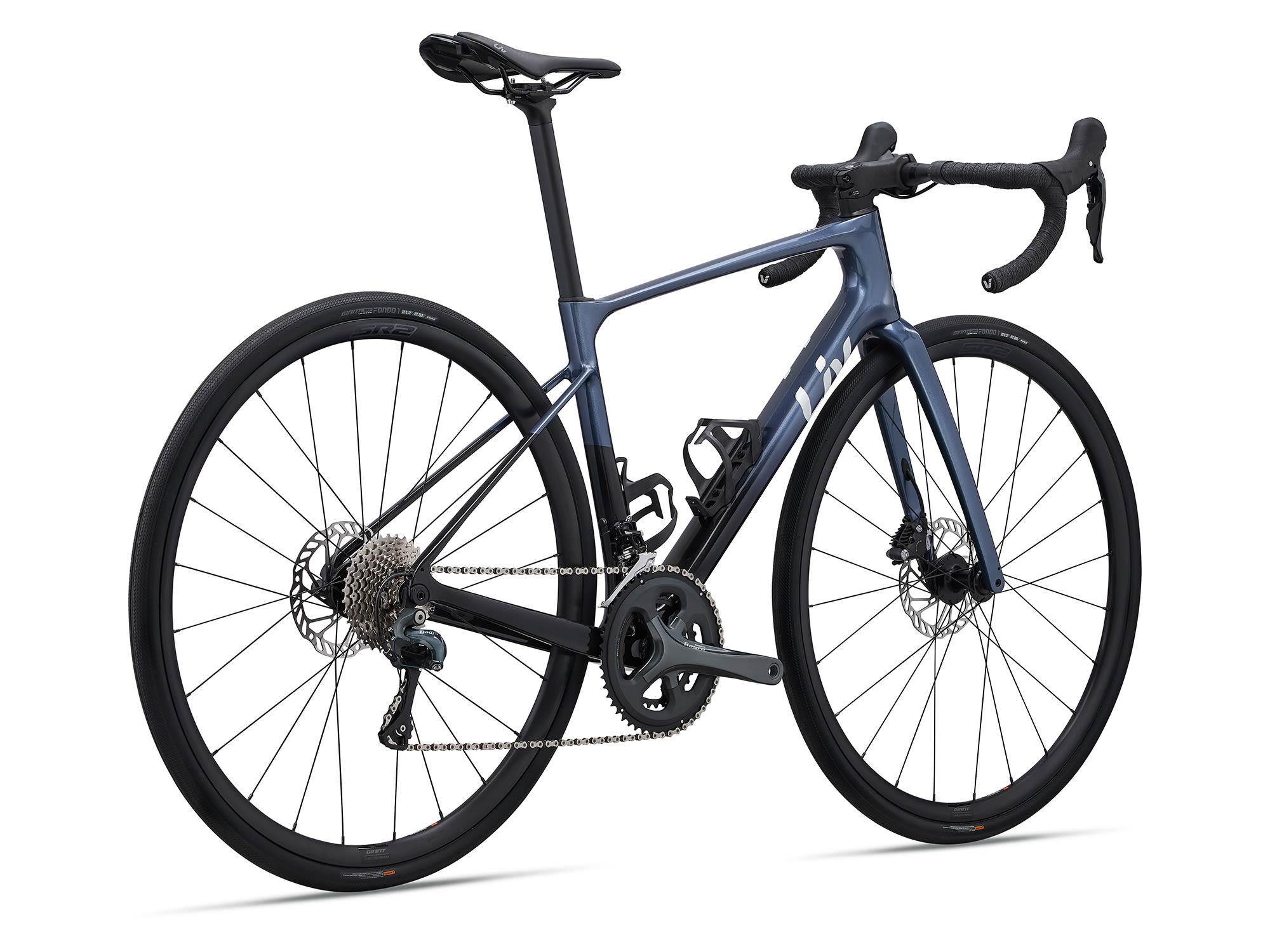

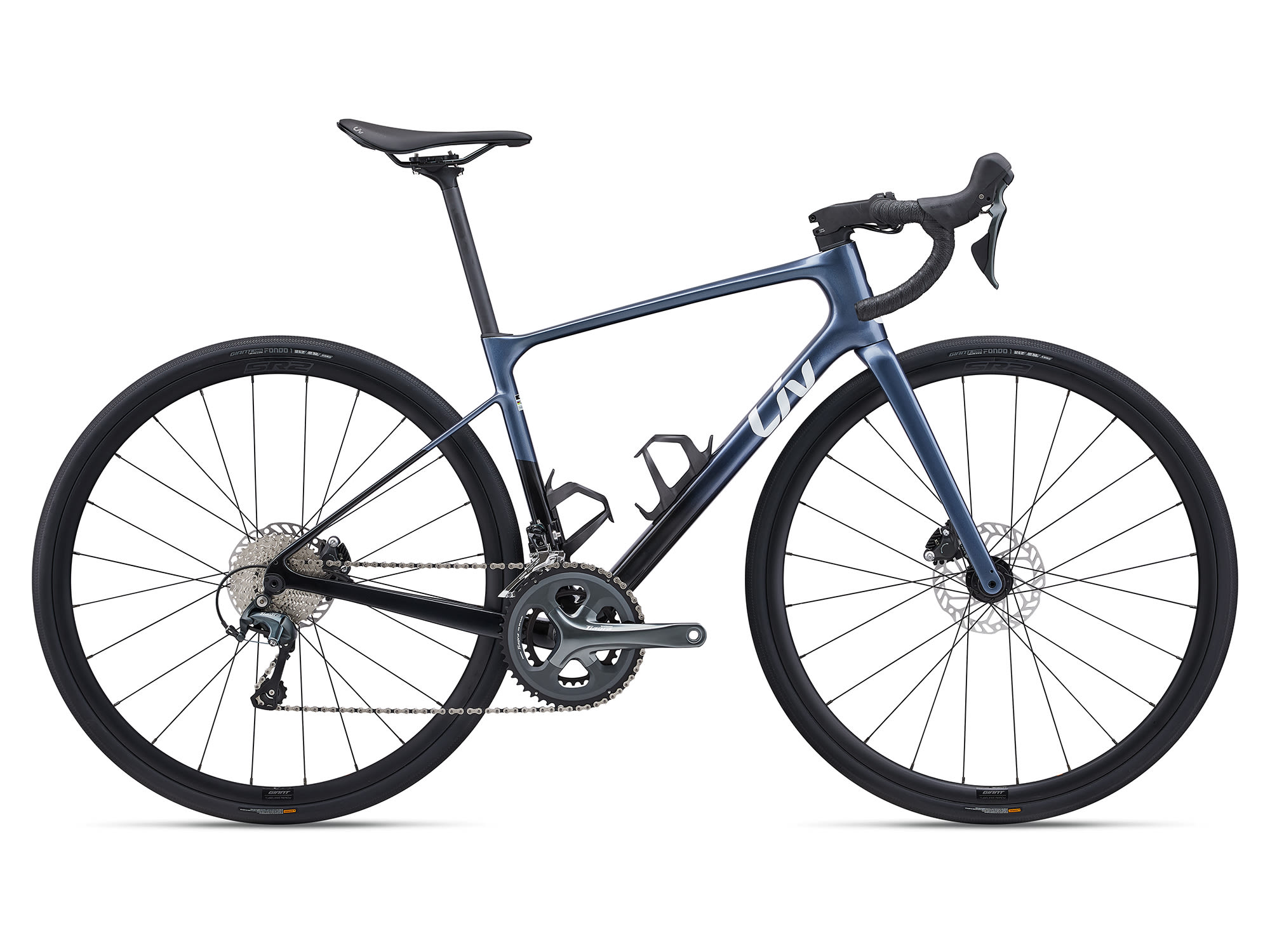

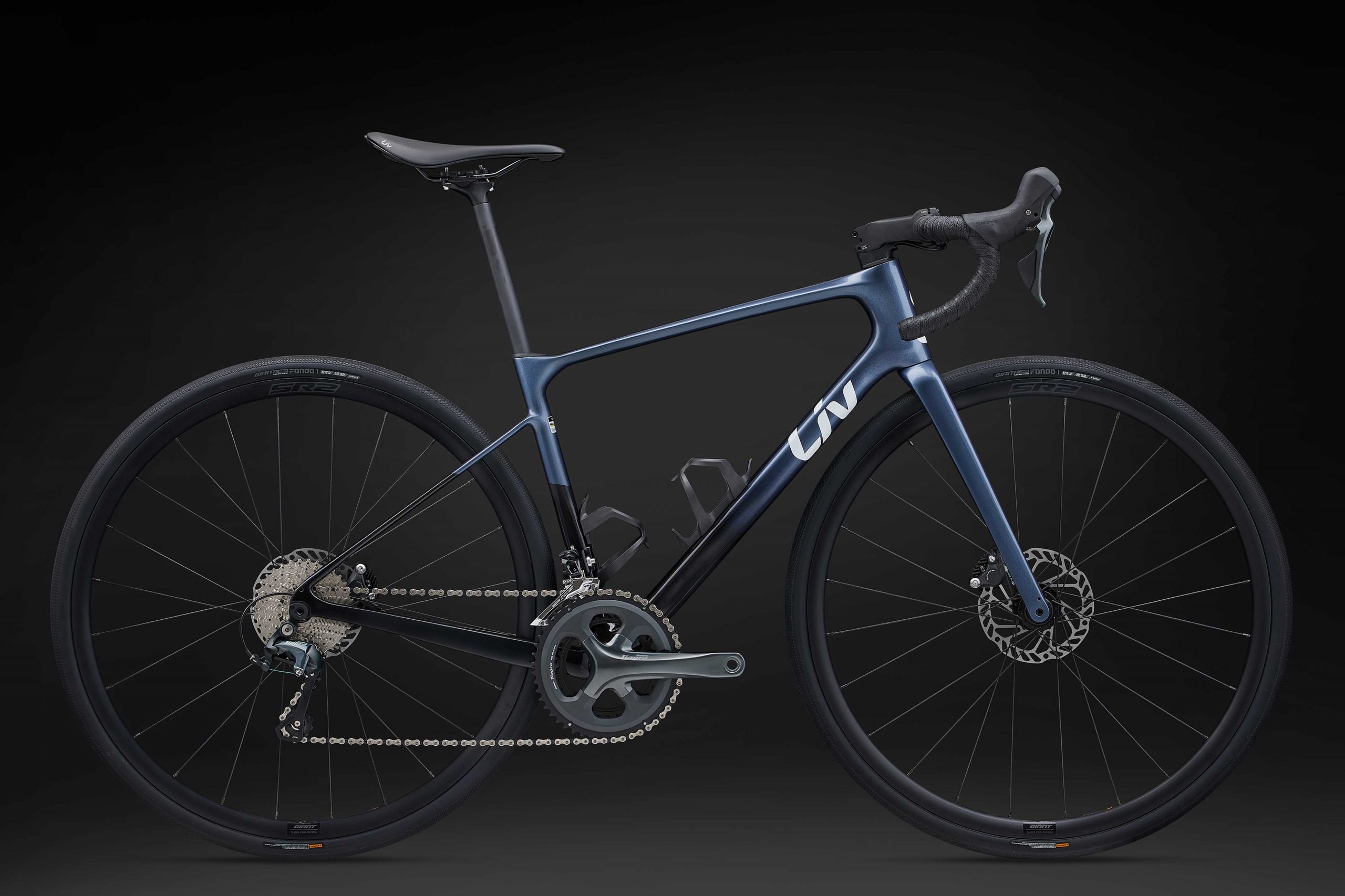

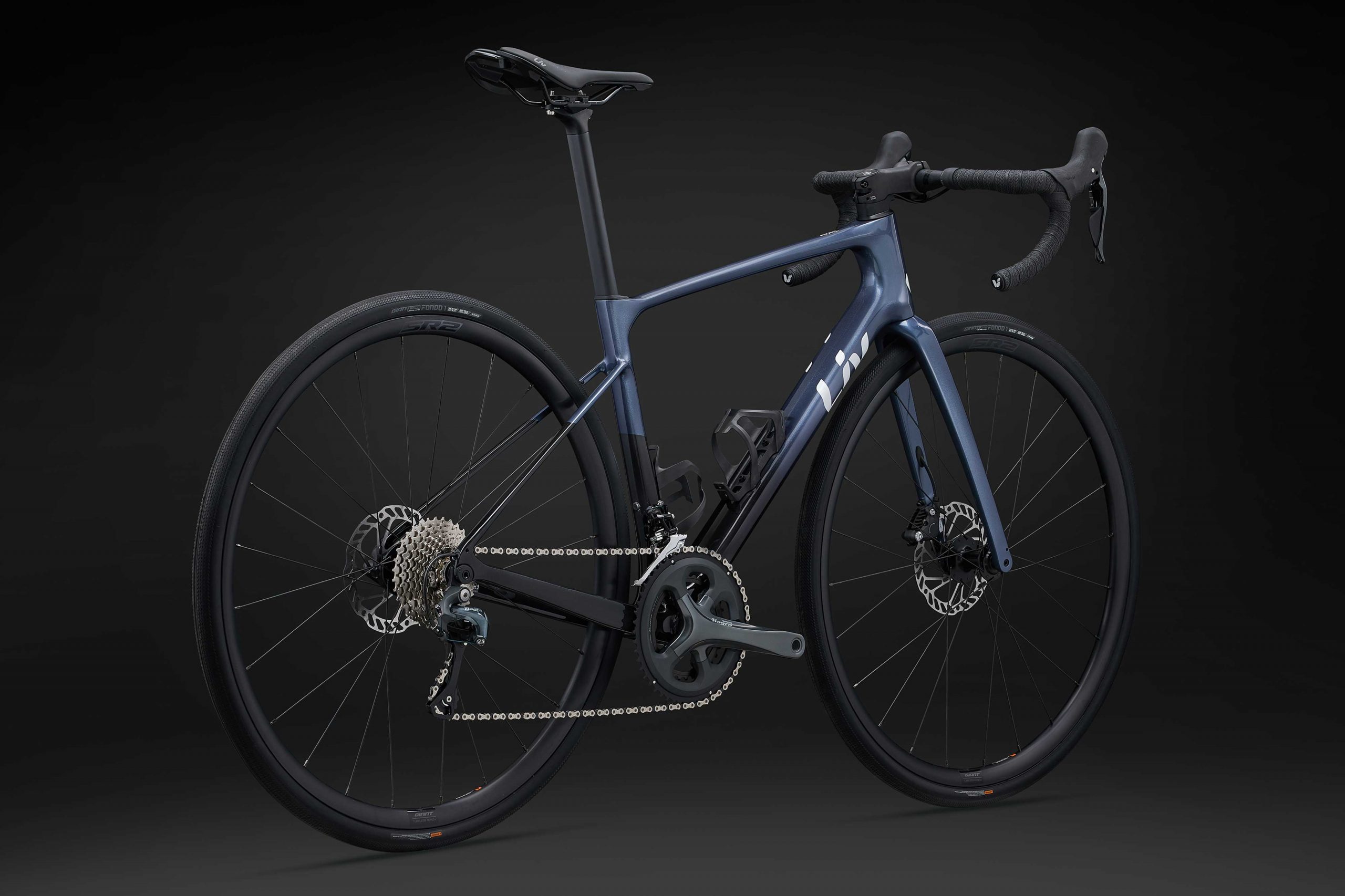

Avail Advanced 3 (2024) | Women bike
€2,599.00
Features:
Specifications
The Avail Advanced is that riding buddy who’s up for any adventure on the road—from solo backroad explorations to after-work shop rides to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Key Performance Factors
Lightweight Advantage
The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Maximum Control
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.
| Sizes | XS, S, M |
|---|---|
| Colours | Ice Age/Carbon |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc |

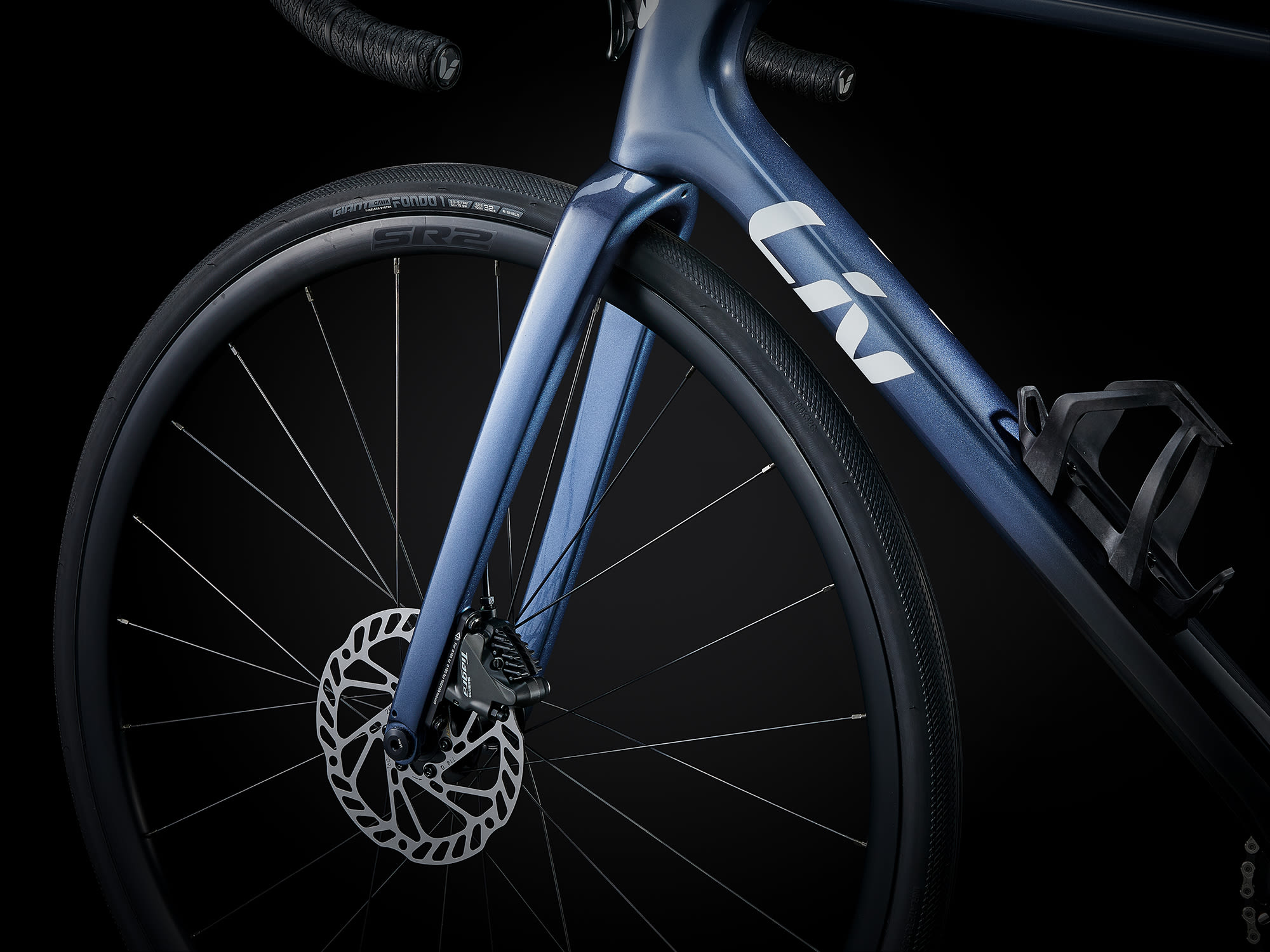

| Fork | Advanced-grade composite, full-composite OverDrive steerer, stainless steel bearings 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Contact SL D-Fuse, 31.8mm, 8-degree flare drop XS: 410/380mm, S: 430/400mm, M: 430/400mm |
| Grips | Liv All Condition |
| Stem | Giant Contact AeroLight XS: 70mm, S: 80mm, M: 90mm |
| Seatpost | Giant D-Fuse, composite, -5/+15mm offset XS: 350mm, S: 350mm, M: 350mm |
| Saddle | Liv Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano Tiagra ST-4725 2×10 |
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano Tiagra |
| Brakes | Shimano Tiagra hydraulic, Giant rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano Tiagra |
| Cassette | Shimano Tiagra, 10-speed, 11×34 |
| Chain | KMC X10 |

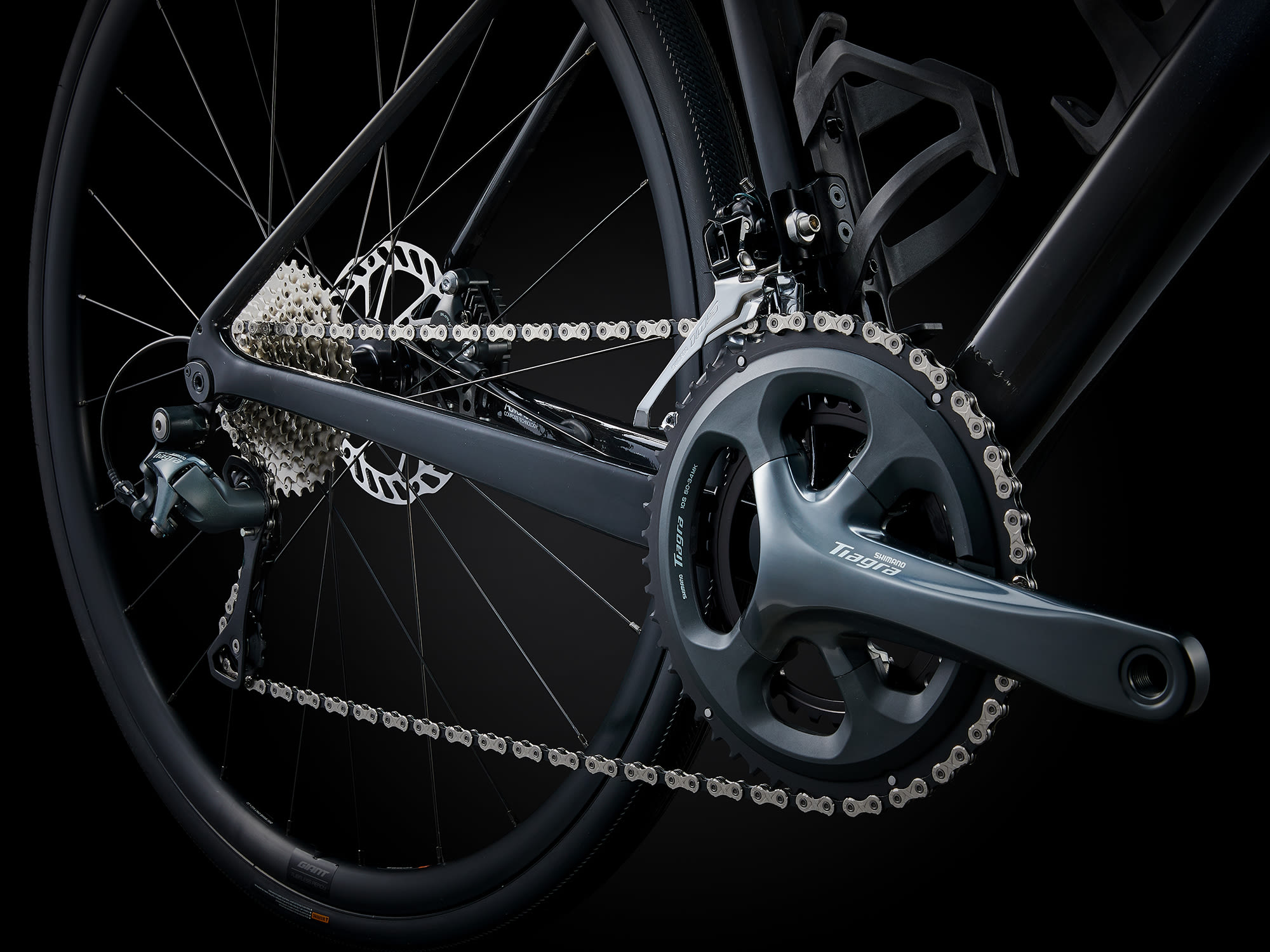

| Crankset | Shimano Tiagra, 34/50, XS: 165mm, S: 170mm, M: 170mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant S-R2 Disc wheelset |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | stainless |
| Tyres | Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding |

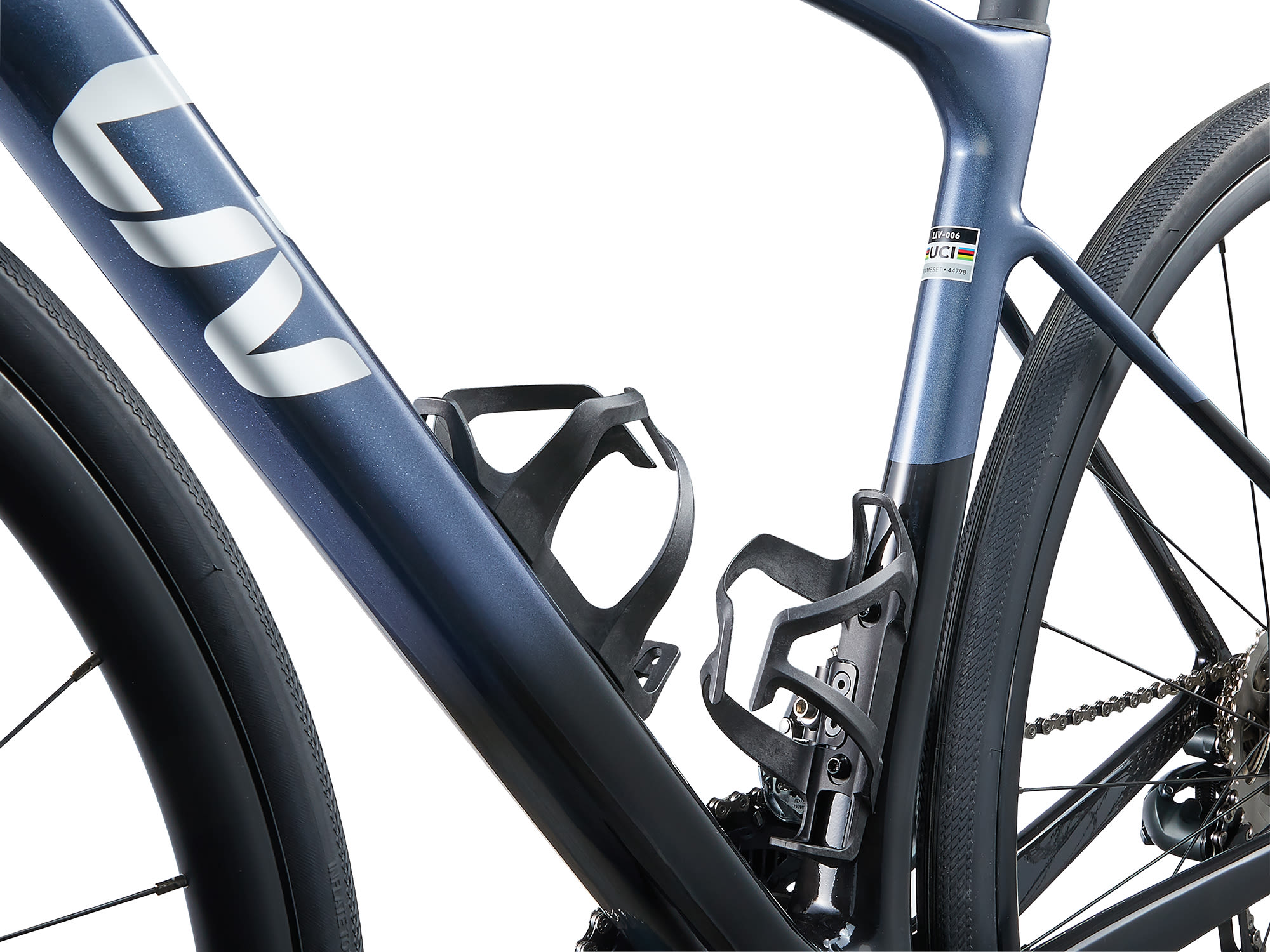

| Extras | Factory tubeless set up, two bottle cages, 38mm max tyre size, fender mount |
Geometry
| M | XS | S | ||
|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 465 | 405 | 435 |
| B | SEAT TUBE ANGLE | 74 | 74.5 | 74.5 |
| C | TOP TUBE LENGTH | 535 | 520 | 525 |
| D | HEAD TUBE LENGTH | 165 | 125 | 145 |
| E | HEAD TUBE ANGLE | 71 | 71 | 71 |
| F | FORK RAKE | 50 | 50 | 50 |
| G | TRAIL | 68 | 68 | 68 |
| H | WHEEL BASE | 1007 | 995 | 1002 |
| I | CHAIN STAY LENGTH | 420 | 420 | 420 |
| J | BOTTOM BRACKET DROP | 73 | 75 | 73 |
| K | STACK | 566 | 528 | 547 |
| L | REACH | 373 | 373 | 373 |
| M | STAND OVER HEIGHT | 762 | 712 | 737 |
| N | HANDLERBAR WIDTH | 400 | 380 | 400 |
| O | STEM LENGTH | 90 | 70 | 80 |
| P | CRANK LENGTH DEC | 170 | 165 | 170 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C |
