When the off-road bug bites, you’ll want a bike that won’t let you down. That’s why, for the Aim EX, we selected Shimano’s easy-to-use and superbly reliable 2×10 gears. Paired with the bump-swallowing ability of a 100mm suspension fork – with remote lockout – and tenaciously grippy 2.25in tyres, it’s your guarantee of always having the right gear for any eventuality at your fingertips. Strong hydraulic disc brakes, our versatile SizeSplit system and a dropper post-ready frame are the icing on the cake. Where will it take you next?

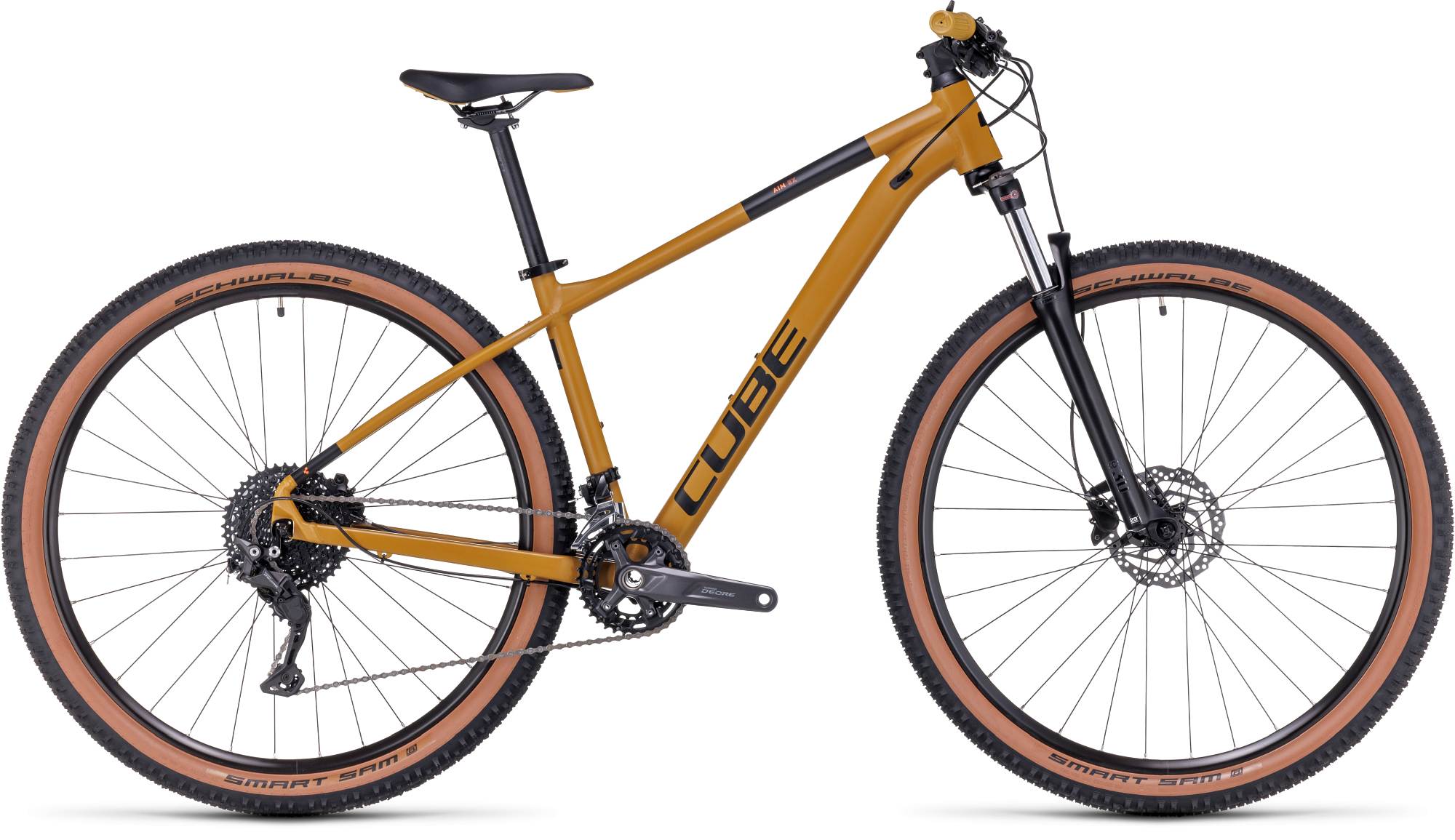

CUBE AIM EX CARAMEL/BLACK 2024
€799.00
Additional information
| Weight | 14.3 kg |
|---|---|
| color | caramel/black |
| size | L, M, S, XL, XS, XXL |
Specifications
| Sizes | L,M,S,XL,XS,XXL |
|---|---|
| Colours | caramel/black |
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | SR Suntour XCM Disc, 100mm, Remote Lockout |
| Shock | N/A |
| Handlebar | CUBE Rise Trail Bar, 680mm |
| Grips | ACID React |
| Stem | CUBE Performance Stem Race, 31.8mm |
| Seatpost | CUBE Performance Post, 27.2mm |
| Saddle | Natural Fit Venec Lite |
| Pedals | ACID PP MTB |
| Shifters | Shimano Deore SL-M5100, Rapidfire-Plus |
| Front Derailleur | Shimano Deore FD-M6025-H, Downswing, 31.8mm Clamp |
| Rear Derailleur | Shimano Deore RD-M5120-SGS, 10-Speed |
| Brakes | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Brake Levers | N/A |
| Cassette | Sunrace CSM52, 11-42T |
| Chain | KMC X10 |
| Crankset | Shimano Deore FC-M4100, 36X26T |
| Bottom Bracket | Samox BB-EB2401, 73mm BSA |
| Rims | CUBE ZX20, 32H, Disc |
| Hubs | Shimano HB-TX505, QR, Centerlock | Tyres | Schwalbe Smart Sam, Active, 2.25 |
| Shock hardware | N/A |
| Headset | CUBE FPH868, Semi-Integrated |
| Bar extensions | N/A |
| Handlebar tape | N/A |
| Number of gears | 10 | Rear hub | Shimano FH-TX505, QR, Centerlock |
| Seat post clamp | CUBE Varioclose, 31.8mm |
| Front light | N/A |
| Rear light | N/A |
| Kickstand | N/A |
| Mudguard | N/A |
| Chain protection | N/A |
| Bell | N/A |
| Carrier | N/A |
| Engine | N/A |
| Battery | N/A |
| Charger | N/A |
| Display | N/A |
| Integratedbar/stem | N/A |
| Chain guide | N/A |
| Integrated shifters/brakelevers | N/A |
| Crankset chainring sizes | 36x26T |
| Gear Teeth | N/A |
| Wheelset (system wheels) | N/A |
| Net weight (kg) | 14.3 |
