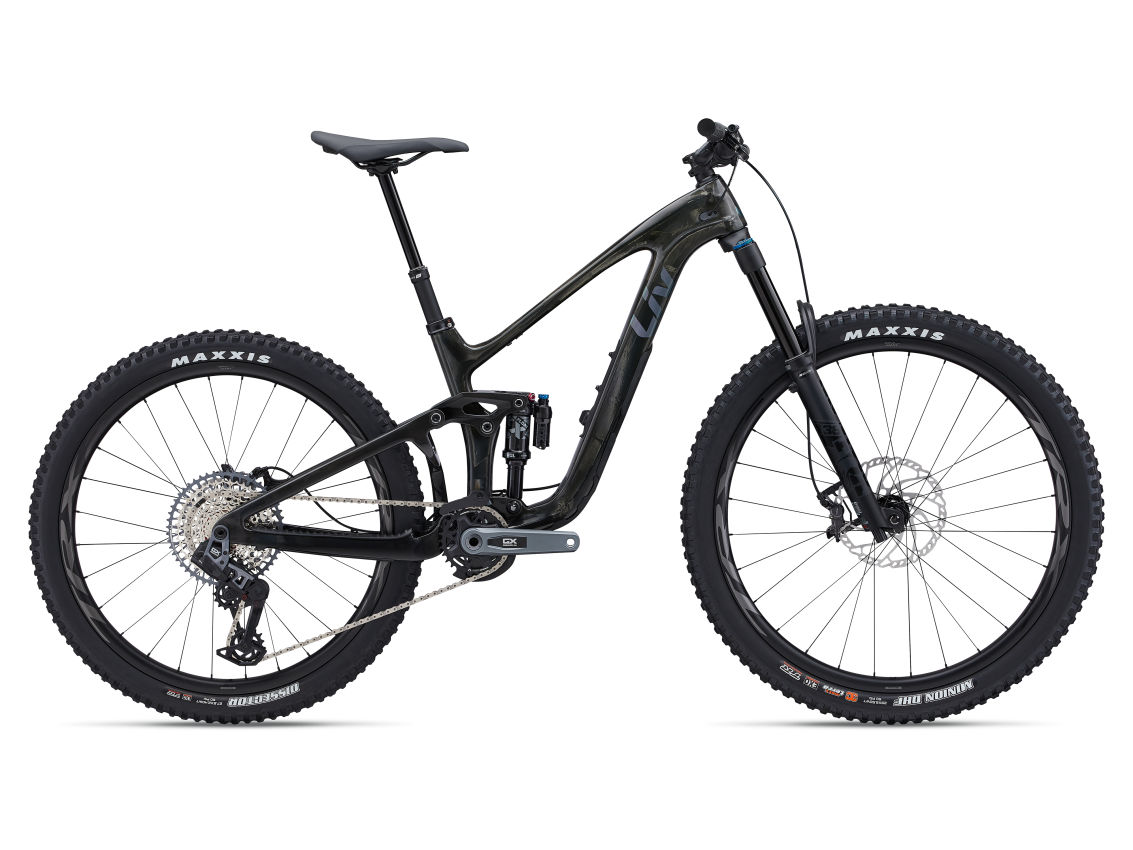

Intrigue LT Advanced 1 (2024) | Women bike
€6,899.00
Features:
Specifications
Whether you’re looking ahead to park days, backcountry singletrack adventures, or your next enduro race – the all-new Intrigue LT Advanced equips you with the versatility of adjustable frame geometry, the exceptional efficiency of Advanced-grade composite and the ultra-smooth performance of Maestro suspension so you can do what you do best – SHRED!
Key Performance Factors
Performance Long Travel Trail

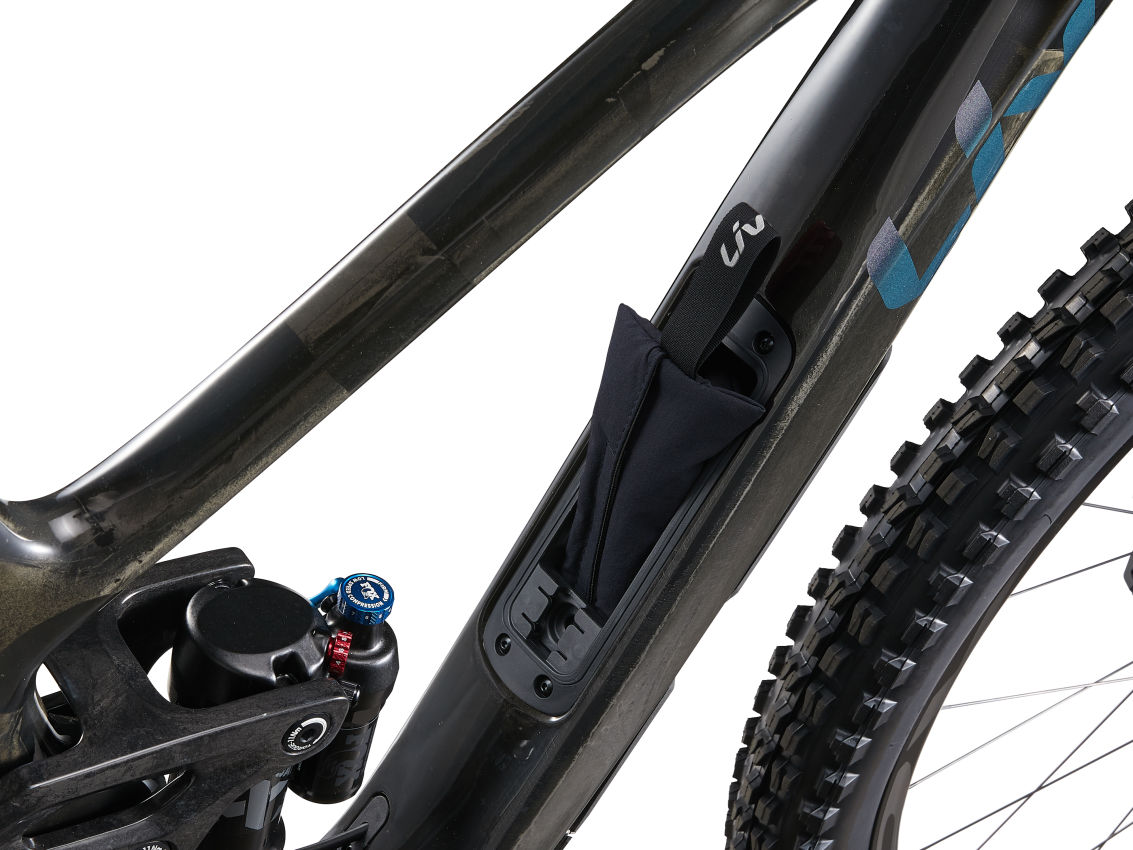

Lightweight Advanced-grade composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centered and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.
Adjustable Frame Geometry
All-new flip chip – Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
| Sizes | XS, S: MX only, M, L: 29″ F&R out of the box, MX compatible |
|---|---|
| Colours | Raw Carbon |

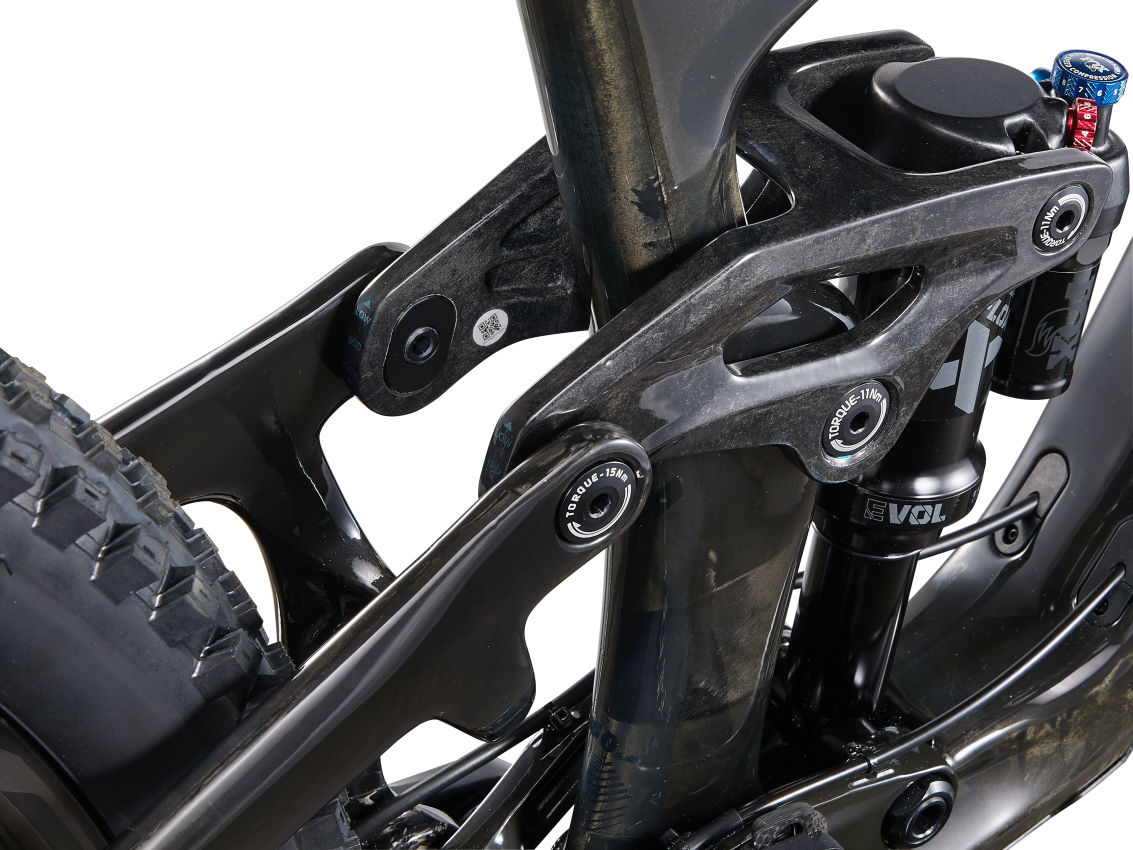

| Frame | Advanced-grade composite front and rear triangles, 150mm Maestro Suspension, 3 position flip, integrated down tube storage |
| Fork | Fox 36 Performance Elite, 160mm, Grip 2 damper, Boost 15×110 Kabolt, tapered, 44mm offset |

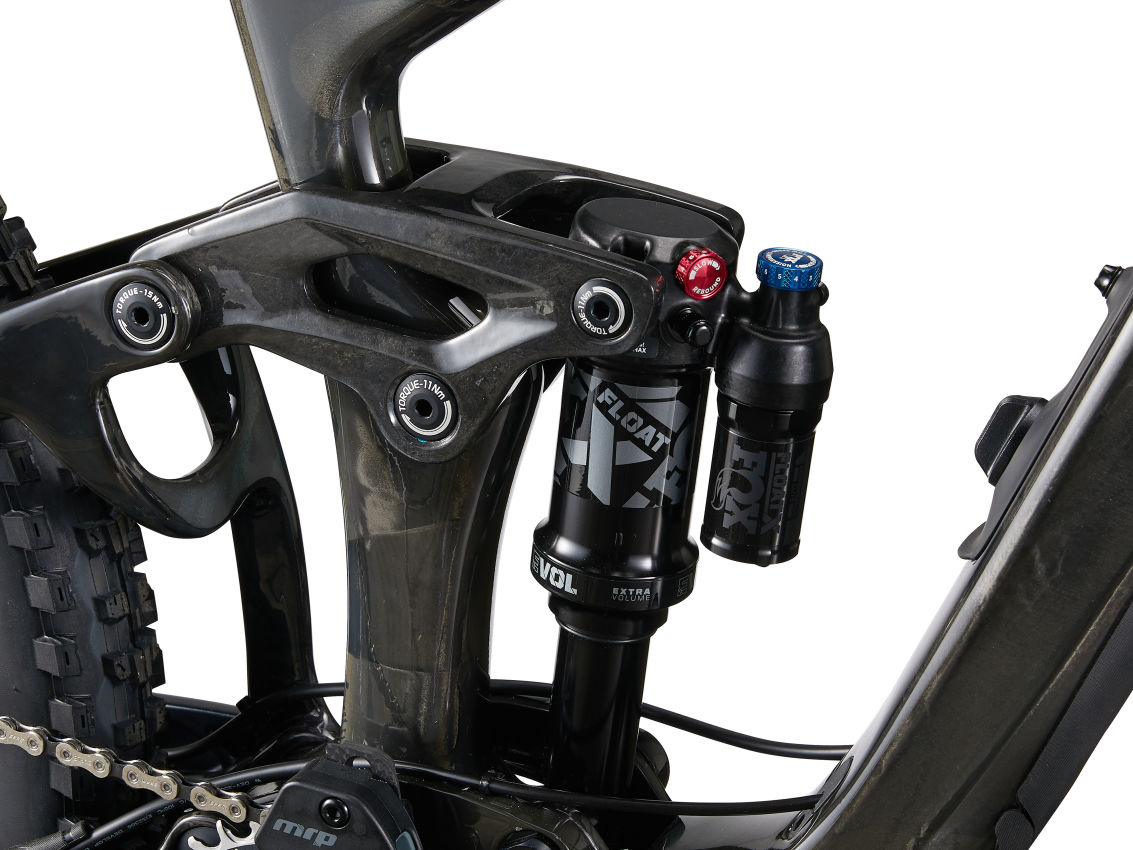

| Shock | Fox Float X Performance Elite 185×55, custom tuned for Liv |
| Handlebar | Giant Contact SLR TR35, composite, 20mm rise, 35mm |
| Grips | Liv Tactal Pro Single Lock-On |
| Stem | Giant Contact SL, 35mm |
| Seatpost | TranzX travel-adjustable dropper, remote XS&S: 120-150mm travel/ 30.9 x 459mm M&L: 140-170mm travel / 30.9 x 499mm |
| Saddle | Liv Sylvia |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | SRAM AXS, 1×12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM GX Eagle Transmission AXS |
| Brakes | Shimano XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Levers | Shimano XT BL-M8100 |
| Cassette | SRAM GX T-Type, 10×52 |
| Chain | SRAM GX T-Type |
| Crankset | SRAM GX T-Type, 30t, 55mm chainline |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tyres | [F]: Maxxis Minion DHF 29×2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5×2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29×2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | MRP chain guide, 3M tailgate protector, factory tubeless set up, integrated down tube storage bag, max tyre size 2.5″, max chainring size 32t |

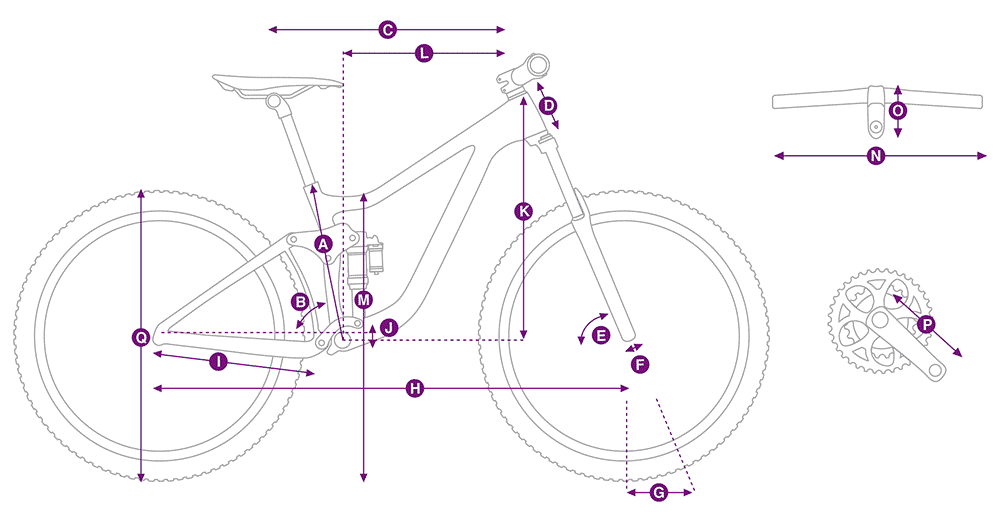

Geometry
| S | XS | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 390 | 370 | 420 | 450 |
| B | SEAT TUBE ANGLE | 76.2 | 76.2 | 77.3 | 77.3 |
| C | TOP TUBE LENGTH | 567 | 552 | 581 | 603 |
| D | HEAD TUBE LENGTH | 95 | 95 | 100 | 110 |
| E | HEAD TUBE ANGLE | 64.6 | 64.7 | 64.8 | 64.8 |
| F | FORK RAKE | 44 | 44 | 44 | 44 |
| G | TRAIL | 131.6 | 131 | 130.6 | 130.5 |
| H | WHEEL BASE | 1183 | 1166 | 1208 | 1232 |
| I | CHAIN STAY LENGTH | 443 | 443 | 443 | 443 |
| J | BOTTOM BRACKET DROP | 24 | 25 | 35 | 35 |
| K | STACK | 628 | 629 | 628 | 637 |
| L | REACH | 413 | 398 | 439 | 459 |
| M | STAND OVER HEIGHT | 674 | 613 | 712 | 750 |
| N | HANDLERBAR WIDTH | 760 | 760 | 760 | 780 |
| O | STEM LENGTH | 50 | 40 | 50 | 50 |
| P | CRANK LENGTH DEC | 170 | 165 | 170 | 170 |
| Q | WHEEL SIZE ALT | F 29 | R 27.5 | F 29 | R 27.5 | 29″ | 29″ |
