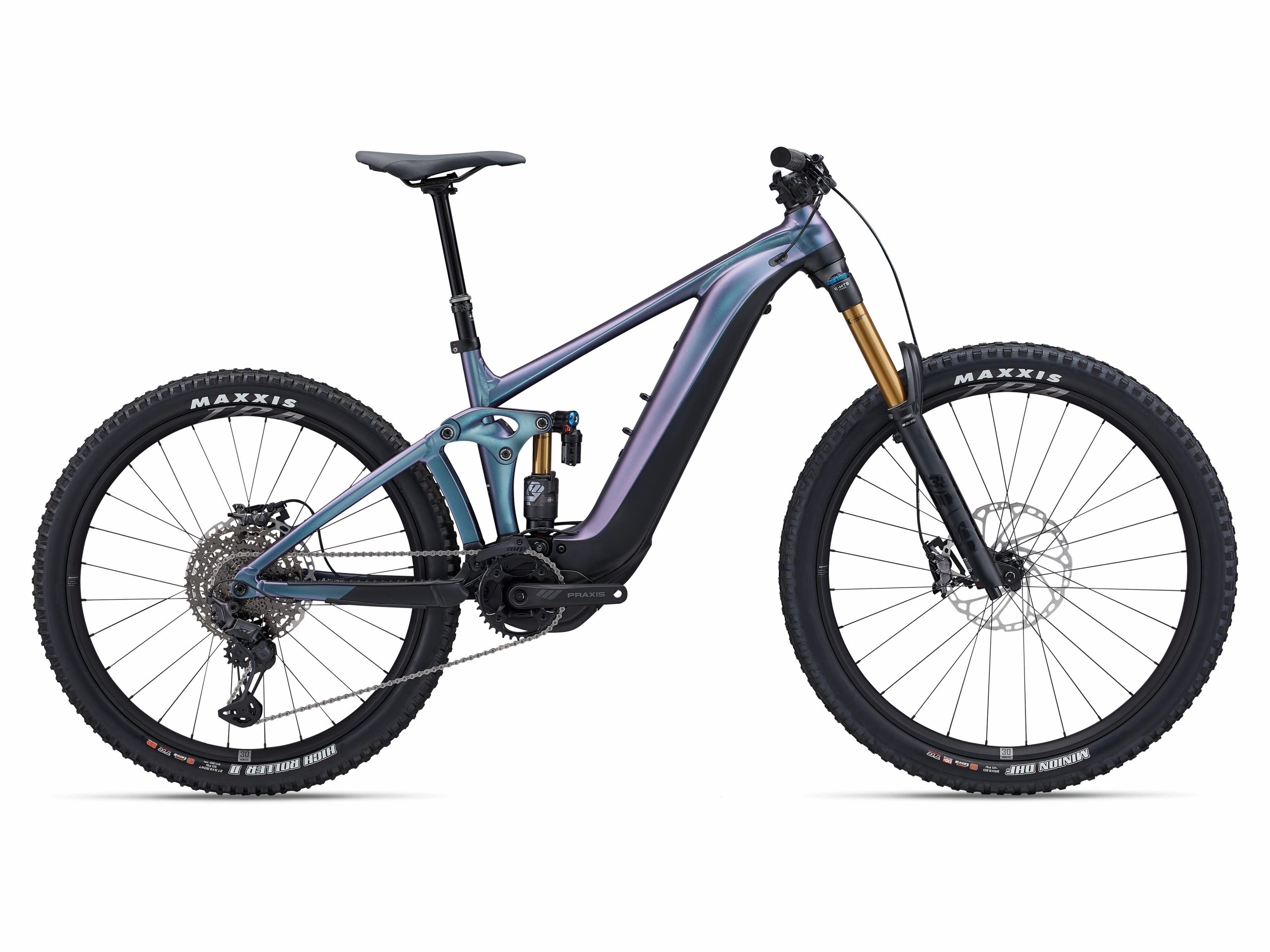

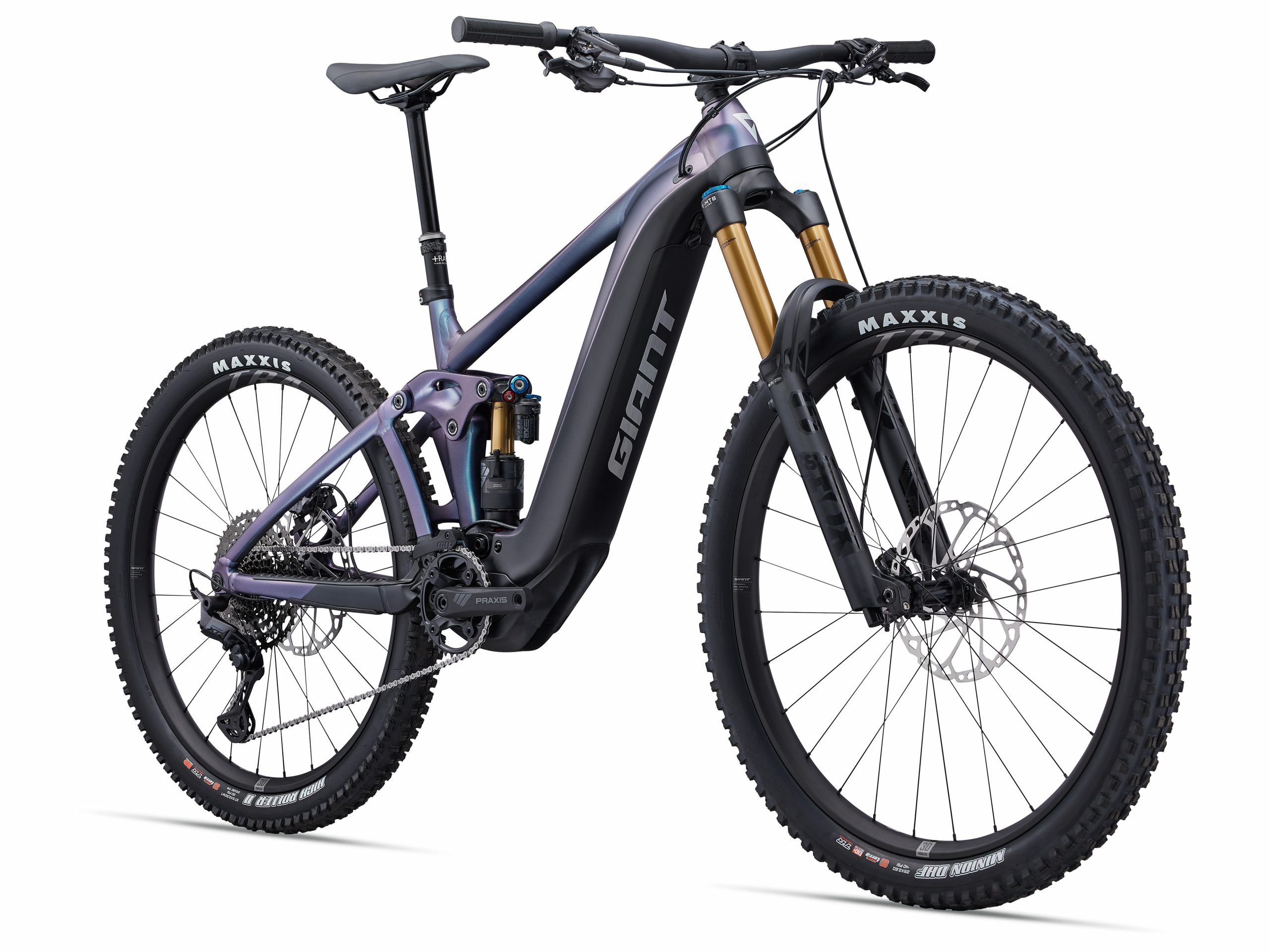

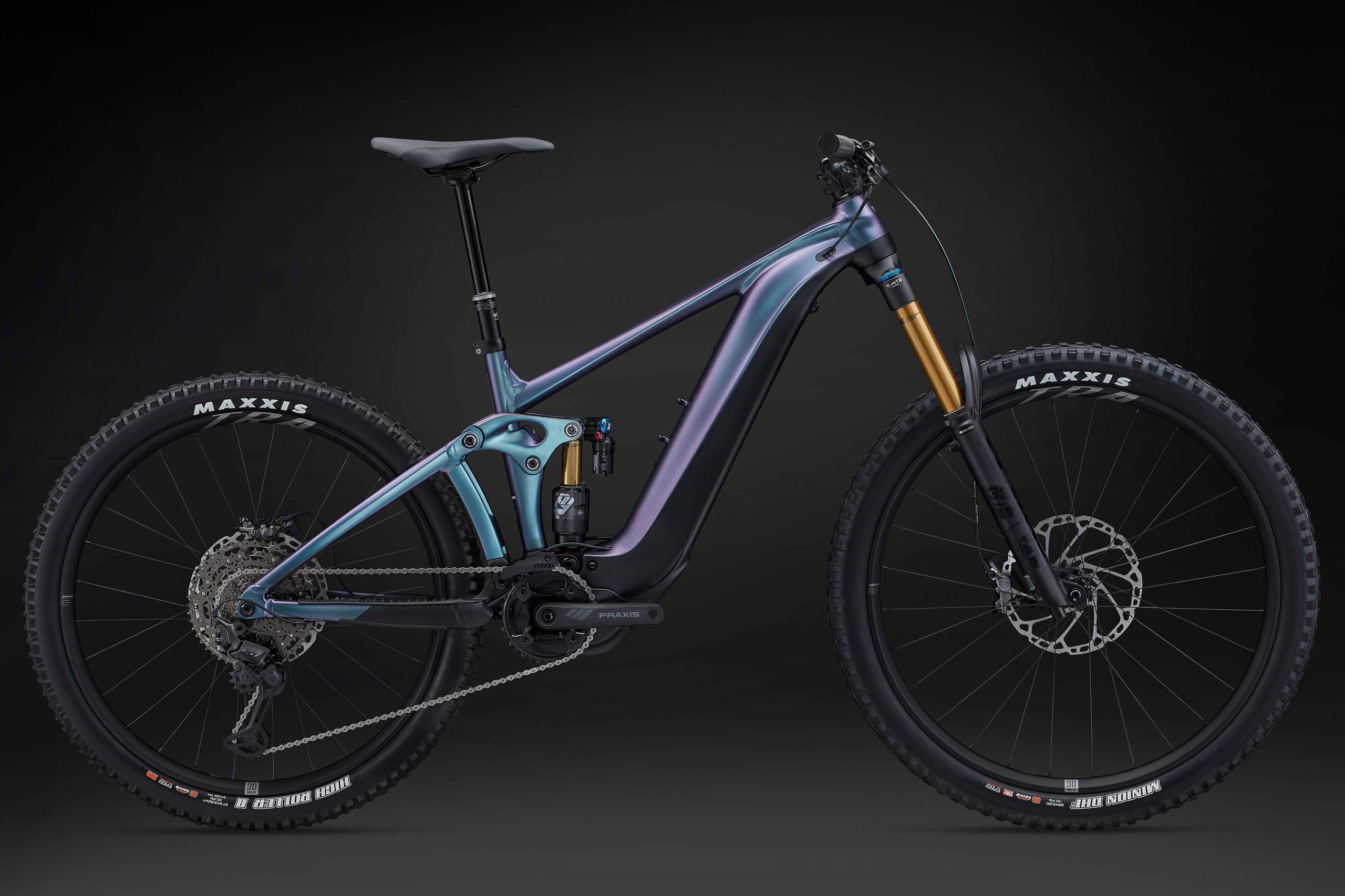

Reign E+ 1 (2024) | bike
€7,999.00
Features:
Specifications
Every trail, every steep climb, every thrilling descent. Nothing is out of bounds with the Reign E+. Tested and developed by Giant’s E-bike enduro pros, this proven trail ripper gives you the power to enjoy the best parts of the ride again and again.
Key Performance Factors
Trail technology
Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.

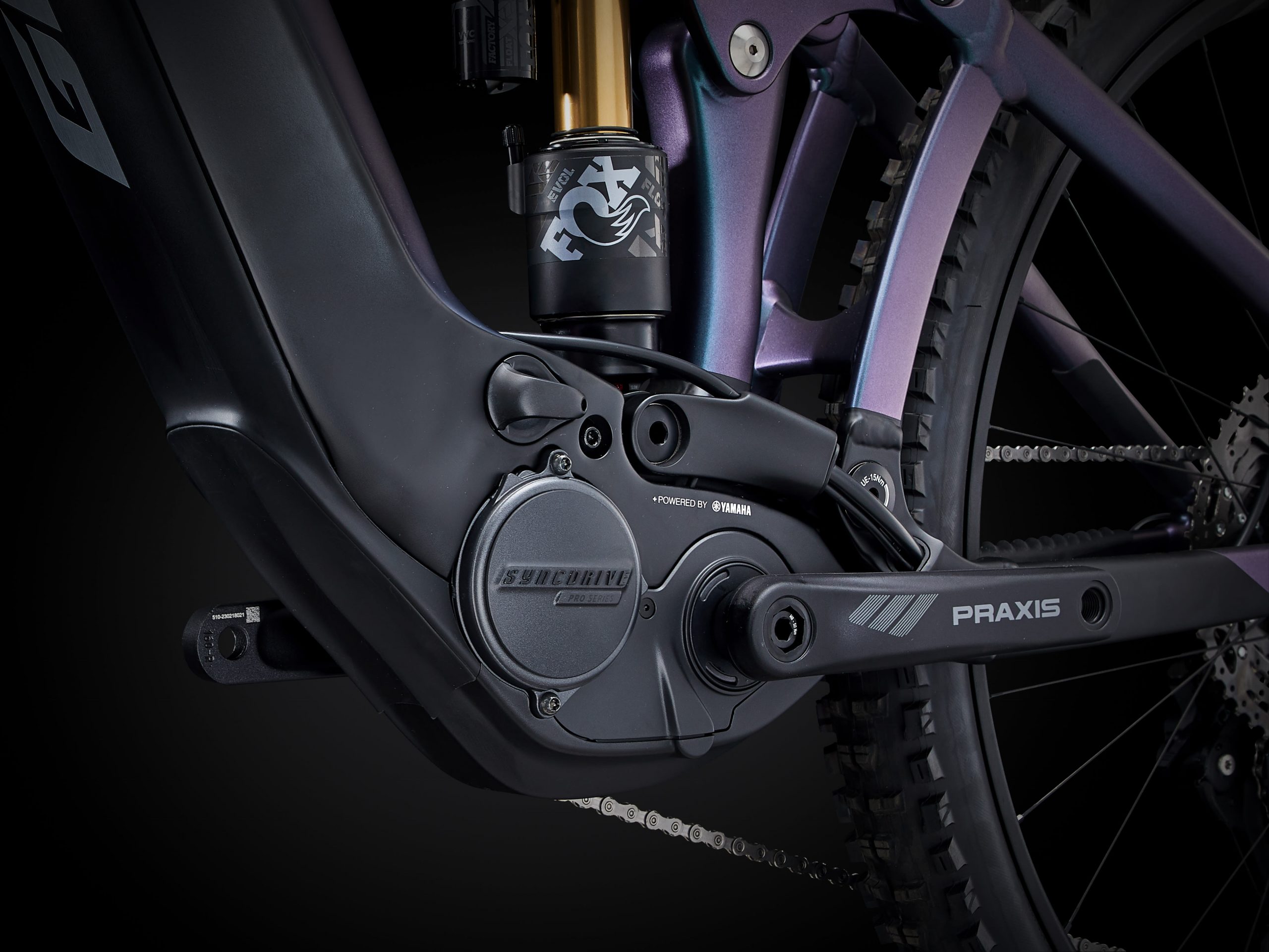

| Motor | Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology |
|---|---|
| Controller | Giant RideControl Ergo3, grip integrated remote |

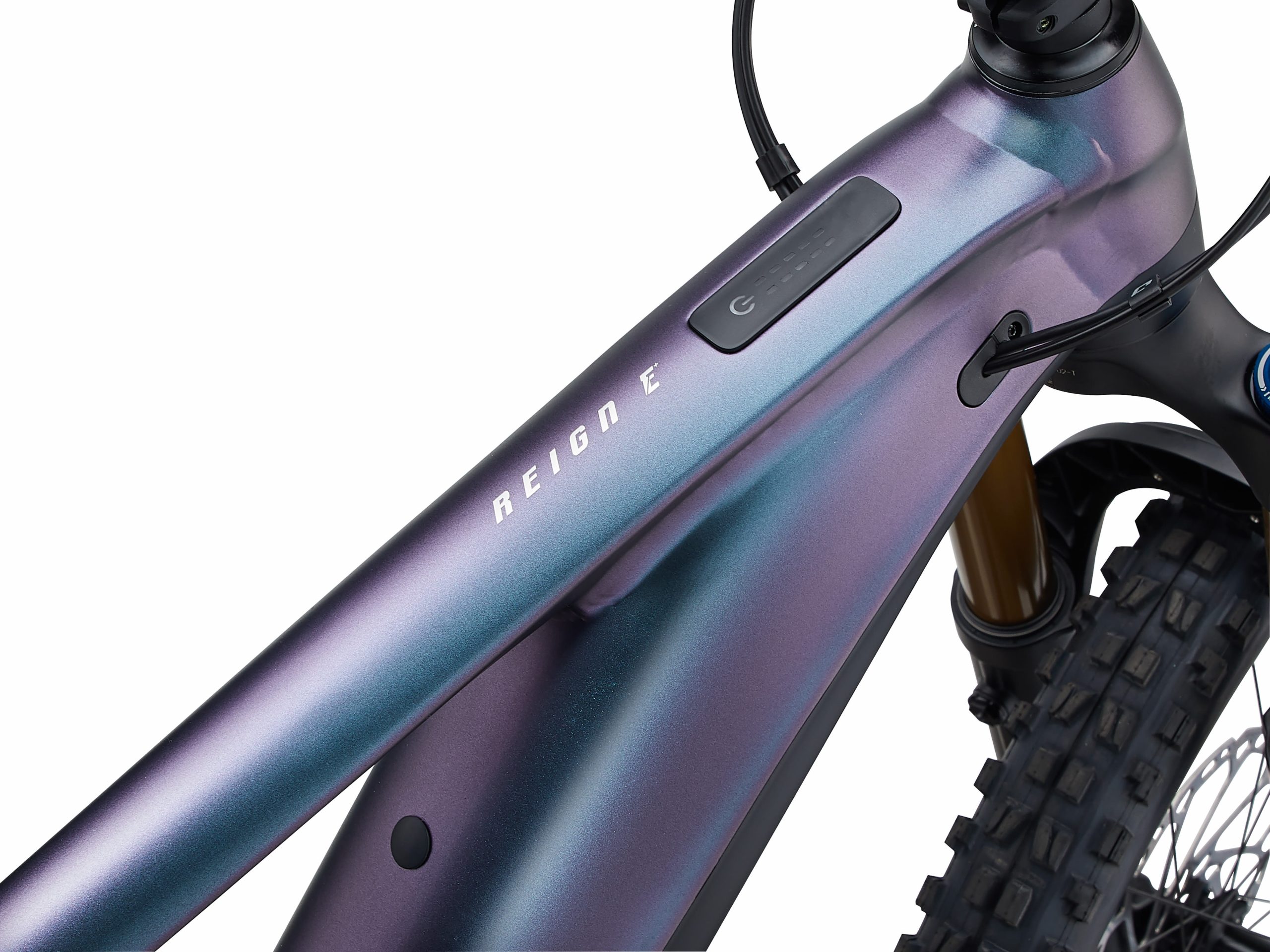

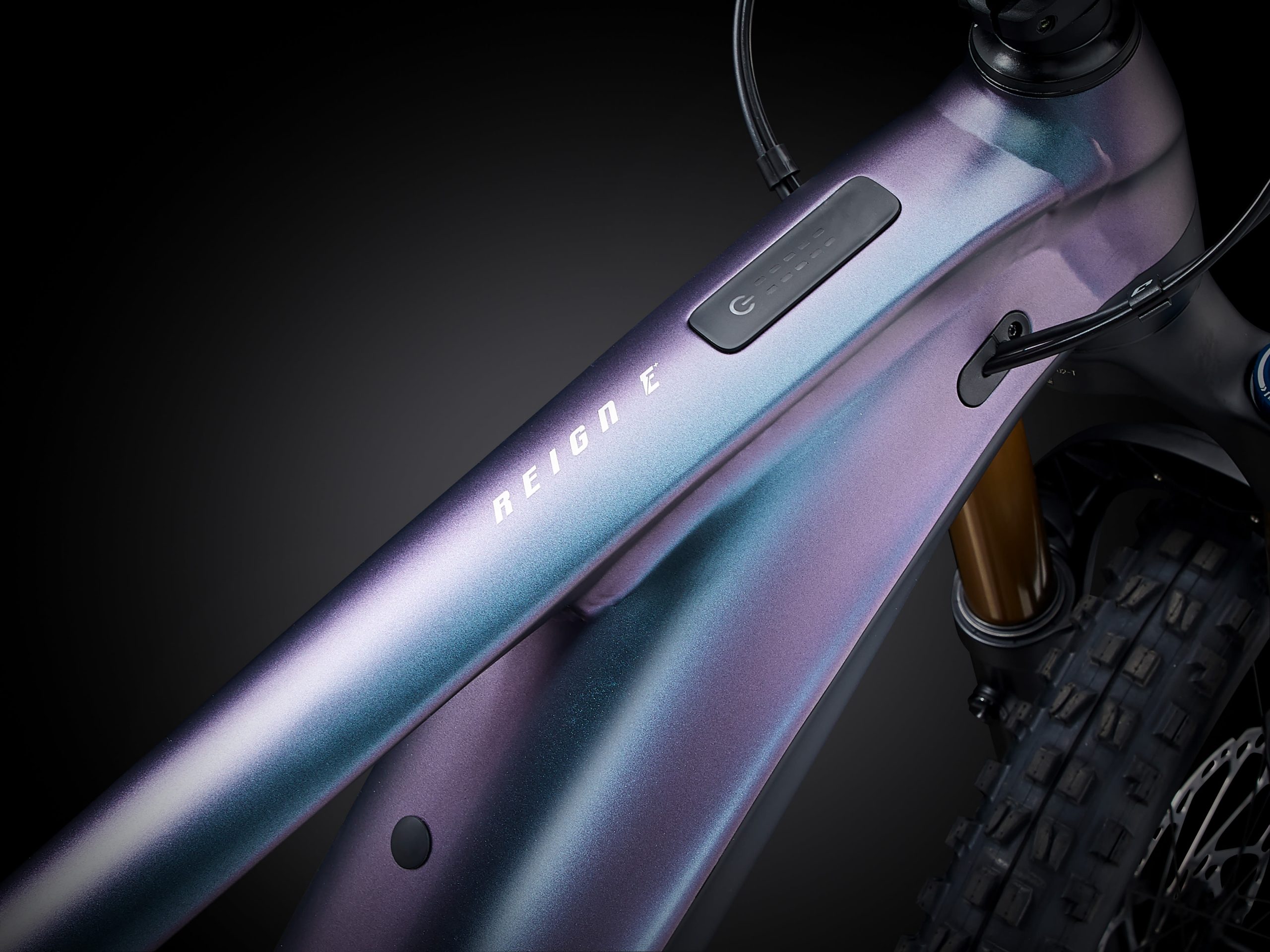

| Display | Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display |
| Battery | Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible (exculde S size) |
| Charger | Giant EnergyPak 6A smart charger, 60% in 2:15h |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | S, M, L, XL |
| Colours | Gloss Blue Dragonfly / Black |
| Frame | ALUXX SL-grade aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, ‘Boost’ 148x12mm, Universal Derailleur Hanger |

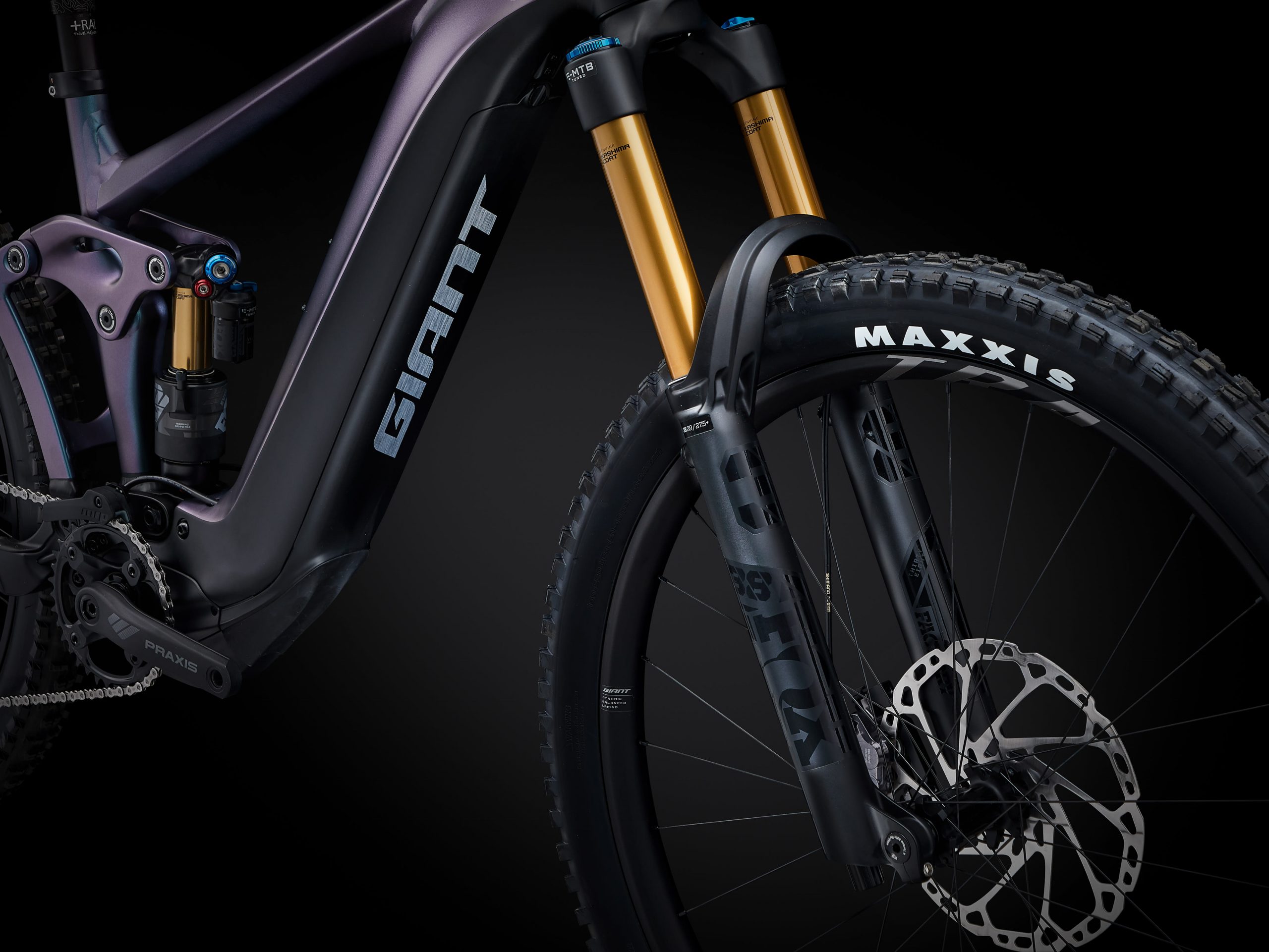

| Fork | Fox 38 Factory E-Tuned, 29er, 170mm travel, 44mm offset, Grip2 VVC damper Kabolt-X 110 |
| Shock | Fox X2 Factory, EVOL Large Volume sleeve, 205×62.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Handlebar | Giant Contact Trail, 35x800mm |
| Grips | Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL) |
| Stem | Giant Contact SL 35 |
| Seatpost | Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) |
| Saddle | Giant Romero Trail |
| Pedals | Flat pedal |
| Shifters | Shimano XT LinkGllide 1×11 |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano XT LinkGlide |
| Brakes | Shimano XT, BR-8120, 4-piston, hydraulic disc, RT66, 220mm |
| Brake Levers | Shimano XT, I-spec EV |
| Cassette | Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed |
| Chain | Shimano LinkGlide, CN-LG500 |
| Crankset | Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm) |
| Bottom Bracket | n/a |
| Rims | E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner width |
| Hubs | E-TRA MTB Alloy Hub, 6 Bolt, 110×15 [F] / 148×12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle [R] |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimised |
| Tyres | Maxxis Minion DHF 29×2.6″” foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5×2.5″” foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
| Extras | Tubeless kit (liquid, valves, levers, manual, tool) |
| Lock | Torx 25 Battery Lock with built-in Torque limiter |
Geometry
| L | S | M | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 450 | 400 | 425 | 475 |
| B | SEAT TUBE ANGLE | 76.7 | 76.7 | 76.7 | 76.7 |
| C | TOP TUBE LENGTH | 622 | 569 | 595 | 649 |
| D | HEAD TUBE LENGTH | 110 | 100 | 100 | 120 |
| E | HEAD TUBE ANGLE | 63.7 | 63.7 | 63.7 | 63.7 |
| F | FORK RAKE | 44 | 44 | 44 | 44 |
| G | TRAIL | 135 | 135.5 | 135 | 135.5 |
| H | WHEEL BASE | 1265 | 1209 | 1236 | 1295 |
| I | CHAIN STAY LENGTH | 454 | 457 | 454 | 454 |
| J | BOTTOM BRACKET DROP | 25 | 25 | 25 | 25 |
| K | STACK | 645 | 636 | 635 | 654 |
| L | REACH | 475 | 425 | 450 | 500 |
| M | STAND OVER HEIGHT | 771 | 785 | 772 | 768 |
| N | HANDLERBAR WIDTH | 800 | 800 | 800 | 800 |
| O | STEM LENGTH | 40 | 40 | 40 | 50 |
| P | CRANK LENGTH DEC | 165 | 160 | 160 | 165 |
| Q | WHEEL SIZE ALT | [F] 29″ [R | 29″ | [F] 29″ [R | [F] 29″ [R |
