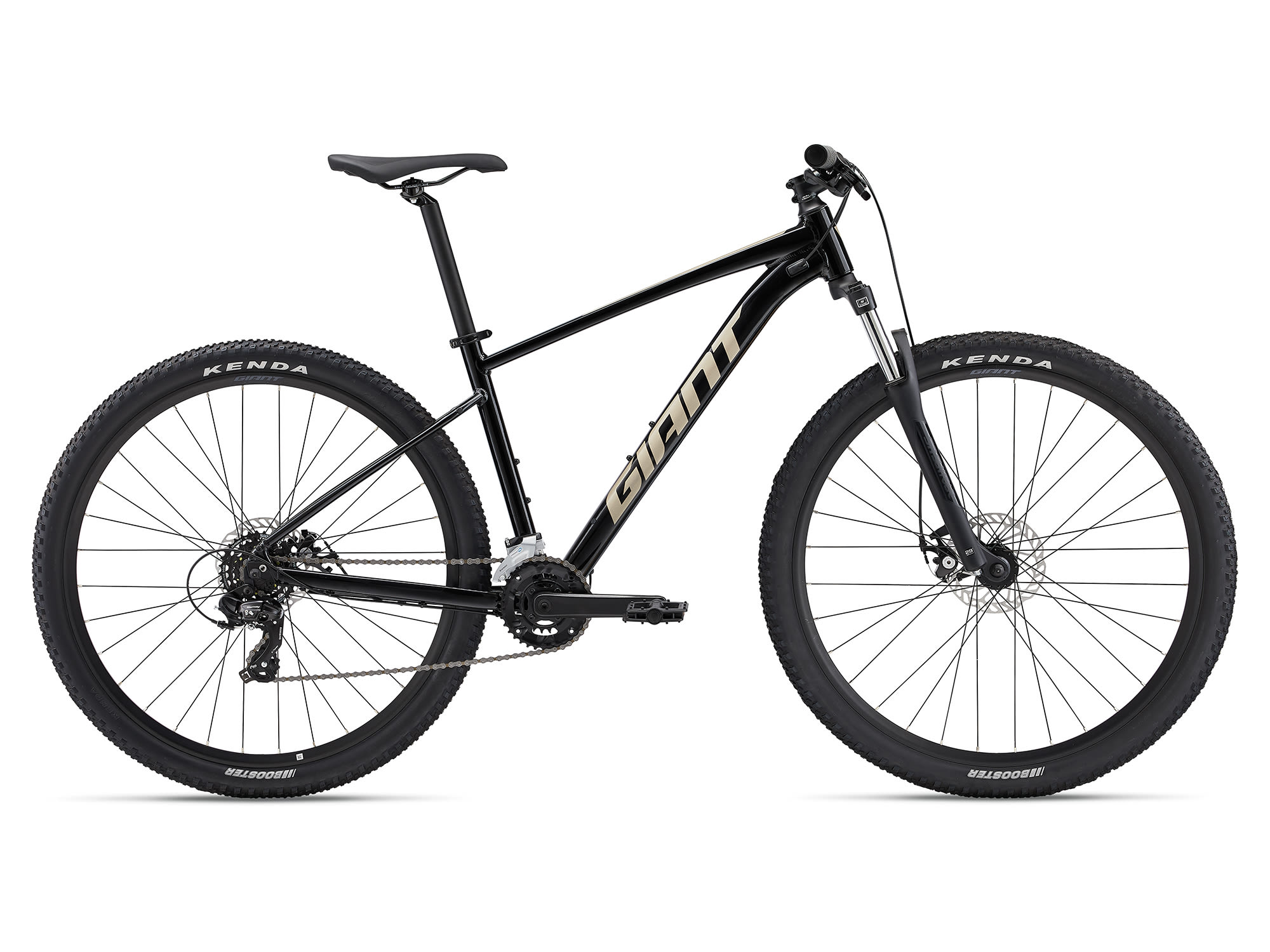

Talon 4 (2024) | bike
€569.00
Features:
Specifications
Push the pace on climbs, let loose on descents. This aluminum hardtail with a plush suspension fork delivers balanced, confident handling on the trail.
Key Performance Factors
Proven alloy performance
ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control
Suspension fork offers either 80mm or 100mm of smooth travel for added control on XC terrain.
| Sizes | 27.5: XS,S,M,L 29: XL,XXL |
|---|---|
| Colours | GlossBlack/Sandshell |
| Frame | ALUXX-grade aluminium, disc |
| Fork | SR Suntour XCE, steel steerer XS & S 27.5 80mm travel All other sizes 100mm travel |
| Shock | N/A |
| Handlebar | Giant Connect Trail, 31.8mm XS 27.5 730mm All other sizes 780mm |
| Grips | Giant Sole-O |
| Stem | Giant Sport, 7-degree |
| Seatpost | Giant Sport, 30.9mm XS 27.5 300mm All other sizes 375mm |
| Saddle | Giant custom |
| Pedals | MTB caged |
| Shifters | Shimano SL-M315, 2×7 |
| Front Derailleur | Shimano FD-M315 |
| Rear Derailleur | Shimano Tourney |
| Brakes | TKB-172, mechanical [F]160mm, [R]160mm rotors |
| Brake Levers | RS360A, mechanical |
| Cassette | Shimano HG200, 12×32 |
| Chain | KMC Z7 |
| Crankset | ProWheel Forged, 22/36 |
| Bottom Bracket | cartridge |
| Rims | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
| Hubs | alloy, sealed bearing |
| Spokes | Stainless steel, 14g |
| Tyres | Kenda Booster 27.5 or 29×2.2″, wire bead |
| Extras | 2.4″ max tyre size |
Geometry
| XS (27.5″) | S (27.5″) | M (27.5″) | L (27.5″) | XL (29″) | XXL (29″) | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 350 | 385 | 430 | 490 | 535 | 565 |
| B | SEAT TUBE ANGLE | 74 | 74 | 74 | 74 | 74 | 74 |
| C | TOP TUBE LENGTH | 544 | 569 | 597 | 618 | 639 | 658 |
| D | HEAD TUBE LENGTH | 95 | 115 | 130 | 155 | 140 | 155 |
| E | HEAD TUBE ANGLE | 67.5 | 67.5 | 67.5 | 67.5 | 68.5 | 68.5 |
| F | FORK RAKE | 42 | 42 | 42 | 42 | 51 | 51 |
| G | TRAIL | 103 | 103 | 103 | 103 | 94 | 94 |
| H | WHEEL BASE | 1079 | 1106 | 1137 | 1162 | 1192 | 1213 |
| I | CHAIN STAY LENGTH | 440 | 440 | 440 | 440 | 455 | 455 |
| J | BOTTOM BRACKET DROP | 45 | 45 | 45 | 45 | 55 | 55 |
| K | STACK | 533 | 571 | 598 | 621 | 644 | 658 |
| L | REACH | 385 | 405 | 425 | 440 | 454 | 469 |
| M | STAND OVER HEIGHT | 686 | 711 | 748 | 794 | 839 | 856 |
| N | HANDLERBAR WIDTH | 780 | 780 | 780 | 780 | 780 | 780 |
| O | STEM LENGTH | 40 | 50 | 60 | 70 | 80 | 90 |
| P | CRANK LENGTH DEC | 165 | 170 | 175 | 175 | 175 | 175 |
| Q | WHEEL SIZE ALT | 27.5″ | 27.5″ | 27.5″ | 27.5″ | 29″ | 29″ |
