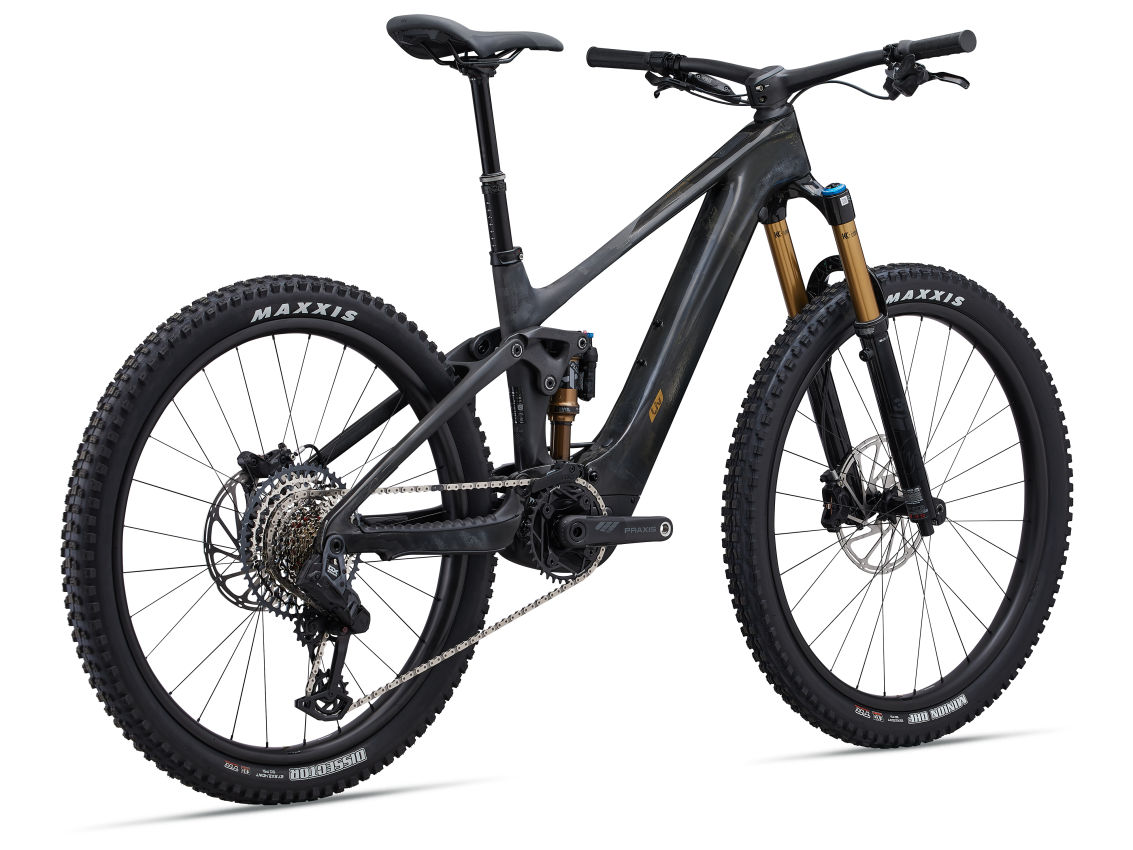

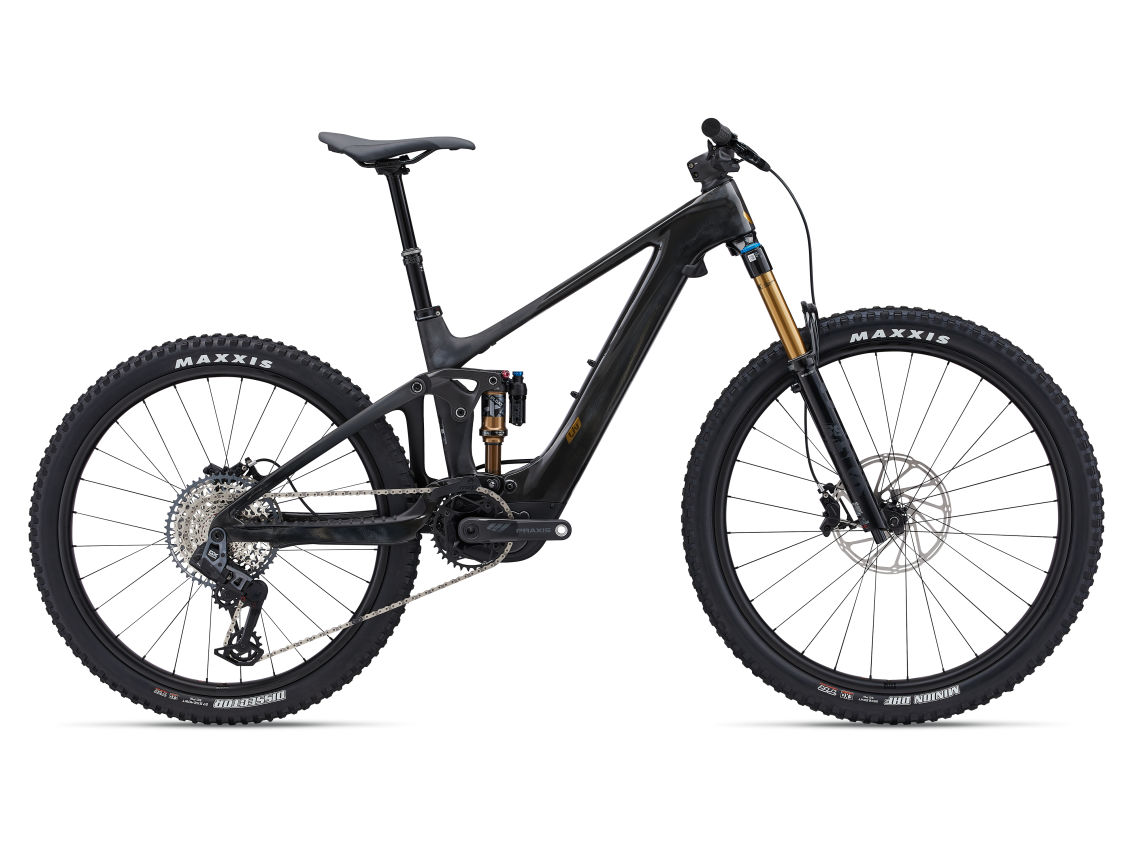

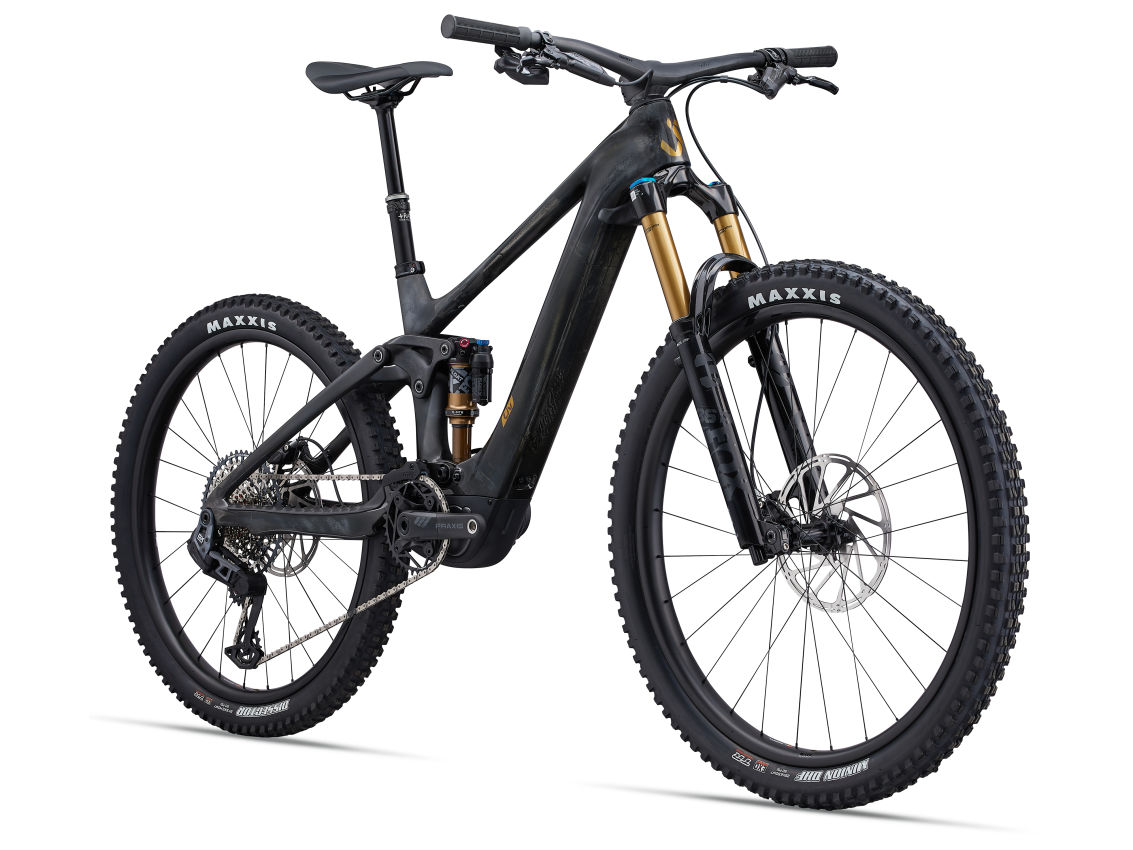

Intrigue X Advanced E+ Elite 1 (2024) | Women bike
€10,299.00
Features:
Specifications
Next-level performance and unforgettable fun await you on this premium E-MTB. The cutting-edge Intrigue X Advanced E+ Elite is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.
Key Performance Factors
Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimises weight and provides a perfect balance of efficiency and range.
Sleek design

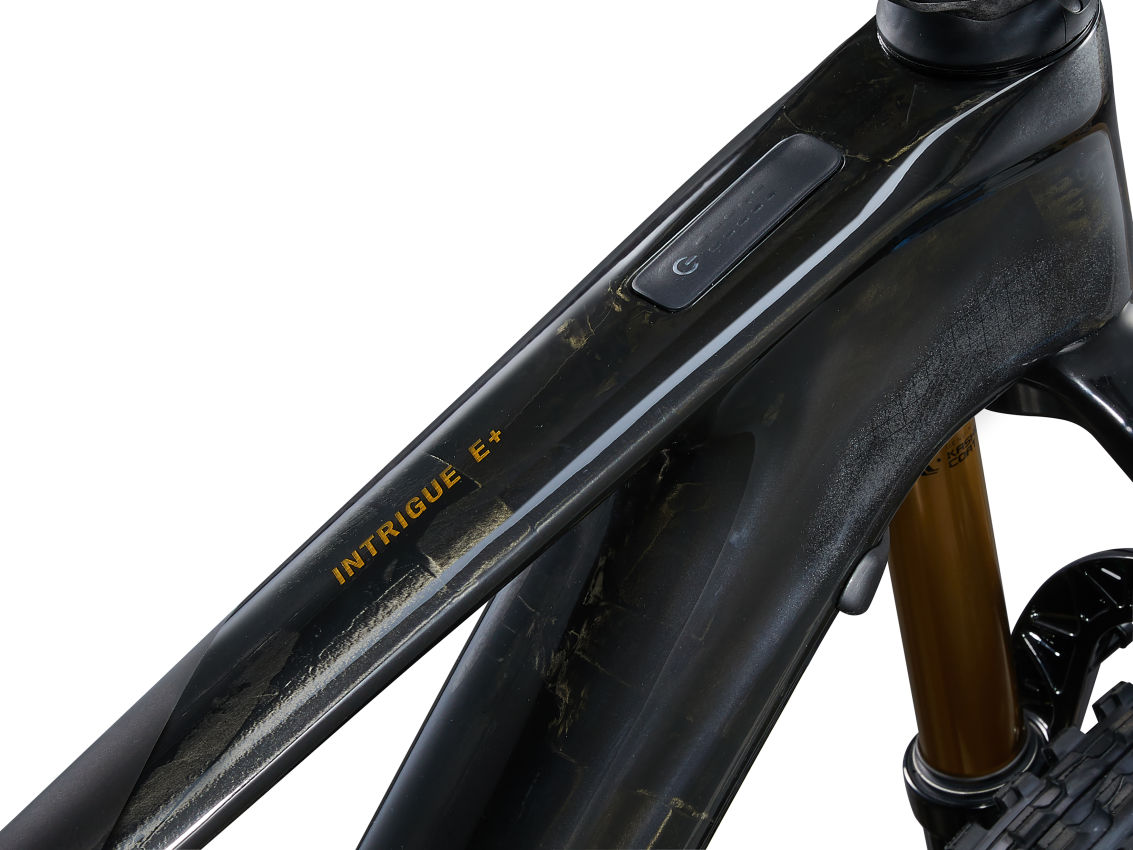

From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
| Motor | Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology |
|---|---|
| Controller | Giant RideControl Ergo3, grip integrated remote |
| Display | Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display |
| Battery | Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
| Charger | Giant EnergyPak 4A smart charger, 60% in 1:45 |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | XS, S, M |
| Colours | Gloss Raw Carbon |

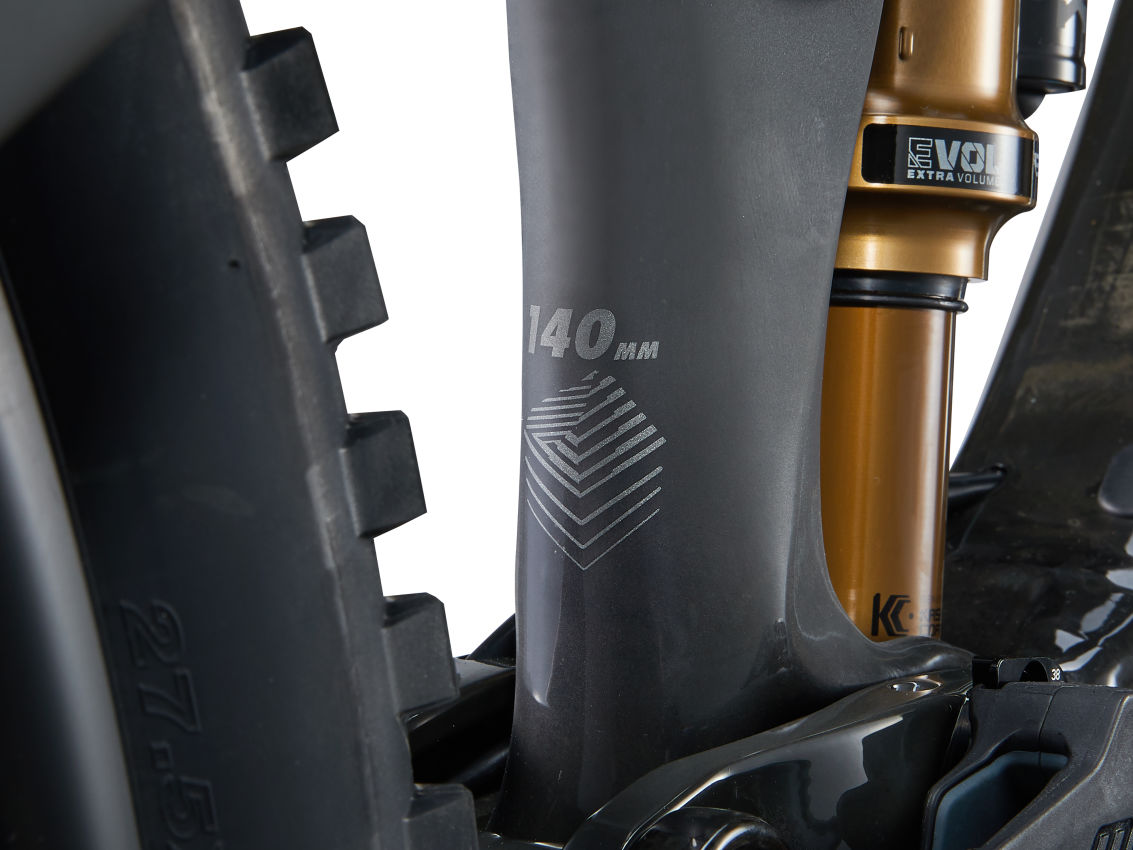

| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |

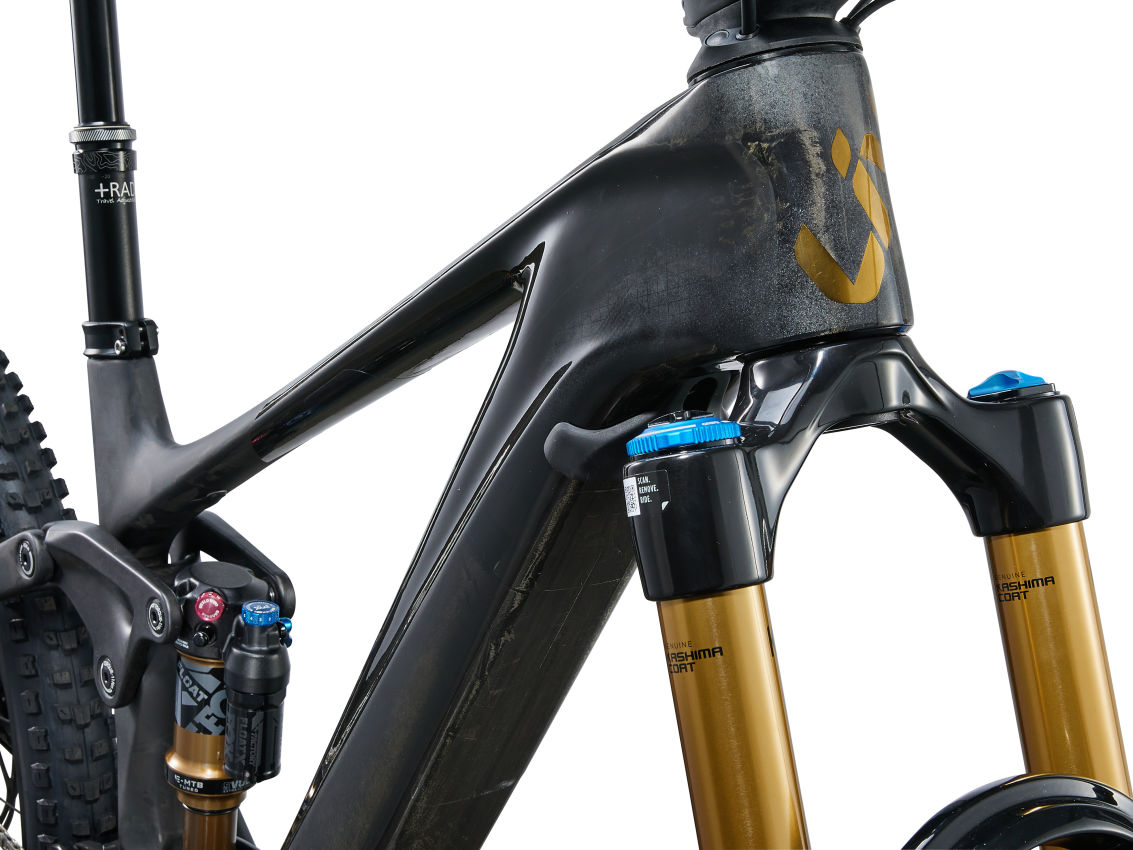

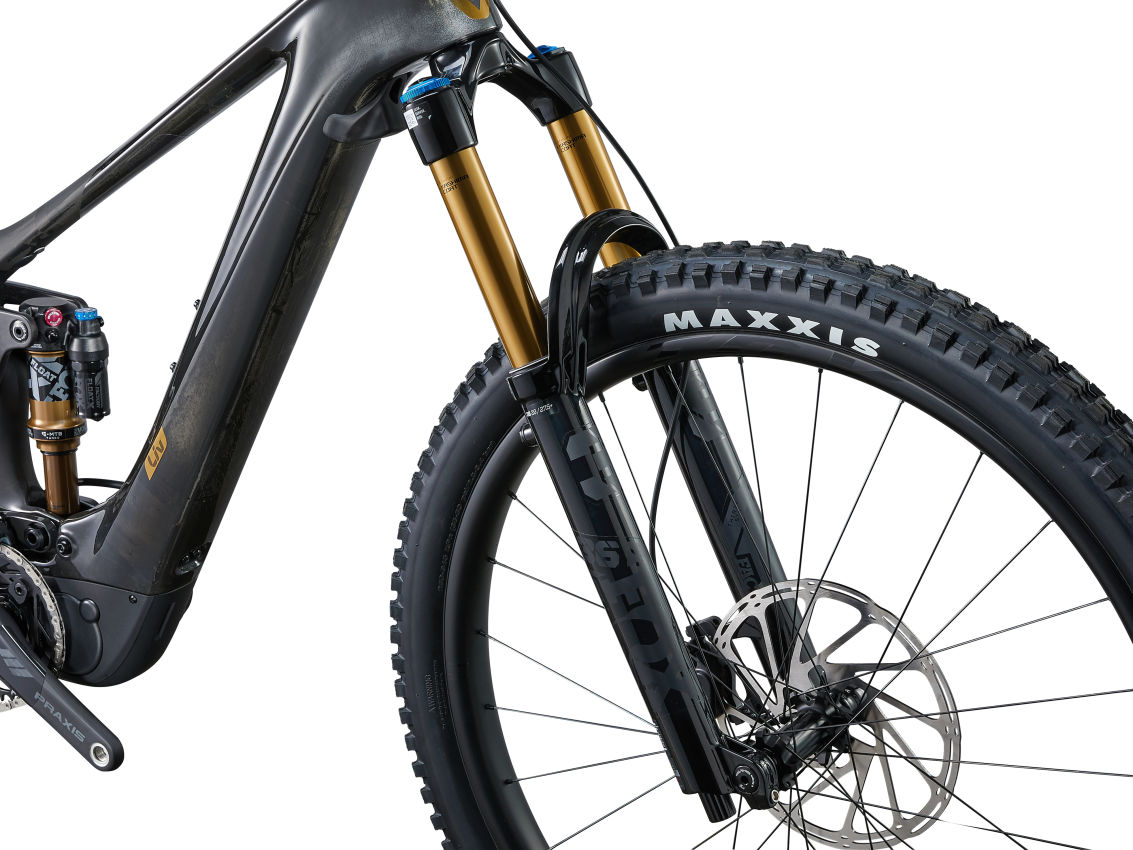

| Fork | Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110 |

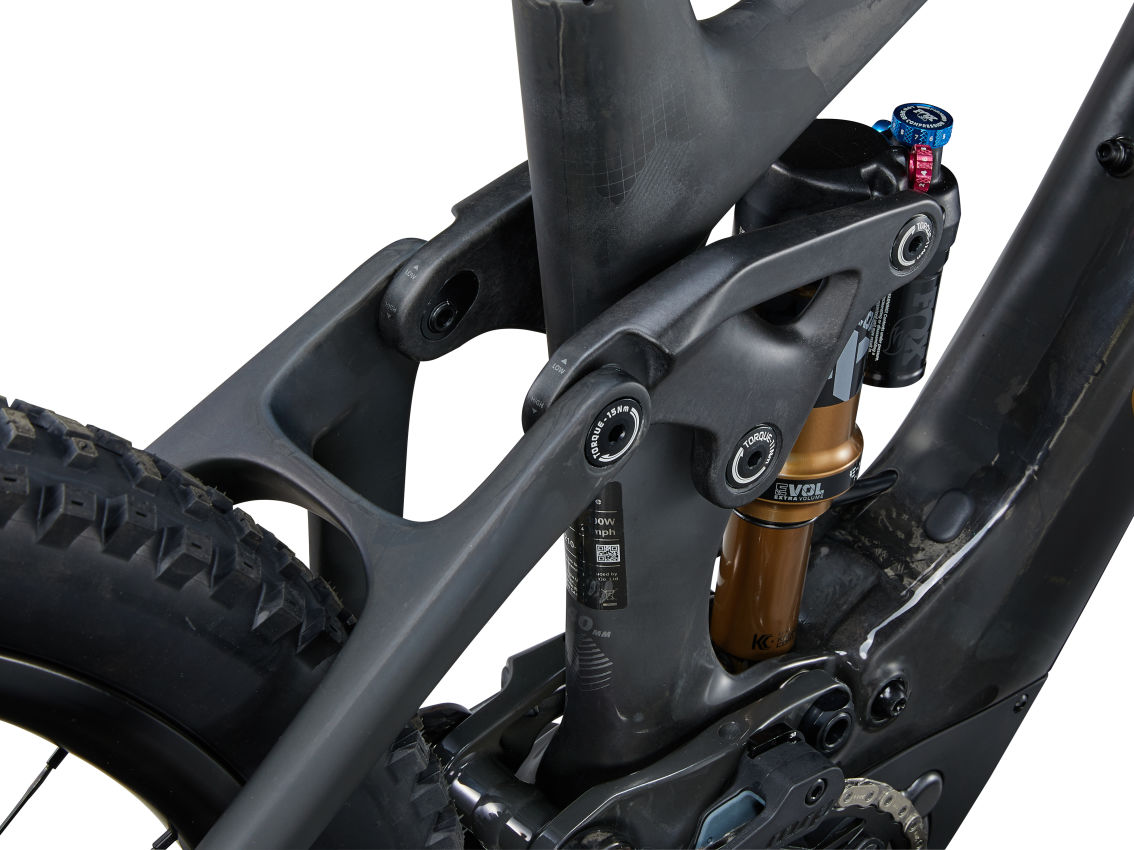

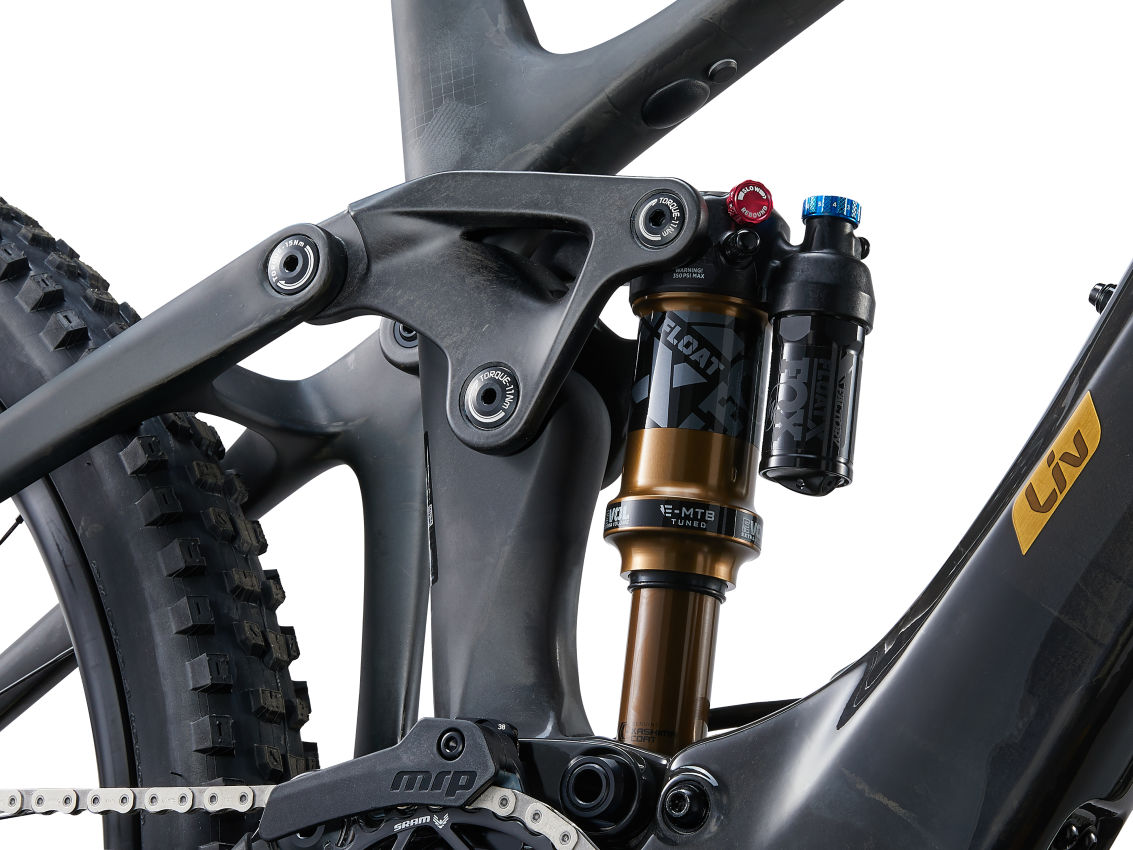

| Shock | Fox Float X Factory, EVOL, 185×52.5mm Trunnion mount, custom tuned |

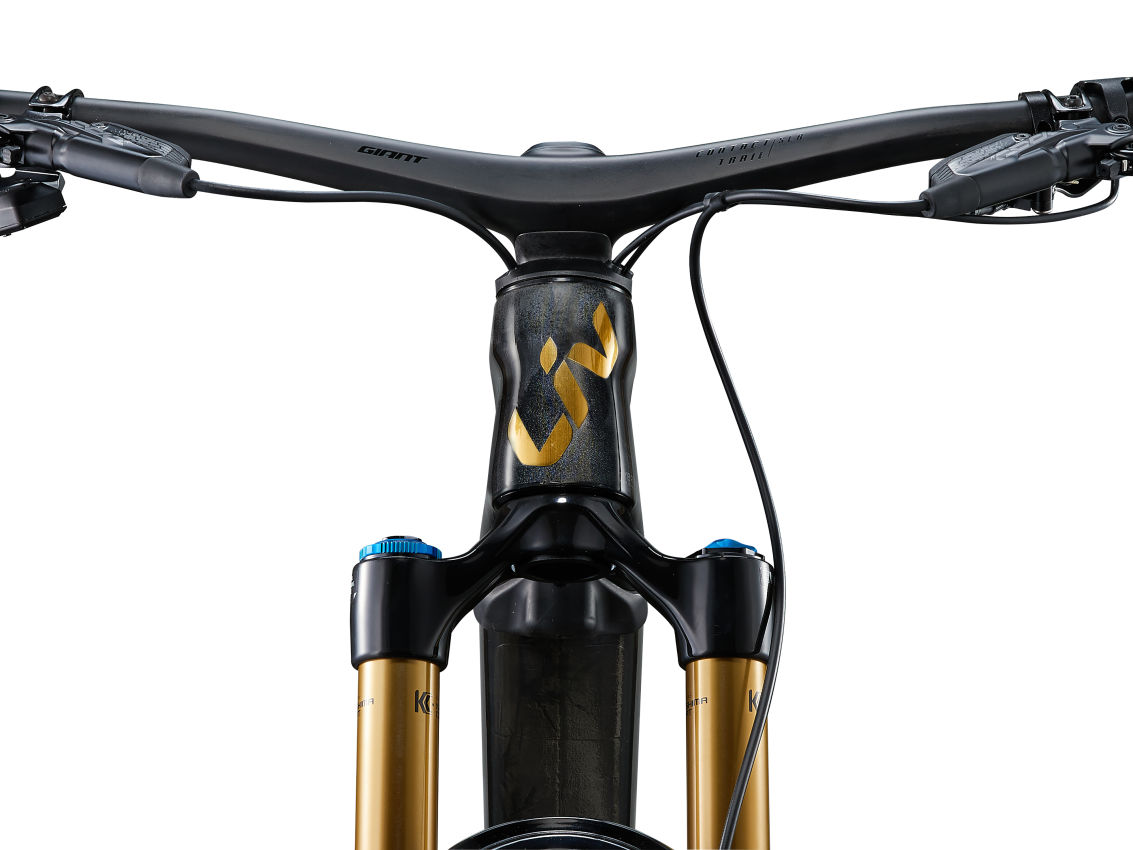

| Handlebar | Giant Contact SLR Trail, carbon |
| Grips | Liv Tactal Pro-E Single Lock-On Grips |
| Stem | Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System |
| Seatpost | Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm) |
| Saddle | Liv Sylvia E+ |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | SRAM AXS new NGD controller, wireless electronic shifting 1×12 |
| Front Derailleur | MRP HD2 co-moulded chain guide |

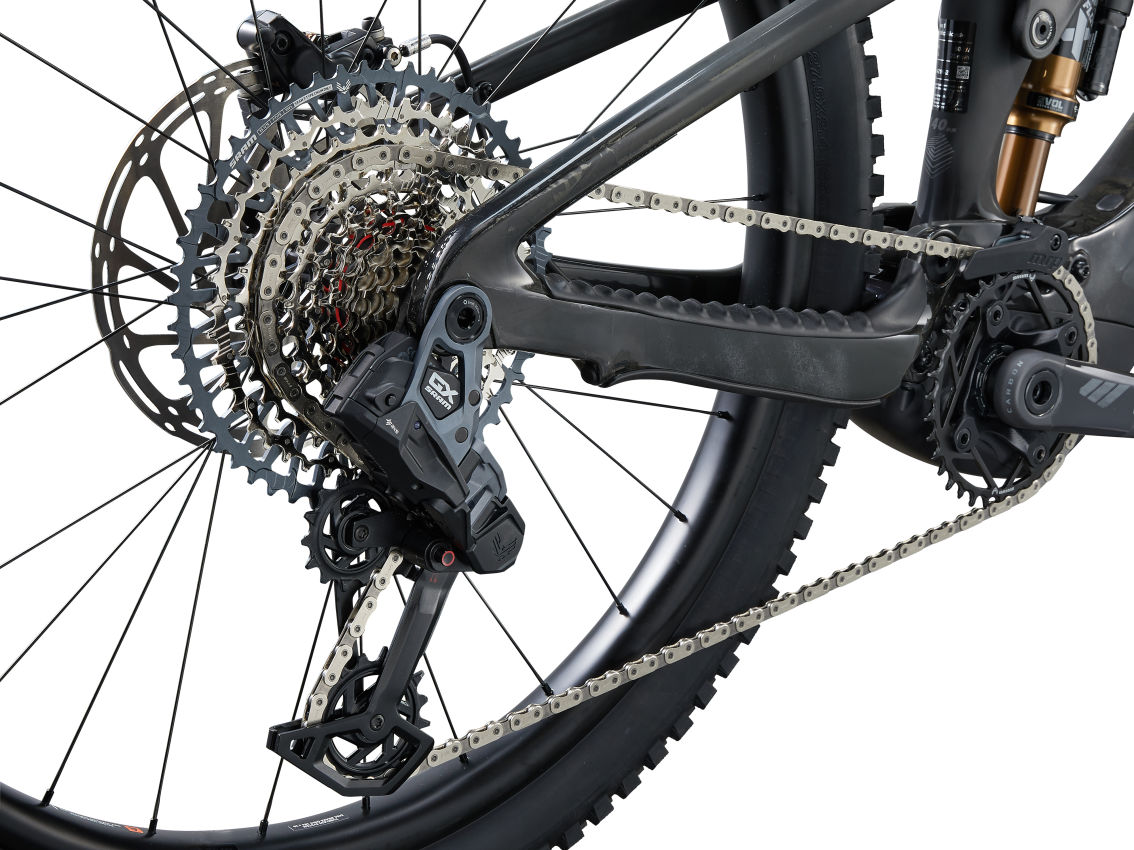

| Rear Derailleur | SRAM GX Eagle Transmission, AXS |
| Brakes | SRAM Code R, hydraulic disc, 220mm[F], 200mm[R] |
| Brake Levers | SRAM Code R |
| Cassette | SRAM GX Eagle Transmission, 10-52T |
| Chain | SRAM GX Eagle Transmission Flattop Chain, Powerlock |
| Crankset | Praxis Performance Carbon e-crank arms SRAM Eagle Transmission E-MTB Chainring , Steel 36T |
| Bottom Bracket | n/a |
| Rims | E-TRX Hookless Tubeless ready Carbon 29 [F] / 27.5 [R]30mm inner width |
| Hubs | E-TRX MTB Alloy Hub, 6 Bolt, 110×15 [F] / 148×12 SRAM XD Drive Body Pawl Driver (Pawl 36×2 T) Thru-axle [R] |
| Tyres | Maxxis Minion DHF 29X2.50″ Foldable, TLR, EXO [F]Maxxis Dissector 27.5×2.4″ Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |
| Carrier | – |
Geometry
| S | XS | M | ||
|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 400 | 380 | 425 |
| B | SEAT TUBE ANGLE | 77.2 | 77.2 | 76 |
| C | TOP TUBE LENGTH | 572 | 557 | 597 |
| D | HEAD TUBE LENGTH | 95 | 95 | 100 |
| E | HEAD TUBE ANGLE | 65.7 | 65.7 | 65.8 |
| F | FORK RAKE | 44 | 44 | 44 |
| G | TRAIL | 113.1 | 113.1 | 113.1 |
| H | WHEEL BASE | 1188 | 1174 | 1200 |
| I | CHAIN STAY LENGTH | 447 | 447 | 447 |
| J | BOTTOM BRACKET DROP | 30 | 30 | 30 |
| K | STACK | 606 | 606 | 611 |
| L | REACH | 434 | 419 | 444 |
| M | STAND OVER HEIGHT | 726 | 722 | 717 |
| N | HANDLERBAR WIDTH | 760 | 760 | 800 |
| O | STEM LENGTH | 40 | 40 | 40 |
| P | CRANK LENGTH DEC | 160 | 160 | 165 |
| Q | WHEEL SIZE ALT | [F] 29″ [R | [F] 29″ [R | [F] 29″ [R |
