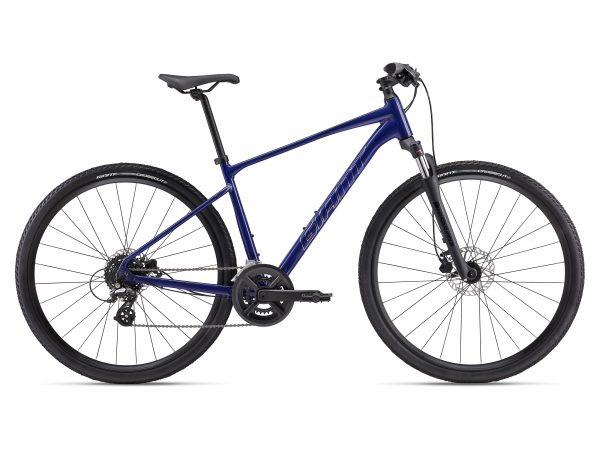

Roam Disc 3 (2024) | bike
€699.00
Features: Roam Disc 3 (2024) | bike
Specifications
With its flat handlebar, comfortable upright positioning and smooth, powerful disc brakes, Roam combines the best qualities of a road bike and a mountain bike. Now you can follow your own route wherever it goes.
Key Performance Factors
Agility and control
Updated flat-bar frame geometry puts the rider in a position that balances efficiency with stability, and disc brakes give you added control on rugged roads or dirt.
Smooth-riding comfort
The D-Fuse seatpost and suspension fork absorb road shocks and vibrations, and EasyRide Tubeless tires let you run lower pressure for a smoother ride quality and a reduced risk of flats.
Integrated rack mounts
Compatible with rear racks, allowing easy cargo capacity for daily trips or longer treks.
| Sizes | S, M, L, XL |
|---|---|
| Colours | Gloss Performance Blue/Brushed Chrome |
| Frame | ALUXX-grade aluminium, disc |
| Fork | SR Suntour NEX HLO 700C, 63mm |
| Shock | N/A |
| Handlebar | Giant Sport XC, 31.8mm |
| Grips | ErgoContact |
| Stem | Giant Sport, 8-degree |
| Seatpost | Giant D-Fuse, alloy, 350mm |
| Saddle | ErgoContact |
| Pedals | Platform pedals |
| Shifters | Shimano Altus, 2×8 |
| Front Derailleur | Shimano FD-TY606 |
| Rear Derailleur | Shimano RD-M310 |
| Brakes | Tektro TKD-143 hydraulic, [F]160mm, [R]160mm rotors |
| Brake Levers | Tektro TKD-143 |
| Cassette | Shimano CS-HG31, 11×34 |
| Chain | KMC Z8.3 |
| Crankset | Forged alloy, 30/46 |
| Bottom Bracket | Cartridge |
| Rims | Giant double wall aluminium |
| Hubs | alloy, 28h |
| Spokes | Stainless steel |
| Tyres | Giant CrossCut, anti-puncture, 700x42c |
| Extras | 53mm max tyre size |
Geometry
| L | XL | S | M | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 500 | 550 | 420 | 460 |
| B | SEAT TUBE ANGLE | 73 | 73 | 73 | 73 |
| C | TOP TUBE LENGTH | 610 | 625 | 590 | 600 |
| D | HEAD TUBE LENGTH | 145 | 160 | 115 | 130 |
| E | HEAD TUBE ANGLE | 70.5 | 70.5 | 70.5 | 70.5 |
| F | FORK RAKE | 42 | 42 | 42 | 42 |
| G | TRAIL | 85 | 85 | 85 | 85 |
| H | WHEEL BASE | 1109 | 1125 | 1088 | 1098 |
| I | CHAIN STAY LENGTH | 450 | 450 | 450 | 450 |
| J | BOTTOM BRACKET DROP | 62 | 62 | 62 | 62 |
| K | STACK | 634 | 648 | 606 | 620 |
| L | REACH | 416 | 427 | 404 | 410 |
| M | STAND OVER HEIGHT | 788 | 827 | 725 | 756 |
| N | HANDLERBAR WIDTH | 680 | 680 | 640 | 680 |
| O | STEM LENGTH | 90 | 100 | 70 | 80 |
| P | CRANK LENGTH DEC | 175 | 175 | 170 | 170 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
