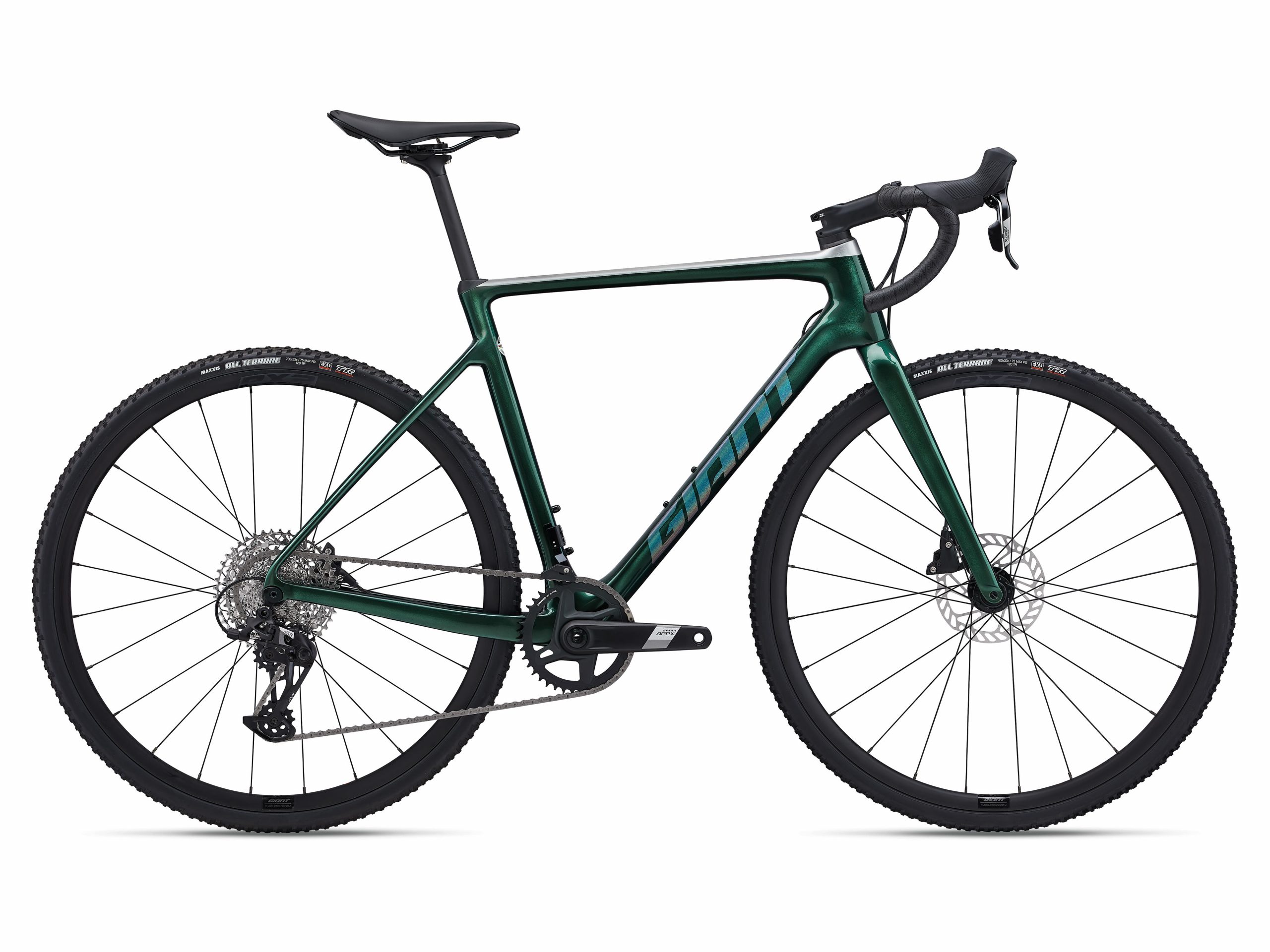

TCX Advanced Pro 2 (2024) | bike
€3,499.00
Features:
Specifications
Proven through countless pro wins, this lightweight composite cyclocross bike delivers quick acceleration, smooth handling and total control on dry pavement, loose dirt, deep sand or slick mud—everything you need to aim for the podium.
Key Performance Factors
Elite level efficiency
Advanced-grade composite frameset is 17.5 percent lighter than the previous generation while retaining its best-in-class torsional/pedaling stiffness.
Total control
Integrated disc brake technology with flat mounts and thru-axle hubs, combined with tubeless ready Giant WheelSystem, delivers added control in variable conditions and all types of weather.
Smooth ride quality
D-Fuse composite seatpost helps absorb bumps and vibrations, and you also have the option to switch to a standard 30.9mm round or dropper post depending on your riding style and terrain.
| Sizes | XS, S, M, M/L, L |
|---|---|
| Colours | Gloss Kelp Forest/Iris |
| Frame | Advanced-grade composite, 12mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive 2 steerer, disc |
| Shock | N/A |
| Handlebar | Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact SL XS:70mm, S:80mm, M:90mm, M/L:100mm, L:100mm |
| Seatpost | Giant D-Fuse SL, composite, 16mm offset |
| Saddle | Giant Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | SRAM Apex, 1×12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Apex XPLR |
| Brakes | SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM Apex hydraulic |
| Cassette | SRAM Apex XPLR, 12-speed, 11×44 |
| Chain | SRAM Apex D1 |
| Crankset | SRAM Apex D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant P-X2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Maxxis All-Terrene, 700x33c, tubeless |
| Extras | Giant 1x chainguide, factory tubeless set up, 45mm max tyre size |
Geometry
| L | M | ML | XS | S | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 555 | 525 | 545 | 490 | 505 |
| B | SEAT TUBE ANGLE | 73 | 73 | 73 | 74 | 73.5 |
| C | TOP TUBE LENGTH | 575 | 545 | 560 | 515 | 530 |
| D | HEAD TUBE LENGTH | 178 | 148 | 163 | 118 | 133 |
| E | HEAD TUBE ANGLE | 72.5 | 71.5 | 72 | 70.7 | 71 |
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL | 58.6 | 65.1 | 61.8 | 70.3 | 68.3 |
| H | WHEEL BASE | 1040 | 1020 | 1030 | 1006 | 1014 |
| I | CHAIN STAY LENGTH | 430 | 430 | 430 | 430 | 430 |
| J | BOTTOM BRACKET DROP | 60 | 60 | 60 | 60 | 60 |
| K | STACK | 589 | 556 | 572 | 525 | 540 |
| L | REACH | 395 | 375 | 385 | 365 | 370 |
| M | STAND OVER HEIGHT | 832 | 807 | 826 | 775 | 788 |
| N | HANDLERBAR WIDTH | 440 | 420 | 420 | 400 | 400 |
| O | STEM LENGTH | 100 | 90 | 100 | 70 | 80 |
| P | CRANK LENGTH DEC | 175 | 172.5 | 172.5 | 170 | 170 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C |
