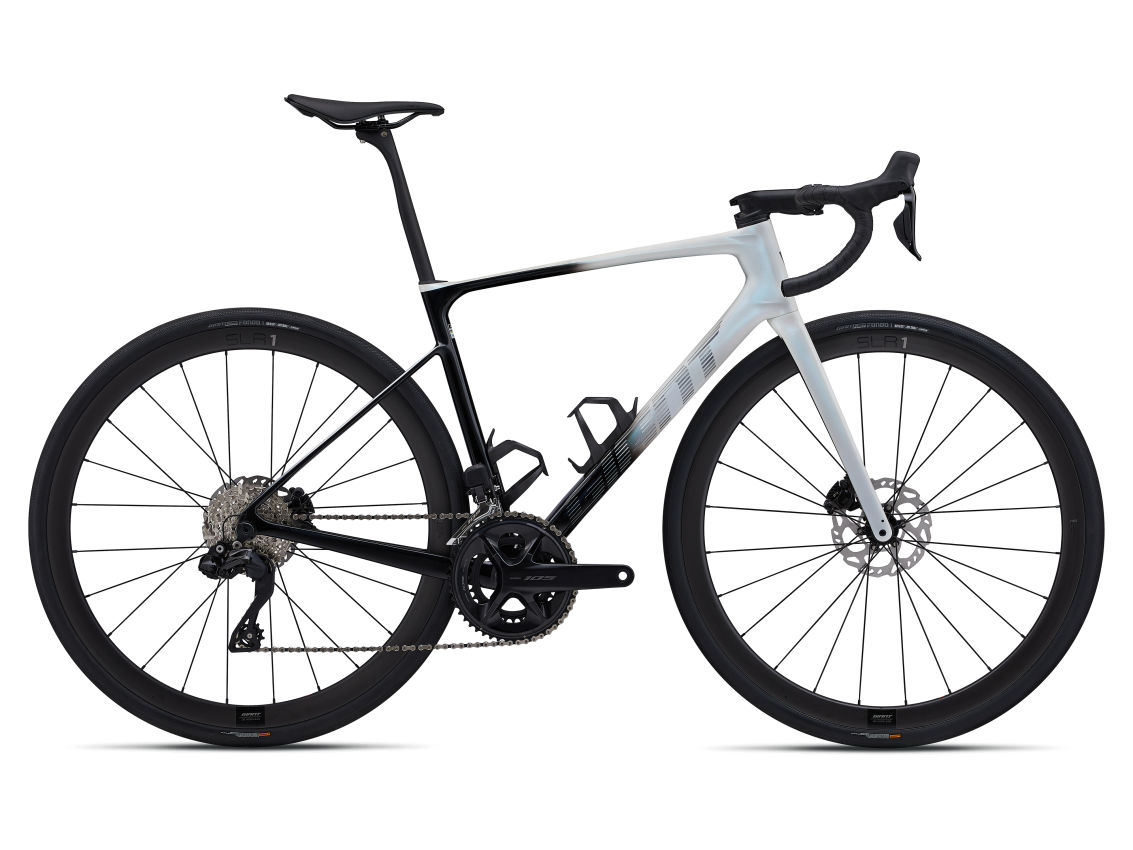

Defy Advanced Pro 1 (2024) | bike
€5,299.00
Features:
Specifications
Here’s to long rides. Climb higher mountains, skip the shortcuts. This buttery smooth endurance road bike helps you do more of what you love.
Key Performance Factors
Functional simplicity
Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.
Engineered compliance
Advanced-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimizes fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.
Total control

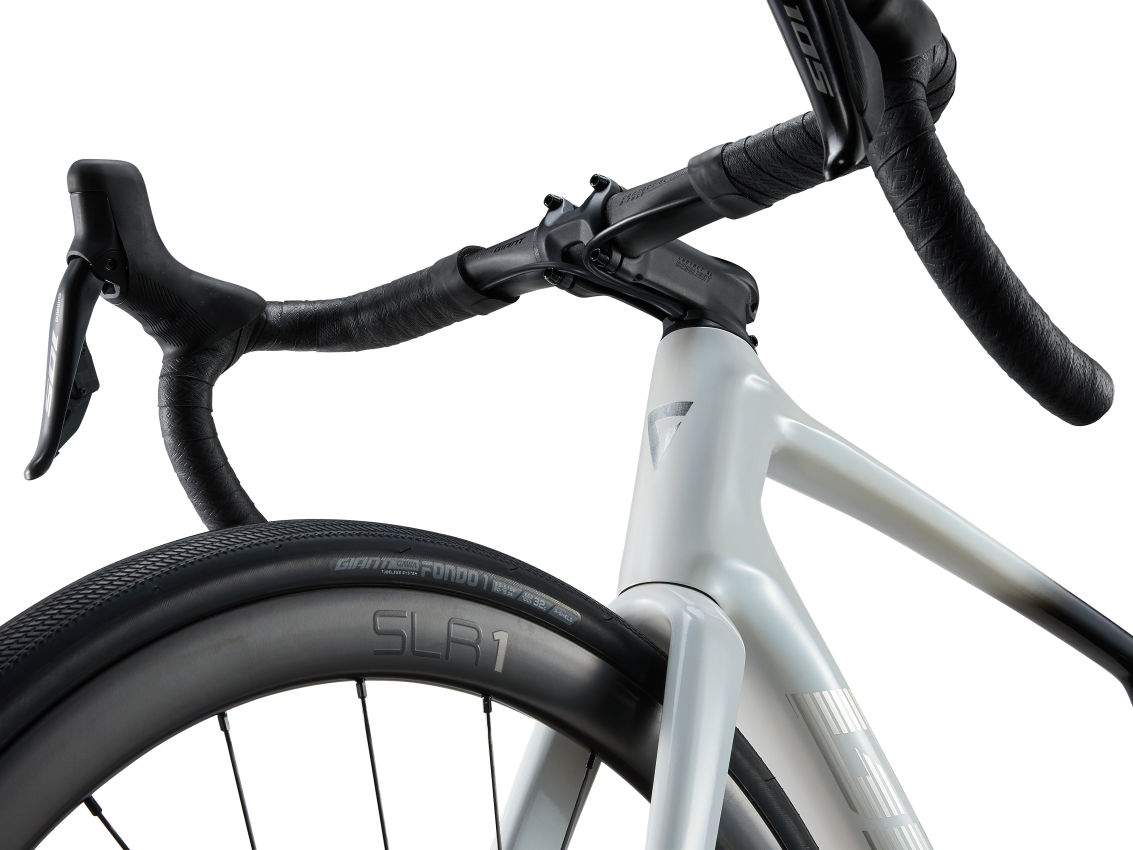

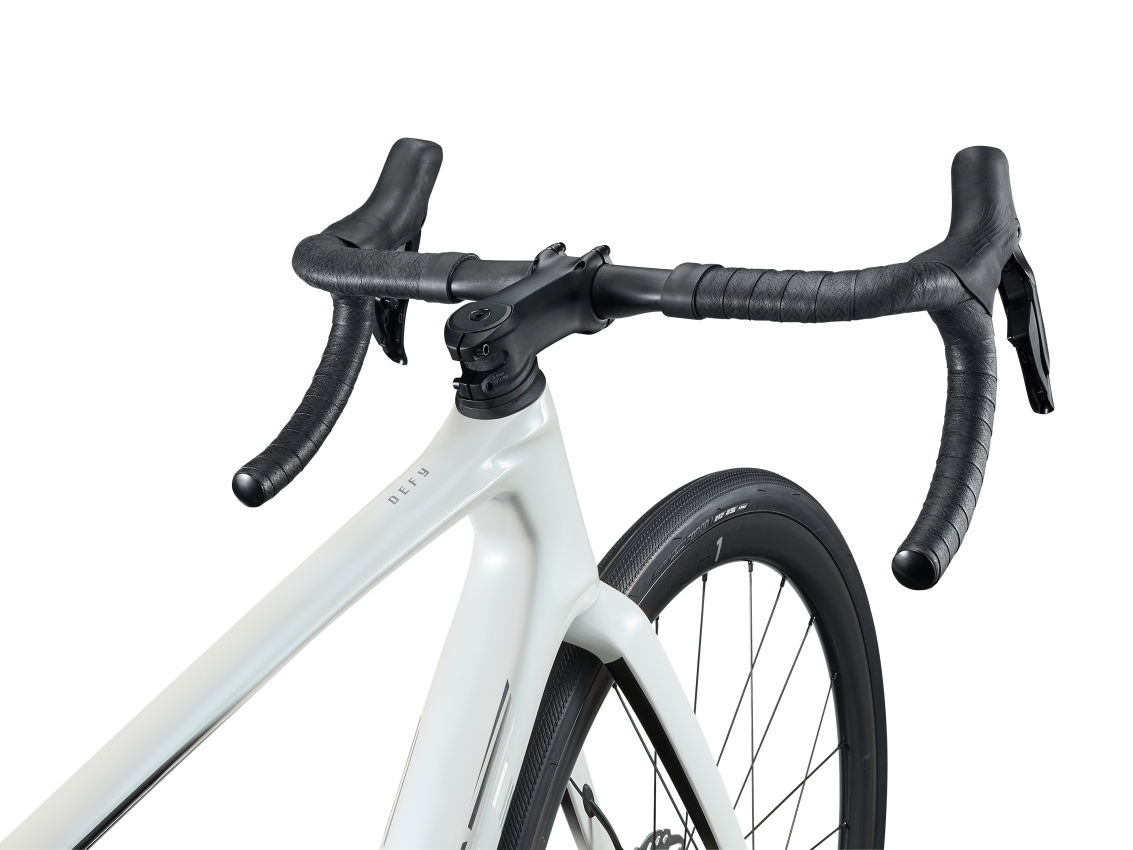

New Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, hookless carbon rims (22.4mm inner width) are optimized for high-volume tubeless tires (up to 38mm), and a 36mm rim depth offers stable, predictable handling in crosswinds.
| Sizes | XS, S, M, M/L, L, XL |
|---|---|
| Colours | Unicorn White/Black/Chrome |
| Frame | Advanced-grade composite, disc |
| Fork | Advanced SL-grade composite, full-composite OverDrive Aero steerer, disc |
| Shock | N/A |
| Handlebar | Giant Contact SL D-Fuse XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm |
| Seatpost | Giant SL D-Fuse, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano 105 Di2 |
| Front Derailleur | Shimano 105 Di2 |
| Rear Derailleur | Shimano 105 Di2 |
| Brakes | Shimano 105 Di2 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano 105 Di2 hydraulic |
| Cassette | Shimano 105, 12-speed, 11×36 |
| Chain | KMC X12L-1 |
| Crankset | Shimano 105, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant SLR 1 36 Carbon Disc WheelSystem |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim stainless |
| Tyres | Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding |

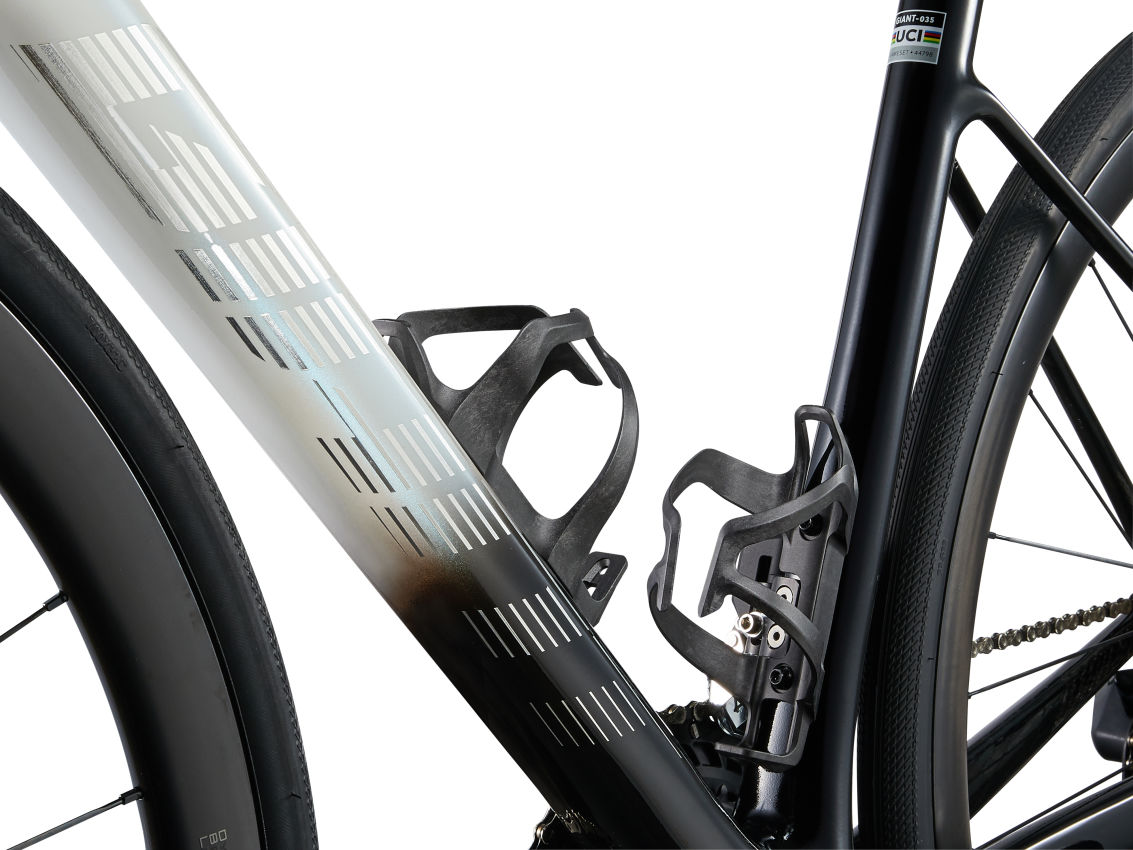

| Extras | computer mount, fender mount, water bottle cages, factory tubeless set up, 38mm max tyre size |
Geometry
| S | L | XL | XS | ML | M | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 445 | 535 | 565 | 410 | 515 | 480 |
| B | SEAT TUBE ANGLE | 74 | 73 | 73 | 74.5 | 73 | 73.5 |
| C | TOP TUBE LENGTH | 530 | 575 | 595 | 515 | 560 | 545 |
| D | HEAD TUBE LENGTH | 140 | 195 | 215 | 120 | 175 | 150 |
| E | HEAD TUBE ANGLE | 71.8 | 72.5 | 72.5 | 70.5 | 72.5 | 72.5 |
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL | 63.4 | 58.6 | 58.6 | 71.6 | 58.6 | 58.6 |
| H | WHEEL BASE | 994 | 1025 | 1040 | 995 | 1010 | 998 |
| I | CHAIN STAY LENGTH | 420 | 420 | 420 | 420 | 420 | 420 |
| J | BOTTOM BRACKET DROP | 75 | 70 | 70 | 75 | 70 | 75 |
| K | STACK | 541 | 596 | 615 | 527 | 577 | 558 |
| L | REACH | 375 | 393 | 402 | 369 | 384 | 380 |
| M | STAND OVER HEIGHT | 733 | 814 | 841 | 705 | 796 | 762 |
| N | HANDLERBAR WIDTH | 400 | 440 | 440 | 400 | 420 | 420 |
| O | STEM LENGTH | 90 | 110 | 110 | 80 | 100 | 100 |
| P | CRANK LENGTH DEC | 170 | 175 | 175 | 170 | 172.5 | 172.5 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C | 700C |
Technology and Features
