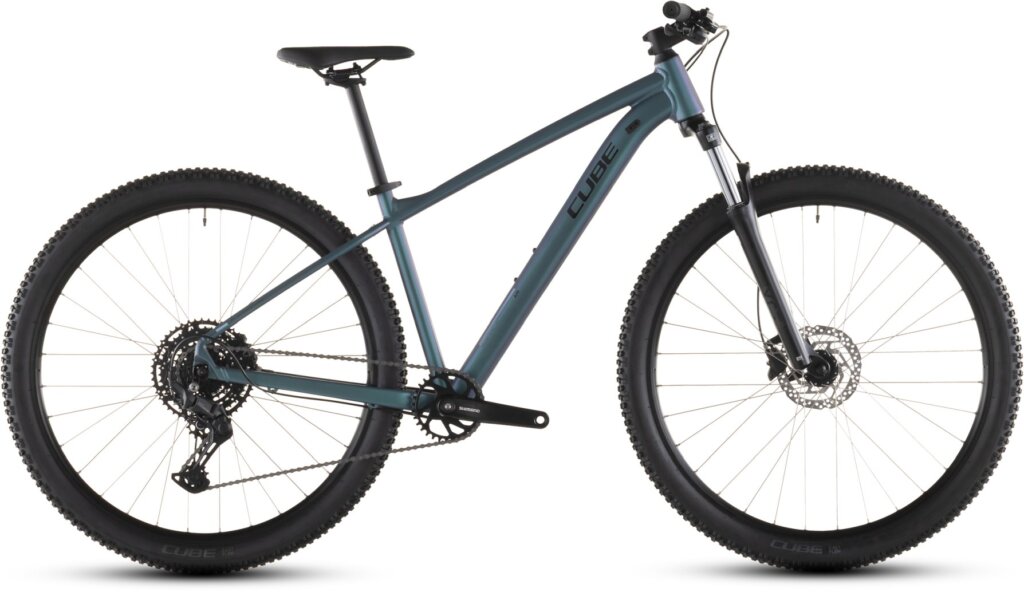

AIM PRO SMARAGDGREY/PRISM

699.00

CUBE AIM PRO SMARAGDGREY/PRISM L

Clear

SKU: 140210   Category: ,   Tag: , ,


Got an off-road itch that needs scratching? The Aim Pro could be the relief you’re looking for. With its grippy 2.25in tyres and 100mm suspension fork, it’s got the comfort and control you’ll need to keep riding when you reach the end of the road. Wide-ratio Shimano Cues 10-speed gears will help you see off the steepest climbs, and strong hydraulic brakes put you in control on the descents. Best of all, Size Split makes it easy to find the perfect fit for every rider – and the frame is even ready to accept a future dropper post upgrade.

Frame description
Beauty is more than skin deep: the Aim’s sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there’ll be an Aim that fits perfectly.

Size L, M, S, XL, XS, XXL

Specifications

AIM

Got an off-road itch that needs scratching? The Aim Pro could be the relief you’re looking for. With its grippy 2.25in tyres and 100mm suspension fork, it’s got the comfort and control you’ll need to keep riding when you reach the end of the road. Wide-ratio Shimano Cues 10-speed gears will help you see off the steepest climbs, and strong hydraulic brakes put you in control on the descents. Best of all, Size Split makes it easy to find the perfect fit for every rider – and the frame is even ready to accept a future dropper post upgrade.

Frame description
Beauty is more than skin deep: the Aim’s sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there’ll be an Aim that fits perfectly.

Fork
Fork Brand SUNTOUR
Fork Model XCT, 100mm
Fork Suspension 1
Fork Brand Description Suntour
Stem
Stem Brand CUBE
Stem Model Performance Stem, 31.8mm
Stem Brand Description Cube
Frame
Frametype UNI
Framematerial ALUMINIUM
Framesize Supplier XXL
Frametype Description Unisex
Framematerial Description Aluminium
Gears
Gear Type DERAILLEUR
Gear Brand SHIMANO
Gear Model Cues
Number Of Gears 11
Gear Brand Description Shimano
Gear Type Description Derailleur
Pedals
Pedals Brand CUBE
Pedals Model PP MTB
Pedals Brand Description Cube
Saddle
Saddle Brand ACID
Saddle Model Venec Lite
Saddle Brand Description Acid
Wheels
Wheels Brand ACID
Wheels Model Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
Wheels Brand Description Acid
Headset
Headset Brand CUBE
Headset Model FPH868p, Tapered, Semi-Integrated
Headset Brand Description Cube
Seatpost
Seatpost Brand CUBE
Seatpost Model Performance Post, 27.2mm
Seatpost Brand Description Cube
Shifters
Shifters Brand SHIMANO
Shifters Model Cues SL-U6000, Rapidfire-Plus
Shifters Brand Description Shimano
Handlebar
Handlebar Brand CUBE
Handlebar Model Rise Trail Bar, 680mm
Handlebar Brand Description Cube
Front Brake
Front Brake Type SH
Front Brake Brand SHIMANO
Front Brake Model BR-MT200/UR300
Front Brake Brand Description Shimano
Front Brake Type Description Disc brake with hydraulic actuation
Seatpost Clamp
Seatpost Clamp Brand CUBE
Seatpost Clamp Model Seatpost clamp
Seatpost Clamp Brand Description Cube
Derailleur Rear
Derailleur Rear Brand SHIMANO
Derailleur Rear Model Cues, 11-48T, 10-Speed
Derailleur Rear Brand Description Shimano
Primary Rear Brake
Primary Rear Brake Type SH
Primary Rear Brake Brand SHIMANO
Primary Rear Brake Model BR-MT200/UR300
Primary Rear Brake Brand Description Shimano
Primary Rear Brake Type Description Disc brake with hydraulic actuation
Physical Specifications
Size XXL
Colour SMARAGDGREY/PRISM
Net Weight 15.1
Gross Weight 18.58
Weight Capacity 140
Primary Basecolour GREY
Secondary Basecolour GREY
Primary Basecolour Description Grey
Secondary Basecolour Description Grey

Highlights

EAN : 4054571506146
VAT : 0.20
Trade Price : 424

Geometry

field_5fb7fc55952a0

Technology and features

field_5fb7fc66952a1
