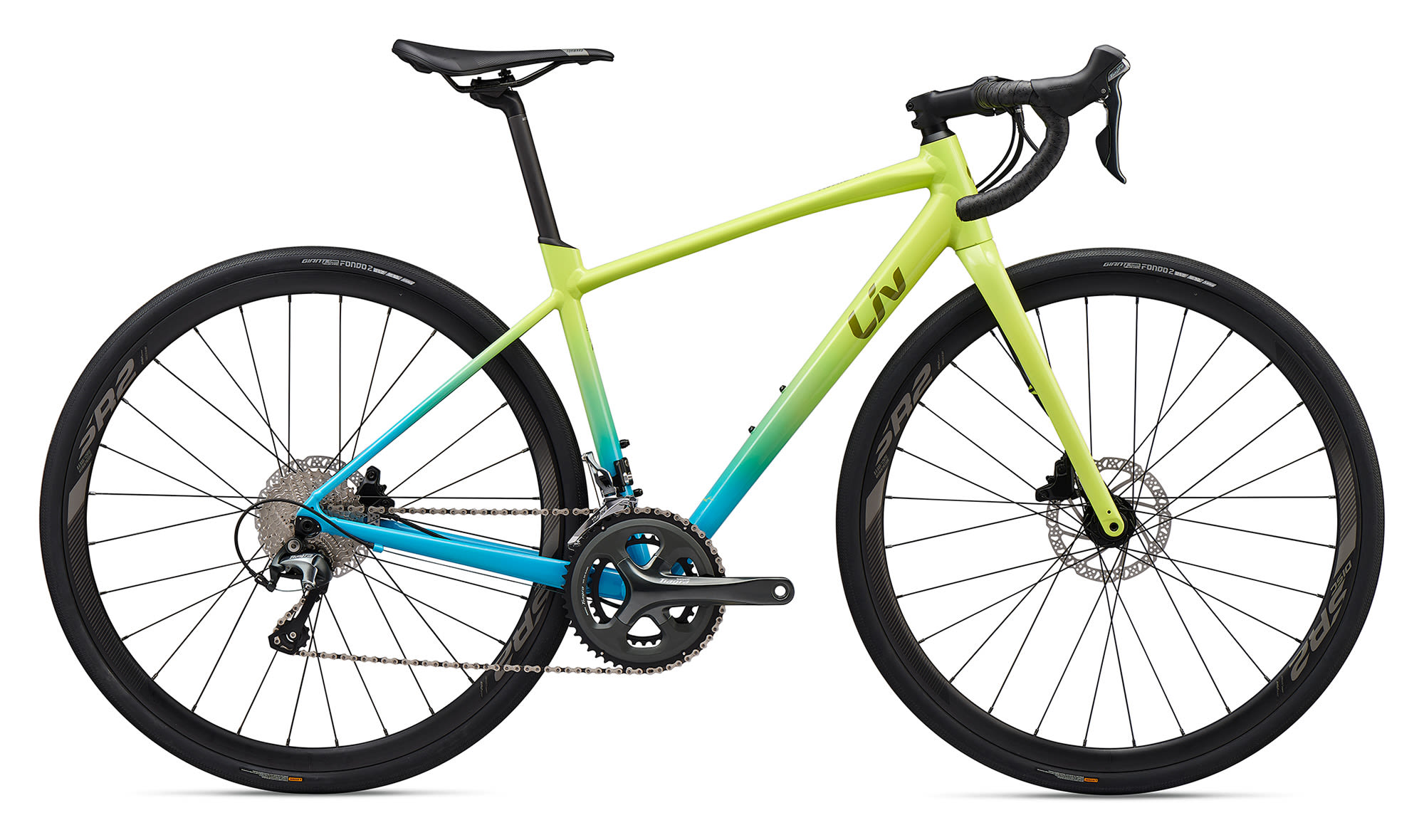

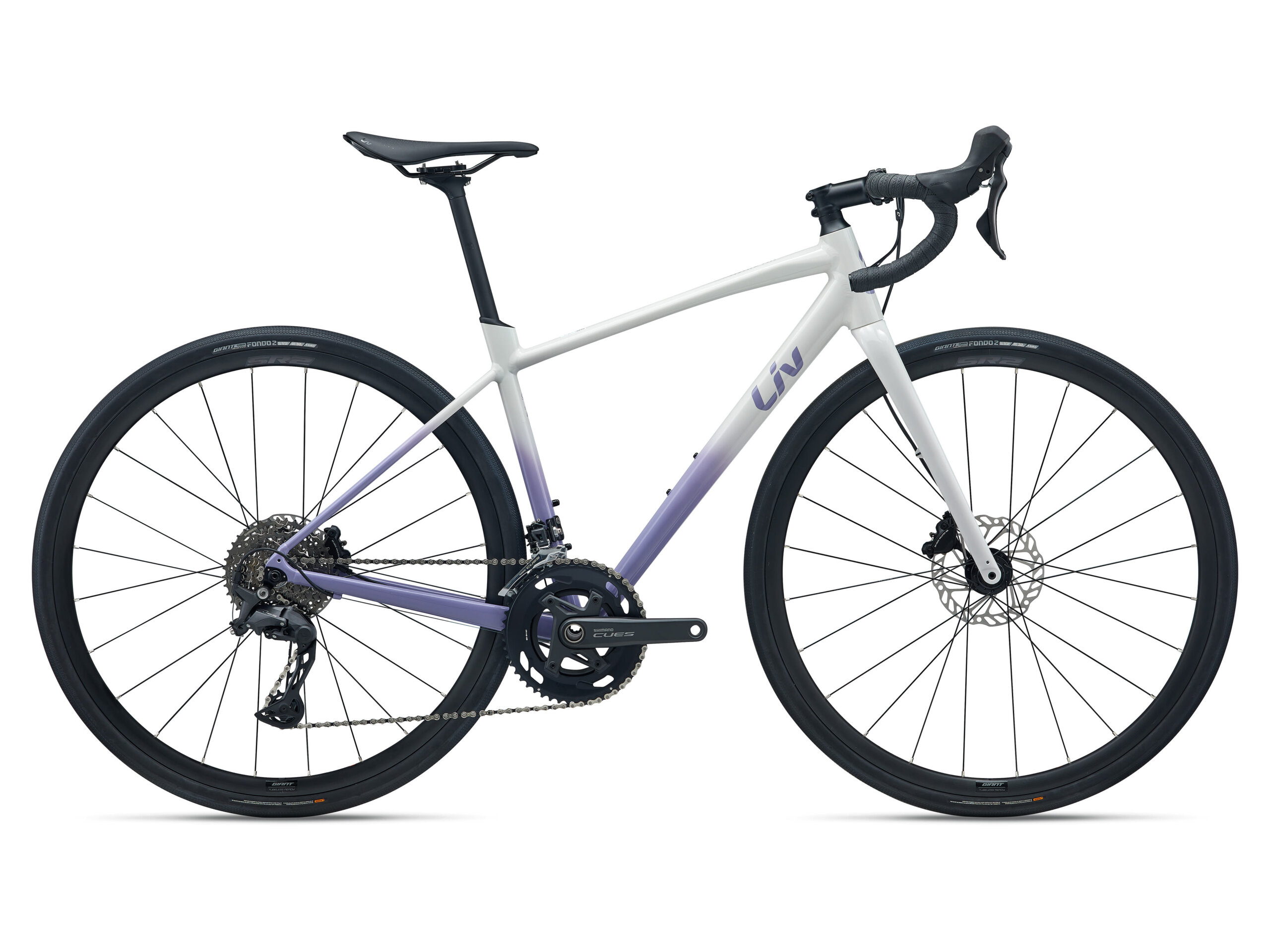

Avail AR 2

Avail AR 2

€1,699.00

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Additional information

Size	L, M, S, XS
Color	Lavender Blush

Specifications

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Key Performance Factors

Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.

Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you’re ready for longer journeys with all the necessary gear and protection.

Sizes	XXS, XS, S, M, L
Colours	Lavender Blush
Frame	ALUXX-grade aluminum, 12x142mm thru-axle, disc
Fork	Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
Shock	N/A
Handlebar	Liv Connect, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm
Grips	Liv All Condition
Stem	Giant Sport, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
Seatpost	Giant D-Fuse, composite, XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
Saddle	Liv Approach
Shifters	Shimano Tiagra 2×10
Front Derailleur	Shimano Tiagra
Rear Derailleur	Shimano Tiagra
Brakes	Shimano Tiagra hydraulic discs, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers	Shimano Tiagra
Cassette	Shimano HG500 10×34
Chain	KMC X10
Crankset	Shimano Tiagra 34/50
Bottom Bracket	Shimano BB-RS500
Rims	Giant S-R2 Disc
Hubs	Giant alloy, 12mm thru-axle
Spokes	stainless
Tyres	Giant Gavia Fondo 2, 700x32c, tubeless
Extras	tubeless prepared, 38mm max tire size
Max Tire Clearance	38mm

Geometry

		XS	S	M	L
A	SEAT TUBE LENGTH	430	465	500	535
B	SEAT TUBE ANGLE	75	74.5	74	74
C	TOP TUBE LENGTH	515	525	540	555
D	HEAD TUBE LENGTH	135	150	170	190
E	HEAD TUBE ANGLE	70.5	72	72	72
F	FORK RAKE	45	45	45	45
G	TRAIL	73	63.5	63.5	63.5
H	WHEEL BASE	998	990	1,000	1,016
I	CHAIN STAY LENGTH	420	420	420	420
J	BOTTOM BRACKET DROP	70	70	70	70
K	STACK	530	550	569	588
L	REACH	372	372	377	386
M	STAND OVER HEIGHT	687	716	744	772
N	HANDLEBAR WIDTH	380	400	400	420
O	STEM LENGTH	70	80	90	90
P	CRANK LENGTH DEC	165	165	170	172.5
Q	WHEEL SIZE ALT
