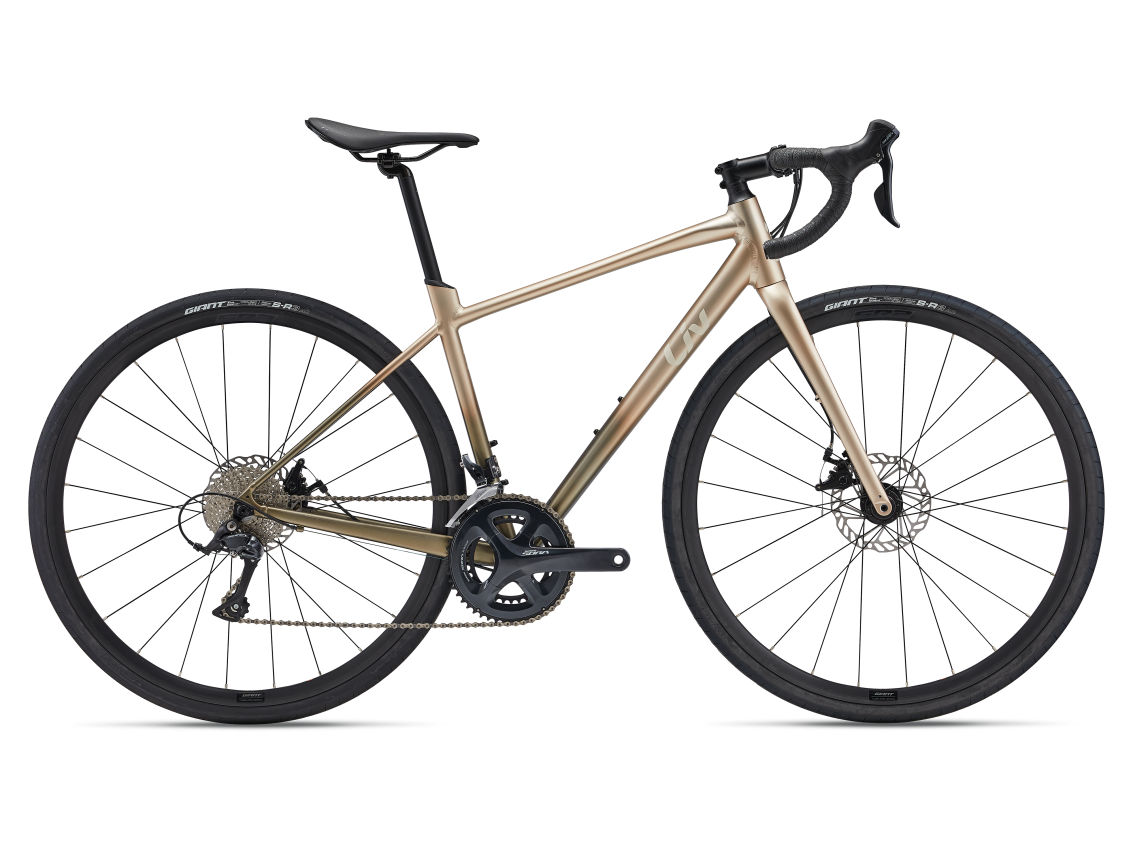

Avail AR 3 (2024) | Women bike
€1,379.00
Features:
Specifications
Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Key Performance Factors
Comfort
The lightweight ALUXX frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability both on-road and off-road, and select models offer compatibility with tubeless tires up to 38c. With the OverDrive steerer and powerful disc brakes, you’ll enjoy precise handling and reliable stopping power for confident riding in any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you’re ready for longer journeys with all the necessary gear and protection.
| Sizes | XS, S, M, L |
|---|---|
| Colours | Satin Sandshell/Pyrite |
| Frame | ALUXX-grade aluminium, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Connect, 31.8mm |
| Grips | Liv All Condition |
| Stem | Giant Sport |
| Seatpost | Giant D-Fuse, alloy |
| Saddle | Liv Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano Sora 2×9 |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora |
| Brakes | Tektro MD-C550 mechanical,160mm rotors |
| Brake Levers | Shimano Sora |
| Cassette | Shimano CS-HG400, 9-speed, 11×34 |
| Chain | KMC X9 |
| Crankset | Shimano Sora, 34/50 |
| Bottom Bracket | cartridge |
| Rims | Giant S-R2 Disc wheelset, 22mm inner width |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Stainless steel |
| Tyres | Giant S-R3 AC, 700x32c |
| Extras | 38mm max tyre size |
Geometry
| S | M | L | XS | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 445 | 480 | 515 | 410 |
| B | SEAT TUBE ANGLE | 74.5 | 74 | 74 | 74.5 |
| C | TOP TUBE LENGTH | 525 | 540 | 555 | 515 |
| D | HEAD TUBE LENGTH | 138 | 158 | 178 | 118 |
| E | HEAD TUBE ANGLE | 71.5 | 72 | 72 | 70.5 |
| F | FORK RAKE | 53 | 53 | 53 | 53 |
| G | TRAIL | 62.9 | 59.6 | 59.6 | 69.5 |
| H | WHEEL BASE | 1001 | 1006 | 1022 | 999 |
| I | CHAIN STAY LENGTH | 422 | 422 | 422 | 422 |
| J | BOTTOM BRACKET DROP | 80 | 80 | 80 | 80 |
| K | STACK | 561 | 582 | 601 | 538 |
| L | REACH | 369 | 373 | 383 | 366 |
| M | STAND OVER HEIGHT | 709 | 736 | 766 | 681 |
| N | HANDLERBAR WIDTH | 400 | 400 | 420 | 380 |
| O | STEM LENGTH | 80 | 90 | 90 | 70 |
| P | CRANK LENGTH DEC | 170 | 170 | 172.5 | 165 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
