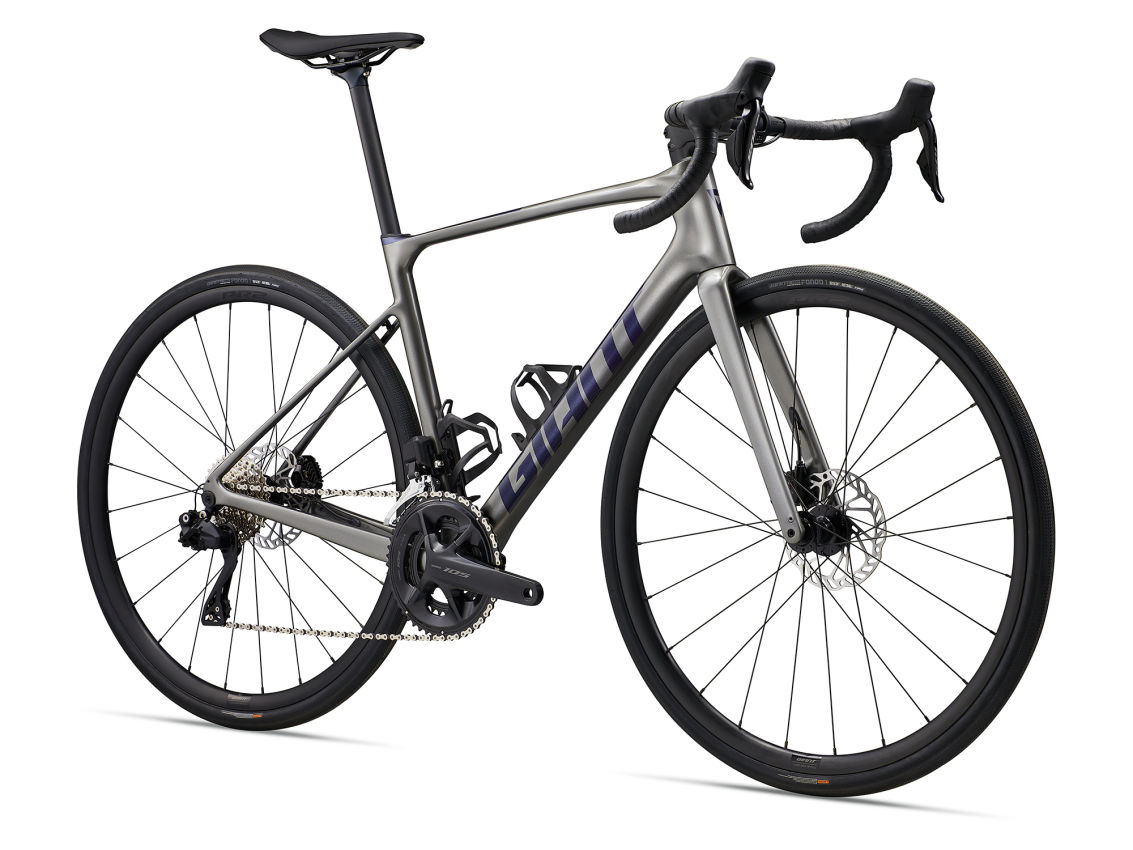

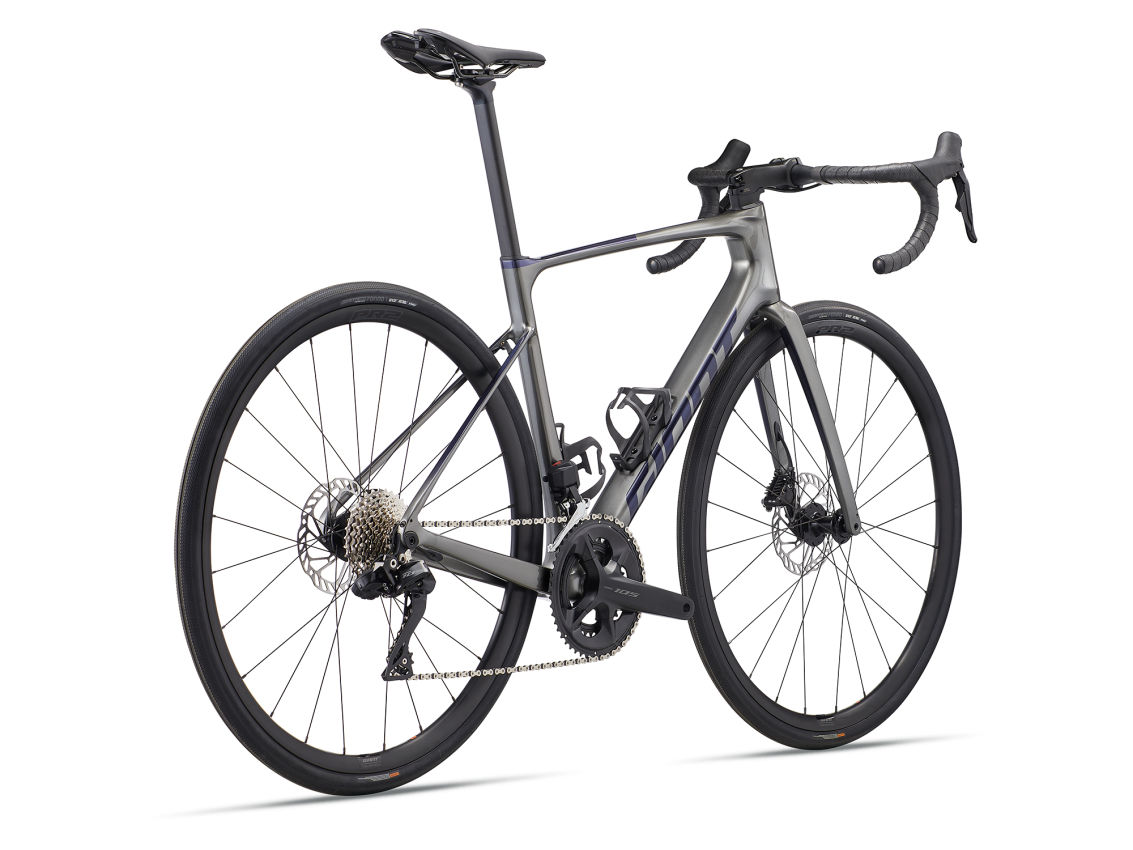

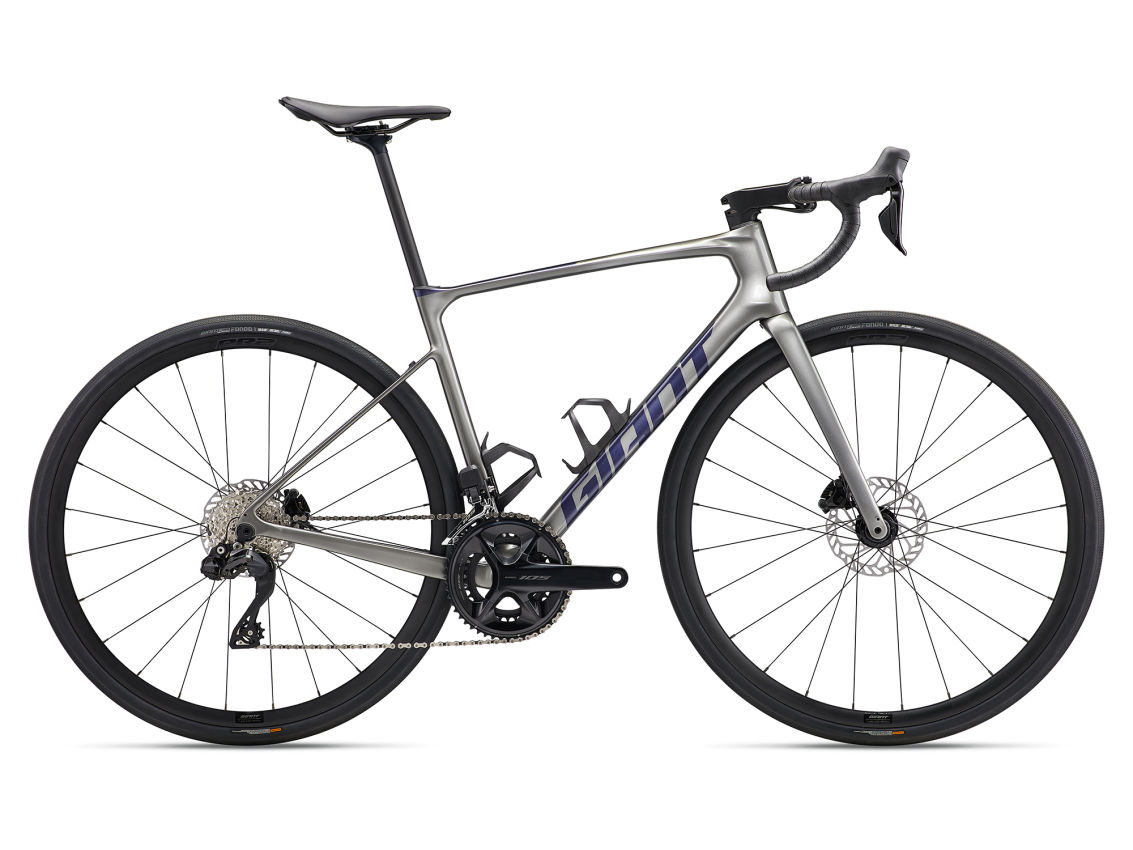

Defy Advanced 1 (2024) | bike
€3,649.00
Features:
Specifications
With effortless efficiency and quiet compliance, this lightweight endurance road machine helps you ride stronger and longer. The composite frame and purpose-built components smooth out rough roads and minimize fatigue.
Key Performance Factors
Functional simplicity
Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.
Engineered compliance

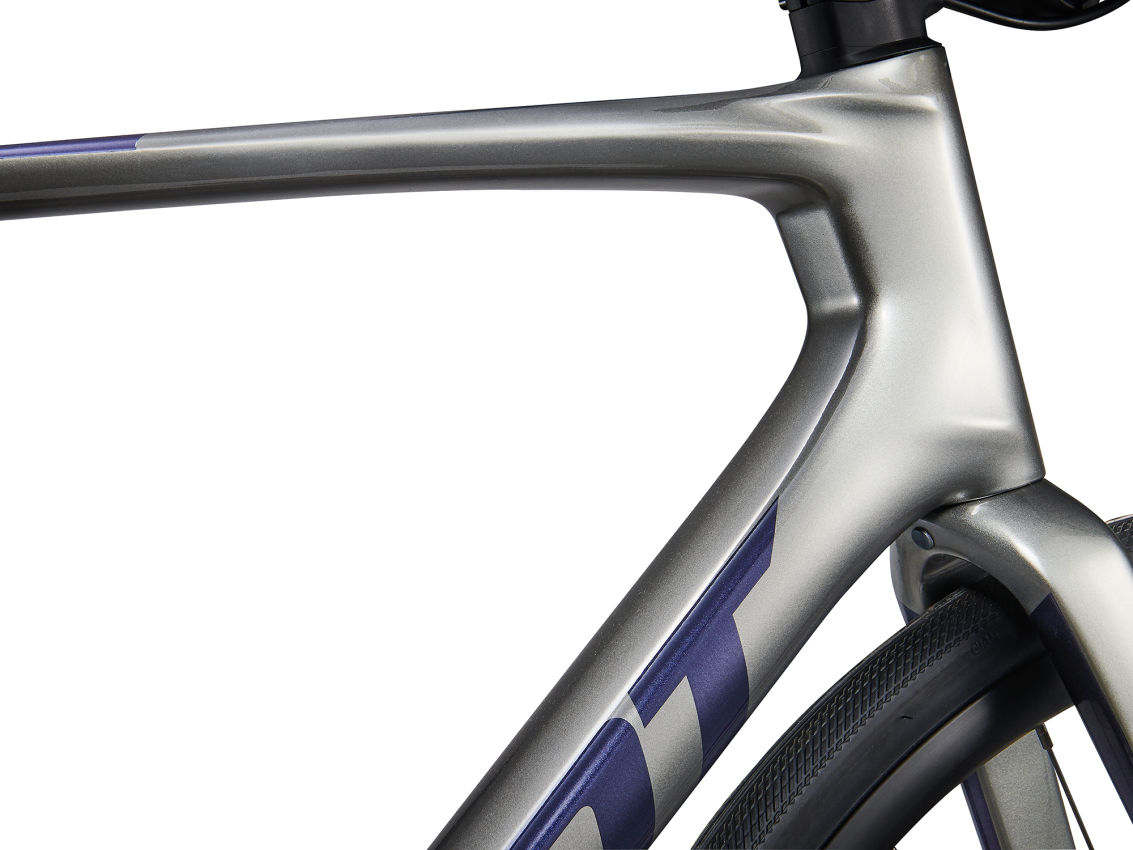

Advanced-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimizes fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.
Total control

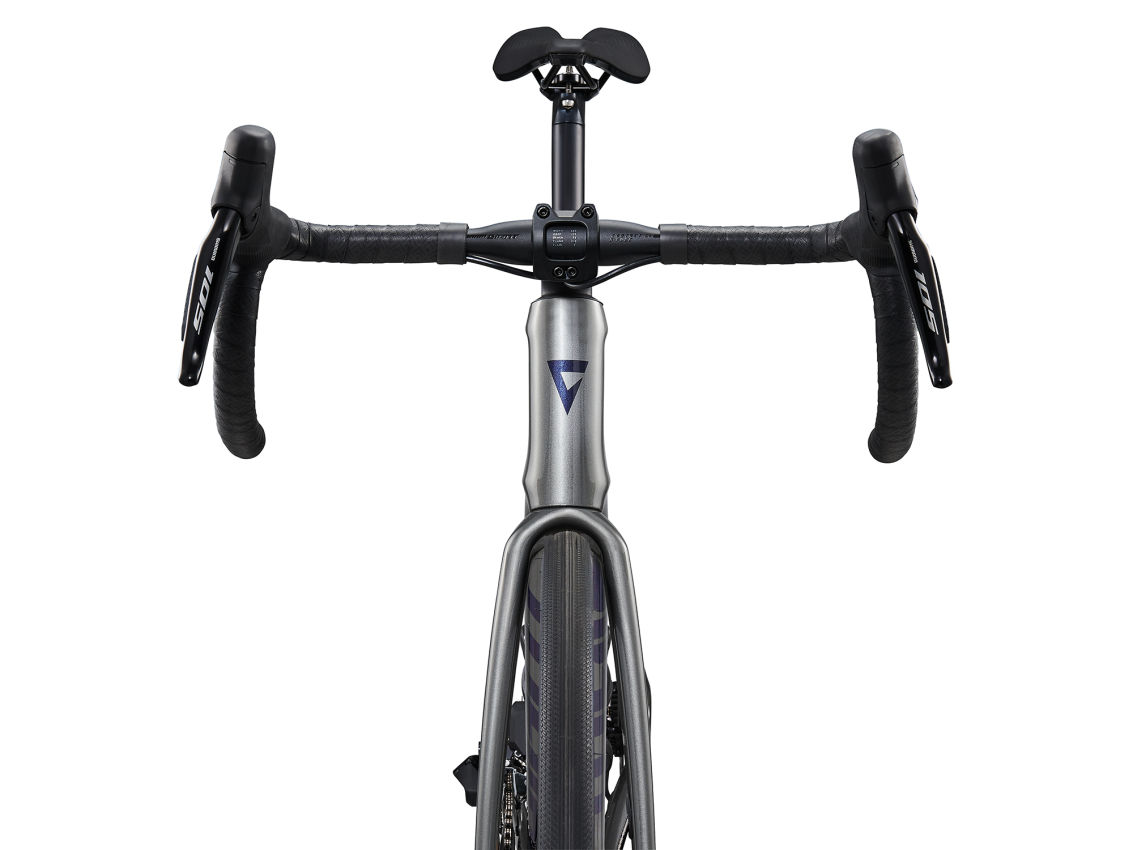

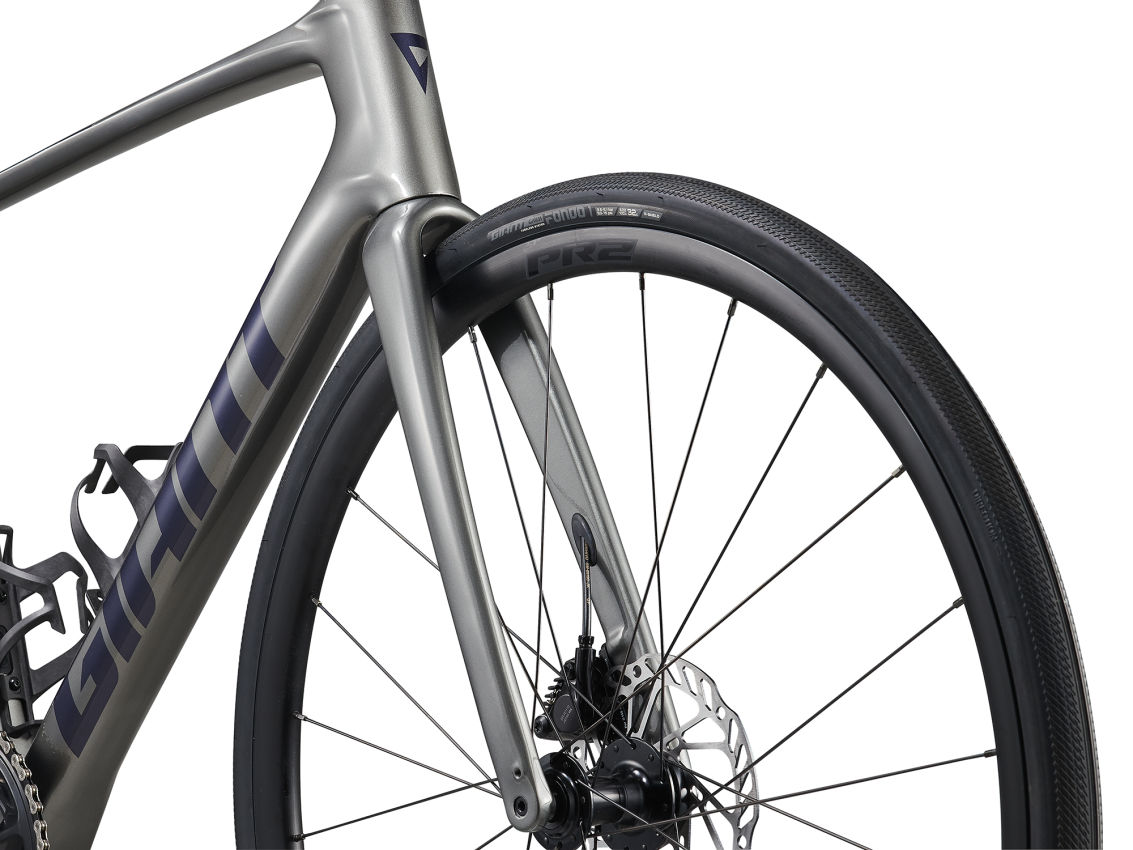

New Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, alloy rims are optimized for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to cobbles.
| Sizes | S, M, M/L, L, XL |
|---|---|
| Colours | Charcoal/Milky Way, Black/Helios Orange |

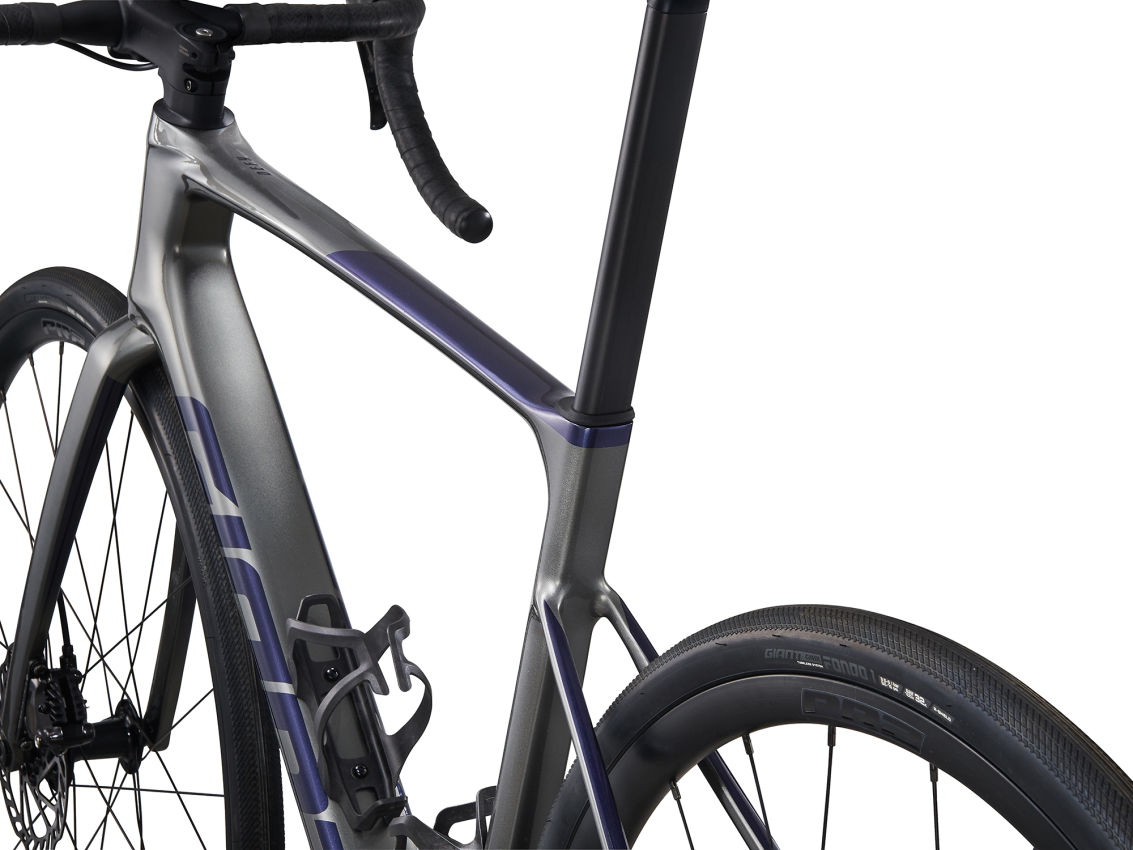

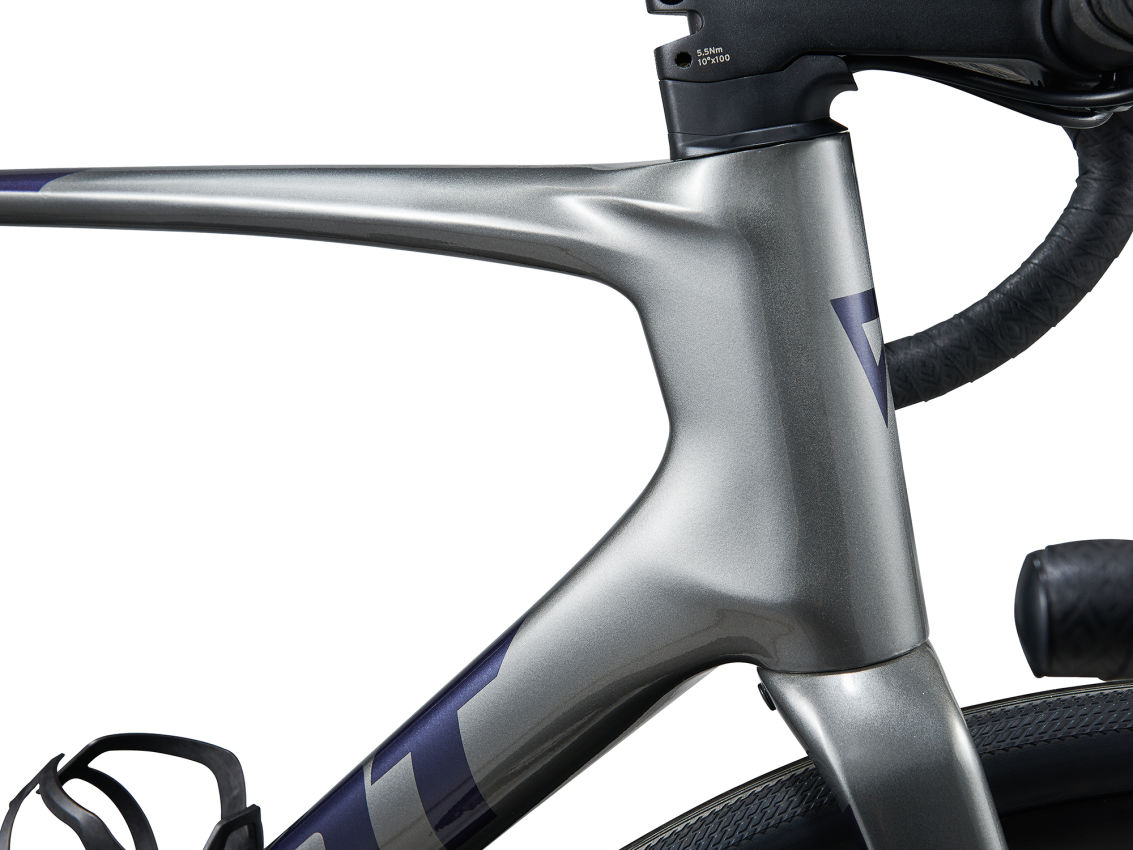

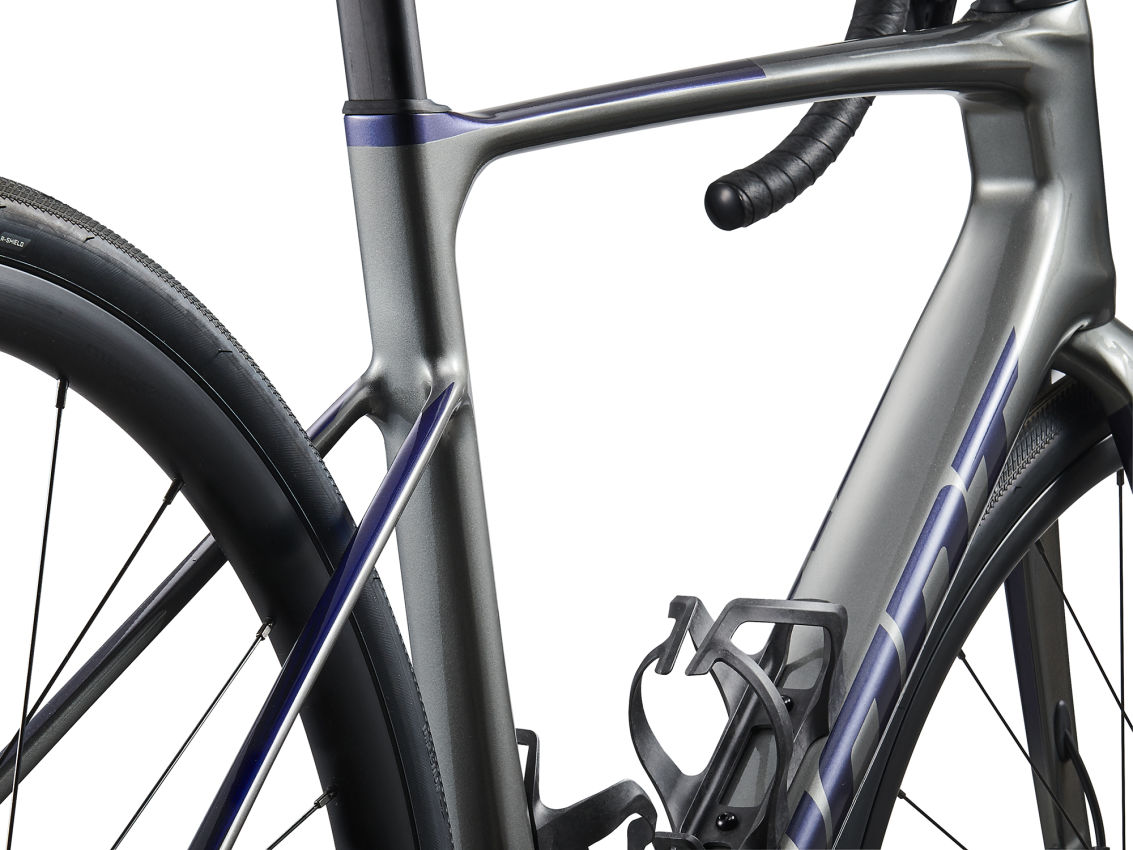

| Frame | Advanced-grade composite, disc |
| Fork | Advanced-grade composite, full-composite steerer, disc |
| Shock | N/A |
| Handlebar | Giant Contact SL D-Fuse S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact AeroLight S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm |
| Seatpost | Giant D-Fuse, composite, 14mm offset |
| Saddle | Giant Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano 105 Di2 |
| Front Derailleur | Shimano 105 Di2 |
| Rear Derailleur | Shimano 105 Di2 |
| Brakes | Shimano 105 Di2 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano 105 Di2 |
| Cassette | Shimano 105, 12-speed, 11×36 |
| Chain | KMC X12L-1 |

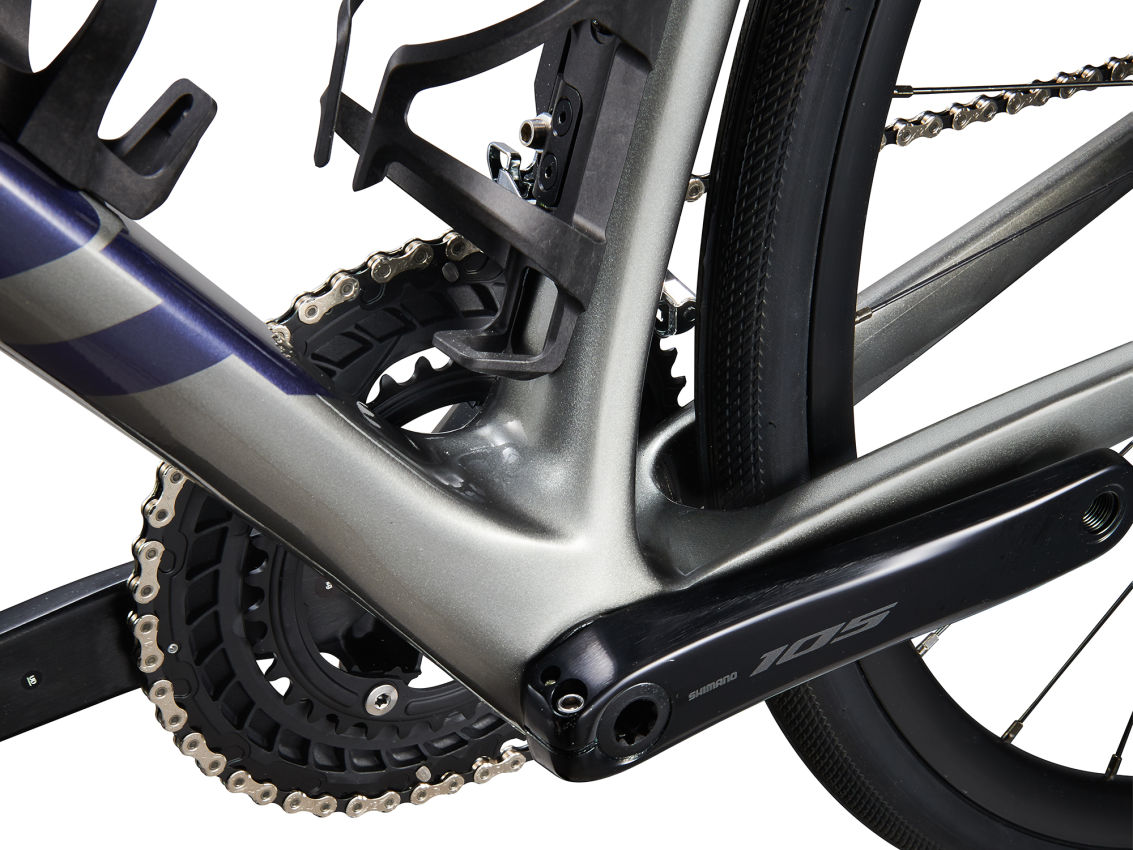

| Crankset | Shimano 105, 34/50 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-R2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim stainless |
| Tyres | Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding |
| Extras | fender mount, water bottle cages, factory tubeless set up, 38mm max tyre size |
Geometry
| M | S | ML | XL | L | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 480 | 445 | 515 | 565 | 535 |
| B | SEAT TUBE ANGLE | 73.5 | 74 | 73 | 73 | 73 |
| C | TOP TUBE LENGTH | 545 | 530 | 560 | 595 | 575 |
| D | HEAD TUBE LENGTH | 150 | 140 | 175 | 215 | 195 |
| E | HEAD TUBE ANGLE | 72.5 | 71.8 | 72.5 | 72.5 | 72.5 |
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL | 58.6 | 63.4 | 58.6 | 58.6 | 58.6 |
| H | WHEEL BASE | 998 | 994 | 1010 | 1040 | 1025 |
| I | CHAIN STAY LENGTH | 420 | 420 | 420 | 420 | 420 |
| J | BOTTOM BRACKET DROP | 75 | 75 | 70 | 70 | 70 |
| K | STACK | 558 | 541 | 577 | 615 | 596 |
| L | REACH | 380 | 375 | 384 | 402 | 393 |
| M | STAND OVER HEIGHT | 762 | 733 | 796 | 841 | 814 |
| N | HANDLERBAR WIDTH | 420 | 400 | 420 | 440 | 440 |
| O | STEM LENGTH | 100 | 90 | 100 | 110 | 110 |
| P | CRANK LENGTH DEC | 172.5 | 170 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C |
