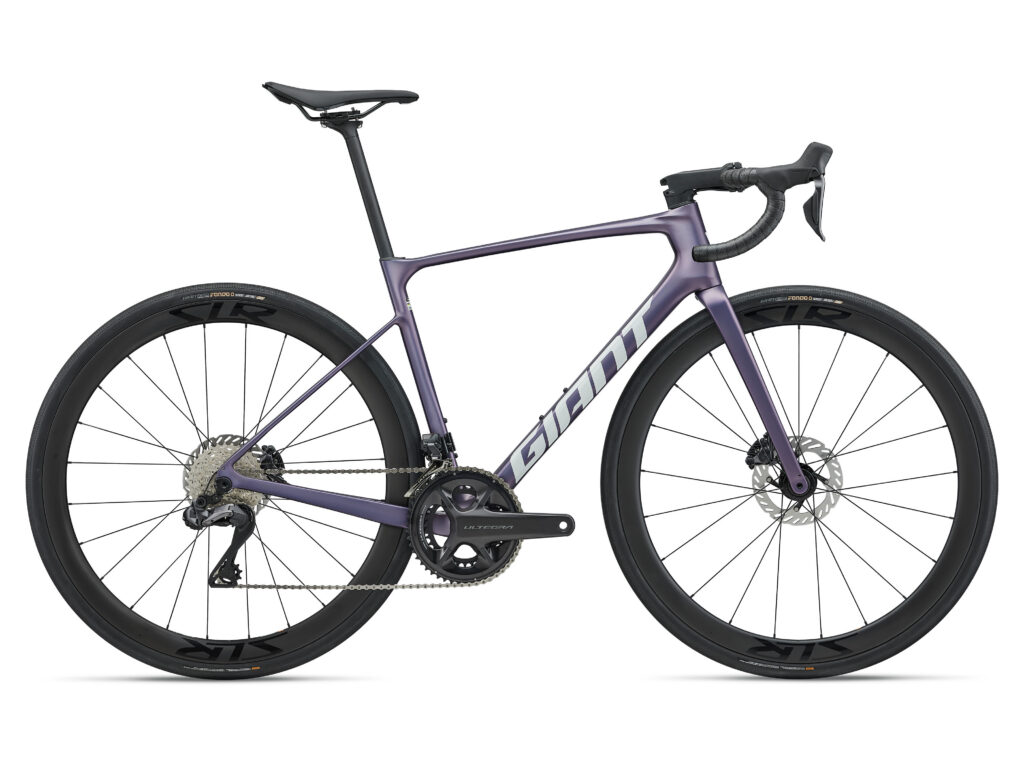

Defy Advanced-Ui2

With effortless efficiency and quiet compliance, this lightweight endurance road machine helps you ride stronger and longer. The composite frame and purpose-built components smooth out rough roads and minimize fatigue.

Category: Bikes, Road Bikes Tag: Giant

View

Size L, M, ML, S, XL, XS

Color Tempest Purple

Specifications

Key Performance Factors

FUNCTIONAL SIMPLICITY
Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.

ENGINEERED COMPLIANCE
Advanced-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimizes fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.

TOTAL CONTROL
New Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, alloy rims are optimized for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to cobbles.

Sizes	XS, S, M, ML, L, XL
Colours	Tempest Purple
Frame	Advanced-Grade Composite, 12x142mm thru-axle
Fork	Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12x100mm thru-axle
Handlebar	Contact SL D-Fuse XS: 410/380, S 410/380, M: 430/400, ML: 430/400, L: 450/420, XL: 450/420
Grips	Stratus Lite 3.0
Stem	Giant Contact AeroLight XS: 80, S: 90, M: 100, ML: 100, L: 110, XL: 110
Seatpost	Giant D-Fuse Composite Offset 14mm
Saddle	Giant Approach
Shifters	Shimano Ultegra Di2 HRD
Front Derailleur	Shimano Ultegra Di2
Rear Derailleur	Shimano Ultegra Di2
Brakes	Shimano Ultegra Di2 HRD, Shimano RT-CL700, [F]160[R]160
Brake Levers	Shimano Ultegra Di2 HRD
Cassette	Shimano CS-R8100, 11X34
Chain	KMC X12L-1
Crankset	Shimano Ultegra (R8100), 34/50 XS: 165, S: 165, M: 170, ML: 170, L: 172.5, XL: 172.5
Bottom Bracket	Shimano, PressFit
Rims	Giant SLR 2 40 Carbon Disc Wheel System
Hubs	[F] Giant Alloy Hub, CenterLock, 12mm thru-axle, [R] Giant Alloy Hub, 3-pawl driver, CenterLock, 12mm thru-axle
Spokes	Sapim
Tyres	Giant Gavia Fondo 0 Tubeless, 700x32c (33.5mm effective), 170 TPI, Folding
Extras	tubeless prepared, 40mm max tire size
Max Tire Clearance	40mm

Highlights

Barcode : 4711291293083

Geometry

		XS	S	M	ML	L	XL
A	SEAT TUBE LENGTH	410	445	480	515	535	565
B	SEAT TUBE ANGLE	74.5	74	73.5	73	73	73
C	TOP TUBE LENGTH	515	530	545	560	575	595
D	HEAD TUBE LENGTH	125	135	150	175	195	215
E	HEAD TUBE ANGLE	70.5	71.8	72.5	72.5	72.5	72.5
F	FORK RAKE	50	50	50	50	50	50
G	TRAIL	71.6	63.4	58.6	58.6	58.6	58.6
H	WHEEL BASE	995	994	998	1,010	1,025	1,040
I	CHAIN STAY LENGTH	420	420	420	420	420	420
J	BOTTOM BRACKET DROP	75	75	75	70	70	70
K	STACK	527	541	558	577	596	615
L	REACH	369	375	380	384	393	402
M	STAND OVER HEIGHT	705	733	762	796	814	841
N	HANDLEBAR WIDTH	410	410	430	430	450	450
O	STEM LENGTH	80	90	100	100	110	110
P	CRANK LENGTH DEC	165	165	170	170	172.5	172.5
Q	WHEEL SIZE ALT
