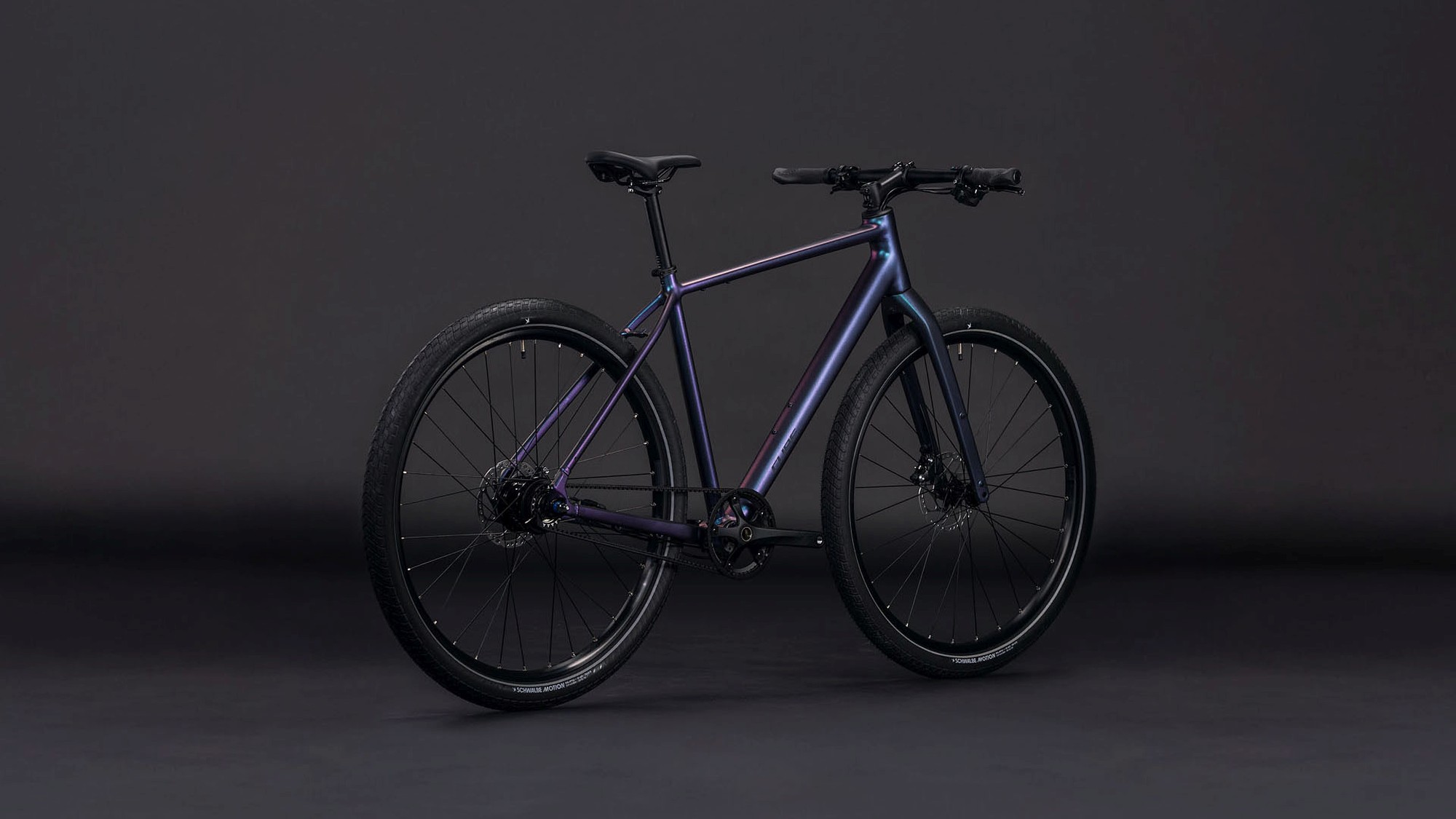

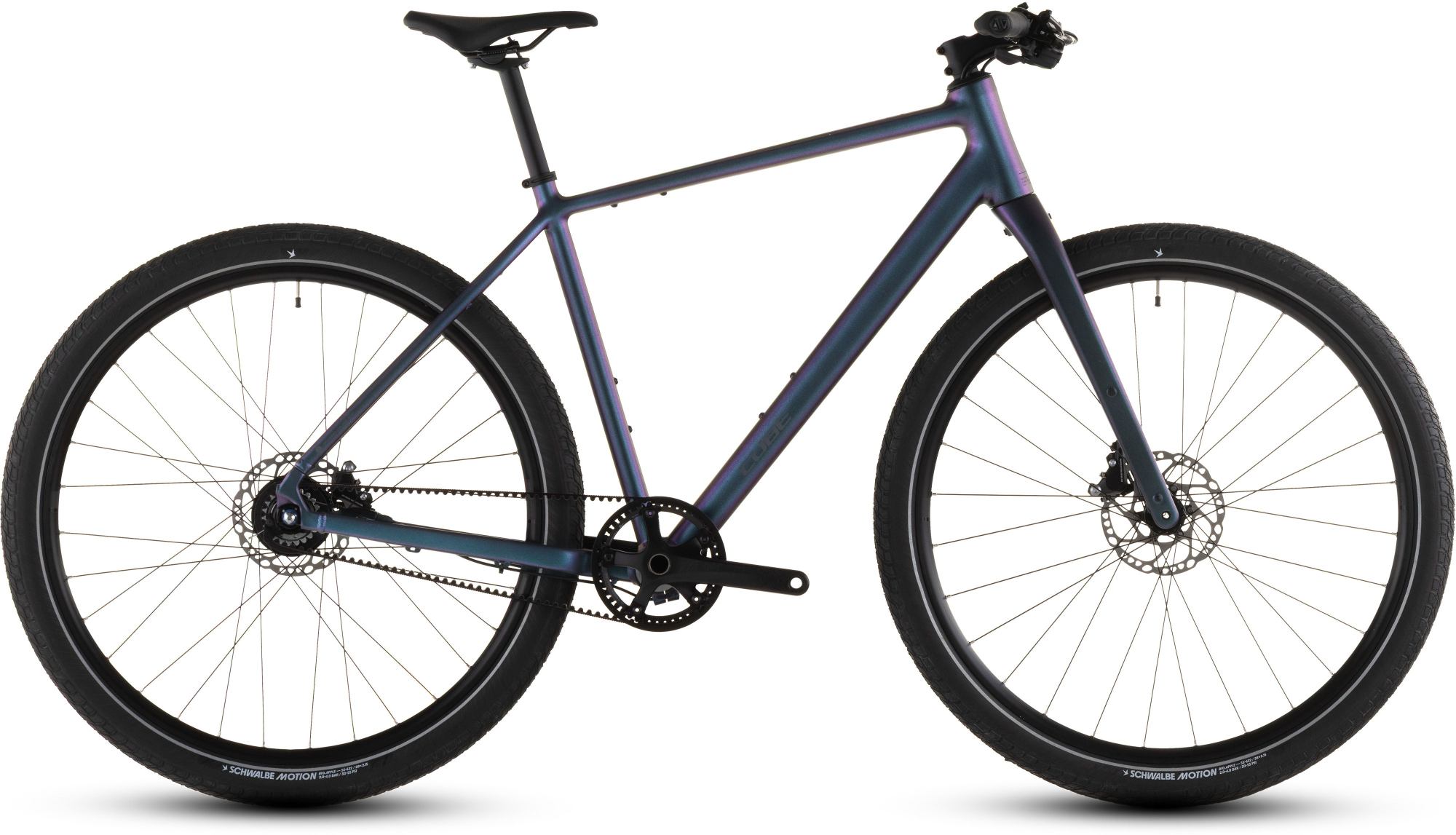

CUBE EDITOR SLX AMMOLITE/REFLEX 46 CM
Built for easy speed through the urban jungle with a side serving of effortless style, the Editor SLX is all about keeping things simple and streamlined. Shimano hydraulic disc brakes and grippy Schwalbe Motion Big Apple 55mm tyres help keep you safe, whatever the weather. The C:62 carbon fork gives nimble, reassuring handling and matches the smooth, sculpted lines of the lightweight aluminium frame perfectly. And there’s a low-maintenance Shimano Alfine 11-speed hub gear with clean, quiet Gates carbon belt drive, so the right gear for the road is always at your fingertips.
Frame description

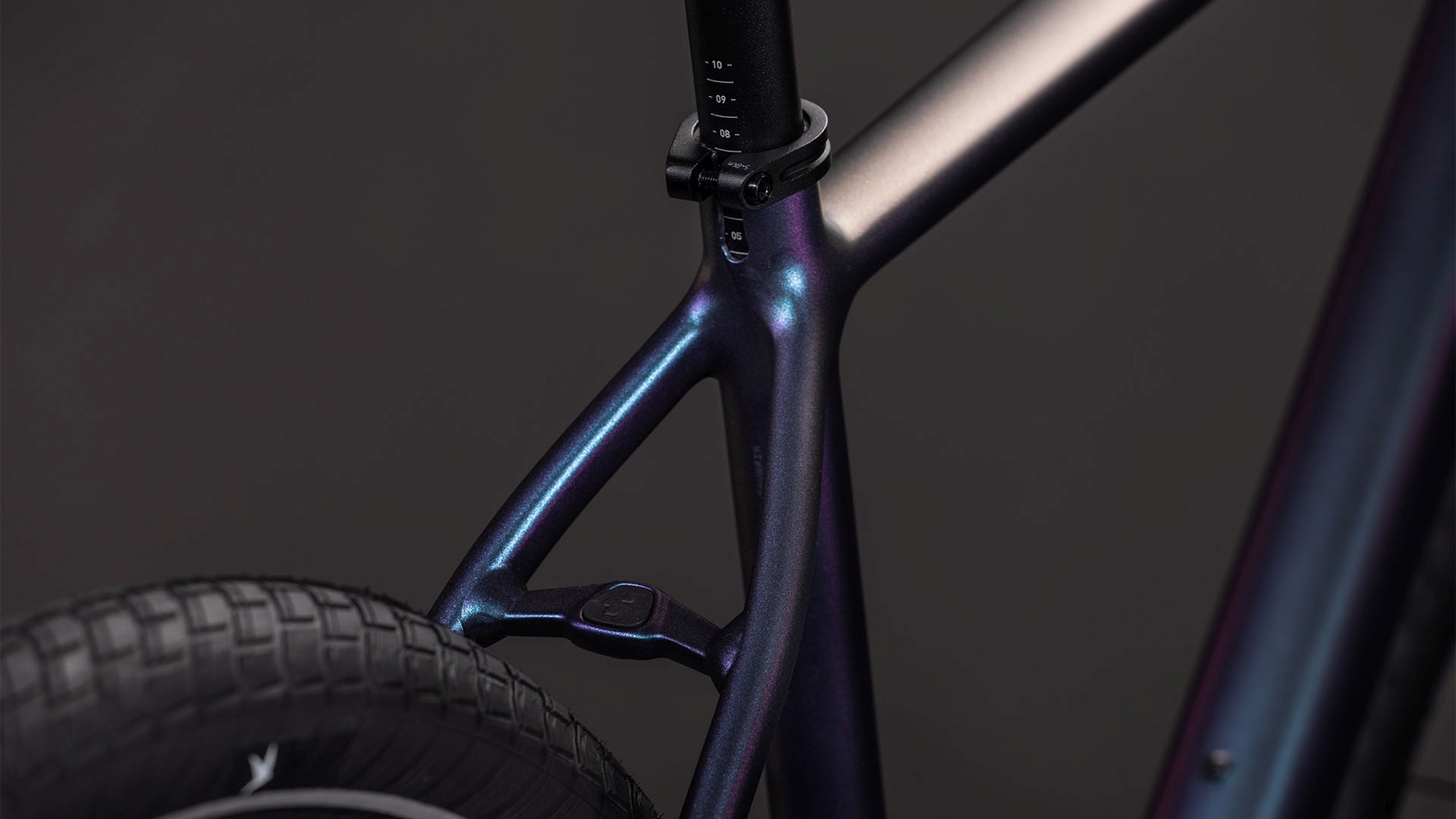

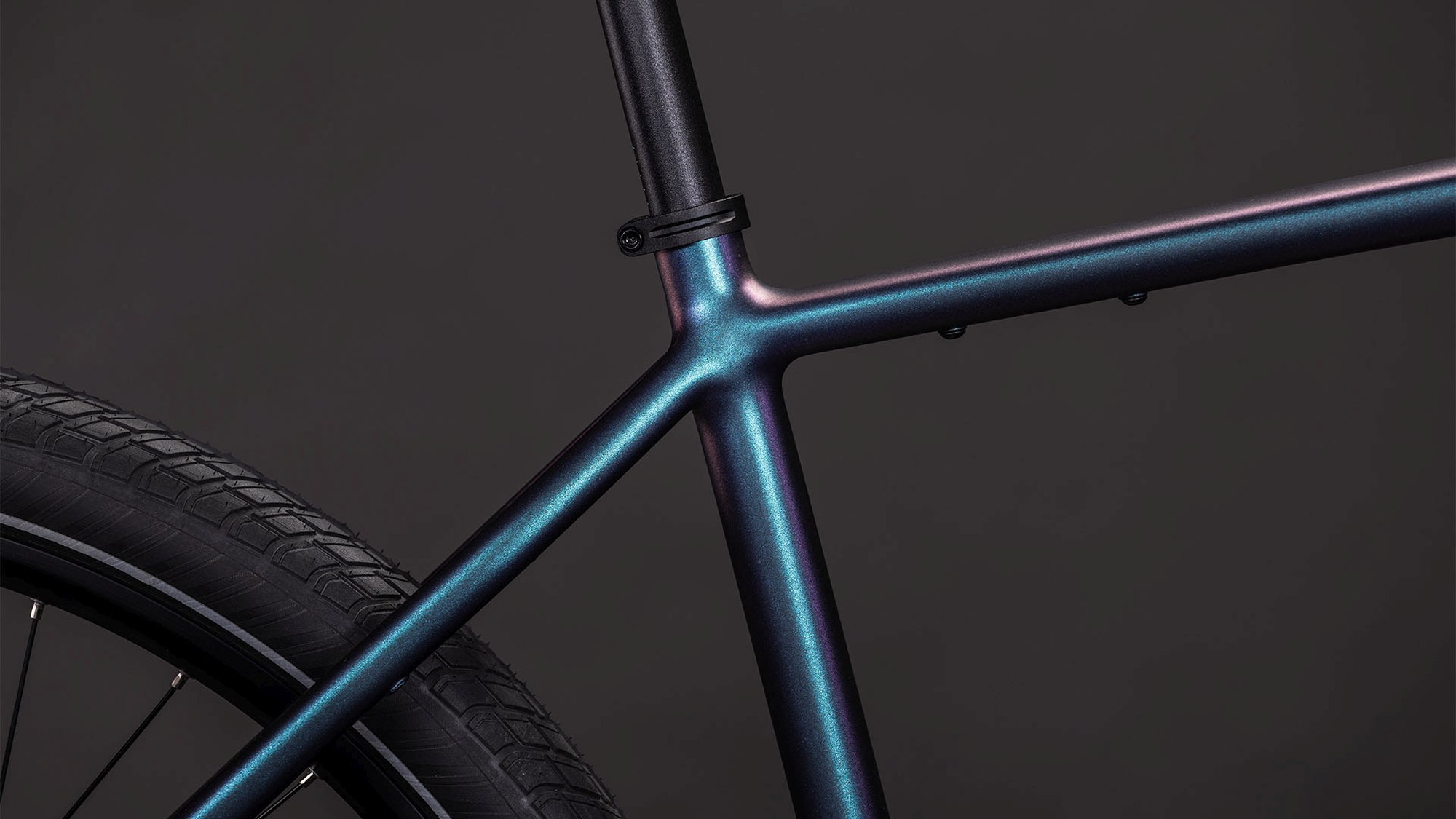

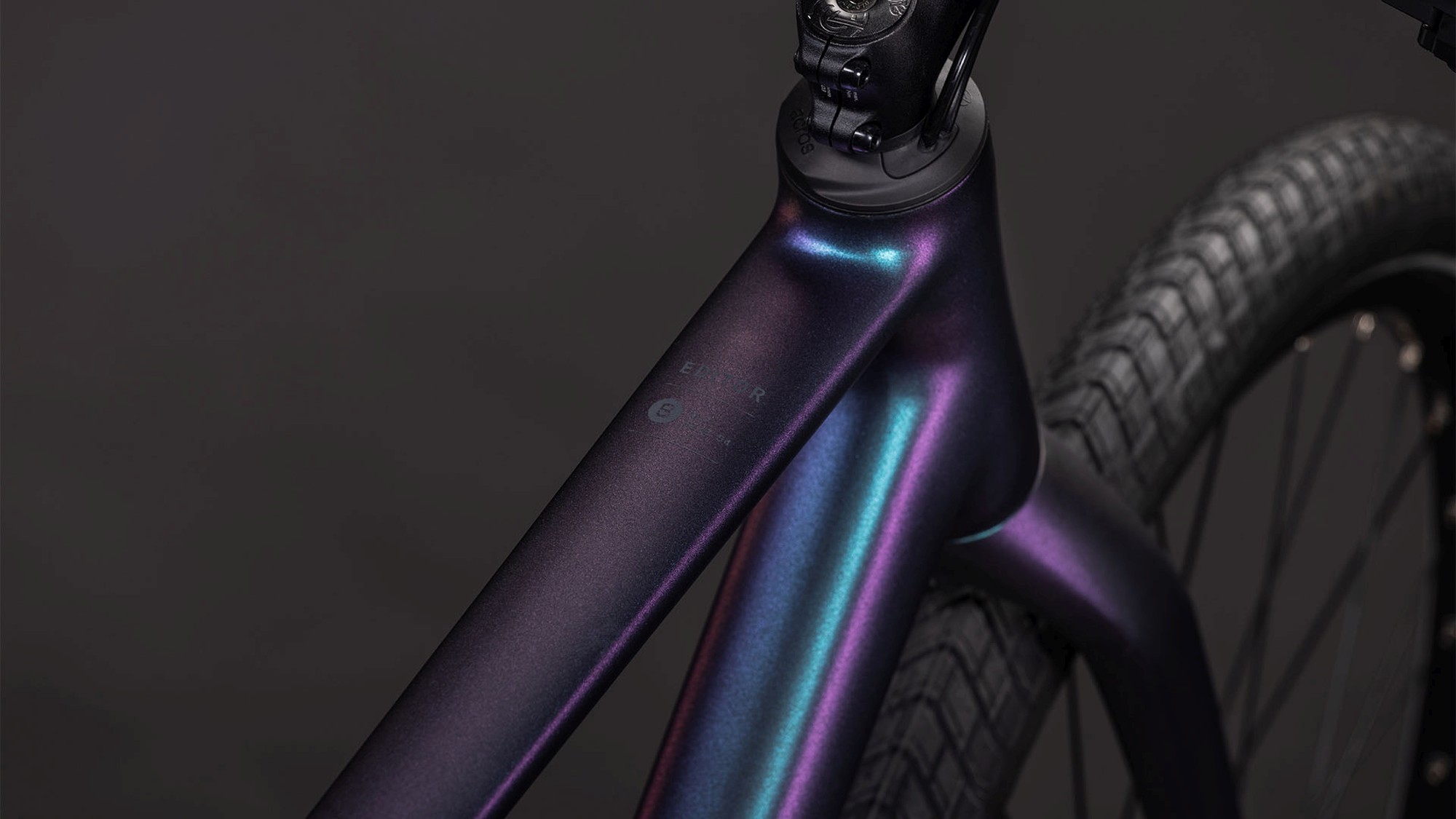

Life can be hectic in the city, so the Editor strips things down to the essentials… without sacrificing style. Designed around the low maintenance of a clean, quiet belt drive, the lightweight double-butted aluminium frame – inspired by our 29er mountain bike hardtails – features carefully crafted tube joints for an almost seamless, organic appearance. Fully integrated cable routing complements the pared-back aesthetic, and the light and svelte C:62 carbon fork is the perfect accompaniment. Mudguard and kickstand mounting points are included, and the frame is compatible with our neat and strong Semi Integrated Carrier 2.0. It’s everything you need to thrive in the city.
EDITOR
Built for easy speed through the urban jungle with a side serving of effortless style, the Editor SLX is all about keeping things simple and streamlined. Shimano hydraulic disc brakes and grippy Schwalbe Motion Big Apple 55mm tyres help keep you safe, whatever the weather. The C:62 carbon fork gives nimble, reassuring handling and matches the smooth, sculpted lines of the lightweight aluminium frame perfectly. And there’s a low-maintenance Shimano Alfine 11-speed hub gear with clean, quiet Gates carbon belt drive, so the right gear for the road is always at your fingertips.
Frame description
Life can be hectic in the city, so the Editor strips things down to the essentials… without sacrificing style. Designed around the low maintenance of a clean, quiet belt drive, the lightweight double-butted aluminium frame – inspired by our 29er mountain bike hardtails – features carefully crafted tube joints for an almost seamless, organic appearance. Fully integrated cable routing complements the pared-back aesthetic, and the light and svelte C:62 carbon fork is the perfect accompaniment. Mudguard and kickstand mounting points are included, and the frame is compatible with our neat and strong Semi Integrated Carrier 2.0. It’s everything you need to thrive in the city.
| Bell | |
|---|---|
| Bell Brand | KNOG |
| Bell Model | Oi |
| Bell Brand Description | Knog |

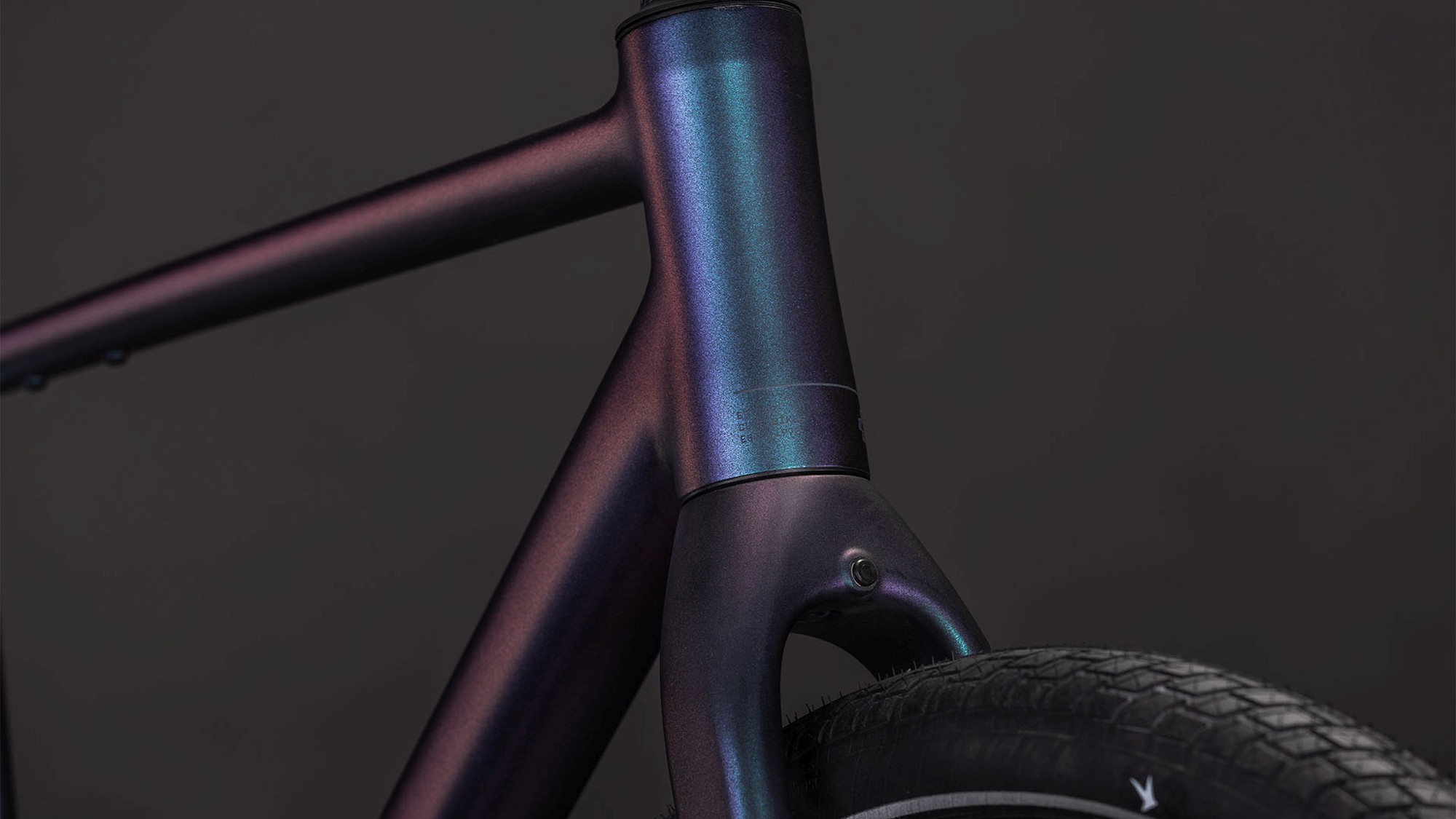

| Fork | |
| Fork Brand | CUBE |
| Fork Model | TK Disc, C:62® Full Carbon, Taper, Flat Mount, 12x100mm |
| Fork Brand Description | Cube |
| Stem | |
| Stem Brand | CUBE |
| Stem Model | Performance Stem SLX, FPI-Link, 31.8mm |
| Stem Brand Description | Cube |
| Frame | |
| Frametype | MEN |
| Framematerial | ALUMINIUM |
| Framesize Supplier | 46 |
| Frametype Description | Men |
| Framematerial Description | Aluminium |
| Gears | |
| Gear Type | HUB |
| Gear Brand | SHIMANO |
| Gear Model | Alfine, 11-Speed |
| Number Of Gears | 11 |
| Gear Brand Description | Shimano |
| Gear Type Description | Hub |
| Pedals | |
| Pedals Brand | ACID |
| Pedals Model | PP Trekking |
| Pedals Brand Description | Acid |
| Saddle | |
| Saddle Brand | ACID |
| Saddle Model | Nuance Lite |
| Saddle Brand Description | Acid |
| Headset | |
| Headset Brand | ACROS |
| Headset Model | AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2 (ZS 56mm), Botttom Zero-Stack 1 1/2 |
| Headset Brand Description | Acros |
| Crankset | |

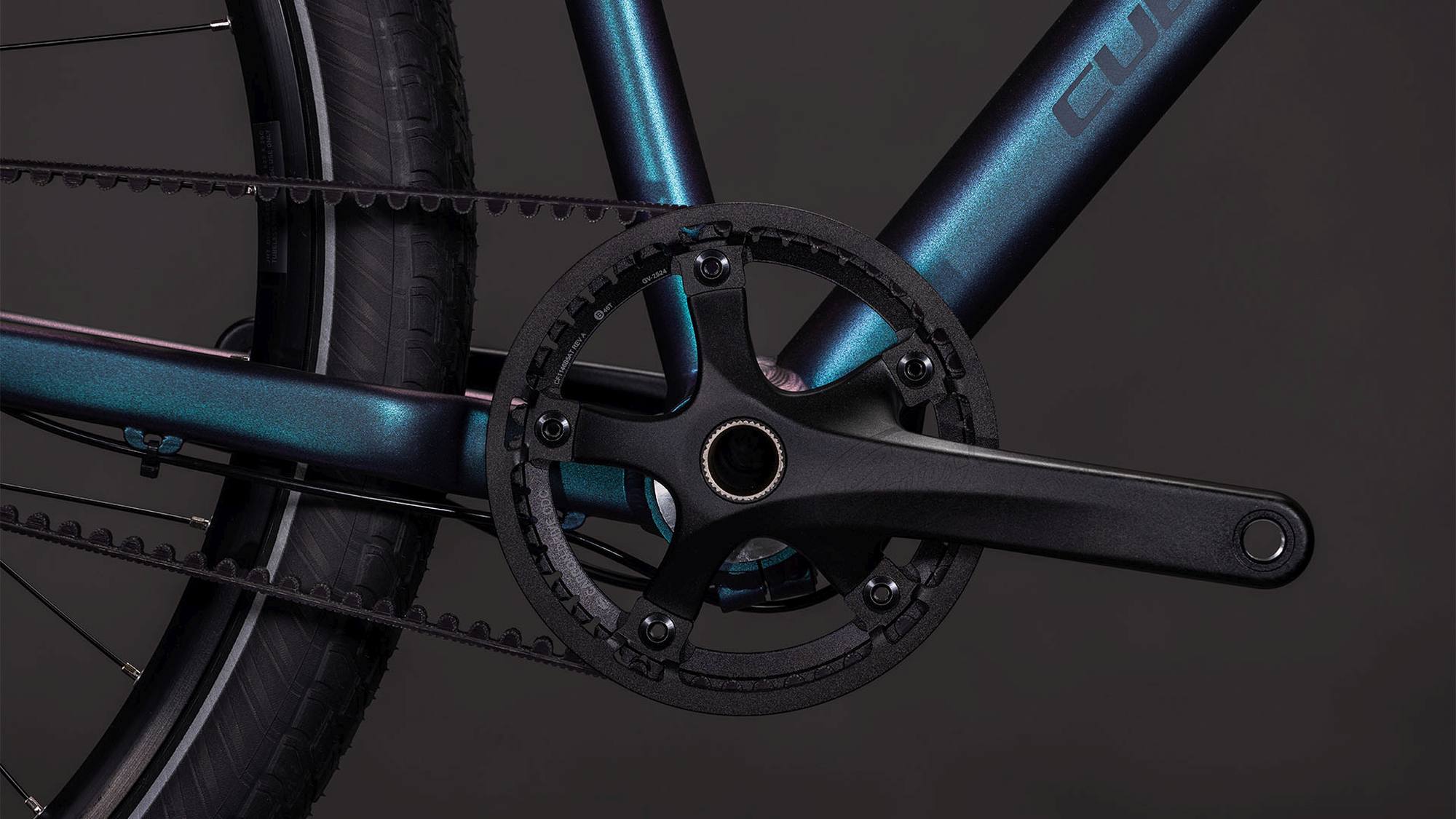

| Crankset Brand | GATES |
| Crankset Model | S301 CDC, 45.5mm Beltline |
| Crankset Brand Description | Gates |
| Seatpost | |
| Seatpost Brand | CUBE |
| Seatpost Model | Performance Post, 27.2mm |
| Seatpost Brand Description | Cube |
| Shifters | |
| Shifters Brand | SHIMANO |
| Shifters Model | Alfine SL-S700 |
| Shifters Brand Description | Shimano |
| Handlebar | |
| Handlebar Brand | CUBE |
| Handlebar Model | Flat Race Bar, 660mm |
| Handlebar Brand Description | Cube |
| Front Brake | |
| Front Brake Type | SH |
| Front Brake Brand | SHIMANO |
| Front Brake Model | BL-RS600/405, Hydr. Disc Brake, FM (160) |
| Front Brake Brand Description | Shimano |
| Front Brake Type Description | Disc brake with hydraulic actuation |
| Seatpost Clamp | |
| Seatpost Clamp Brand | CUBE |
| Seatpost Clamp Model | Seatpost clamp |
| Seatpost Clamp Brand Description | Cube |
| Bartape Or Grips | |
| Bartape Or Grips Brand | ACID |
| Bartape Or Grips Model | Travel |
| Bartape Or Grips Brand Description | Acid |
| Primary Rear Brake | |
| Primary Rear Brake Type | SH |
| Primary Rear Brake Brand | SHIMANO |
| Primary Rear Brake Model | BL-RS600/405, Hydr. Disc Brake, FM (160) |
| Primary Rear Brake Brand Description | Shimano |
| Primary Rear Brake Type Description | Disc brake with hydraulic actuation |
| Physical Specifications | |
| Size | 46 |
| Colour | AMMOLITE/REFLEX |
| Net Weight | 12.3 |
| Gross Weight | 15.48 |
| Weight Capacity | 140 |
| Primary Basecolour | PURPLE |
| Secondary Basecolour | BLUE |
| Primary Basecolour Description | Purple |
| Secondary Basecolour Description | Blue |
