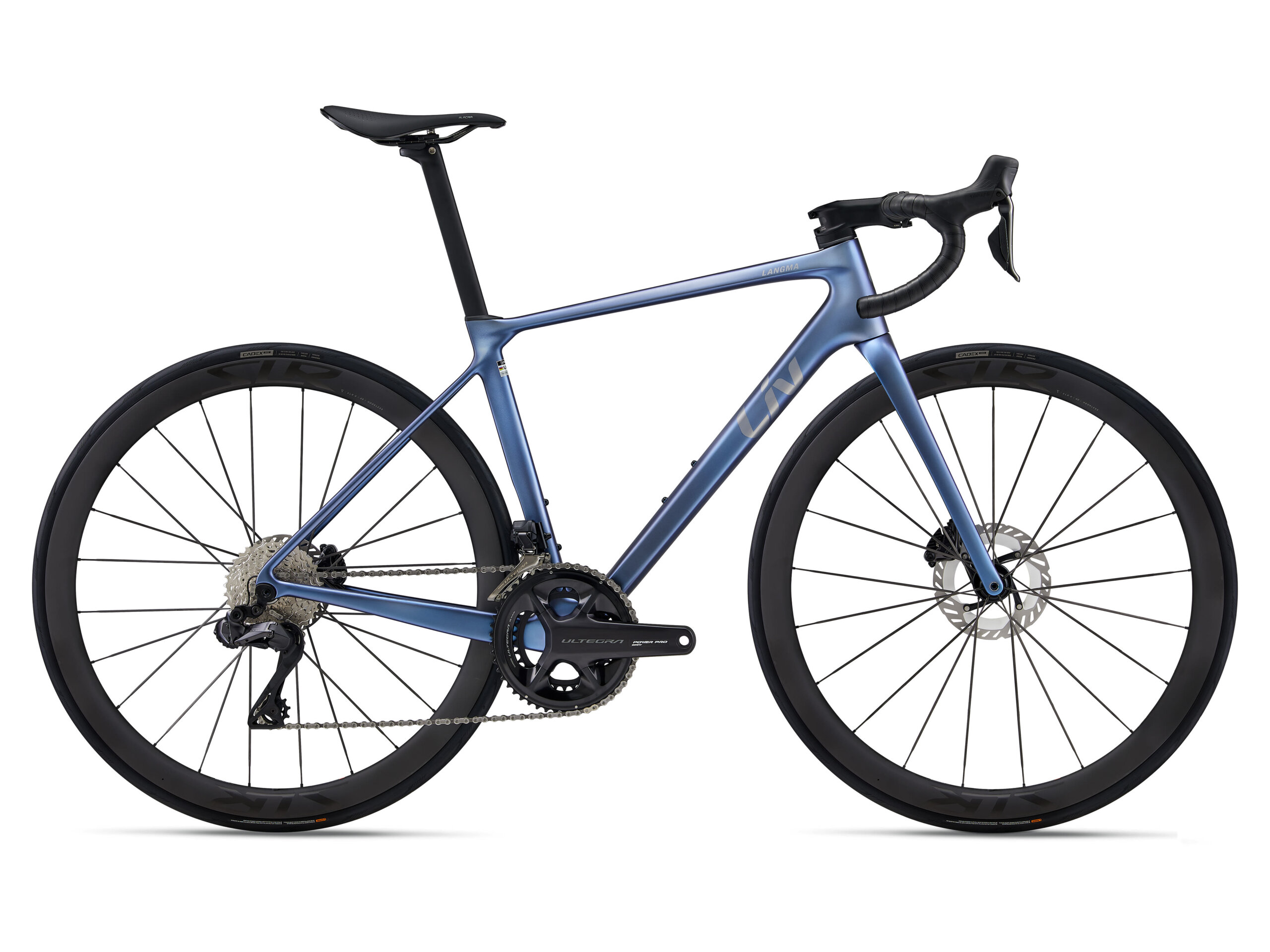

Langma Advanced Pro 0 (Pro Compact)

The official bike of road riding season, the Langma Advanced Pro was designed to climb mountains and leaderboards. The re-engineered frameset and components are seamlessly integrated for effortless ascents and fearless descents. Streamlined aerodynamics round out this all-rounder, inspiring you to push limits all day long.

Category: Bikes, Performance & Racing, Road Bikes Tag: 3247, Apply Now, Giant, Liv Women

View

Size L, M, S, XS, XXS

Color Thundercloud

Specifications

Key Performance Factors

QOM-LEVEL EFFICIENCY
The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess.

LIMIT-PUSHING CONTROL
Up to 33mm tire clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents.

GAP-WIDENING AERO
With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by.

Sizes	XXS, XS, S, M, L
Colours	Thundercloud
Frame	Advanced-grade Composite, 12x142mm thru-axle, disc
Fork	Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock	N/A
Handlebar	Liv Contact SLR , 31.8mm, 8-degree flare drop, XXS: 34/36cm, XS: 34/36cm, S: 36/38cm, M: 38/40cm, L: 39/42cm
Grips	Liv Stratus Elite 2.0
Stem	Giant Contact SL AeroLight, XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm
Seatpost	Giant Variant, composite, -5/+15mm offset
Saddle	Liv Alacra SL
Pedals	platform pedal [GCS,GTS], N/A [all other GSC]
Shifters	Shimano Ultegra Di2
Front Derailleur	Shimano Ultegra Di2 FD-R8150
Rear Derailleur	Shimano Ultegra Di2 RD-R8150
Brakes	Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors, [F]160mm, [R]140mm
Brake Levers	Shimano Ultegra Di2
Cassette	Shimano Ultegra, 12-speed, 11×34
Chain	Shimano CN-M8100
Crankset	Shimano Ultegra, 36/52 with Giant Power Pro power meter XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 172.5mm
Bottom Bracket	Shimano, press fit
Rims	Giant SLR 0 40 WheelSystem, [F] 40mm, [R] 40mm
Hubs	[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 40T ratchet driver, CenterLock, 12mm thru-axle
Spokes	Giant Aero Carbon Spoke
Tyres	CADEX Road Race GC, tubeless, 700x28c, folding
Extras	computer mount, Airway Eco Composite water bottle cage, tubeless prepared, 33mm max tire size
Max Tire Clearance	33mm

Highlights

Barcode : 4711291220270

Geometry

		XXS	XS	S	M	L
A	SEAT TUBE LENGTH	390	420	450	480	510
B	SEAT TUBE ANGLE	75	75	74.5	74	73.5
C	TOP TUBE LENGTH	498	508	524	540	555
D	HEAD TUBE LENGTH	105	120	135	155	175
E	HEAD TUBE ANGLE	70	71	72	72.5	72.5
F	FORK RAKE	49	49	49	49	49
G	TRAIL	74	68	61	58	58
H	WHEEL BASE	970	973	977	984	994
I	CHAIN STAY LENGTH	405	405	405	405	405
J	BOTTOM BRACKET DROP	72	72	70	70	70
K	STACK	499	517	532	553	572
L	REACH	364	370	377	382	386
M	STAND OVER HEIGHT	685	707	736	763	783
N	HANDLEBAR WIDTH	360	360	380	400	420
O	STEM LENGTH	80	80	90	100	110
P	CRANK LENGTH DEC	160	165	165	170	172.5
Q	WHEEL SIZE ALT
