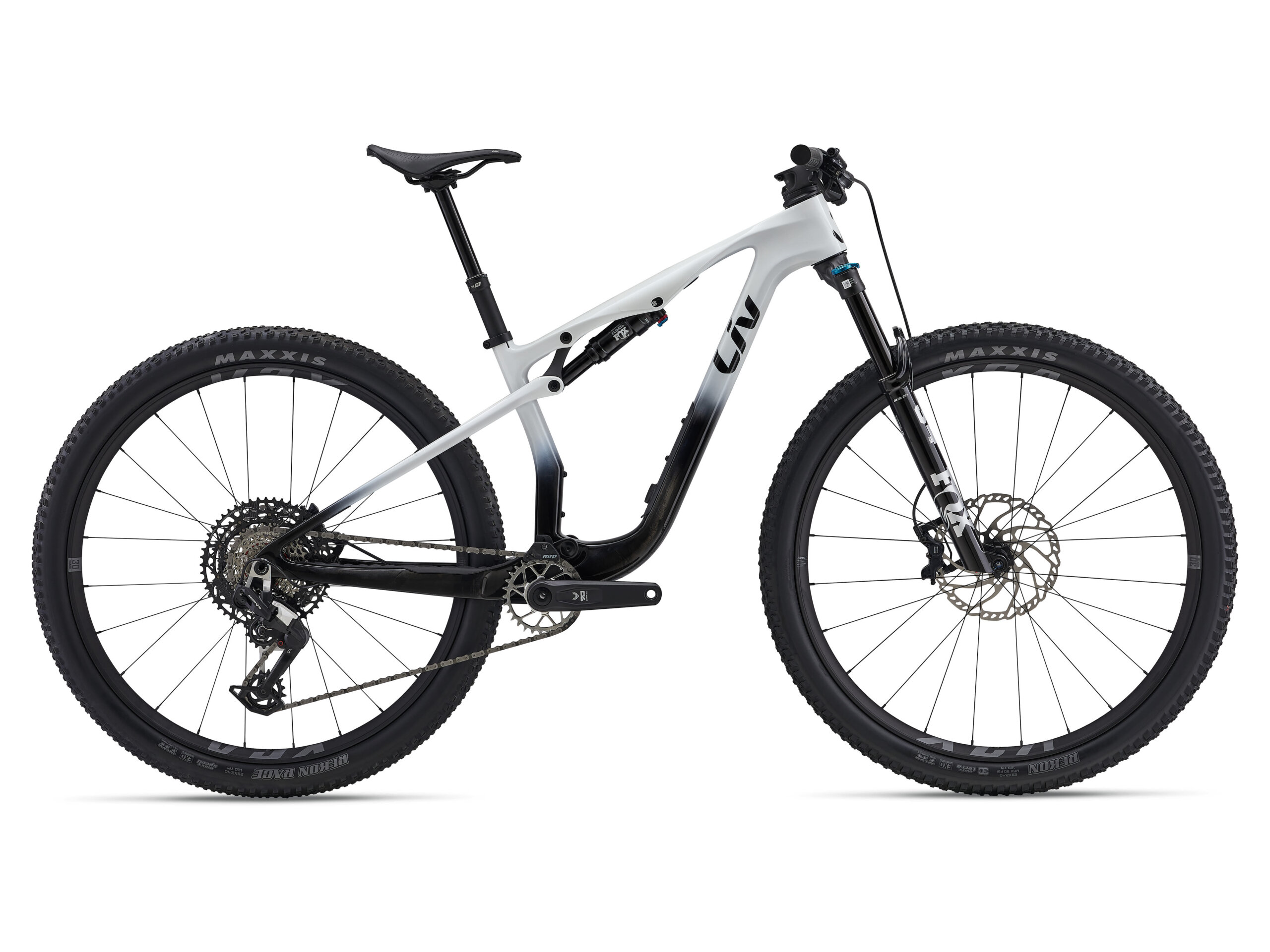

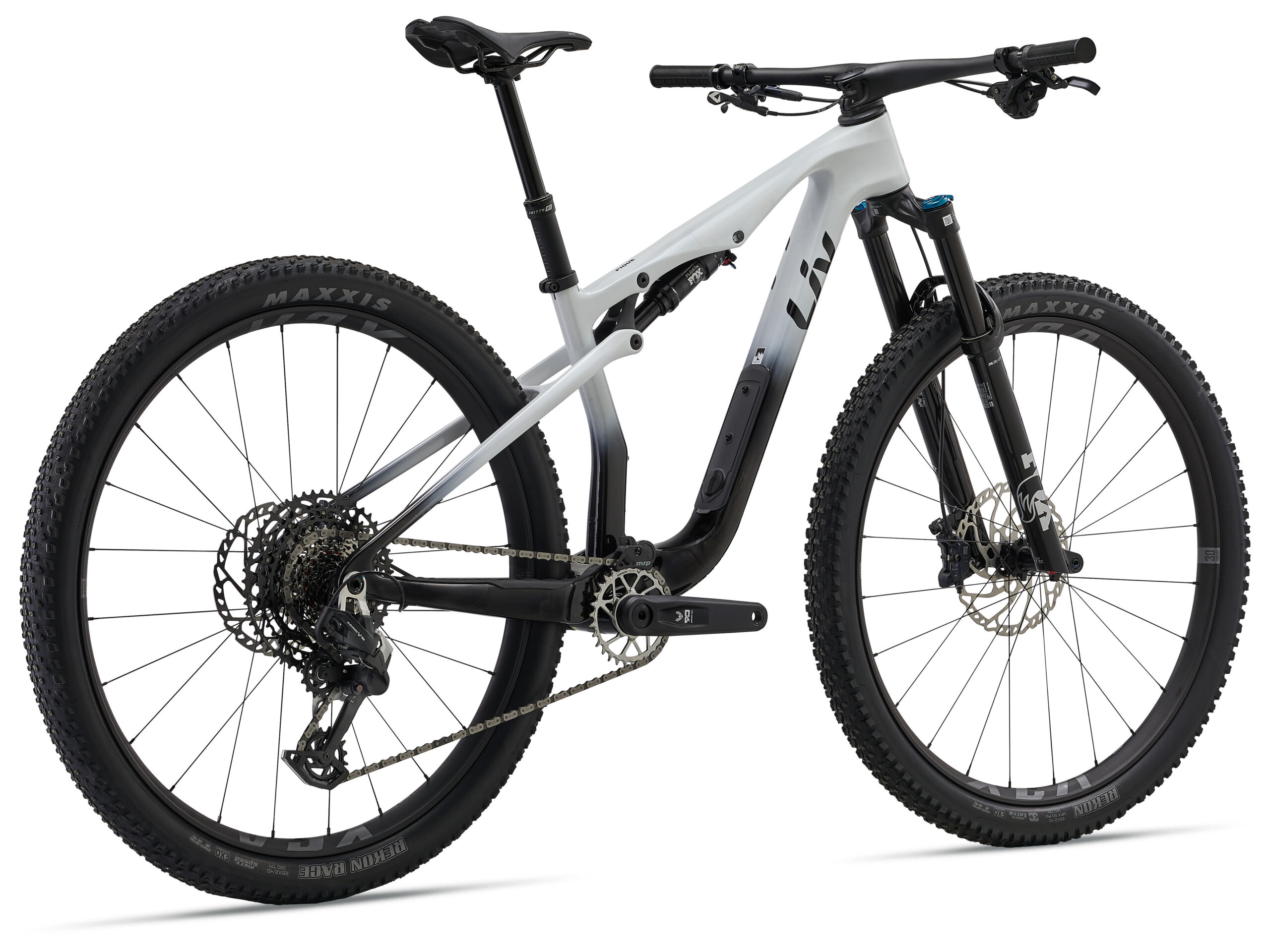

Pique X Advanced SL 2

Built for riders obsessed with speed, performance, and capability, the new Pique X Advanced SL is engineered to deliver. The flip chip lets you dial in your geometry for any terrain. And with in-frame storage, 130mm fork and 120mm semi-integrated FlexPoint Pro rear suspension, you’re ready for anything, from aggressive climbs and chunky descents, to gutsy lines and all-day epics.

Category: Bikes, Full Suspension, Mountain Bikes Tag: 3247, Apply Now, Liv Women

View

Size L, M, S, XS

Color White / Carbon

Specifications

Key Performance Factors

Built for speed
The new Advanced SL-grade composite frame is the lightest we’ve ever designed, achieving exceptional stiffness-to-weight so you can punch up climbs, shoot out of corners, and sprint to the next section without hesitation. Tuned specifically for downcountry adventures, the reengineered FlexPoint Pro Suspension is lighter, more compact, and more responsive.

Built for performance
The Pique X Advanced SL is designed as a single optimized system. The new one-piece handlebar-stem with fully integrated cable routing keeps things light, clean, and responsive. Giant WheelSystems with Wide Guard rims give you robust sidewalls so you can run lower tire pressure for extra grip and puncture protection.

Built for fun

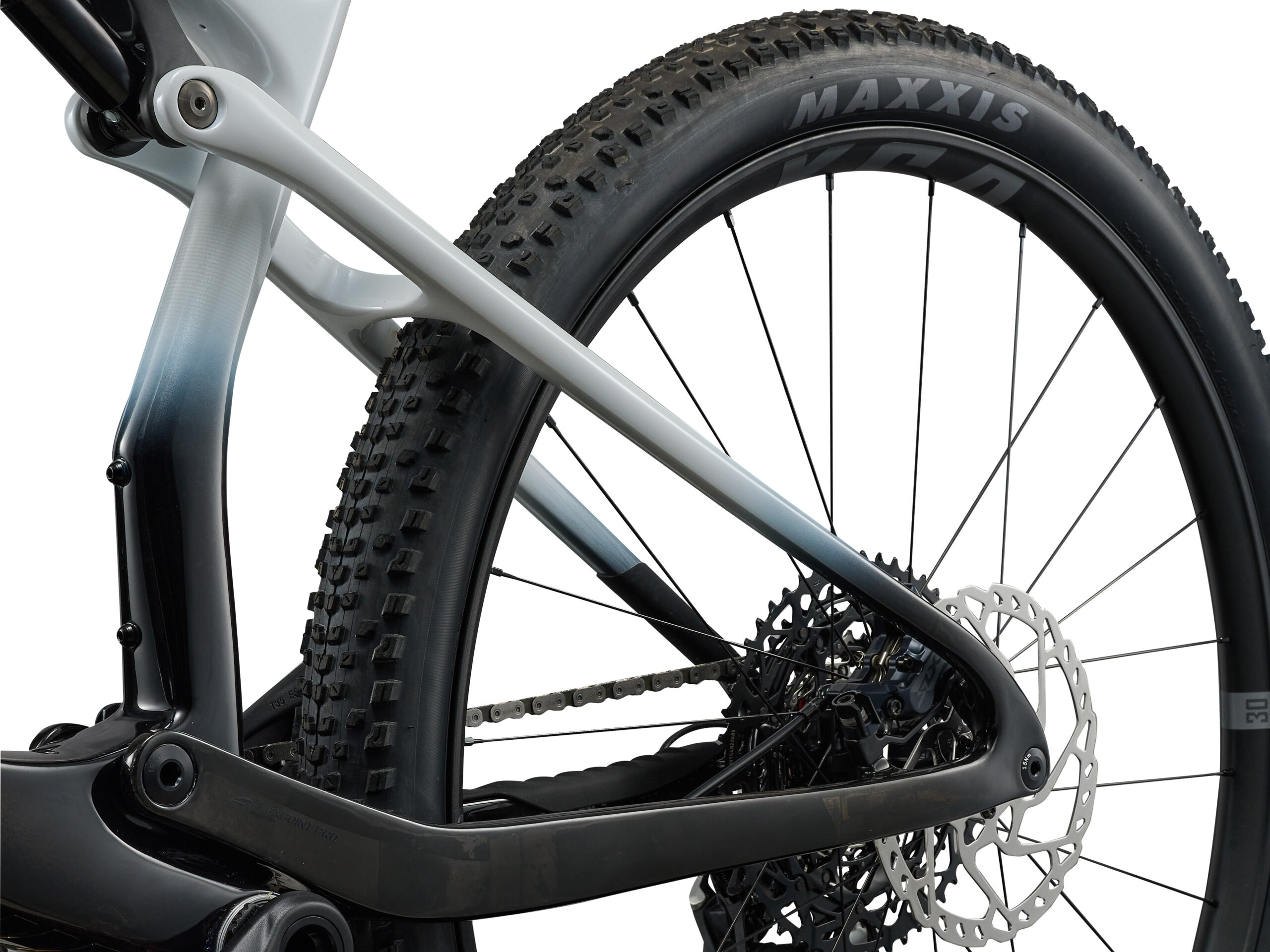

The updated FlexPoint Pro suspension system offers 120mm of smooth, active rear-wheel travel, paired with a 130mm fork, keeping you glued to the trail when it’s rowdy, and efficient when it’s not. The two-position flip chip lets you adjust your geometry for the perfect handling for the terrain. And with built-in down tube storage, you’re ready to fix and fuel.

Sizes	XS, S, M, L
Colours	White/Carbon
Frame	Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, internal storage
Fork	Fox 34 SL Performance, 130mm, GRIP damper, Boost 15×110, 44mm offset

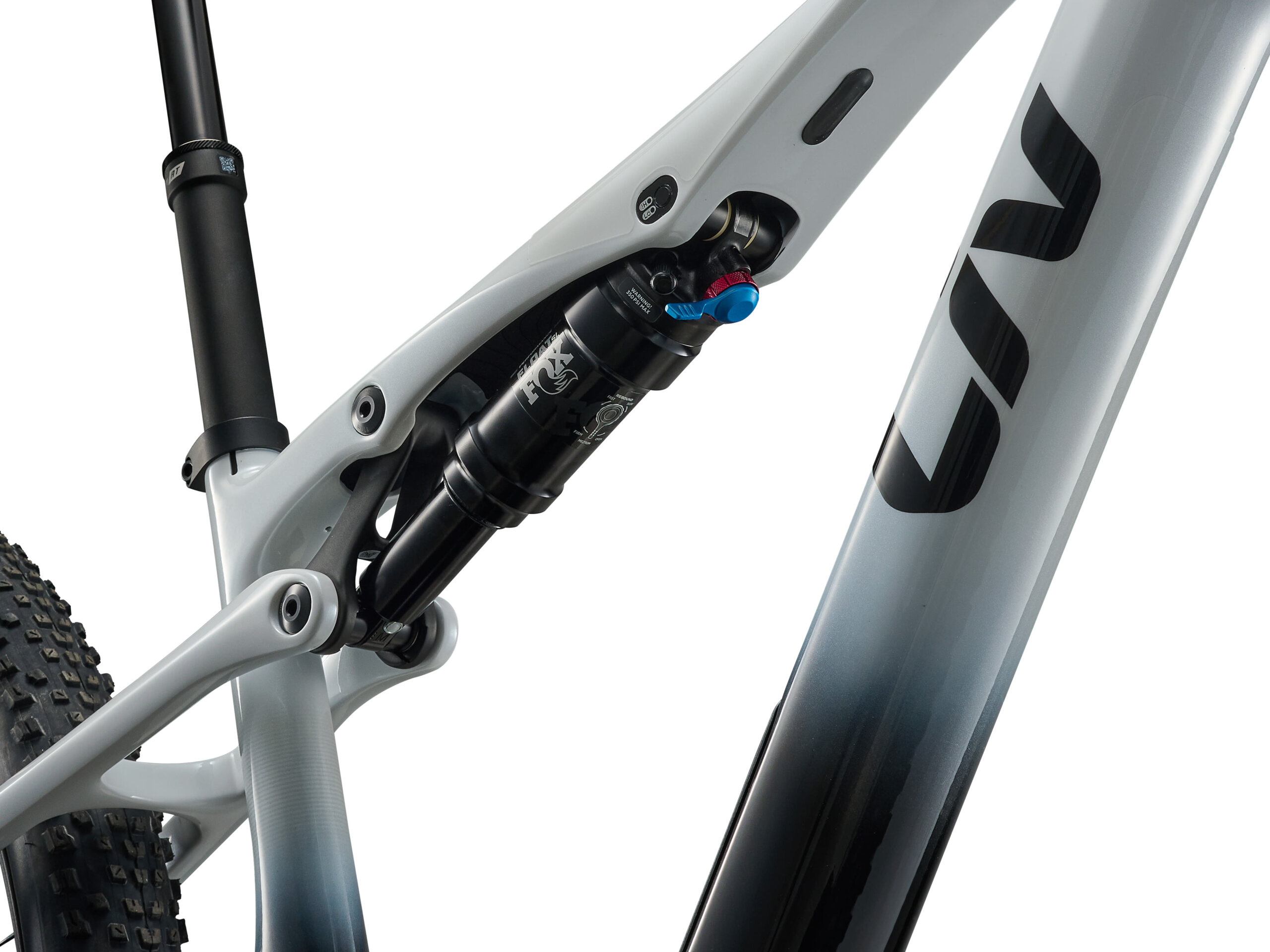

Shock	Fox Float SL Performance, 210/50
Handlebar	Giant Integrated XC, alloy, 780mm, 9-degree upsweep
Grips	Liv Tactal, lock on
Stem	Giant Integrated XC, alloy XS: 50, S:50mm, M:50mm, L:60mm
Seatpost	Giant Contact Switch AT dropper, remote XS:110-140mm travel / 30.9 x 395mm S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm
Saddle	Giant Grit
Pedals	N/A

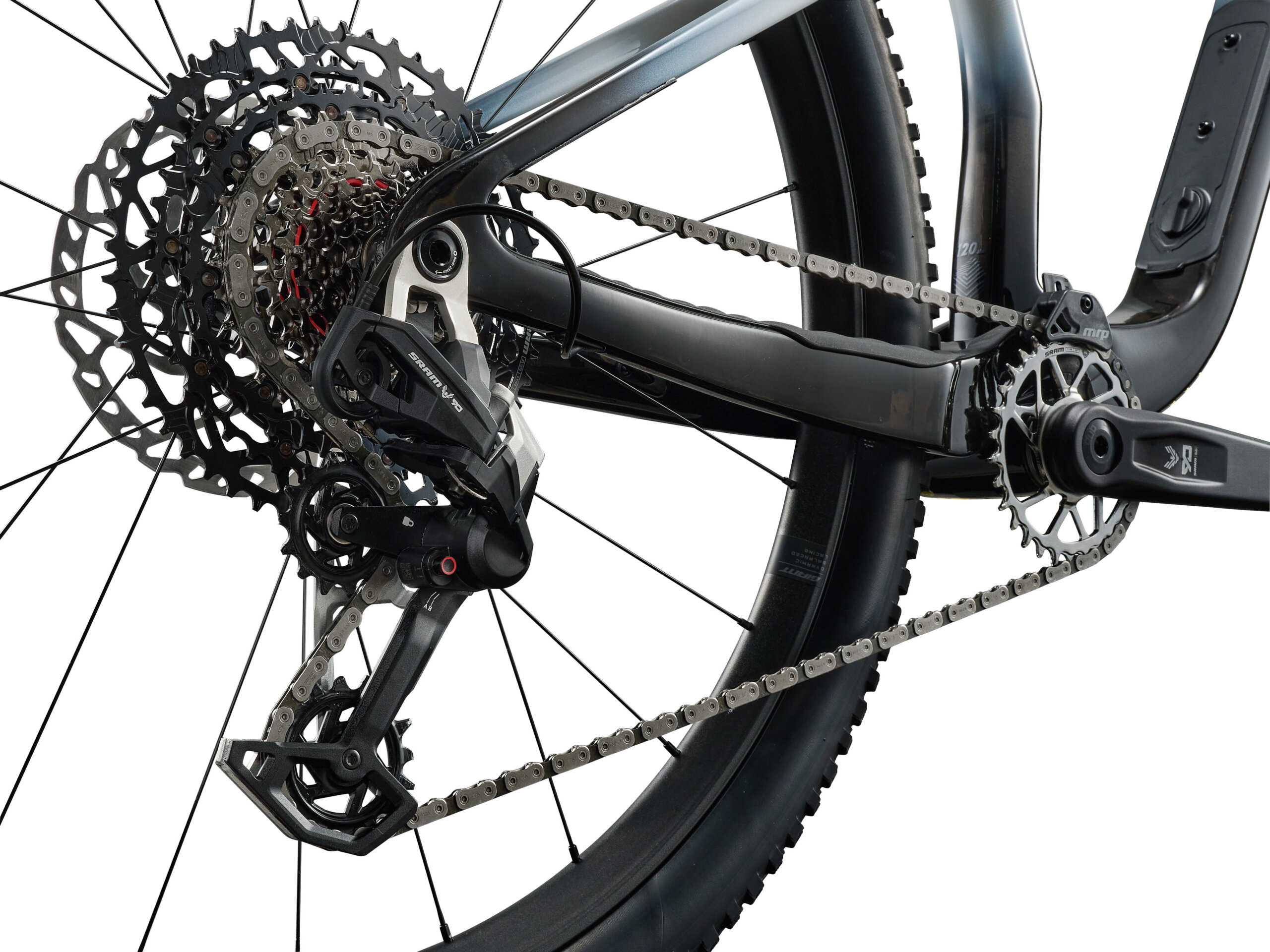

Shifters	SRAM Eagle 90 mechanical, 1×12
Front Derailleur	N/A
Rear Derailleur	SRAM Eagle 90 Transmission
Brakes	Shimano SLX BR-M7120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers	Shimano SLX BL-M7100
Cassette	SRAM 70 1270, 10×52
Chain	SRAM 90 Transmission
Crankset	SRAM 90 Transmission, 30t, 55mm chainline XS: 165mm, S:170mm, M:170mm, L:170mm
Bottom Bracket	SRAM DUB, press fit
Rims	Giant XCA WheelSystem
Hubs	[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes	Sapim
Tyres	Maxxis Rekon Race 29×2.4, foldable, 120tpi, EXO, tubeless
Extras	tubeless prepared, 2.4″ max tire size, 34t max chainring size, MRP SL TR2 chain guide

Highlights

Barcode : 4711291212282

Geometry

		XS	S	M	L
A	SEAT TUBE LENGTH	400	410	440	470
B	SEAT TUBE ANGLE	75	75	75	75.1
C	TOP TUBE LENGTH	557	574	596	613
D	HEAD TUBE LENGTH	90	95	105	115
E	HEAD TUBE ANGLE	66	66	66	66.1
F	FORK RAKE	44	44	44	44
G	TRAIL	119.6	119.5	119.3	119.2
H	WHEEL BASE	1,125	1,143	1,166	1,185
I	CHAIN STAY LENGTH	437	437	437	437
J	BOTTOM BRACKET DROP	48	48	48	48
K	STACK	605	610	620	629
L	REACH	394	410	430	445
M	STAND OVER HEIGHT	777	775	770	765
N	HANDLEBAR WIDTH	780	780	780	780
O	STEM LENGTH	50	50	50	60
P	CRANK LENGTH DEC	165	170	170	170
Q	WHEEL SIZE ALT
