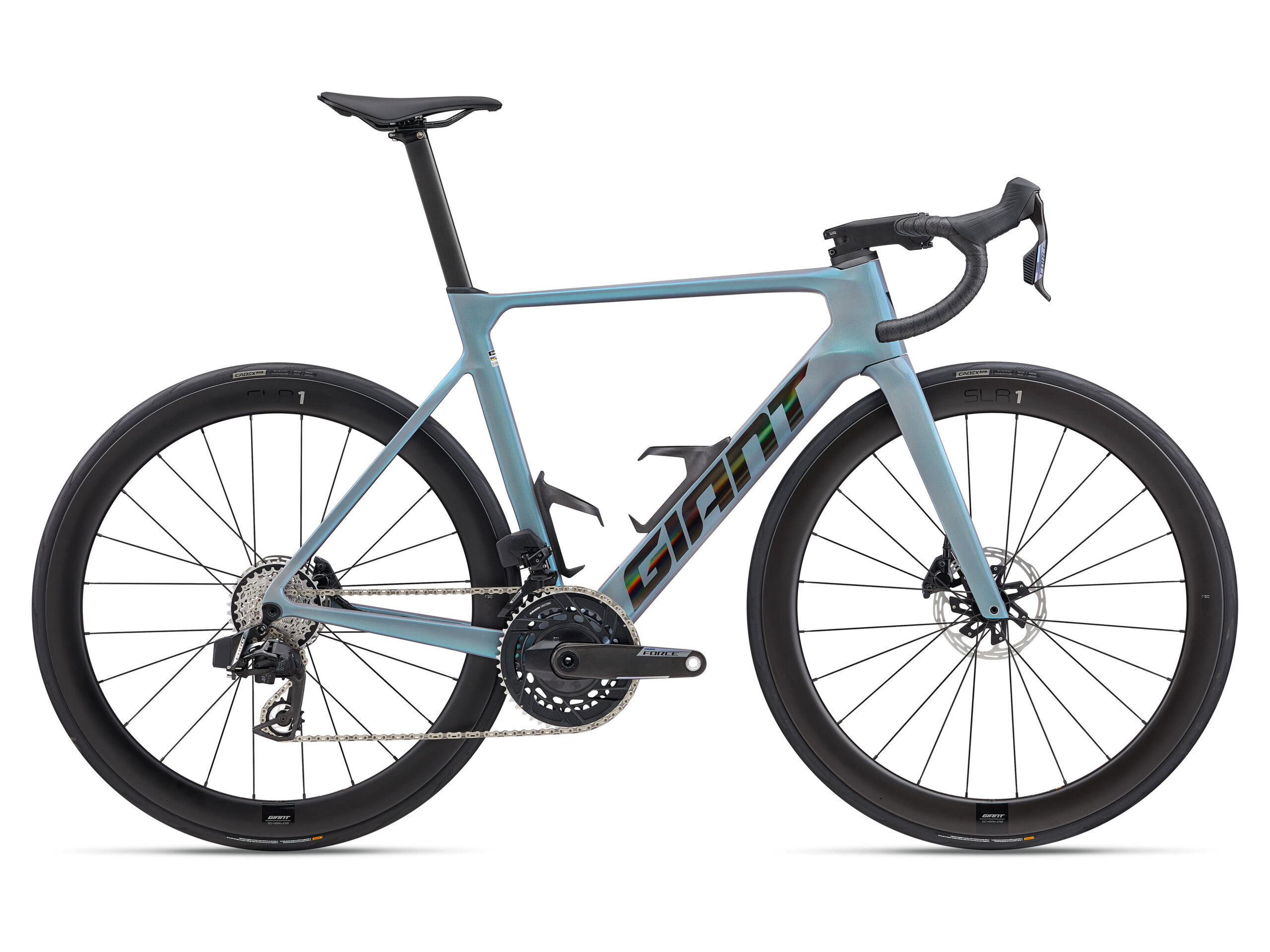

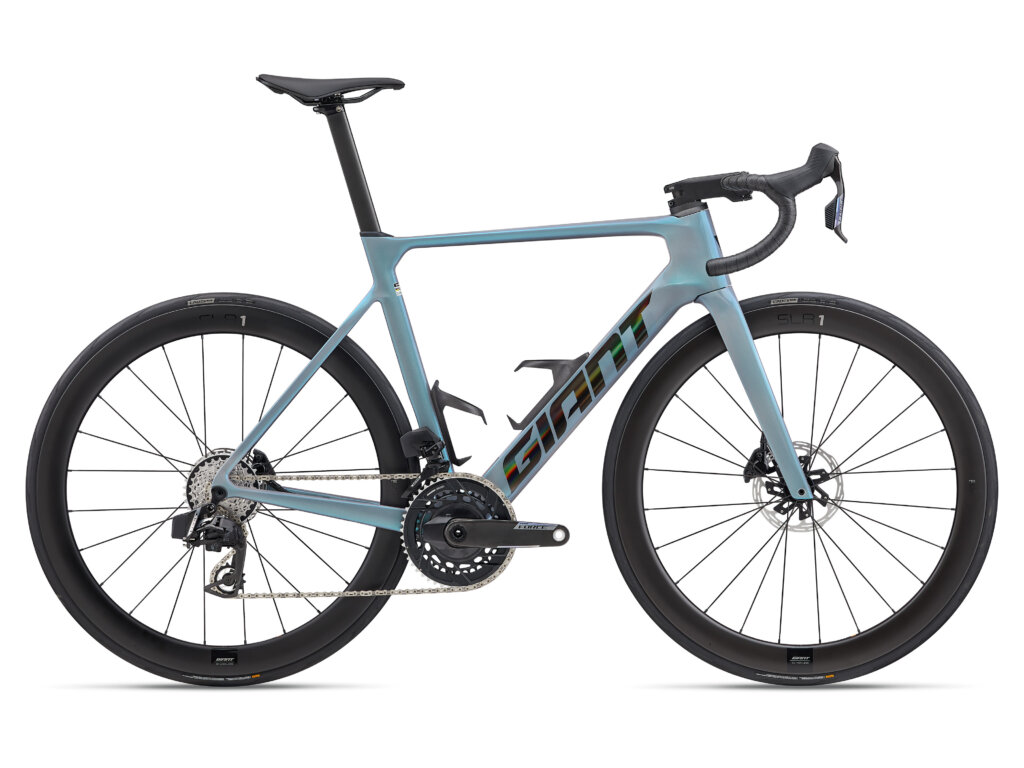

Propel Advanced Pro 0 (AXS)

This aero rocketship is built for speed when it matters most. It’s lighter than the previous generation and engineered to slice through wind. The result? Race-winning efficiency that puts you ahead of the pack.

Additional information

Size	L, M, ML, S, XL
Color	Prismatic Haze

Specifications

Key Performance Factors

Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.

Easier adjustability
All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency
Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s lighter than the previous generation for an even greater stiffness-to-weight ratio.

Sizes	XS, S, M, M/L, L, XL
Colours	Ocean Twilight/Chrome
Frame	Advanced-grade Composite, 12x142mm thru-axle, disc
Fork	Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Handlebar	Giant Contact SLR Aero XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
Grips	Stratus Lite 2.0
Stem	Giant Contact SL Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost	Giant Vector, composite, -5/+15mm offset
Saddle	Giant Fleet SL
Shifters	SRAM Force AXS E1
Front Derailleur	SRAM Force AXS E1
Rear Derailleur	SRAM Force AXS E1
Brakes	SRAM Force E1 hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
Brake Levers	SRAM Force AXS E1
Cassette	SRAM Force, 12-speed, 10×33
Chain	SRAM Force E1
Crankset	SRAM Force E1 DUB, 35/48 with power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket	SRAM, press fit
Rims	Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
Hubs	[F] Giant Low Friction Hub, CenterLock, [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
Spokes	Sapim
Tyres	CADEX Road Race GC, tubeless, 700x28c, folding
Extras	computer mount, bottle cages, tubeless prepared, 32mm max tire size
Max Tire Clearance	32mm

Geometry

		S	M	ML	L	XL
A	SEAT TUBE LENGTH	500	520	545	575	595
B	SEAT TUBE ANGLE	74	73.5	73	73	72.5
C	TOP TUBE LENGTH	535	550	565	580	600
D	HEAD TUBE LENGTH	130	145	165	185	200
E	HEAD TUBE ANGLE	72.3	73	73	73	73
F	FORK RAKE	45	45	45	45	45
G	TRAIL	62.5	57.8	57.8	57.8	57.8
H	WHEEL BASE	977	980	991	1,006	1,020
I	CHAIN STAY LENGTH	405	405	405	405	405
J	BOTTOM BRACKET DROP	70	70	67	67	67
K	STACK	528	545	562	581	596
L	REACH	383	388	393	402	412
M	STAND OVER HEIGHT	753	770	794	821	834
N	HANDLEBAR WIDTH	380	400	400	420	420
O	STEM LENGTH	90	100	110	110	120
P	CRANK LENGTH DEC	165	170	170	172.5	172.5
Q	WHEEL SIZE ALT
