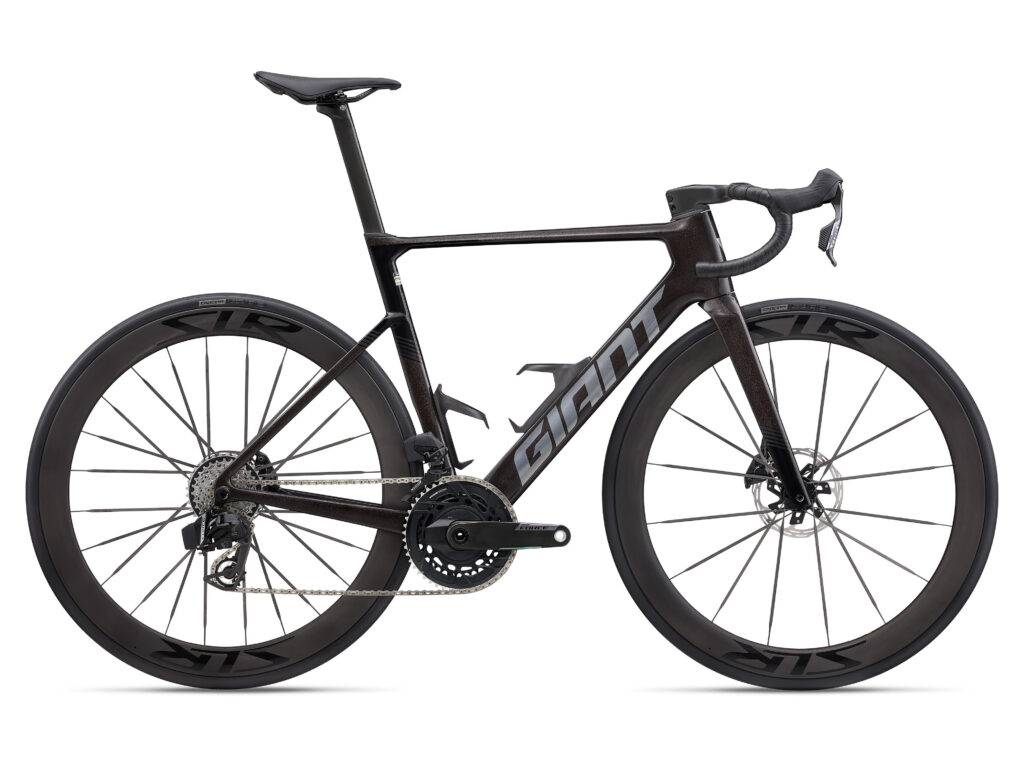

Propel Advanced Pro 0-AXS

Hang with the fast group, go for the sprint, cheat the wind on a solo ride. The new Propel Advanced Pro is now lighter, smoother and more efficient, delivering higher speeds to help you maximize every effort.

Category: Bikes, Road Bikes Tag: Giant

View

Size L, M, ML, S, XL

Color Obsidian Pulse

Specifications

Key Performance Factors

Instant Speed
In the moments when explosive speed matters most—launching an attack, chasing a break, or sprinting for the finish line—the new Propel Advanced Pro is quicker and more dynamic than ever. The frameset is lighter than the previous generation with greater torsional stiffness and pedaling stiffness—so you feel instantaneous reaction when you make your move.

Sustained Speed
A reengineered frameset and integrated components combine for a smoother ride when you’re rolling in the group or piling up training miles. The Vector seatpost offers greater compliance compared to the previous generation, while the fork and integrated cockpit absorb bumps and vibrations up front. And additional tire clearance allows for high-volume tires up to 32mm, further smoothing out the ride to help you maintain higher speeds with less fatigue.

Top-End Speed
The frameset, cockpit, wheels and tires form a unified system that lowers total resistance when you’re pushing high speeds. The AeroSystem frame and integrated cockpit minimize drag, while the aero WheelSystem and tires reduce rolling resistance. That means more speed for taking pulls, rolling off the front, or driving the pace across flats and over climbs.

Sizes	XS, S, M, M/L, L, XL
Colours	Obsidian Pulse
Frame	Advanced-grade composite, UDH, 12x142mm thru-axle, disc
Fork	Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Handlebar	Giant Contact SLR 0 Aero Integrated XS:380/360mm, S:380/360mm, M:400/370mm, M/L:400/370mm, L:420/390mm, XL:420/390mm
Grips	Stratus Lite 2.0
Stem	Giant Contact SLR 0 Aero Integrated XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost	Giant Vector, composite, -5/+15mm offset
Saddle	Giant Fleet SL
Shifters	SRAM Force AXS E1
Front Derailleur	SRAM Force AXS E1
Rear Derailleur	SRAM Force AXS E1
Brakes	SRAM Force E1 hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
Brake Levers	SRAM Force AXS E1
Cassette	SRAM Force, 12-speed, 10×33
Chain	SRAM Force E1
Crankset	SRAM Force E1 DUB, 35/48 with power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket	SRAM, press fit
Rims	Giant SLR 0 50 Carbon WheelSystem, [F]50mm, [R]50mm
Hubs	[F] Giant Aero Hub, CenterLock [R] Giant Aero Hub, 40T ratchet driver, CenterLock 12mm thru-axle
Spokes	Aero Carbon
Tyres	CADEX Aero, tubeless, 700x28c (28mm), folding
Extras	computer mount, water bottle cages, tubeless prepared, 32mm max tire size

Highlights

Barcode : 4711291265233

Geometry

		S	M	ML	L	XL
A	SEAT TUBE LENGTH	505	528.5	554	576	595
B	SEAT TUBE ANGLE	74	73.5	73	73	72.5
C	TOP TUBE LENGTH	535	550	565	580	600
D	HEAD TUBE LENGTH	127	145	165	185	200
E	HEAD TUBE ANGLE	72.5	73	73	73	73
F	FORK RAKE	45	45	45	45	45
G	TRAIL	61.4	58.3	58.3	58.3	58.3
H	WHEEL BASE	973	980	990	1,006	1,020
I	CHAIN STAY LENGTH	405	405	405	405	405
J	BOTTOM BRACKET DROP	72	69.5	69.5	67	67
K	STACK	530	546	565	582	596
L	REACH	383	388	392	402	412
M	STAND OVER HEIGHT	764	787	808	832	847
N	HANDLEBAR WIDTH	380	400	400	420	420
O	STEM LENGTH	90	100	110	110	120
P	CRANK LENGTH DEC	165	170	170	172.5	172.5
Q	WHEEL SIZE ALT	700C	700C	700C	700C	700C
