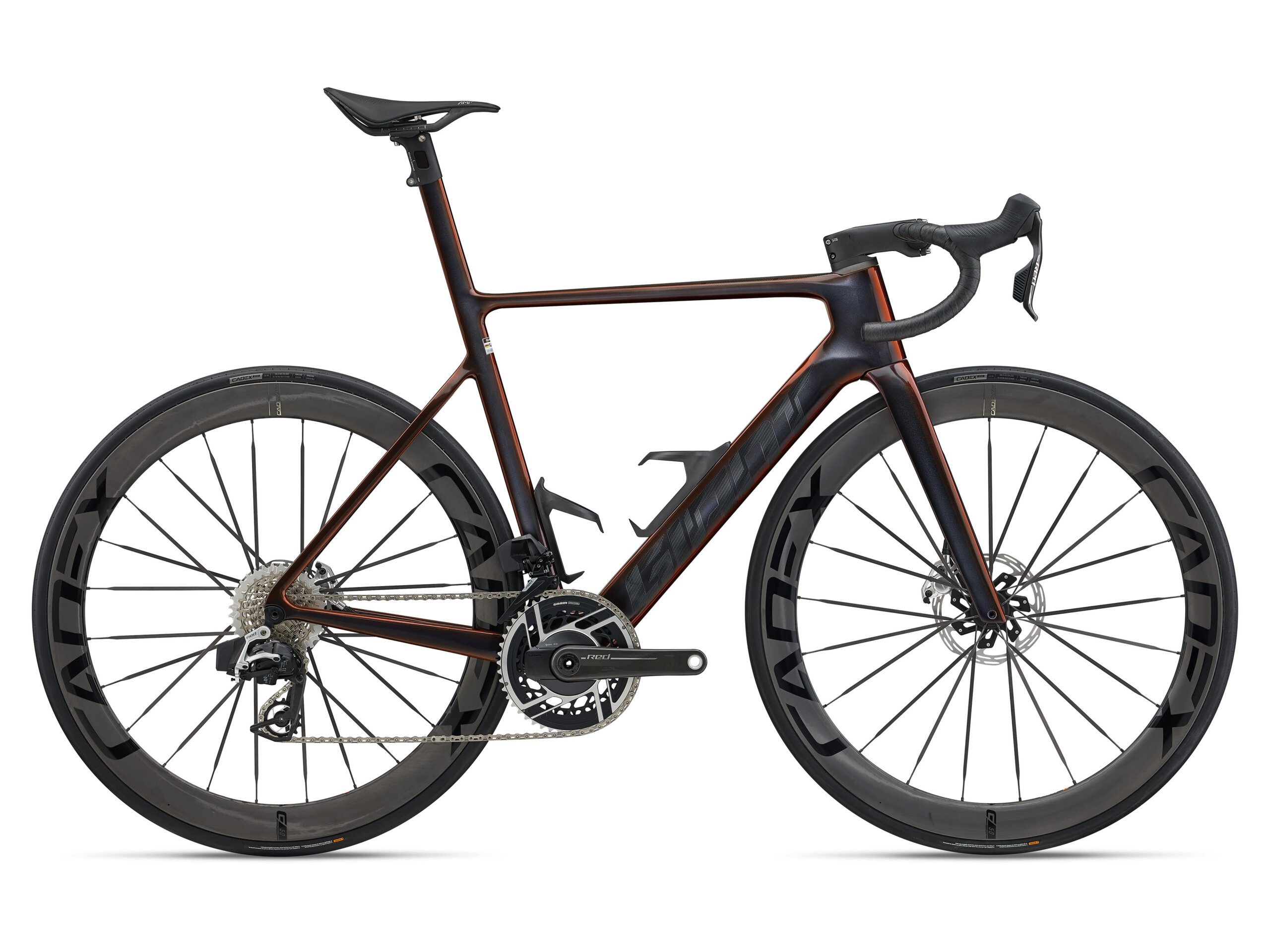

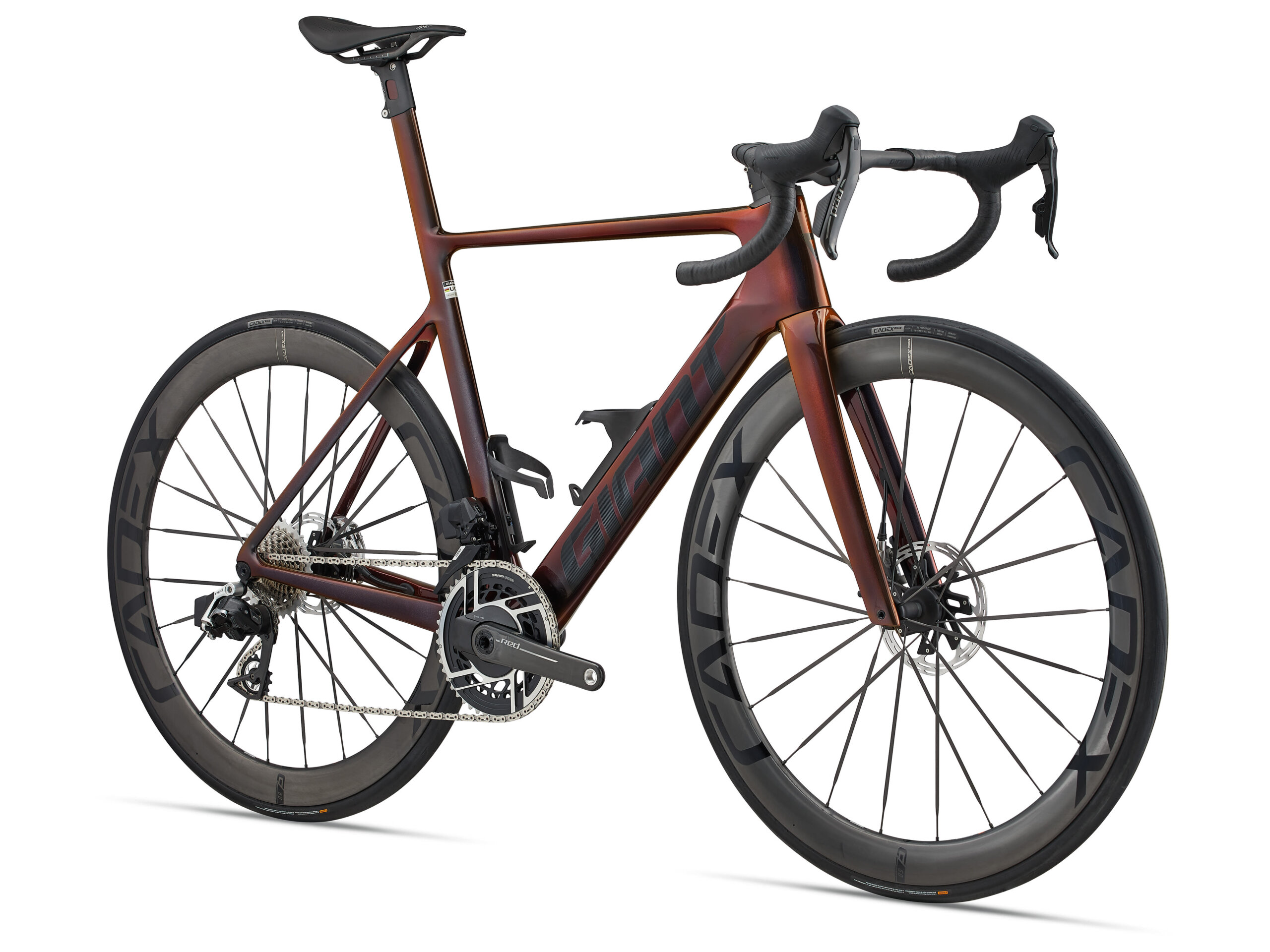

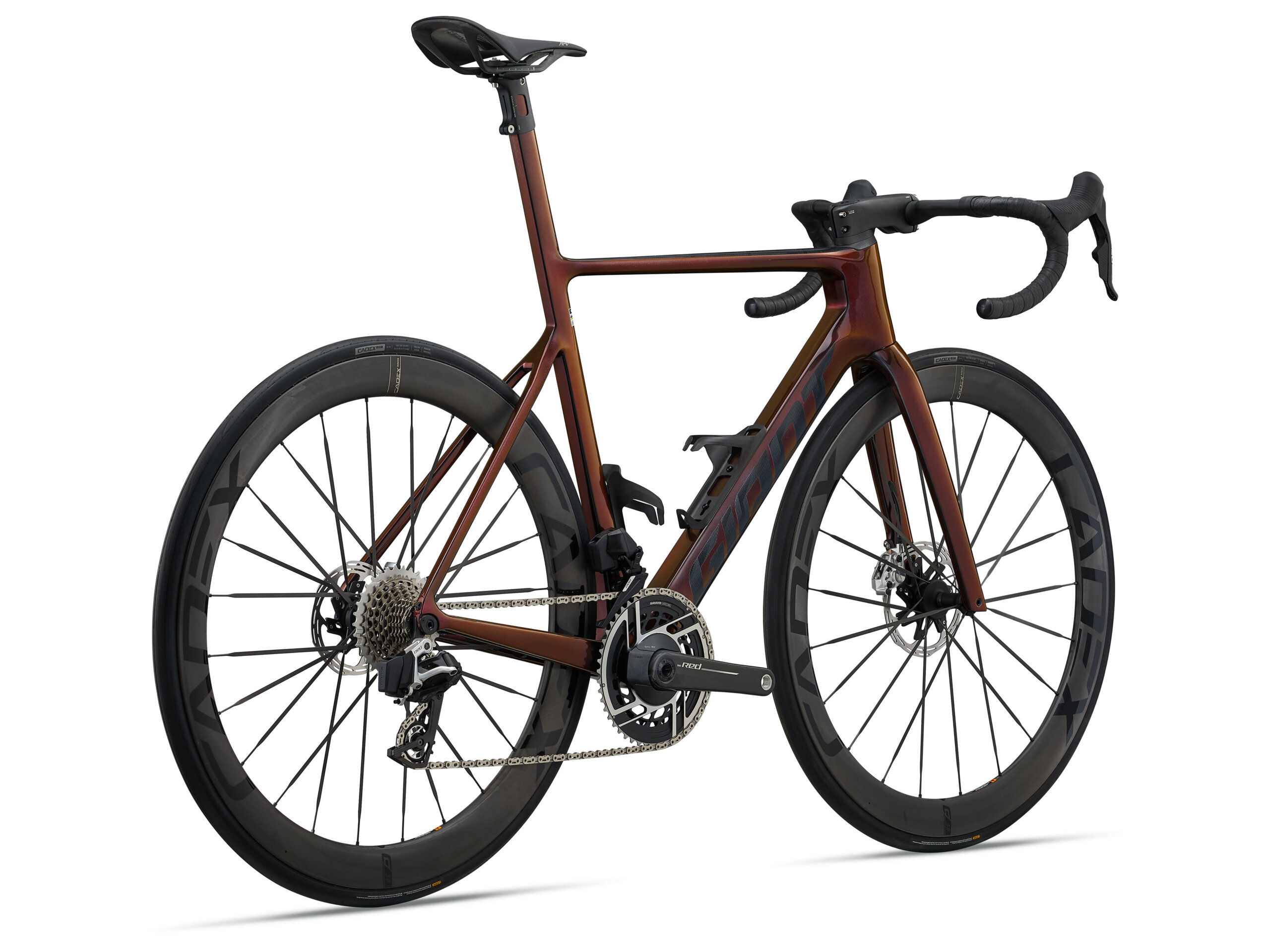

Propel Advanced SL 0 RED

€13,799.00

Unleash your sprint with 200 meters to go. Close a gap, chase back, launch a solo attack. This pro-level road machine is made for the moments that count. More aero, more adjustable, more ways to win.

Additional information

Size	L, M, ML, S
Color	Black Lava

Specifications

Unleash your sprint with 200 meters to go. Close a gap, chase back, launch a solo attack. This pro-level road machine is made for the moments that count. More aero, more adjustable, more ways to win.

Key Performance Factors

Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce the best overall aero performance.

Easier adjustability

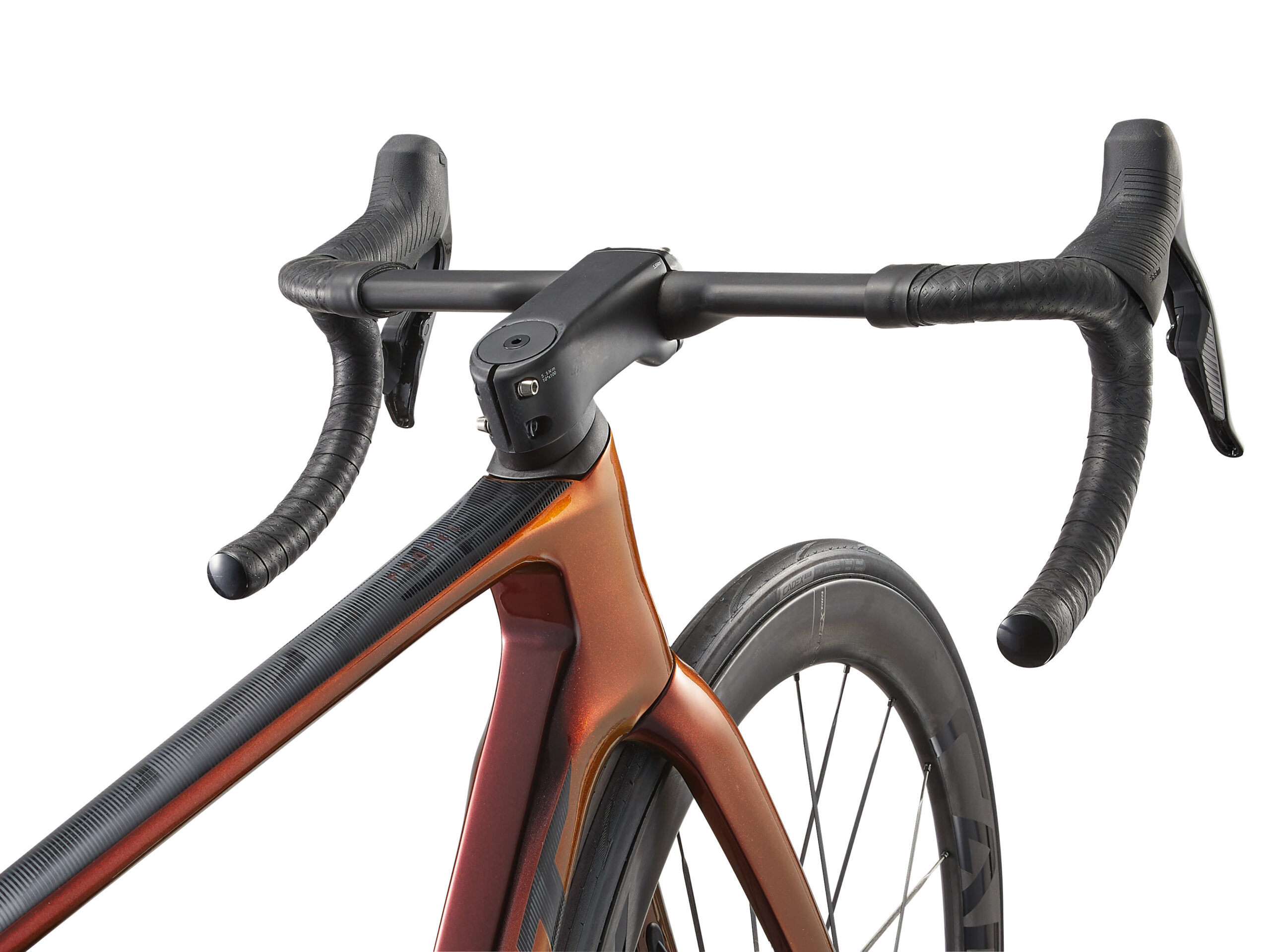

Cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency
Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 150 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.

Sizes	S, M, M/L, L
Colours	Gloss Black Lava / Monogram
Frame	Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc

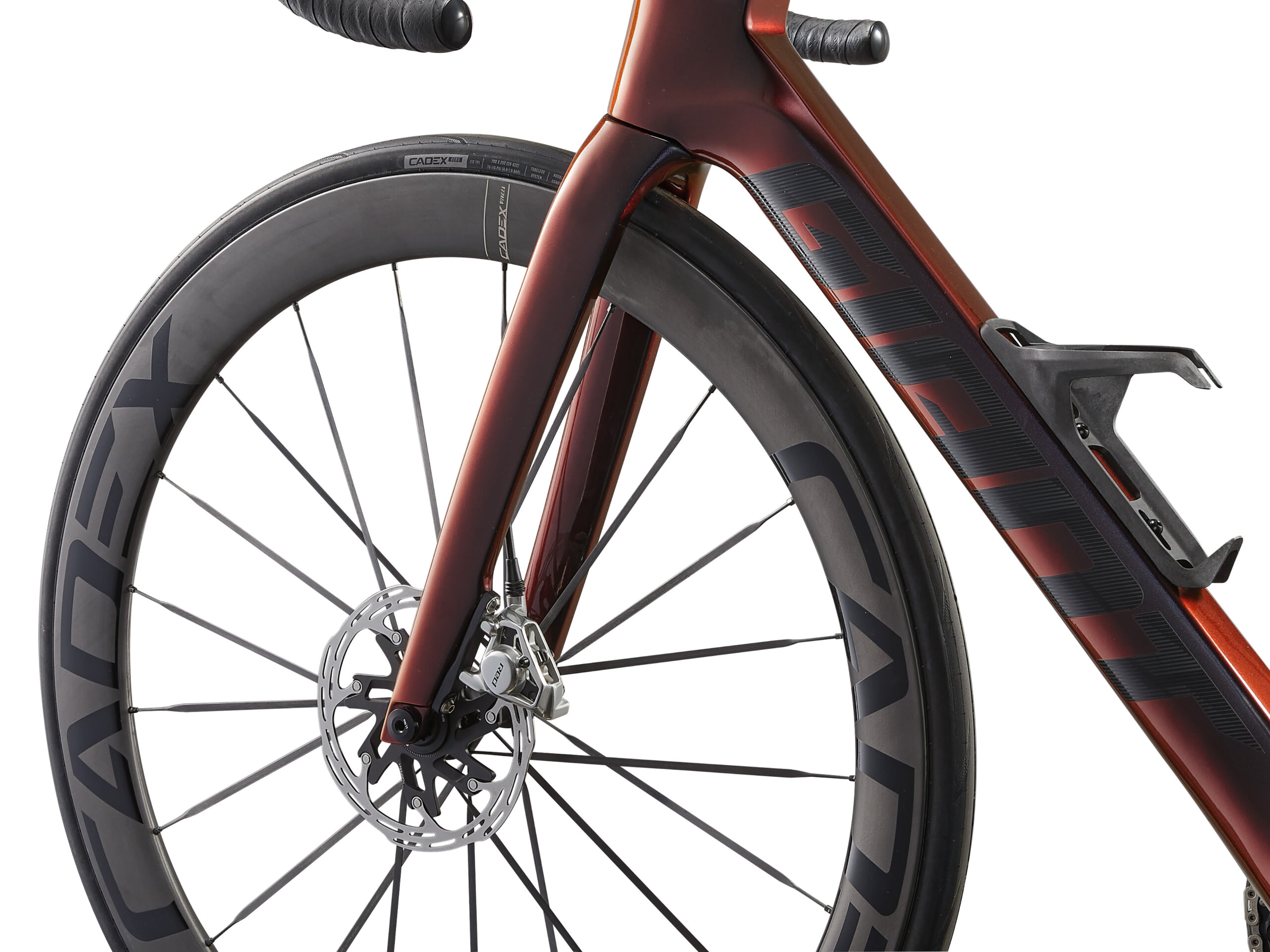

Fork	Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock	N/A
Handlebar	Giant Contact SLR Aero
Grips	Stratus Lite 2.0
Stem	Giant Contact SLR Aero
Seatpost	Advanced SL-grade composite, integrated design, -5/+15mm offset
Saddle	CADEX AMP
Pedals	PEDALS NOT SUPPLIED
Shifters	SRAM RED eTap AXS 2×12
Front Derailleur	SRAM RED eTap AXS
Rear Derailleur	SRAM RED eTap AXS
Brakes	SRAM RED eTap AXS hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
Brake Levers	SRAM RED eTap AXS hydraulic
Cassette	SRAM RED, 12-speed, 10×33
Chain	SRAM RED

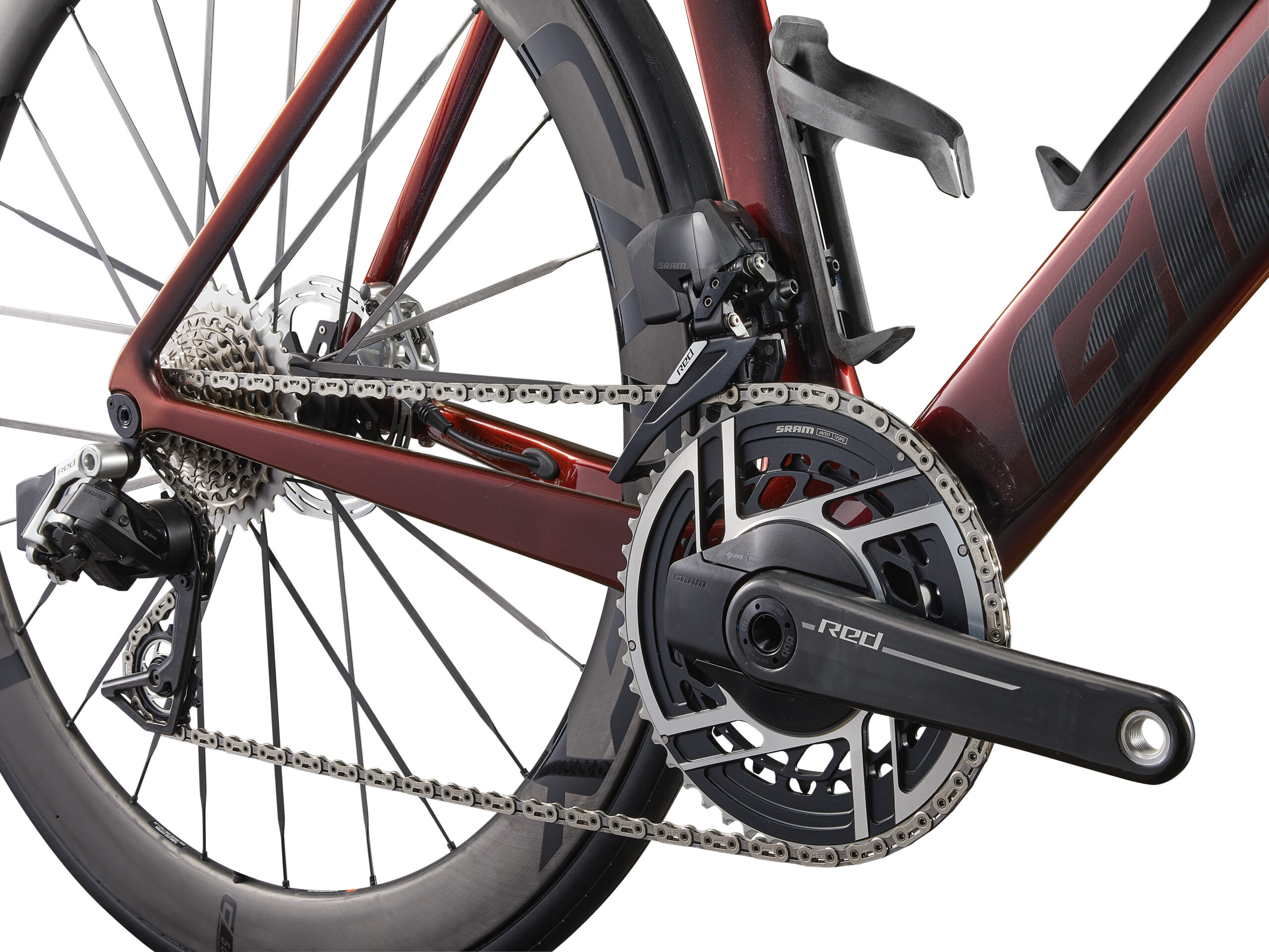

Crankset	SRAM RED PM E1 DUB, 35/48 with power meter
Bottom Bracket	SRAM, press fit
Rims	CADEX 50 Ultra WheelSystem, [F]50mm, [R]50mm
Hubs	[F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C40 Aero Low Friction Hub, 40T ratchet driver, CenterLock, 12mm thru-axle
Spokes	CADEX Super Aero Carbon Spoke
Tyres	CADEX Aero, tubeless, 700x25c (26.5mm), folding
Extras	Out front computer mount, water bottle cages, factory tubeless set up
Max Tire Clearance	32mm

Geometry

		S	M	ML	L
A	SEAT TUBE LENGTH	710	740	770	800
B	SEAT TUBE ANGLE	74	73.5	73	73
C	TOP TUBE LENGTH	535	550	565	580
D	HEAD TUBE LENGTH	130	145	165	185
E	HEAD TUBE ANGLE	72.3	73	73	73
F	FORK RAKE	45	45	45	45
G	TRAIL	62.5	57.8	57.8	57.8
H	WHEEL BASE	977	980	991	1,006
I	CHAIN STAY LENGTH	405	405	405	405
J	BOTTOM BRACKET DROP	70	70	67	67
K	STACK	528	545	562	581
L	REACH	383	388	393	402
M	STAND OVER HEIGHT	755	775	794	821
N	HANDLEBAR WIDTH	400	420	420	440
O	STEM LENGTH	90	100	110	110
P	CRANK LENGTH DEC	170	172.5	172.5	175
Q	WHEEL SIZE ALT	700C	700C	700C	700C
