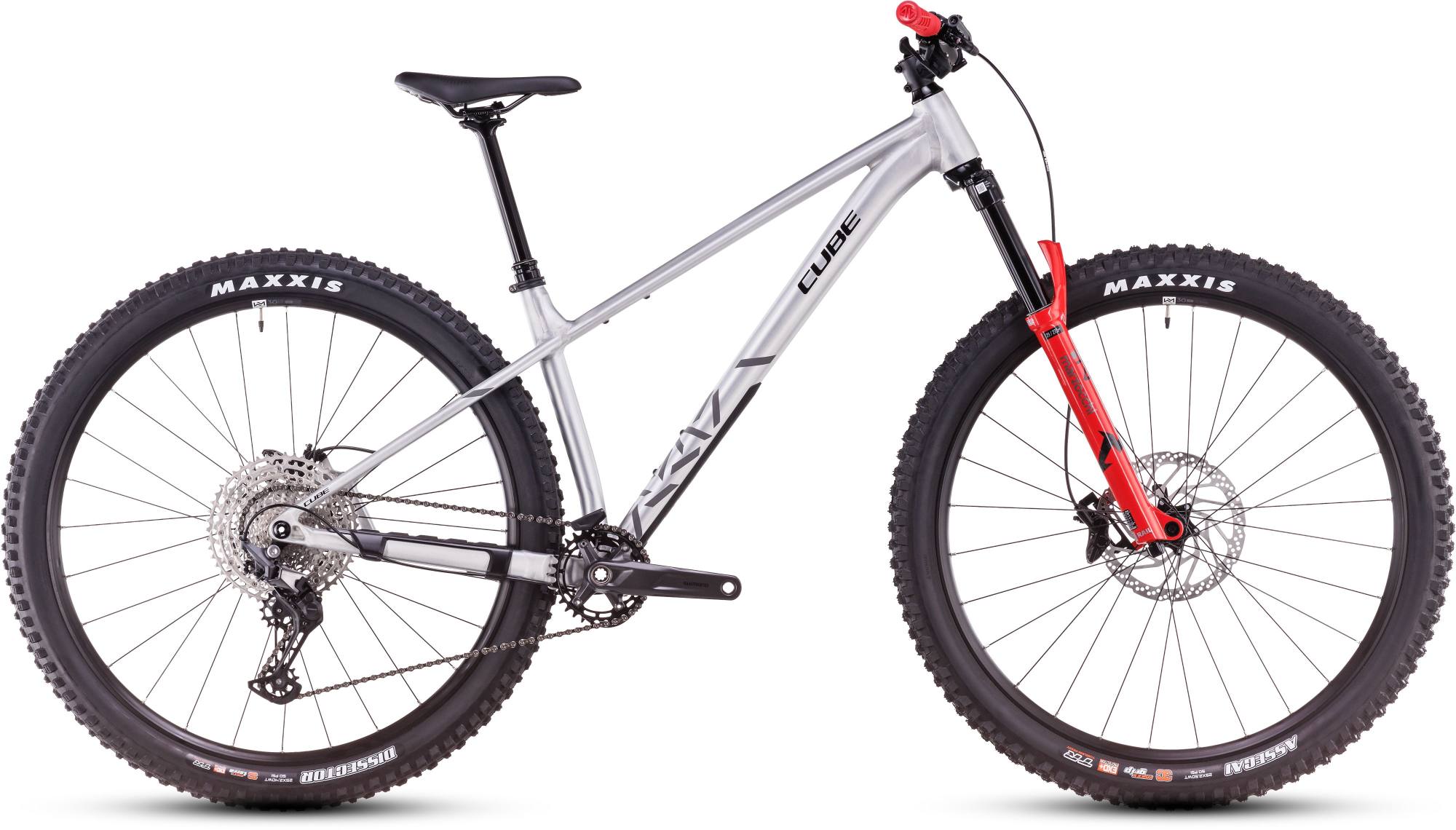

CUBE REACTION TM PRO RAW/BLACK XS
Built for fun and safe control on even challenging trails, the Reaction TM Pro has your back – and the progressive frame geometry is just the start. A RockShox Psylo Silver 35 air fork serves up 140mm of root- and boulder-swallowing travel. Strong Newmen Performance 30 wheels are shod with Continental Kryptotal 2.4in tyres, so you can keep the rubber side down and pointing in the right direction. Powerful Shimano hydraulic disc brakes feature a 203mm rotor up front, for better stopping power even in tricky conditions. And Sram’s Eagle 90 Transmission 1×12 gears enable flawless shifts, time after time. Add the remote dropper post, and it’s the complete trail package.
Frame description
There’s more than one way to get down a tough trail, and the Reaction TM proves the point. With a 65° head angle, 73.5° seat tube angle and a low standover, it’s designed to be stable and reassuring when the trail is throwing questions at you and you’re not sure of the answer. Short chainstays tuck the rear wheel under the rider for tight handling and superior traction, and there’s plenty of clearance to run tyres up to 2.5in. Stealth dropper routing is standard, of course, as is a UDH hanger for future-proof gearing. And we included a durable moulded chainstay protector for quiet descents, plus an ISCG chain guide to keep everything on track.

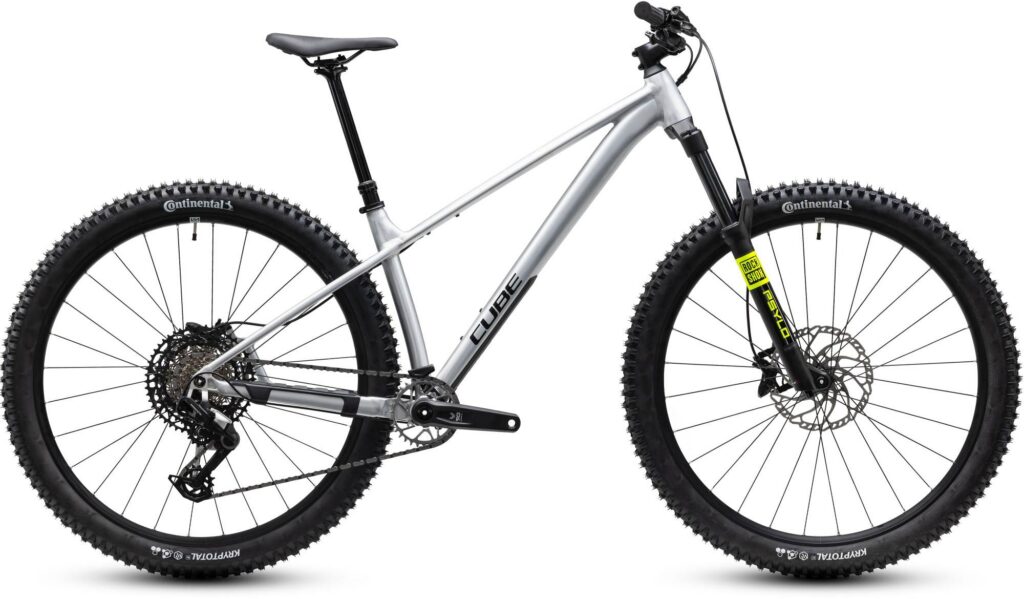

REACTION
Built for fun and safe control on even challenging trails, the Reaction TM Pro has your back – and the progressive frame geometry is just the start. A RockShox Psylo Silver 35 air fork serves up 140mm of root- and boulder-swallowing travel. Strong Newmen Performance 30 wheels are shod with Continental Kryptotal 2.4in tyres, so you can keep the rubber side down and pointing in the right direction. Powerful Shimano hydraulic disc brakes feature a 203mm rotor up front, for better stopping power even in tricky conditions. And Sram’s Eagle 90 Transmission 1×12 gears enable flawless shifts, time after time. Add the remote dropper post, and it’s the complete trail package.
Frame description
There’s more than one way to get down a tough trail, and the Reaction TM proves the point. With a 65° head angle, 73.5° seat tube angle and a low standover, it’s designed to be stable and reassuring when the trail is throwing questions at you and you’re not sure of the answer. Short chainstays tuck the rear wheel under the rider for tight handling and superior traction, and there’s plenty of clearance to run tyres up to 2.5in. Stealth dropper routing is standard, of course, as is a UDH hanger for future-proof gearing. And we included a durable moulded chainstay protector for quiet descents, plus an ISCG chain guide to keep everything on track.
| Fork | |
|---|---|
| Fork Brand | ROCKSHOX |
| Fork Model | Psylo Silver RC Air, Tapered, 15x110mm, 140mm |
| Fork Suspension | 1 |
| Fork Brand Description | Rockshox |
| Stem | |
| Stem Brand | NEWMEN |
| Stem Model | Evolution 318.4, 31.8mm |
| Stem Brand Description | Newmen |
| Chain | |
| Chain Brand | SRAM |
| Chain Model | Eagle™ 70 T-Type |
| Chain Brand Description | Sram |
| Frame | |
| Frametype | UNI |
| Framematerial | ALUMINIUM |
| Frame Description | Aluminium Lite, Trail Motion Geometry, AMF, Tapered Headtube, ISCG05, Boost 148, UDH™ |
| Framesize Supplier | L |
| Frametype Description | Unisex |
| Framematerial Description | Aluminium |
| Gears | |
| Gear Type | DERAILLEUR |
| Gear Brand | SRAM |
| Gear Model | Eagle™ 90 Transmission |
| Number Of Gears | 12 |
| Gear Brand Description | Sram |
| Gear Type Description | Derailleur |
| Tyres | |
| Tyre Brand | CONTINENTAL |
| Tyre Model | Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4 |
| Tyre Size Rear | 60-622 |
| Tyre Size Front | 60-622 |
| Tyre Brand Description | Continental |
| Pedals | |
| Pedals Model | Geleverd zonder pedalen / Supplied without pedals |
| Saddle | |
| Saddle Brand | ACID |
| Saddle Model | Venec Lite |
| Saddle Brand Description | Acid |
| Wheels | |
| Wheels Brand | NEWMEN |
| Wheels Model | Performance 30 light/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Wheels Brand Description | Newmen |
| Headset | |
| Headset Brand | VP |
| Headset Model | Integrated, Top 1 1/8", Bottom 1 1/2" |
| Headset Brand Description | VP |
| Cassette | |
| Cassette Brand | SRAM |
| Cassette Model | XS-1270, 10-52T |
| Cassette Brand Description | Sram |
| Crankset | |
| Crankset Brand | SRAM |
| Crankset Model | Eagle™ 90 Transmission DUB, 32T |
| Crankset Brand Description | Sram |
| Seatpost | |
| Seatpost Brand | CUBE |
| Seatpost Model | Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm |
| Seatpost Brand Description | Cube |
| Shifters | |
| Shifters Brand | SRAM |
| Shifters Model | Eagle™ 90 Transmission |
| Shifters Brand Description | Sram |
| Handlebar | |
| Handlebar Brand | NEWMEN |
| Handlebar Model | Beskar 318.40 w/ VariGrip System<br /> |
| Handlebar Brand Description | Newmen |
| Front Brake | |
| Front Brake Type | SH |
| Front Brake Brand | SHIMANO |
| Front Brake Model | BR-MT520, Hydr. Disc Brake (203/180) |
| Front Brake Brand Description | Shimano |
| Front Brake Type Description | Disc brake with hydraulic actuation |
| Shiftcables | |
| Shiftcables Brand | SRAM |
| Shiftcables Model | Eagle 90 |
| Shiftcables Brand Description | Sram |
| Derailleur Rear | |
| Derailleur Rear Brand | SRAM |
| Derailleur Rear Model | Eagle™ 90 Transmission, 12-Speed |
| Derailleur Rear Brand Description | Sram |
| Bartape Or Grips | |
| Bartape Or Grips Brand | NEWMEN |
| Bartape Or Grips Model | Resia VGS |
| Bartape Or Grips Brand Description | Newmen |
| Primary Rear Brake | |
| Primary Rear Brake Type | SH |
| Primary Rear Brake Brand | SHIMANO |
| Primary Rear Brake Model | BR-MT520, Hydr. Disc Brake (203/180) |
| Primary Rear Brake Brand Description | Shimano |
| Primary Rear Brake Type Description | Disc brake with hydraulic actuation |
| Physical Specifications | |
| Size | L |
| Colour | Raw/Black |
| Net Weight | 14.5 |
| Gross Weight | 18.08 |
| Weight Capacity | 140 |
| Primary Basecolour | MULTICOLOR |
| Secondary Basecolour | BLACK |
| Primary Basecolour Description | Multicolor |
| Secondary Basecolour Description | Black |
