Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

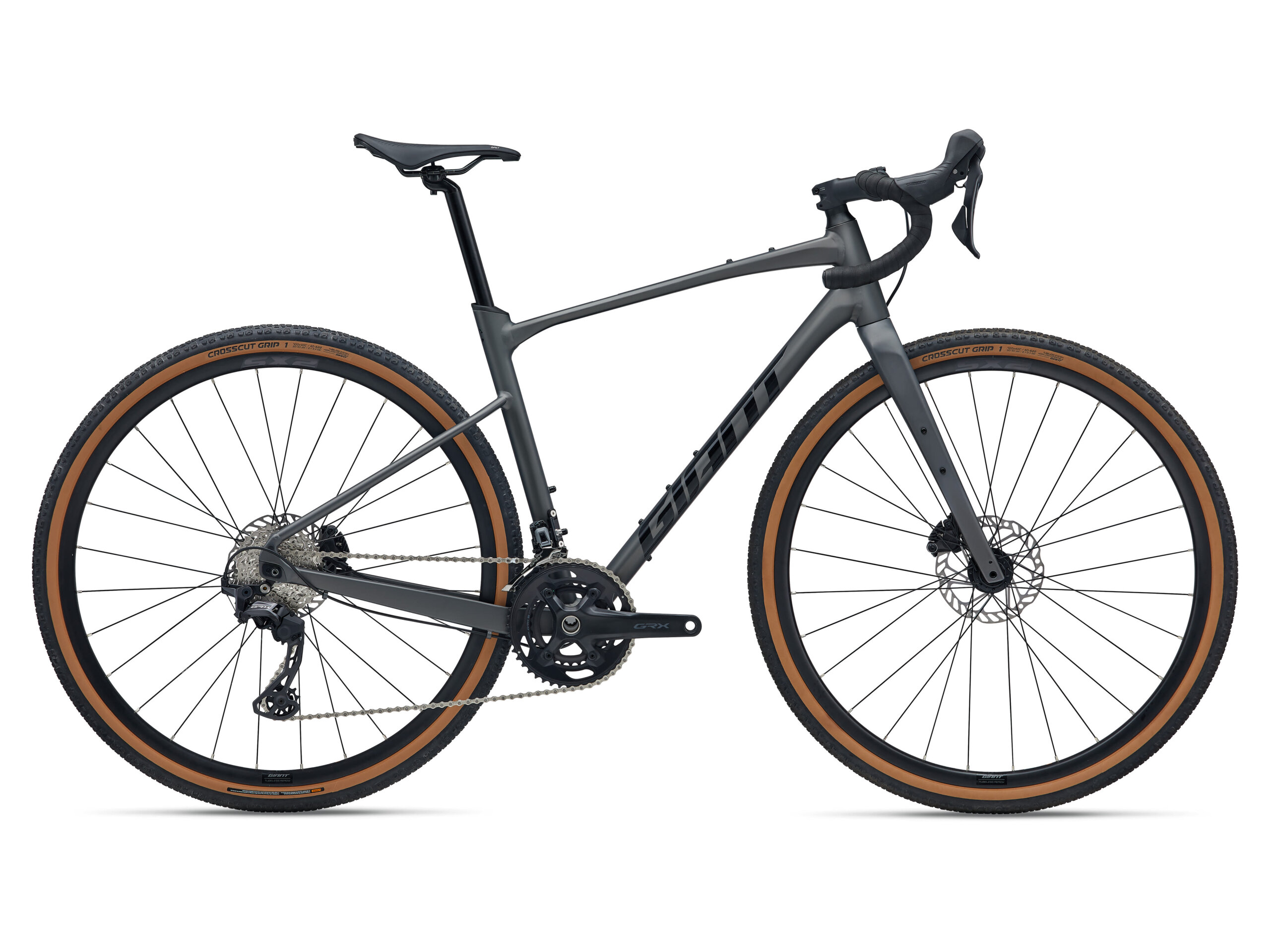

Revolt 0
€2,149.00
Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Specifications
Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
| Sizes | XS, S, M, M/L, L, XL |
|---|---|
| Colours | Stealth / Chrome, Ocean Wave |
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | cork tape with gel |
| Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Grit |
| Shifters | Shimano GRX RX-610, 2×12 |
| Front Derailleur | Shimano GRX RX-820 |
| Rear Derailleur | Shimano GRX RX-820 |
| Brakes | Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano GRX RX-610 hydraulic |
| Cassette | Shimano 105, 11×34 |
| Chain | KMC X12L-1 |
| Crankset | Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, threaded |
| Rims | Giant S-X2 , alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | stainless |
| Tyres | Giant Crosscut Grip TR, 700x40c, tubeless |
| Extras | tubeless prepared |
| Max Tire Clearance | 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position. |
Highlights
Barcode : 4711291239418
Geometry
| XXS | XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 450 | 470 | 490 | 510 | 530 | ||
| B | SEAT TUBE ANGLE | 73.5 | 73.5 | 73 | 73 | 73 | ||
| C | TOP TUBE LENGTH | 550 | 560 | 575 | 585 | 600 | ||
| D | HEAD TUBE LENGTH | 135 | 150 | 165 | 180 | 195 | ||
| E | HEAD TUBE ANGLE | 71 | 71.5 | 72 | 72 | 72 | ||
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 | ||
| G | TRAIL | 72 | 68 | 65 | 65 | 65 | ||
| H | WHEEL BASE | 1,025 | 1,030 | 1,035 | 1,045 | 1,061 | ||
| I | CHAIN STAY LENGTH | 430 | 430 | 430 | 430 | 430 | ||
| J | BOTTOM BRACKET DROP | 80 | 80 | 80 | 80 | 80 | ||
| K | STACK | 570 | 586 | 602 | 616 | 630 | ||
| L | REACH | 381 | 387 | 391 | 397 | 407 | ||
| M | STAND OVER HEIGHT | 734 | 752 | 769 | 786 | 801 | ||
| N | HANDLEBAR WIDTH | 420 | 440 | 440 | 460 | 460 | ||
| O | STEM LENGTH | 60 | 70 | 80 | 80 | 90 | ||
| P | CRANK LENGTH DEC | 170 | 172.5 | 172.5 | 175 | 175 | ||
| Q | WHEEL SIZE ALT | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
Technology and Features
