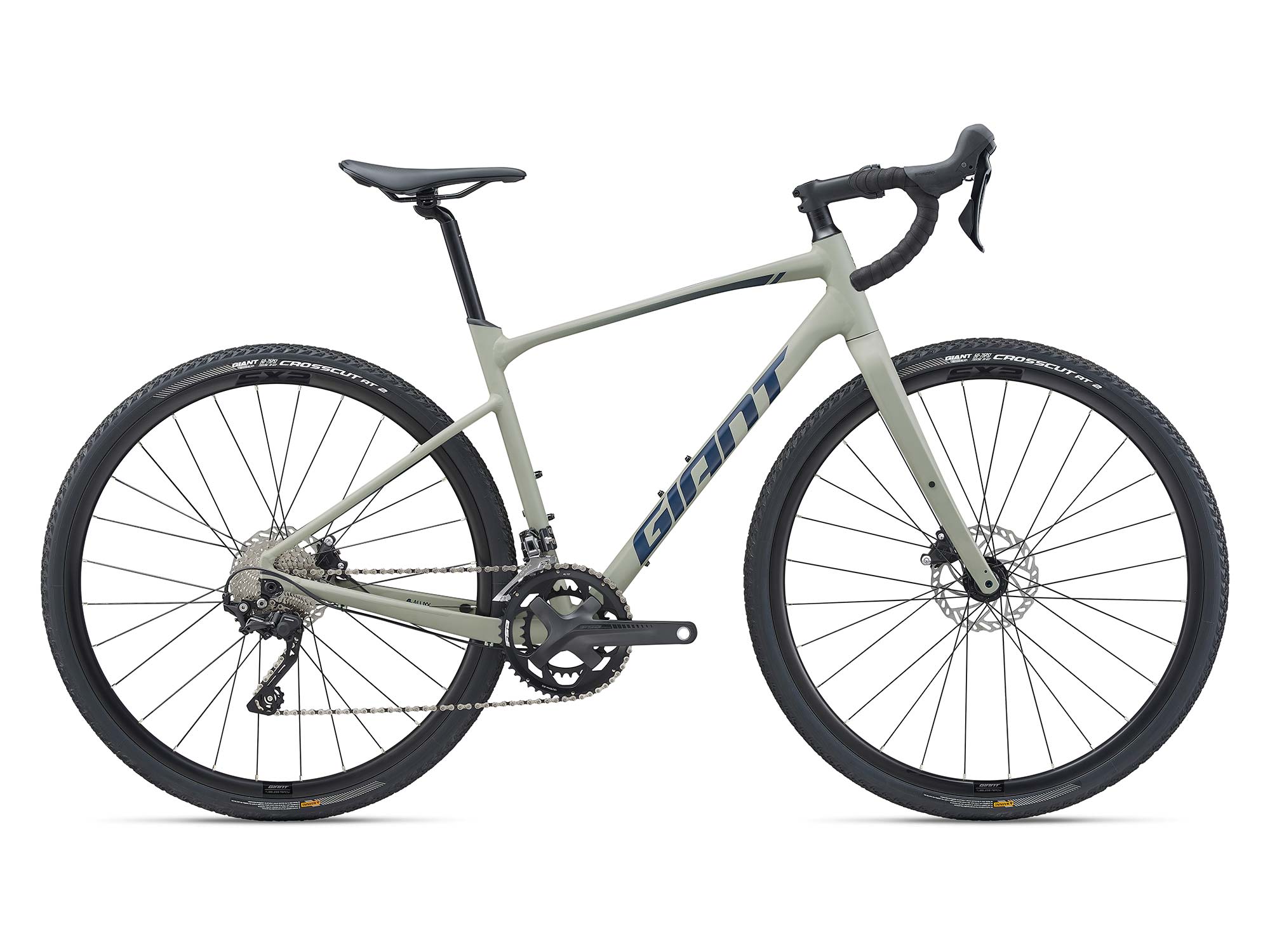

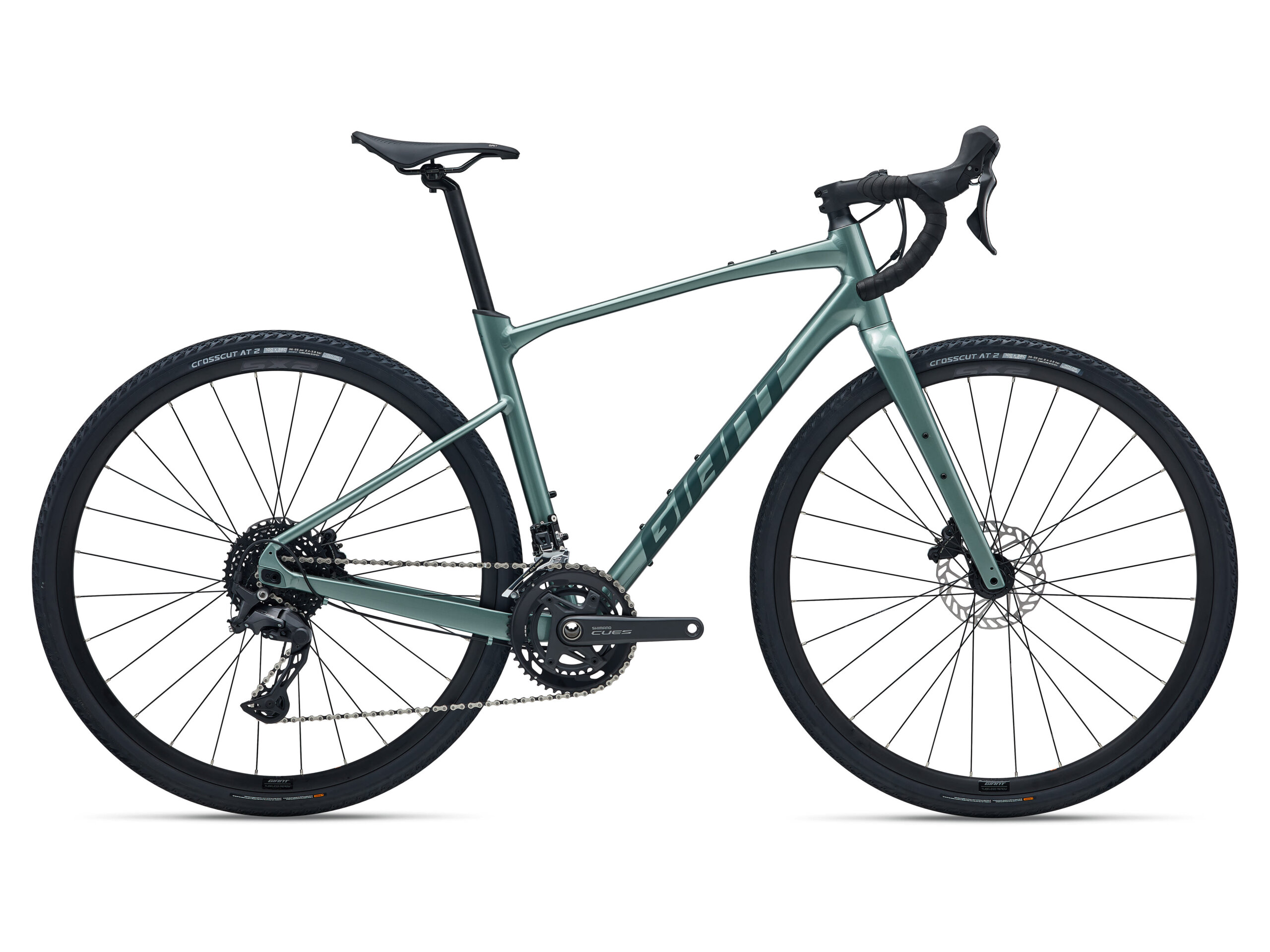

Revolt 1

1,325.00

Over half the world’s roads are unpaved, offering ample opportunities for adventure on gravel and dirt. This lightweight aluminium all-rounder is the perfect way to explore roads you’ve always thought about but never ridden.

Features:
Sizes: S, M, ML, L, XL
Colours: Teal Gray
Frame: ALUXX Grade Aluminum, disc
Fork: full composite, OverDrive steerer
Shock: N/A
Handlebar: Giant Contact XR D-Fuse, 31.8
5° back sweep, flared drop
Stem: Giant Contact, 8-degree
Seatpost: Giant D-Fuse, alloy
Saddle: Giant Contact (neutral)
Pedals: N/A
Shifters: Shimano Tiagra
Front Derailleur: Shimano Tiagra
Rear Derailleur: Shimano Tiagra
Brakes: Giant Conduct hydraulic
Brake Levers: Shimano Tiagra
Cassette: Shimano HG500, 11×34
Chain: KMC X10 with Missing Link
Crankset: FSA Omega Adventure, 32/48
Bottom Bracket: FSA MegaExo
Rims: Giant S-X2 Disc wheelset
Hubs: Giant S-X2 Disc wheelset
Spokes: Giant S-X2 Disc wheelset
Tyres: Giant Crosscut AT 2, 700×38

Clear
Ridetowork Quote
SKU: 201201421 Category:

Get the Revolt 1 through cyclecentre.com. Click on the Quote now button and save up to 51% on the ridetowork.ie (avails of government Cycle to work Scheme).Whether you ride dirt roads, trails, gravel, or a mix of everything, the challenges are the same. You want a bike that floats right through it, keeps you in control, and is comfortable for long days in the saddle. The new Revolt delivers on all accounts. It features a lightweight ALUXX aluminium frame and carbon fork, each engineered to balance stiffness (for efficiency) and compliance (for comfort and control). Components including the D-Fuse seatpost and handlebar further absorb road shocks and vibrations. The frame is integrated for disc brakes and it has clearance for larger tyres (up to 45c).

Cycle to work scheme
The cycle to work scheme is available to all employee once every five years, depending on your tax status you can get up to 51% (if you are a higher rate tax payer). In order to get the ball rolling on the Revolt 1 please click on the ridetowork.ie button and register, and we will issue a quote directly. If you have already availed of the cycle scheme in the past 5 years or you are ineligible (no longer working), simply click on order now button,and we can process your order and have your bike ready on extra fast time!
The Cycle centre offers an unrivalled workshop support service through its online workshop (Online workshop) and carries up to 90% of all for the Revolt 1 parts in stock. Should you ever need backup or after sales support for your bike we will be there to provide assist.
Online check in service
Book your bike in online through our innovative microsite, that allows you to book in online and pick your time.We will communicate directly with you throughout the repair process to ensure you bike is ready on time. We will register your bike free of charge to ensure we will always have the exact specification of your Bike and parts in stock to complete any repairs required.

Specifications

Gravel, dirt and scenic backroads offer some of the best opportunities for freedom and adventure. This lightweight aluminium all-rounder is the perfect way to get away from it all and explore the places you’ve always thought about but never ridden.

Whether you ride dirt roads, trails, gravel or a mix of everything, you want a bike that floats right through it, keeps you in control, and is comfortable for long days in the saddle. The Revolt delivers on all accounts. It features a lightweight ALUXX aluminium frame and composite fork, each engineered to balance stiffness and compliance. It comes with integrated components including the D-Fuse seatpost and Contact XR D-Fuse handlebar to further absorb road shocks and vibrations. The frame is integrated for disc brakes and it has clearance for larger tyres up to 45mm.

Key Performance Factors

Versatile gravel geometry

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. The result is confident speed in all situations, from out-of-the-saddle climbs to rugged dirt descents.

Tuned compliance

Innovative Contact XR D-Fuse handlebar and D-Fuse seatpost work as a system to help absorb shock without sacrificing the stiffness needed for aggressive road performance. Added frame clearance for high-volume tyres up to 45mm helps smooth out rough roads, gravel and dirt.

All-rounder efficiency

The ALUXX aluminium frame delivers efficient pedaling power and all-round versatility, giving you a smooth, fast ride quality on variable riding surfaces.

Sizes S, M, ML, L, XL
Colours Matte Desert Sage
Frame ALUXX Grade Aluminium, disc. Compatible with fenders
Fork full composite, OverDrive steerer, disc
Shock N/A
Handlebar Giant Contact XR D-Fuse, 31.85° back sweep, flared drop
Stem Giant Contact, 8-degree
Seatpost Giant D-Fuse, alloy
Saddle Giant Approach
Pedals N/A
Shifters Shimano GRX RX-400
Front Derailleur Shimano Tiagra
Rear Derailleur Shimano GRX RX-400
Brakes Shimano GRX RX-400 hydraulic
Brake Levers Shimano GRX RX-400 hydraulic
Cassette Shimano HG-500, 11×34
Chain KMC X10 with Missing Link
Crankset FSA Omega Adventure, 32/48
Bottom Bracket FSA MegaExo, press fit
Rims Giant S-X2 Disc wheelset
Hubs Giant S-X2 Disc wheelset
Spokes Giant S-X2 Disc wheelset
Tyres Giant CrossCut AT 2 Tubeless, 700x38C (max tyre width possible: 45mm)

Geometry

    S M ML L XL
A Seat Tube Length 450 470 490 510 530
B Seat Tube Angle 73.5 73.5 73 72.5 72.5
C Top Tube Length 540 550 565 575 590
D Head Tube Length 135 150 165 180 195
E Head Tube Angle 70.5 70.5 71 71 71
F Fork Rake 50 50 50 50 50
G Trail 75 75 71.6 71.6 71.6
H Wheel Base 1025 1036 1041 1051 1067
I Chain Stay Length 430 430 430 430 430
J Bottom Bracket Drop 70 70 70 70 70
K Stack 558 572 588 601 615
L Reach 375 381 385 391 402
M Stand Over Height 731 749 765 783 800
N Handlebar Width 420 440 440 460 460
O Stem Length 80 90 100 100 110
P Crank Length Dec 170 172.5 172.5 175 175
Q Wheel Size Alt 700C 700C 700C 700C 700C
