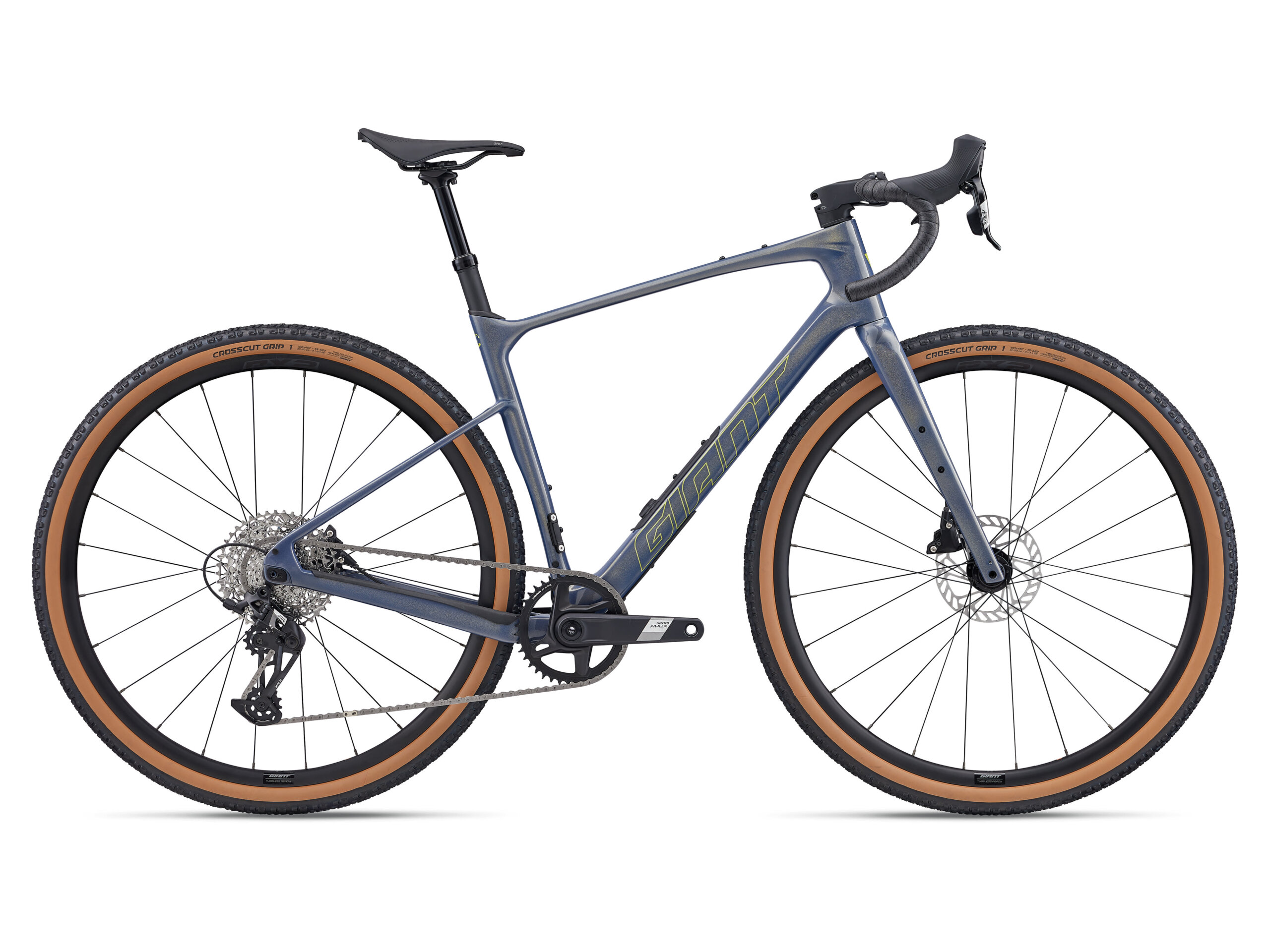

Revolt Advanced 1

€1,584.88

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Clear
SKU: N/A Categories: , , Tag:

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Additional information

Size

, , , ,

Color

Specifications

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Key Performance Factors

Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Sizes XS, S, M, M/L, L, XL
Colours Midnight Moon
Frame Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips Stratus Lite 3.0
Stem Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Post Moderne, dropper, 30.9mm, 30mm suspension XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm
Saddle Giant Grit
Pedals no pedal [GA, Pan-Eu], platform pedal [GU, GV, GJ]
Shifters SRAM Apex 1, 1×12
Front Derailleur N/A
Rear Derailleur SRAM Apex XPLR
Brakes SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers SRAM Apex 1, left lever dropper switch
Cassette SRAM PG-1231, 12-speed, 11×44
Chain SRAM Apex D1
Crankset SRAM Apex 1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket SRAM DUB, press fit
Rims Giant P-X2 , alloy
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tyres Giant Crosscut Grip, 700x45c, tubeless
Extras Tubeless prepared, in-frame storage bag, Giant 1x chain guide
Max Tire Clearance 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.

Highlights

Barcode : 4711291204881

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 450 470 490 510 530
B SEAT TUBE ANGLE 73.5 73.5 73 73 73
C TOP TUBE LENGTH 550 560 575 585 600
D HEAD TUBE LENGTH 135 150 165 180 195
E HEAD TUBE ANGLE 71 71.5 72 72 72
F FORK RAKE 50 50 50 50 50
G TRAIL 72 68 65 65 65
H WHEEL BASE 1,020 1,026 1,031 1,041 1,056
I CHAIN STAY LENGTH 425 425 425 425 425
J BOTTOM BRACKET DROP 80 80 80 80 80
K STACK 570 586 602 616 630
L REACH 381 387 391 397 407
M STAND OVER HEIGHT 740 757 774 791 807
N HANDLEBAR WIDTH 420 440 440 460 460
O STEM LENGTH 60 70 80 80 90
P CRANK LENGTH DEC 170 172.5 172.5 175 175
Q WHEEL SIZE ALT

Technology and Features

Advanced Composite Technology
D-Fuse Technology
OverDrive
Tubeless System
