RIDE TO WORK

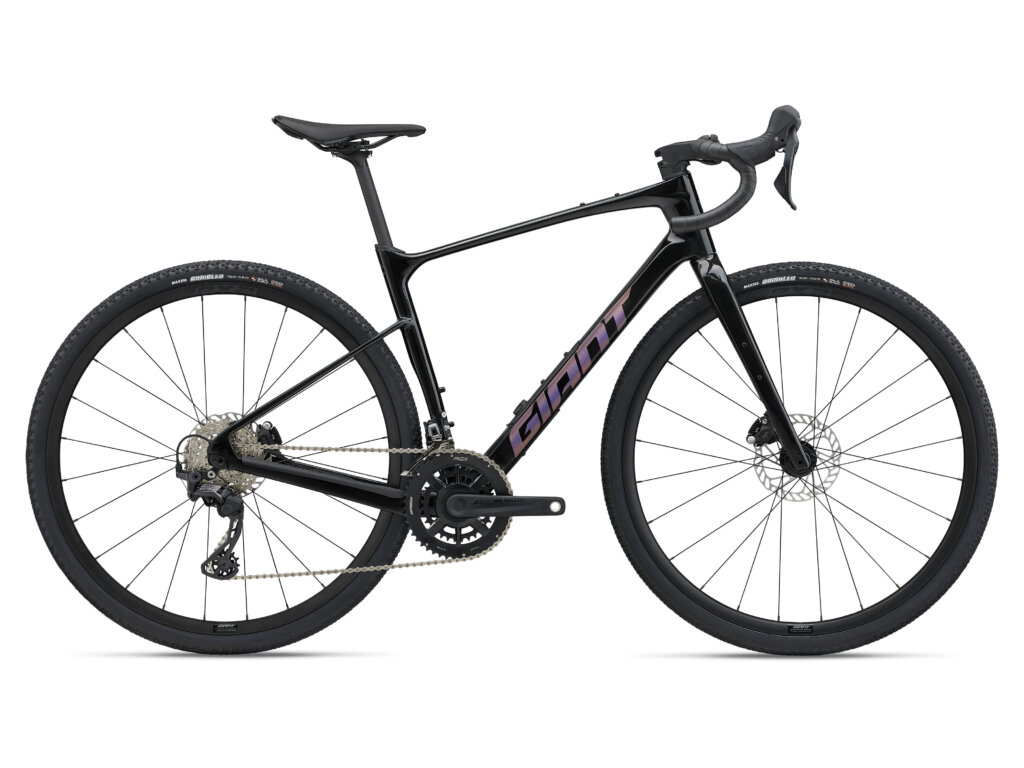

Revolt Advanced 2

Revolt Advanced 2

€1,410.93

GRAVEL CRUSHER

Clear
SKU: N/A Categories: , , Tag:

GRAVEL CRUSHER

Additional information

Size

, , , , ,

Color

Specifications

GRAVEL CRUSHER

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

Key Performance Factors

FAST AND VERSATILE
An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the down tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
Sizes XS, S, M, M/L, L, XL
Colours Gloss Carbon
Frame Advanced-grade composite
Fork Advanced-grade composite
Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips Stratus Lite 3.0
Stem Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse, composite, 14mm offset
Saddle Giant Grit
Pedals Not included
Shifters Shimano GRX RX-610, 2×12
Front Derailleur Shimano GRX RX-820
Rear Derailleur Shimano GRX RX-820
Brakes Shimano GRX RX-400 HRD, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers Shimano GRX RX-610 hydraulic
Cassette Shimano CS-HG710, 12-speed, 11×36
Chain KMC X12L-1
Crankset FSA Omega Modular AGX+, 32/48
Bottom Bracket FSA BB-AL86, press fit
Rims Giant P-X2 Disc wheelset, alloy
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tyres Giant Crosscut Grip TR, 700x40c, tubeless
Extras tubeless prepared, 53mm max tire size in “long” flip chip position, 53mm max tire size in “short” flip chip position, in-frame storage bag
Max Tire Clearance 53mm

Highlights

Barcode : 4711291084421

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 430 450 470 490 510 530
B SEAT TUBE ANGLE 74 73.5 73.5 73 73 73
C TOP TUBE LENGTH 540 550 560 575 585 600
D HEAD TUBE LENGTH 125 135 150 165 180 195
E HEAD TUBE ANGLE 70 71 71.5 72 72 72
F FORK RAKE 50 50 50 50 50 50
G TRAIL 78 72 68 65 65 65
H WHEEL BASE 1,024 1,020 1,026 1,031 1,041 1,056
I CHAIN STAY LENGTH 425 425 425 425 425 425
J BOTTOM BRACKET DROP 80 80 80 80 80 80
K STACK 556 570 586 602 616 630
L REACH 381 381 387 391 397 407
M STAND OVER HEIGHT 724 740 757 774 791 807
N HANDLEBAR WIDTH 420 420 440 440 460 460
O STEM LENGTH 50 60 70 80 80 90
P CRANK LENGTH DEC 170 170 172.5 172.5 175 175
Q WHEEL SIZE ALT 700c 700c 700c 700c 700c 700c

Technology and Features

Advanced Composite Technology
D-Fuse Technology
OverDrive
Tubeless System
