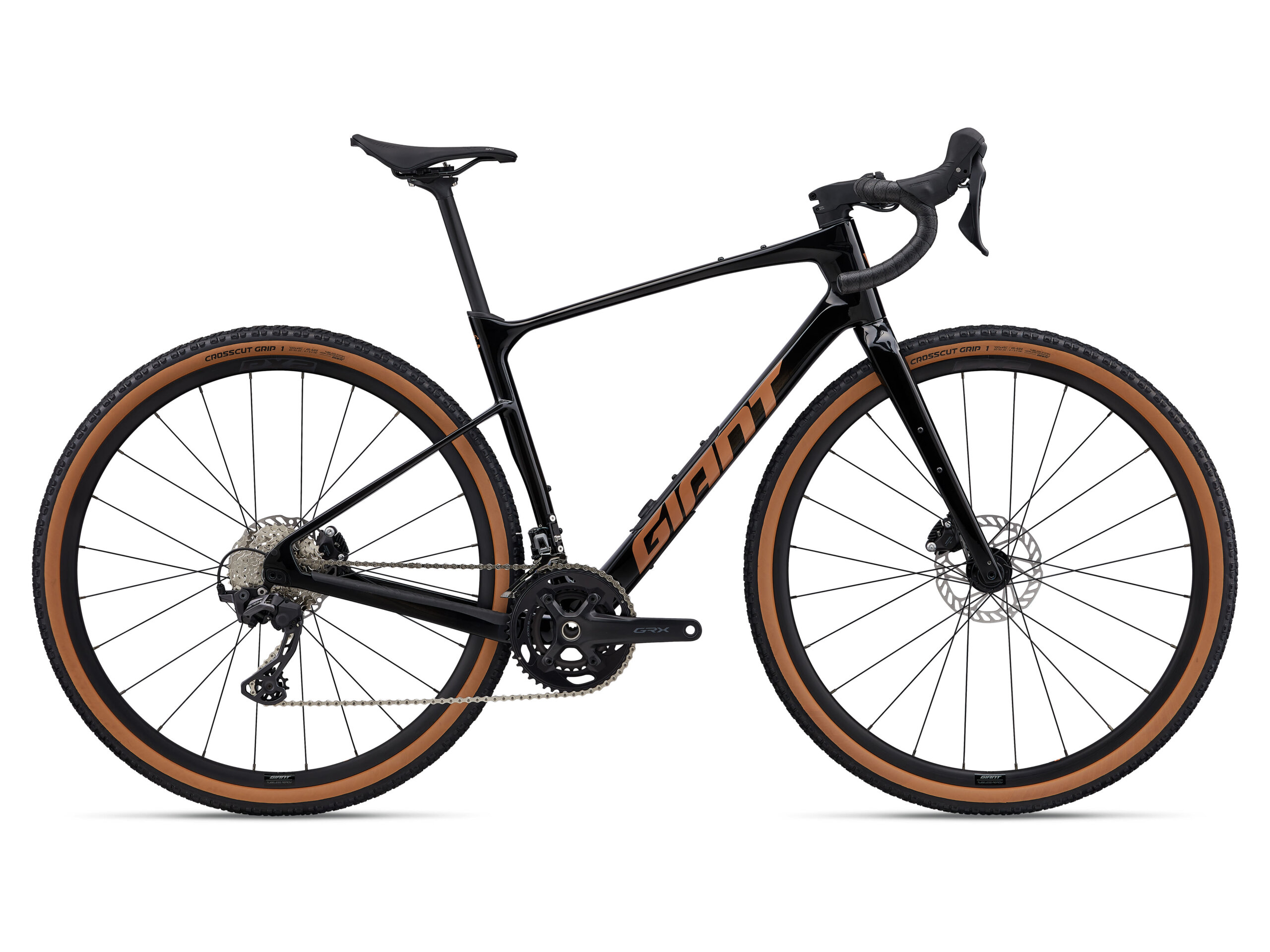

Revolt Advanced 2

€2,999.00

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Additional information

Size	L, M, ML, S, XL, XS
Color	Carbon

Specifications

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Key Performance Factors

Fast and light

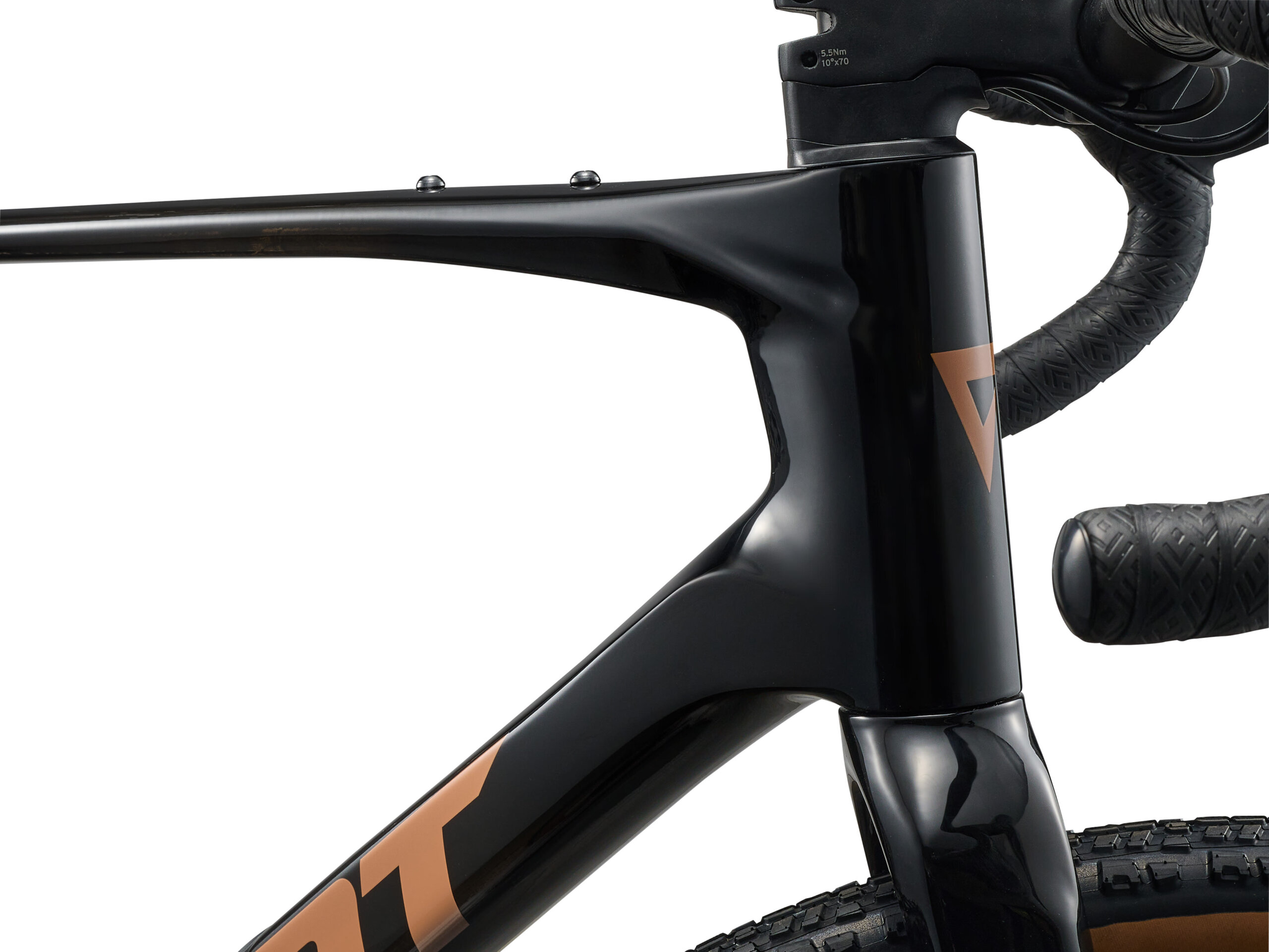

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Sizes	XS, S, M, M/L, L, XL
Colours	Lavender Blush, Carbon
Frame	Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

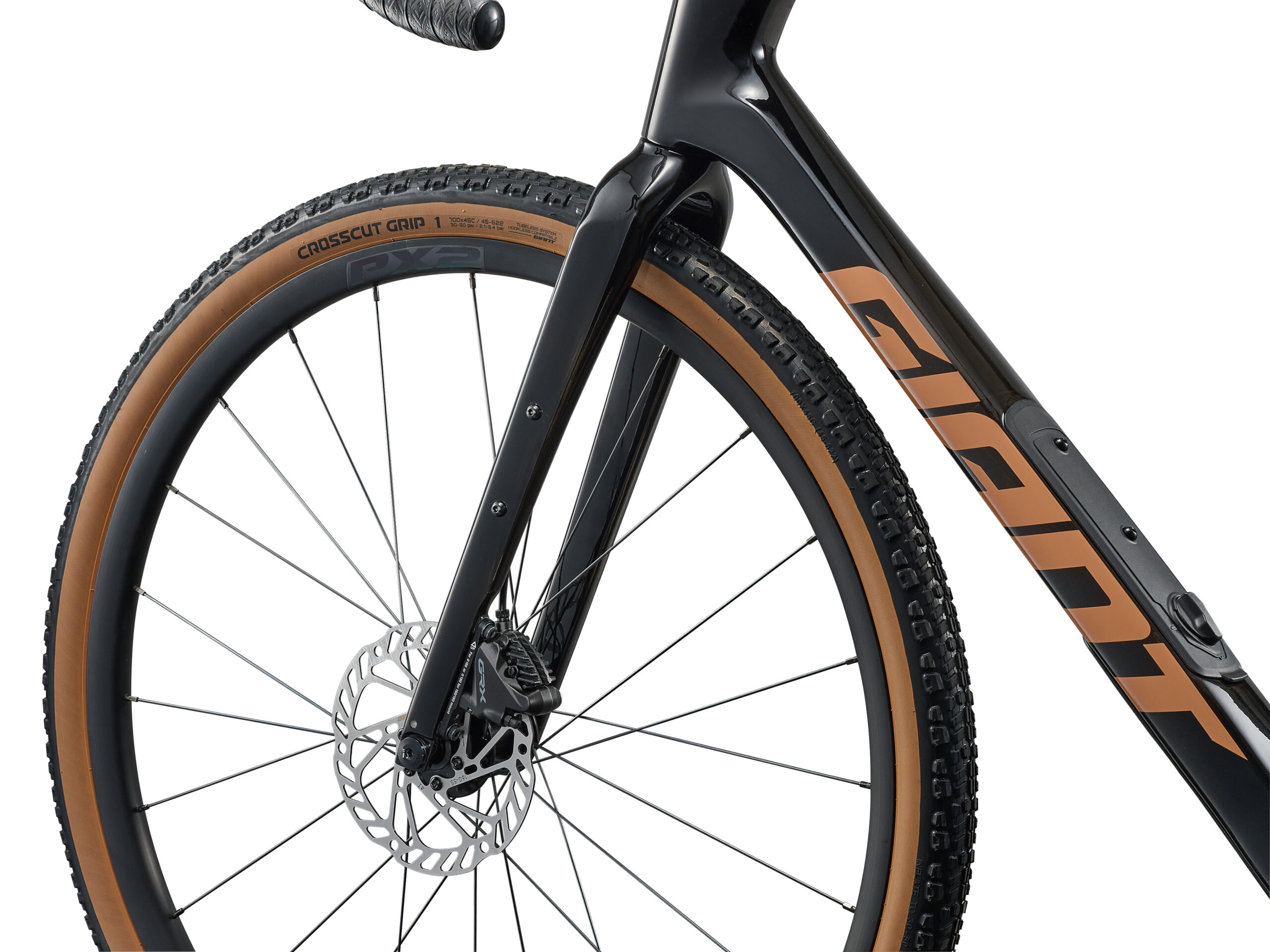

Fork	Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

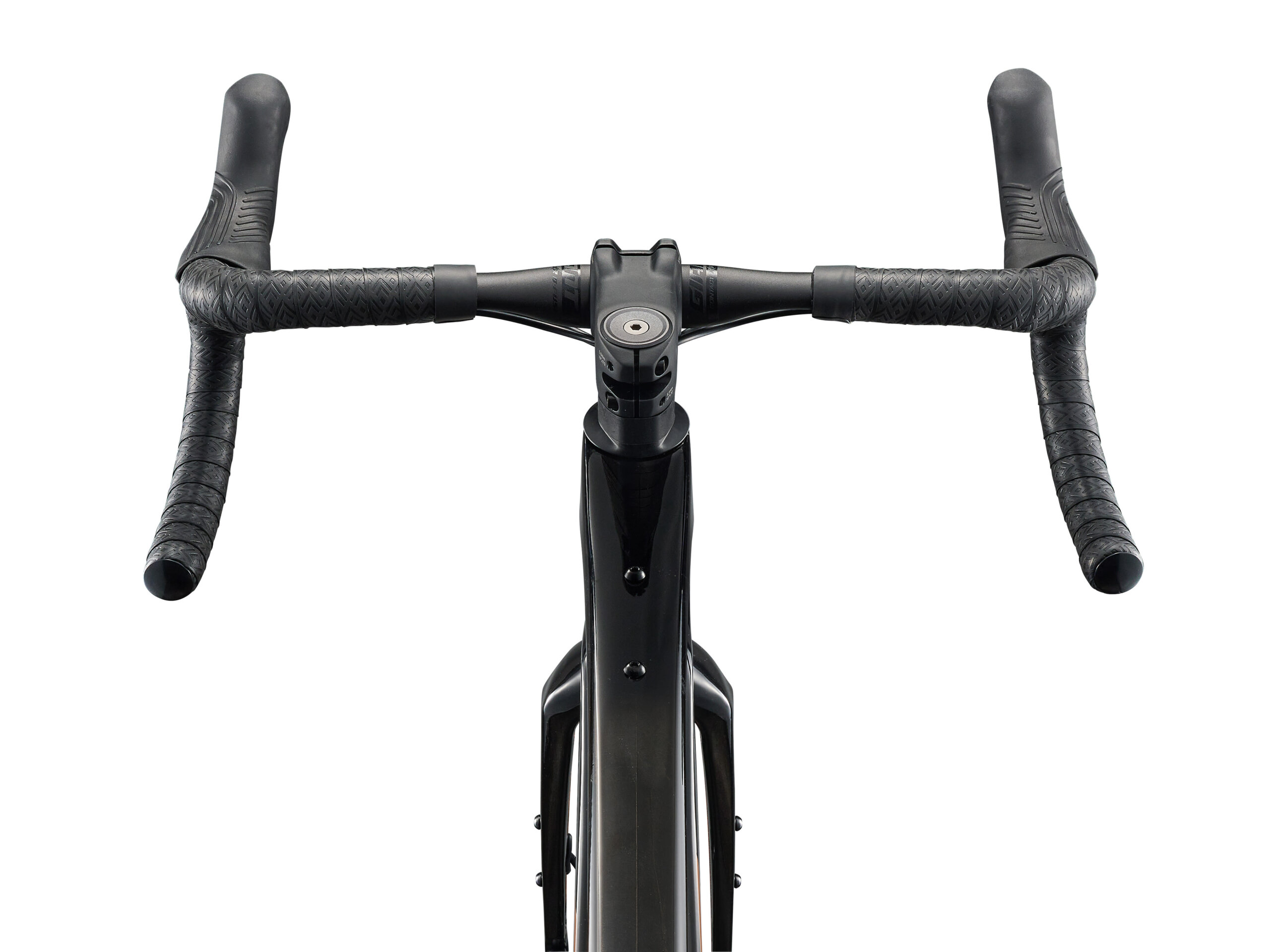

Handlebar	Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips	Stratus Lite 3.0
Stem	Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost	Giant D-Fuse, composite, 14mm offset
Saddle	Giant Grit
Shifters	Shimano GRX RX-610, 2×12
Front Derailleur	Shimano GRX RX-820
Rear Derailleur	Shimano GRX RX-820
Brakes	Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers	Shimano GRX RX-610 hydraulic
Cassette	Shimano CS-HG710, 12-speed, 11×36
Chain	KMC X12L-1

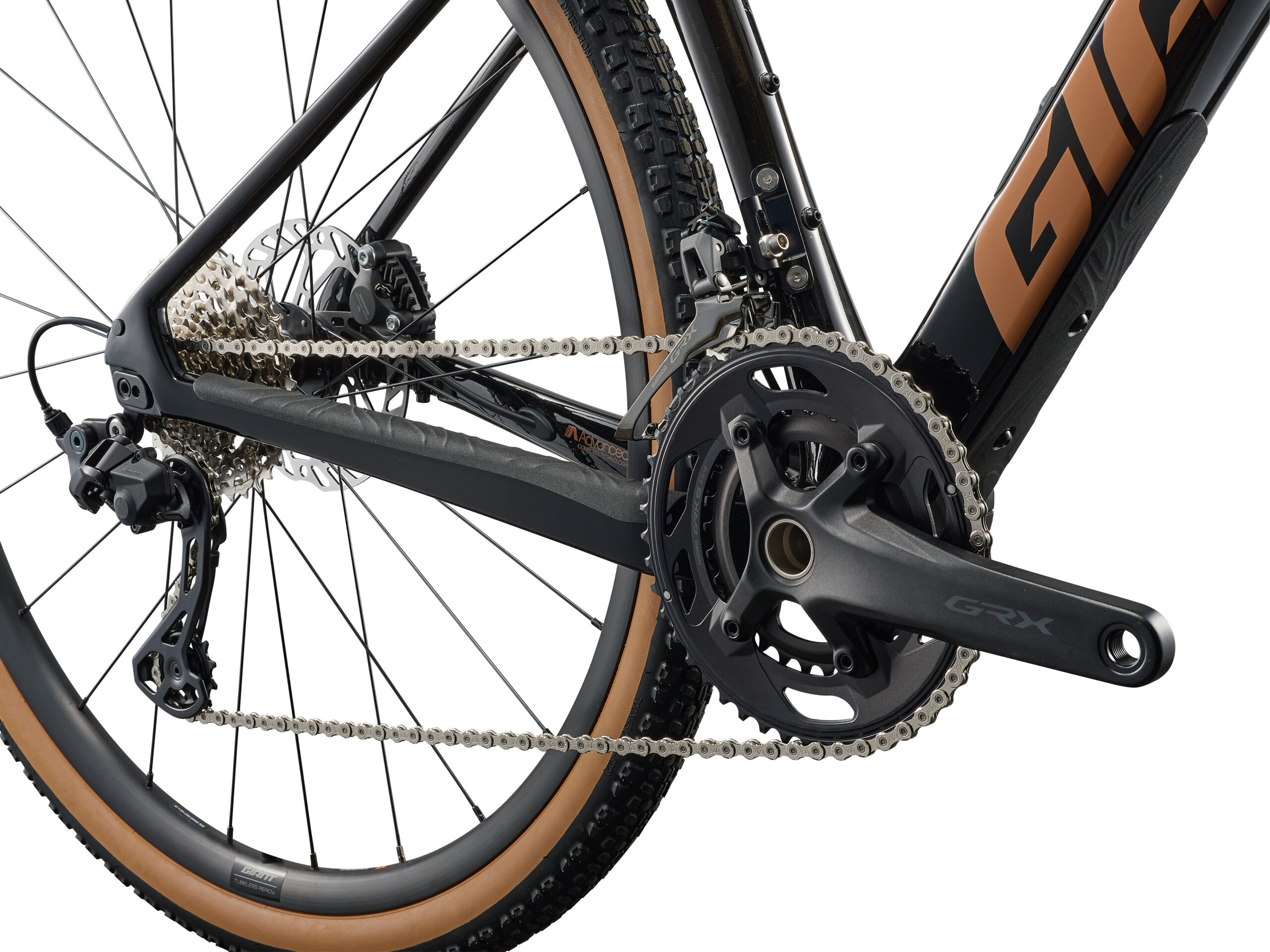

Crankset	Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket	Shimano, press fit
Rims	Giant P-X2 , alloy
Hubs	Giant alloy, 12mm thru-axle
Spokes	Sapim
Tyres	Giant Crosscut Grip, 700x45c, tubeless
Extras	Tubeless prepared, in-frame storage bag
Max Tire Clearance	53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.

Geometry

		XS	S	M	ML	L	XL
A	SEAT TUBE LENGTH	430	450	470	490	510	530
B	SEAT TUBE ANGLE	74	73.5	73.5	73	73	73
C	TOP TUBE LENGTH	540	550	560	575	585	600
D	HEAD TUBE LENGTH	125	135	150	165	180	195
E	HEAD TUBE ANGLE	70	71	71.5	72	72	72
F	FORK RAKE	50	50	50	50	50	50
G	TRAIL	78	72	68	65	65	65
H	WHEEL BASE	1,024	1,020	1,026	1,031	1,041	1,056
I	CHAIN STAY LENGTH	425	425	425	425	425	425
J	BOTTOM BRACKET DROP	80	80	80	80	80	80
K	STACK	556	570	586	602	616	630
L	REACH	381	381	387	391	397	407
M	STAND OVER HEIGHT	724	740	757	774	791	807
N	HANDLEBAR WIDTH	420	420	440	440	460	460
O	STEM LENGTH	50	60	70	80	80	90
P	CRANK LENGTH DEC	170	170	172.5	172.5	175	175
Q	WHEEL SIZE ALT
