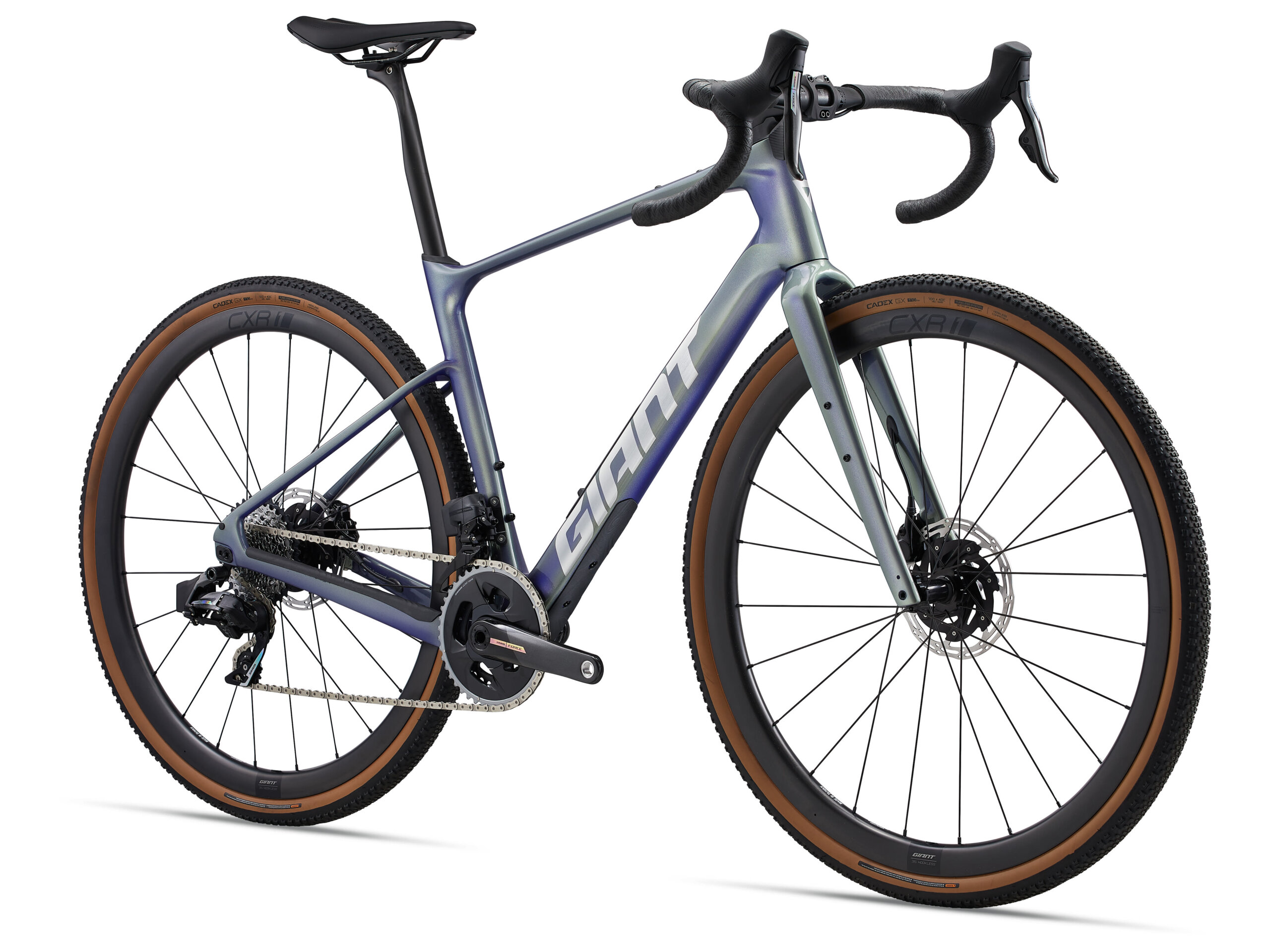

Revolt Advanced Pro 0

€2,752.62

GRAVEL CRUSHER

Clear
SKU: N/A Categories: , , Tag:

GRAVEL CRUSHER

Additional information

Size

, , , ,

Color

Specifications

GRAVEL CRUSHER

Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.

Key Performance Factors

FAST AND VERSATILE
Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the down tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
Sizes S, M, M/L, L, XL
Colours Gloss Interstellar/Chrome
Frame Advanced-grade composite
Fork Advanced SL-grade composite
Handlebar Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips Stratus Lite 3.0
Stem Giant Contact AeroLight, -10 degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse SLR, composite
Saddle Giant Grit SL
Pedals Not included
Shifters SRAM Force eTap AXS, 2×12
Front Derailleur SRAM Force eTap AXS
Rear Derailleur SRAM Force eTap AXS
Brakes SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
Brake Levers SRAM Force eTap AXS hydraulic
Cassette SRAM Force, 12-speed, 10×36
Chain SRAM Force D1
Crankset SRAM Force D2 DUB, 30/43
Bottom Bracket SRAM DUB, press fit
Rims Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Hubs [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
Spokes Sapim CX-Ray
Tyres CADEX GX, 700x40c, tubeless
Extras 45mm max tyre size with 2x set up, 53mm max tyre size with 1x set up, factory tubeless set up, in-frame storage bag
Max Tire Clearance 53mm

Highlights

Barcode : 4711291085695

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 450 470 490 510 530
B SEAT TUBE ANGLE 73.5 73.5 73 73 73
C TOP TUBE LENGTH 550 560 575 585 600
D HEAD TUBE LENGTH 135 150 165 180 195
E HEAD TUBE ANGLE 71 71.5 72 72 72
F FORK RAKE 50 50 50 50 50
G TRAIL 72 68 65 65 65
H WHEEL BASE 1,020 1,026 1,031 1,041 1,056
I CHAIN STAY LENGTH 425 425 425 425 425
J BOTTOM BRACKET DROP 80 80 80 80 80
K STACK 570 586 602 616 630
L REACH 381 387 391 397 407
M STAND OVER HEIGHT 740 757 774 791 807
N HANDLEBAR WIDTH 420 440 440 460 460
O STEM LENGTH 60 70 80 80 90
P CRANK LENGTH DEC 170 172.5 172.5 175 175
Q WHEEL SIZE ALT 700c 700c 700c 700c 700c

Technology and Features

Advanced Composite Technology
D-Fuse Technology
OverDrive
Tubeless System
Flip Chip - Dropout
Compact Road Design
MegaDrive
PowerCore
