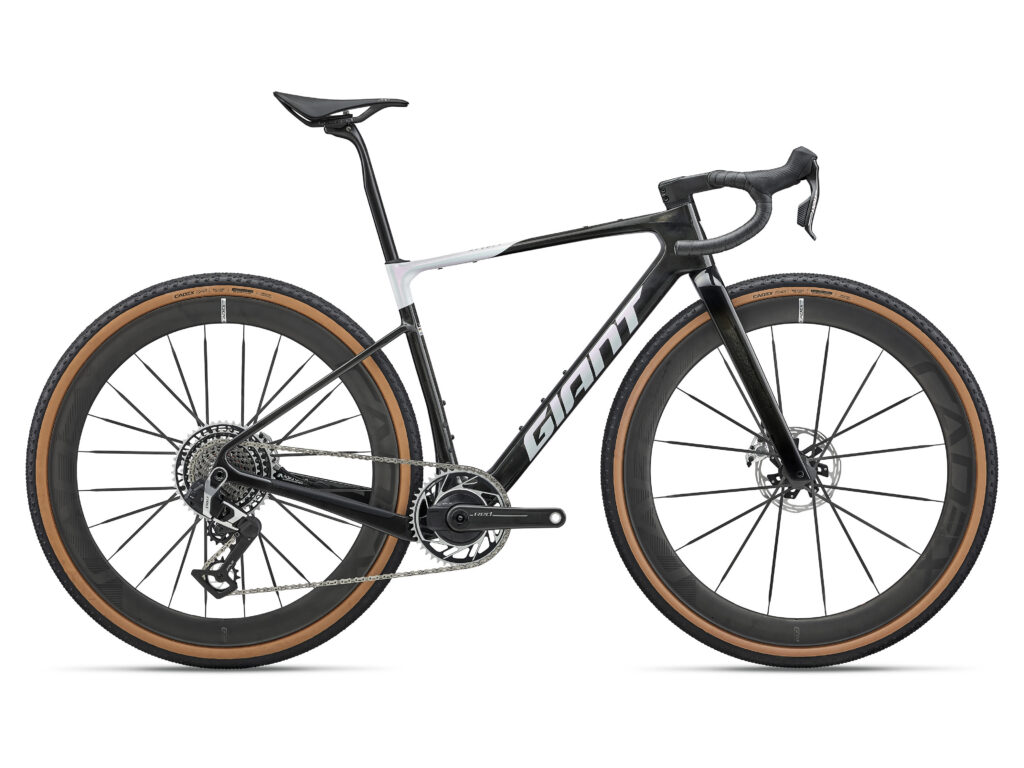

Revolt Advanced SL 0

The lightest, fastest gravel race bike ever built by Giant. Engineered as a system to deliver a competitive edge over long, demanding gravel efforts, the new Revolt Advanced SL combines aero efficiency with smooth, precise handling, helping you hold speed when others fade.

Category: Bikes, Gravel Bikes Tag: Giant

View

Size L, M, ML, S, XL

Color Rawcarbon / Prismpearl

Specifications

Key Performance Factors

ULTRALIGHT EFFICIENCY
The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro, while a new Contact SLR XR Integrated Handlebar, lighter WheelSystem, and CADEX GXR 45mm tires add up to a total system weight savings of 288g*. The lighter weight and wider tires result in more dynamic handling, faster acceleration, and greater climbing efficiency.

AERO SPEED OVER DISTANCE
Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Combined with new WheelSystems and tires designed as a single aerodynamic unit, the system delivers 18.99 watts of total resistance reduction versus the previous Revolt Advanced Pro. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY
With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimized for 45mm tires with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Sizes	XS, S, M, ML, L, XL
Colours	Raw Carbon / Prism Mist
Frame	Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
Fork	Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc
Handlebar	Giant Contact SLR XR Integrated XS:420/380mm, S:420/380mm, M:440/400mm, M/L:440/400mm, L:440/420mm, XL:460/420mm
Grips	Stratus Lite 3.0
Stem	Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
Seatpost	Giant Contact SLR XR D-Fuse, composite, 20mm offset
Saddle	CADEX Amp
Shifters	SRAM RED XPLR AXS E1, 1×13
Rear Derailleur	SRAM RED XPLR AXS E1
Brakes	SRAM RED AXS E1 hydraulic, SRAM PaceLine X rotors [F]160mm, [R]160mm
Brake Levers	SRAM RED E1 hydraulic
Cassette	SRAM RED E1, 13-speed, 10×46
Chain	SRAM RED E1
Crankset	SRAM RED XPLR AXS with power meter, 44t XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket	SRAM DUB, Press Fit
Rims	CADEX Max GXR WheelSystem, hookless, carbon [F] 50mm, [R] 50mm
Hubs	[F] CADEX R3, Center Lock, one-piece integrated hub and spokes, [R] CADEX R3-C60, 60-tooth ratchet driver, Center Lock, one-piece integrated hub and spokes
Spokes	CADEX Super Aero Carbon Spoke
Tyres	CADEX GXR, 700x45c, tubeless
Extras	tubeless prepared, computer mount, chain guide
Max Tire Clearance	700x53mm
Max Chainring Size	54T

Highlights

Barcode : 4711291266490

Geometry

		S	M	ML	L	XL
A	SEAT TUBE LENGTH	450	470	490	510	530
B	SEAT TUBE ANGLE	74.5	74.5	74	74	74
C	TOP TUBE LENGTH	540	550	565	580	590
D	HEAD TUBE LENGTH	100	120	135	155	180
E	HEAD TUBE ANGLE	71	71.5	72	72	72
F	FORK RAKE	50	50	50	50	50
G	TRAIL	74	71	67	67	67
H	WHEEL BASE	1,027	1,033	1,039	1,055	1,066
I	CHAIN STAY LENGTH	433	433	433	433	433
J	BOTTOM BRACKET DROP	80	80	80	80	80
K	STACK	536	557	573	592	616
L	REACH	391	395	401	410	413
M	STAND OVER HEIGHT	743	762	779	798	818
N	HANDLEBAR WIDTH	380	400	400	420	420
O	STEM LENGTH	80	90	100	100	110
P	CRANK LENGTH DEC	165	170	170	172.5	172.5
Q	WHEEL SIZE ALT	700C	700C	700C	700C	700C
