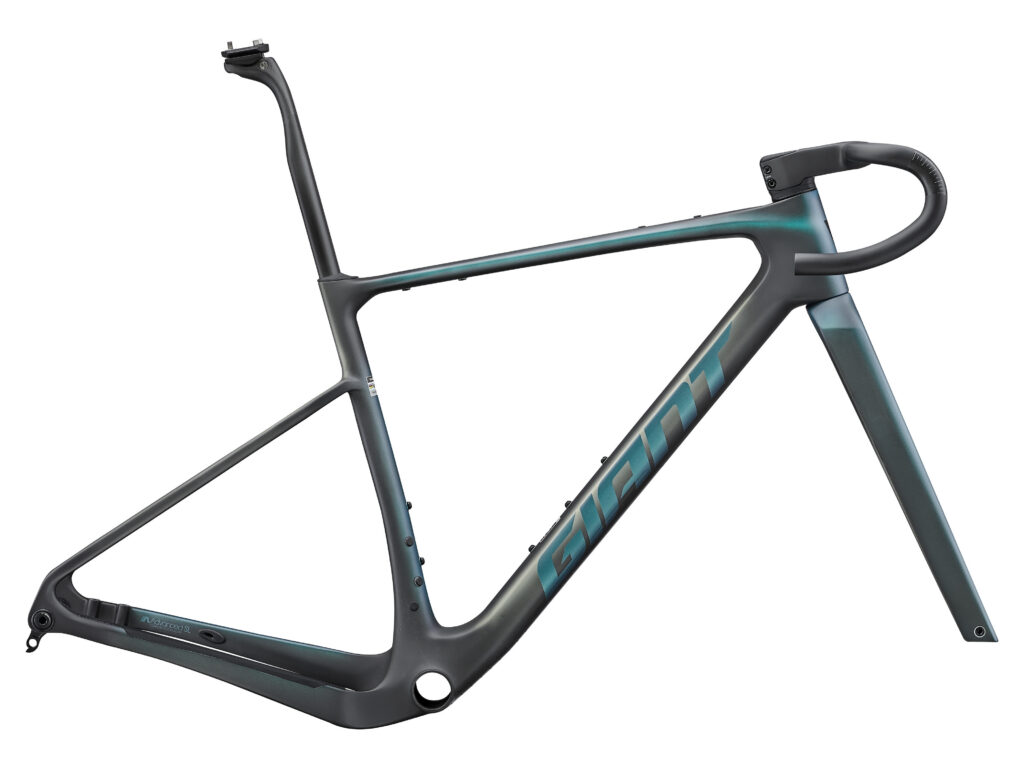

Revolt Advanced SL Frameset

Category: Bikes, Gravel Bikes Tag: Giant

View

Size L, M, ML, S, XL, XS

Color Superspeed Teal

Specifications

Key Performance Factors

ULTRALIGHT EFFICIENCY
The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro.

AERO SPEED OVER DISTANCE
Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY
With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimized for 45mm tires with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Sizes	XS, S, M, M/L, L, XL
Colours	Superspeed Teal
Frame	Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
Fork	Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc
Handlebar	Giant Contact SLR XR Integrated XS:70x420mm, S:80x420mm, M:90x440mm, M/L:100x440mm, L:100x440mm, XL:110x460mm
Stem	Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
Seatpost	Giant Contact SLR XR D-Fuse, composite, 20mm offset
Extras	Computer mount, chain guide
Max Tire Clearance	700x53mm
Max Chainring Size	54t

Highlights

Barcode : 4711291267534

Geometry

		XS	S	M	ML	L	XL
A	SEAT TUBE LENGTH	430	450	470	490	510	530
B	SEAT TUBE ANGLE	75	74.5	74.5	74	74	74
C	TOP TUBE LENGTH	530	540	550	565	580	590
D	HEAD TUBE LENGTH	90	100	120	135	155	180
E	HEAD TUBE ANGLE	70.5	71	71.5	72	72	72
F	FORK RAKE	50	50	50	50	50	50
G	TRAIL	78	74	71	67	67	67
H	WHEEL BASE	1,026	1,027	1,033	1,039	1,055	1,066
I	CHAIN STAY LENGTH	433	433	433	433	433	433
J	BOTTOM BRACKET DROP	80	80	80	80	80	80
K	STACK	525	536	557	573	592	616
L	REACH	389	391	395	401	410	413
M	STAND OVER HEIGHT	726	743	762	779	798	818
N	HANDLEBAR WIDTH	380	380	400	400	420	420
O	STEM LENGTH	70	80	90	100	100	110
P	CRANK LENGTH DEC	165	165	170	170	172.5	172.5
Q	WHEEL SIZE ALT	700C	700C	700C	700C	700C	700C
