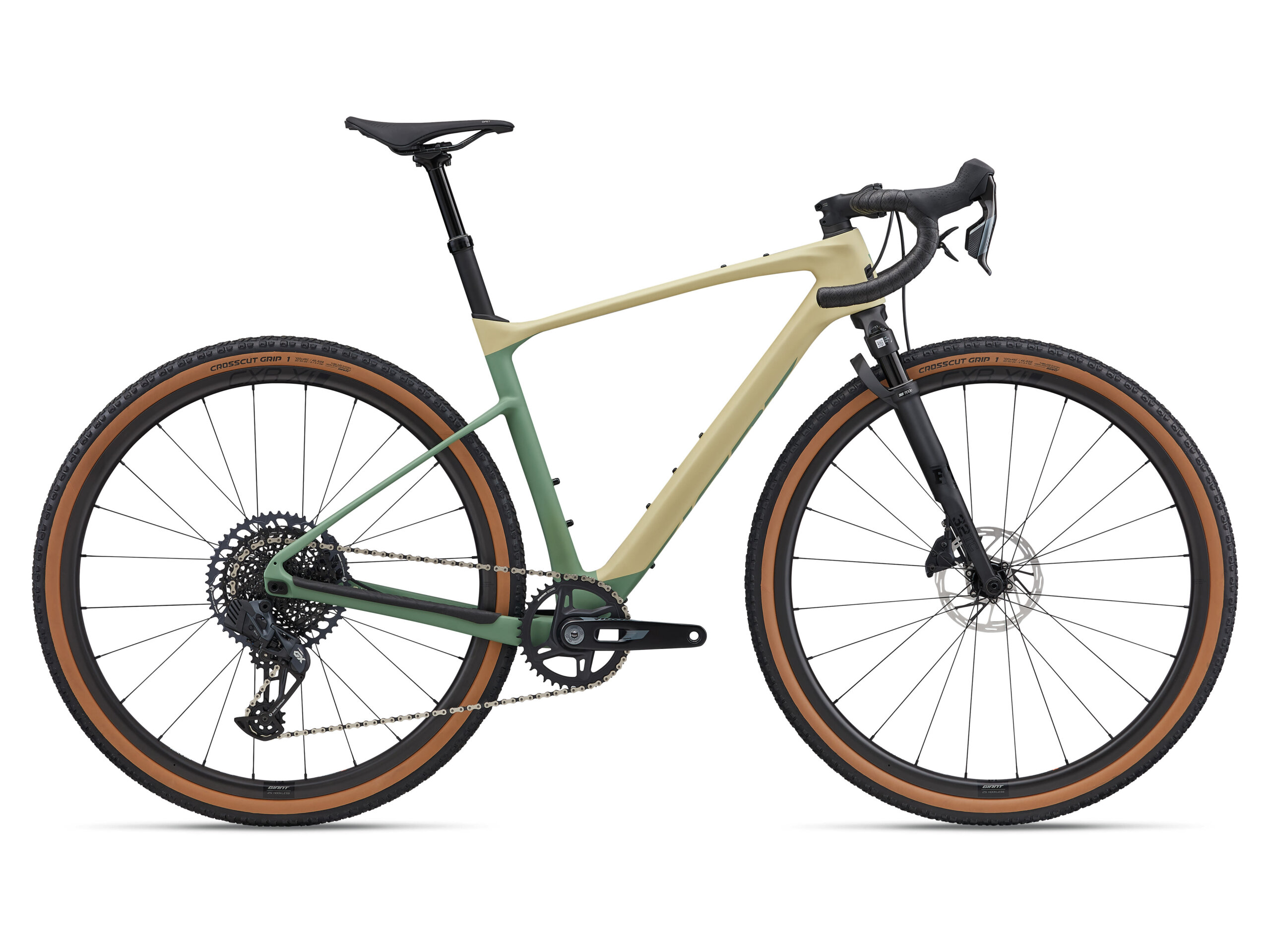

Revolt X Advanced Pro 1

Additional information

Size	L, M, ML, S
Color	Pale Olive

Specifications

Sizes	XS, S, M, M/L, L, XL
Colours	Pale Olive/Shale Green
Frame	Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
Fork	Fox 32 Float TC, Performance Elite, 40mm, FIT 4 damper, 12x100mm Kabolt thru-axle
Handlebar	Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
Grips	Stratus Lite 3.0
Stem	Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
Seatpost	Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop
Saddle	Giant Grit SL
Shifters	SRAM Rival AXS E1, 1×12
Front Derailleur	N/A
Rear Derailleur	SRAM GX Eagle AXS
Brakes	SRAM Rival AXS E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake Levers	SRAM Rival AXS E1 hydraulic
Cassette	SRAM XG-1275, 12-speed, 10×52
Chain	SRAM GX Eagle
Crankset	SRAM Rival XPLR E1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket	SRAM DUB, press fit
Rims	Giant CXR 1 X1 WheelSystem, [F] 25.8mm, [R] 25.8mm
Hubs	[F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
Spokes	Sapim Laser
Tyres	Giant CrossCut Grip, 700x45c, tubeless
Extras	tubeless prepared, 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position
Max Tire Clearance	53mm

Geometry
