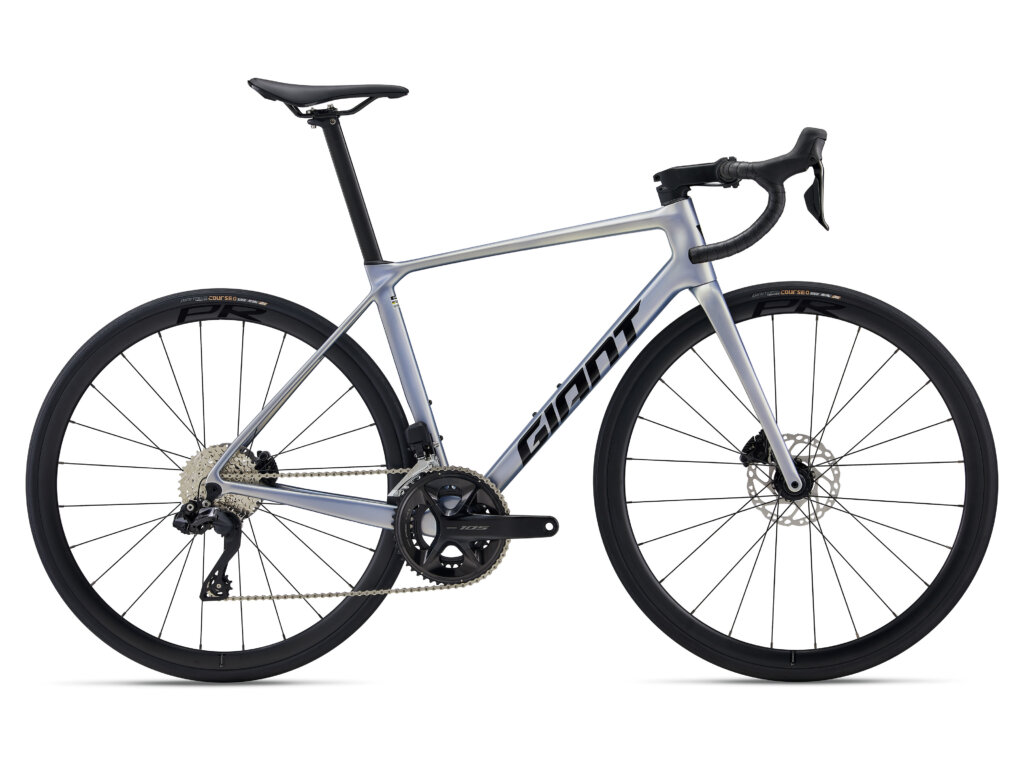

TCR Advanced 1

TCR Advanced 1

€1,646.34

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.

Clear
SKU: N/A Categories: , , Tag:

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.

Additional information

Size

, , , ,

Color

Specifications

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.

Key Performance Factors

Class-leading efficiency
A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tire pressures for increased grip and a reduced risk of punctures.
Sizes XS, S, M, M/L, L, XL
Colours Purple Haze/Ultra Violet, Dreamy Blue
Frame Advanced-grade Composite, 12x142mm thru-axle, disc
Fork Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Shock N/A
Handlebar Giant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
Grips Stratus Lite 2.0
Stem Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost Giant Variant, composite, -5/+15mm offset
Saddle Giant Approach
Shifters Shimano 105 Di2
Front Derailleur Shimano 105 Di2 FD-7150
Rear Derailleur Shimano 105 Di2 RD-7150
Brakes Shimano 105 Di2 hydraulic, Shimano SM-RT64 rotors [F]160mm, [R]140mm
Brake Levers Shimano 105 Di2
Cassette Shimano 105, 12-speed, 11×34
Chain KMC X12L-1
Crankset Shimano 105, 36/52 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket Shimano, press fit
Rims Giant P-R1 Disc wheelset, alloy, [F]30mm, [R]30mm
Hubs Giant alloy, 12mm thru-axle
Spokes stainless
Tyres Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
Extras tubeless prepared, 33mm max tire size
Max Tire Clearance 33mm

Highlights

Barcode : 4711291223516

Geometry

XXS XS S M ML L XL
A SEAT TUBE LENGTH 445 470 500 530 560
B SEAT TUBE ANGLE 74 73.5 73 73 72.5
C TOP TUBE LENGTH 535 550 565 580 600
D HEAD TUBE LENGTH 130 145 165 185 200
E HEAD TUBE ANGLE 72.3 73 73 73 73
F FORK RAKE 45 45 45 45 45
G TRAIL 64 59.2 59.2 59.2 59.2
H WHEEL BASE 977 980 991 1,006 1,020
I CHAIN STAY LENGTH 405 405 405 405 405
J BOTTOM BRACKET DROP 70 70 67 67 67
K STACK 528 545 562 581 596
L REACH 383 388 393 402 412
M STAND OVER HEIGHT 734 752 768 786 803
N HANDLEBAR WIDTH 380 400 400 420 420
O STEM LENGTH 90 100 110 110 120
P CRANK LENGTH DEC 165 170 170 172.5 172.5
Q WHEEL SIZE ALT

Technology and Features

Advanced Composite Technology
Compact Road Design
Tubeless System
PowerCore
