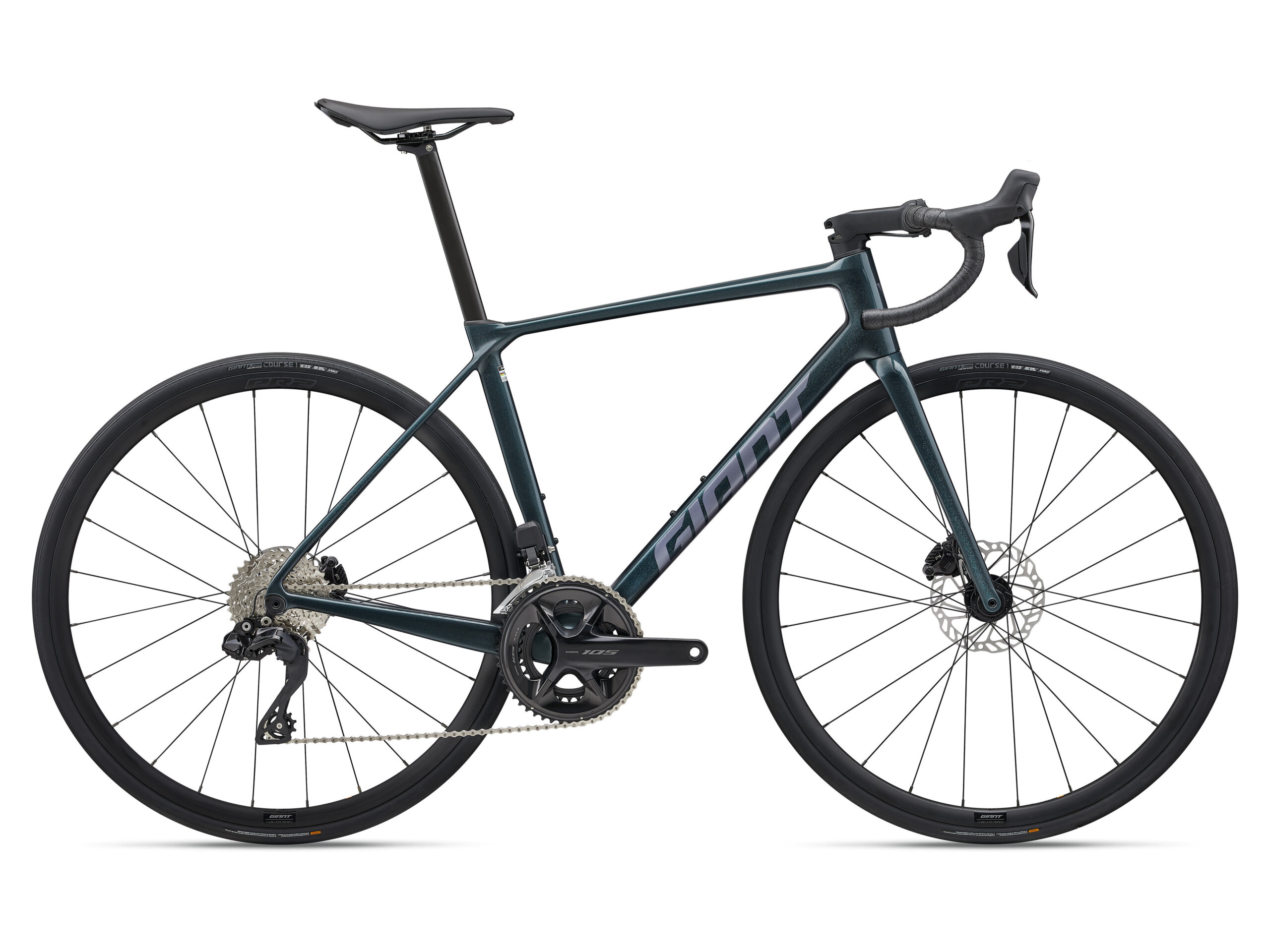

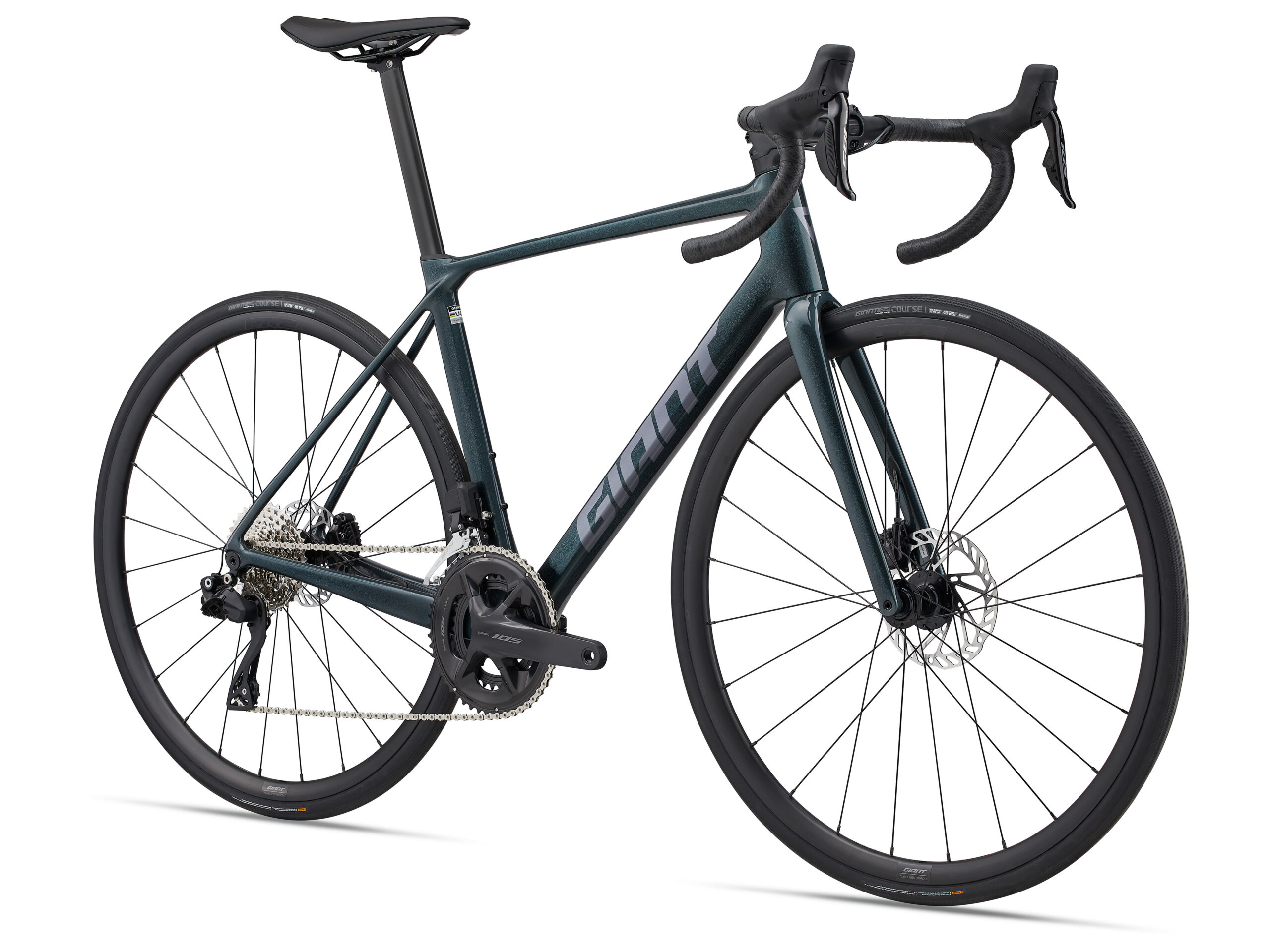

TCR Advanced 1

€3,649.00

Built to go faster. Whether you’re climbing, cornering or launching an attack, this all-new composite road racer is made for that moment. Lightweight, efficient, and integrated for speed, it’s engineered to give you a competitive edge in every situation.

Category: Bikes, Performance & Racing, Road Bikes Tag: 3247, Apply Now, Giant

View

Size L, M, ML, S, XL

Color Asphalt Green

Specifications

Key Performance Factors

SYSTEM OPTIMIZATION

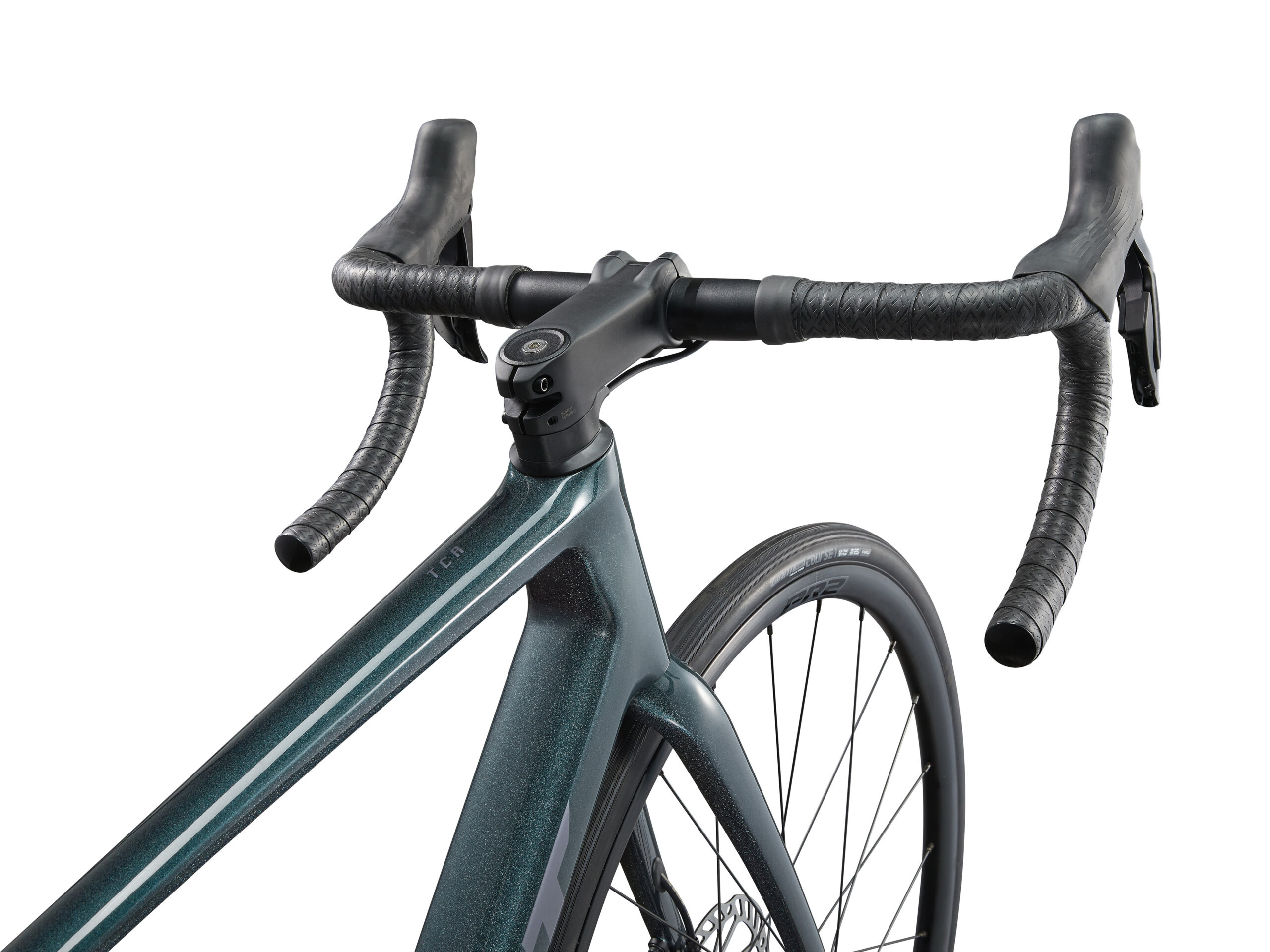

The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS
All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Sizes	S, M, ML, L, XL
Colours	Gloss Asphalt Green/Mercury
Frame	Advanced-Grade Composite 12x142mm thru-axle, Disc
Fork	Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12x100mm thru-axle, Disc
Handlebar	Giant Contact
Grips	Giant Stratus Lite 2.0 with gel
Stem	Giant Contact Aerolight
Seatpost	Giant Variant, composite, -5/+15mm offset
Saddle	Giant Approach 7mm Steel Rail, with UniClip / ParticleFlow technology
Pedals	PEDALS NOT SUPPLIED
Shifters	Shimano 105 Di2 2×12
Front Derailleur	Shimano 105 Di2
Rear Derailleur	Shimano 105 Di2
Brakes	Shimano 105 hydraulic disc, MPH 160/140mm rotors
Brake Levers	Shimano 105 hydraulic disc
Cassette	Shimano 105, 11×34
Chain	KMC X12L-1

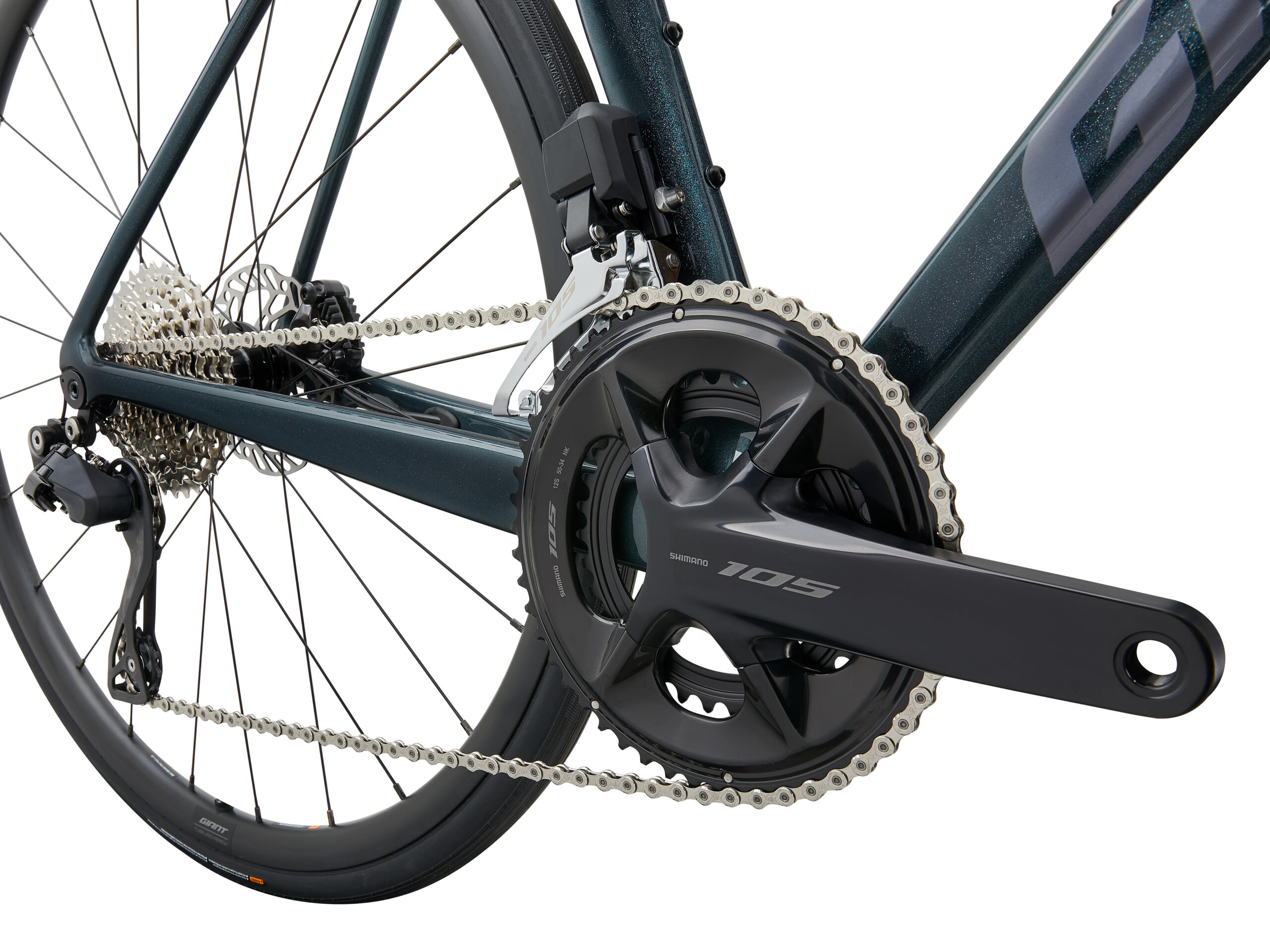

Crankset	Shimano 105, 36/52
Bottom Bracket	Shimano, press fit
Rims	Giant P-R2 Disc wheelset, alloy, 22mm inner width
Hubs	Giant alloy, 12mm thru-axle
Spokes	Sapim
Tyres	Giant Gavia COURSE 1 Tubeless, 700x25C(28mm effective), 60 TPI , Folding
Extras	Factory tubeless set up
Max Tire Clearance	33mm

Highlights

Barcode : 4711291079649

Geometry

		S	M	ML	L	XL
A	SEAT TUBE LENGTH	445	470	500	530	560
B	SEAT TUBE ANGLE	74	73.5	73	73	72.5
C	TOP TUBE LENGTH	535	550	565	580	600
D	HEAD TUBE LENGTH	130	145	165	185	200
E	HEAD TUBE ANGLE	72.3	73.5	73	73	72.5
F	FORK RAKE	45	45	45	45	45
G	TRAIL	64	59	59	59	59
H	WHEEL BASE	977	980	991	1,006	1,020
I	CHAIN STAY LENGTH	405	405	405	405	405
J	BOTTOM BRACKET DROP	69.5	69.5	67	67	67
K	STACK	528	545	562	581	596
L	REACH	383	388	393	402	412
M	STAND OVER HEIGHT	722	743	771	798	822
N	HANDLEBAR WIDTH	400	420	420	440	440
O	STEM LENGTH	90	100	110	110	120
P	CRANK LENGTH DEC	170	172.5	172.5	175	175
Q	WHEEL SIZE ALT	700C	700C	700C	700C	700C
