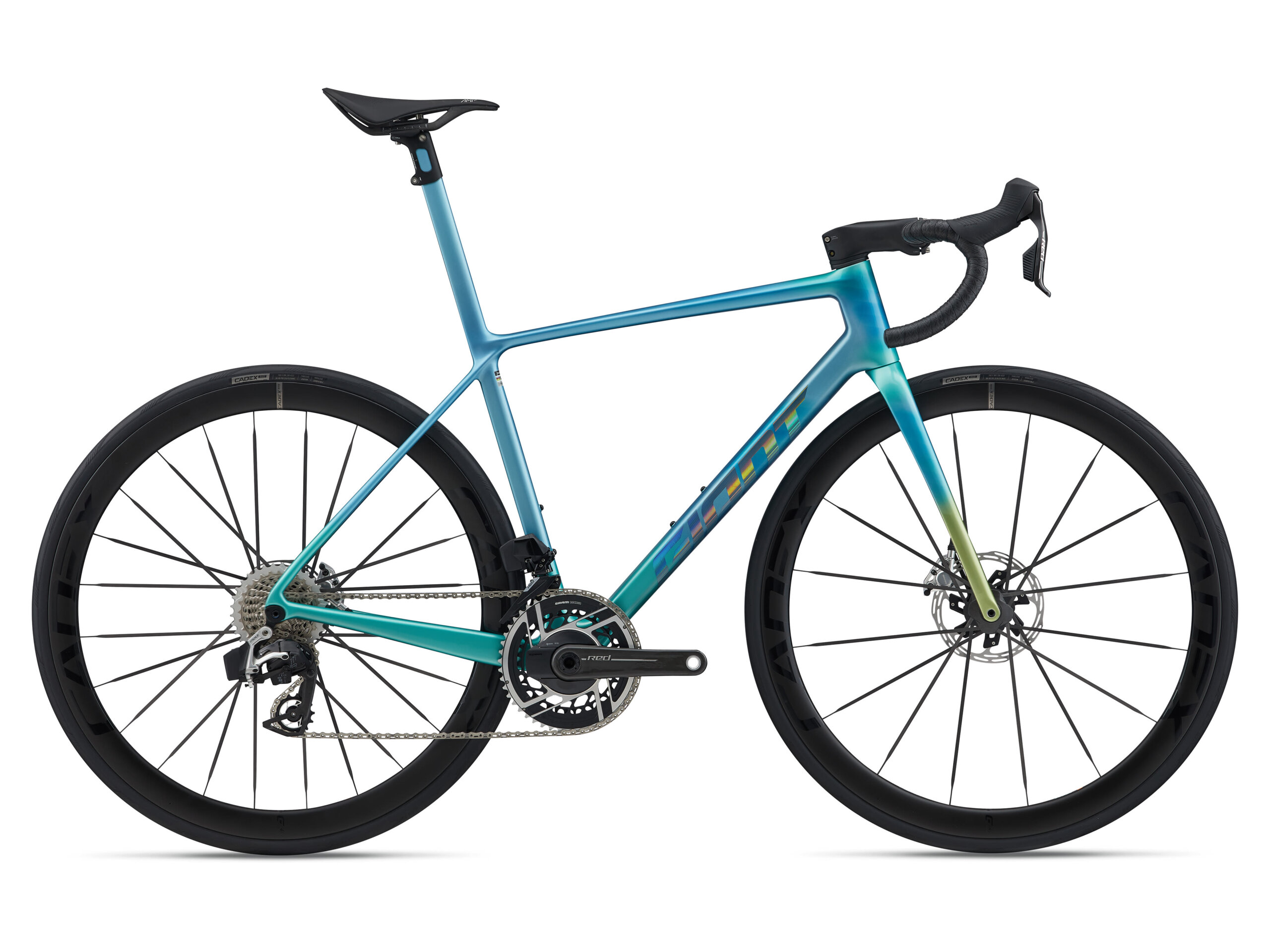

TCR Advanced SL 0 (RED)

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

Category: Bikes, Performance & Racing, Road Bikes Tag: 3247, Apply Now, Giant

View

Size L, M, ML, S

Color Turbo Teal

Specifications

Key Performance Factors

SYSTEM OPTIMIZATION
The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup

WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS
From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

Sizes	XS, S, M, M/L, L, XL
Colours	Turbo Teal
Frame	Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
Fork	Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock	N/A
Handlebar	Giant Contact SLR XS:420/370mm, S:420/370mm, M:440/390mm, M/L:440/390mm, L:440/390mm, XL:440/390mm
Grips	Stratus Lite 2.0
Stem	Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost	Giant Integrated Seatpost, -5/+15mm offset
Saddle	CADEX AMP
Shifters	SRAM RED AXS E1
Front Derailleur	SRAM RED AXS E1
Rear Derailleur	SRAM RED AXS E1
Brakes	SRAM RED E1 hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm
Brake Levers	SRAM RED AXS E1
Cassette	SRAM RED, 12-speed, 10×33
Chain	SRAM RED E1, 12-speed
Crankset	SRAM RED E1 DUB, 35/48 with integrated Quarq Power Meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket	SRAM DUB ceramic, press fit
Rims	CADEX Max 40 WheelSystem, [F]40mm, [R]40mm
Hubs	[F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle
Spokes	CADEX Aero Carbon Spoke
Tyres	CADEX Road Race GC, tubeless, 700x30mm, folding
Extras	computer mount, tubeless prepared, 33mm max tire size
Max Tire Clearance	33mm

Highlights

Barcode : 4711291221628

Geometry

		S	M	ML	L
A	SEAT TUBE LENGTH	710	740	770	800
B	SEAT TUBE ANGLE	74	73.5	73	73
C	TOP TUBE LENGTH	535	550	565	580
D	HEAD TUBE LENGTH	130	145	165	185
E	HEAD TUBE ANGLE	72.3	73	73	73
F	FORK RAKE	45	45	45	45
G	TRAIL	64	59.2	59.2	59.2
H	WHEEL BASE	977	980	991	1,006
I	CHAIN STAY LENGTH	405	405	405	405
J	BOTTOM BRACKET DROP	70	70	67	67
K	STACK	528	545	562	581
L	REACH	383	388	393	402
M	STAND OVER HEIGHT	734	752	768	786
N	HANDLEBAR WIDTH	420	440	440	440
O	STEM LENGTH	90	100	110	110
P	CRANK LENGTH DEC	165	170	170	172.5
Q	WHEEL SIZE ALT
