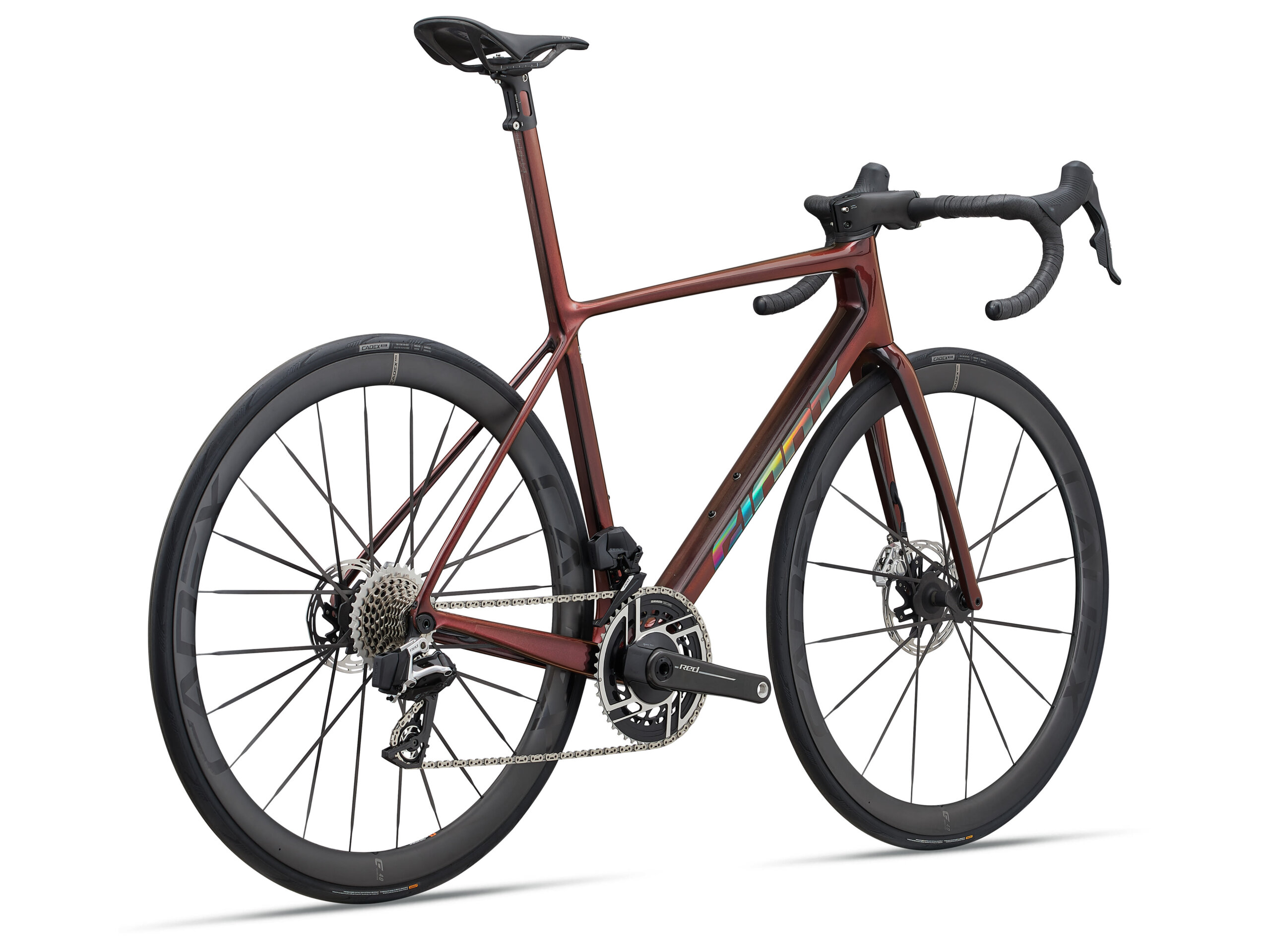

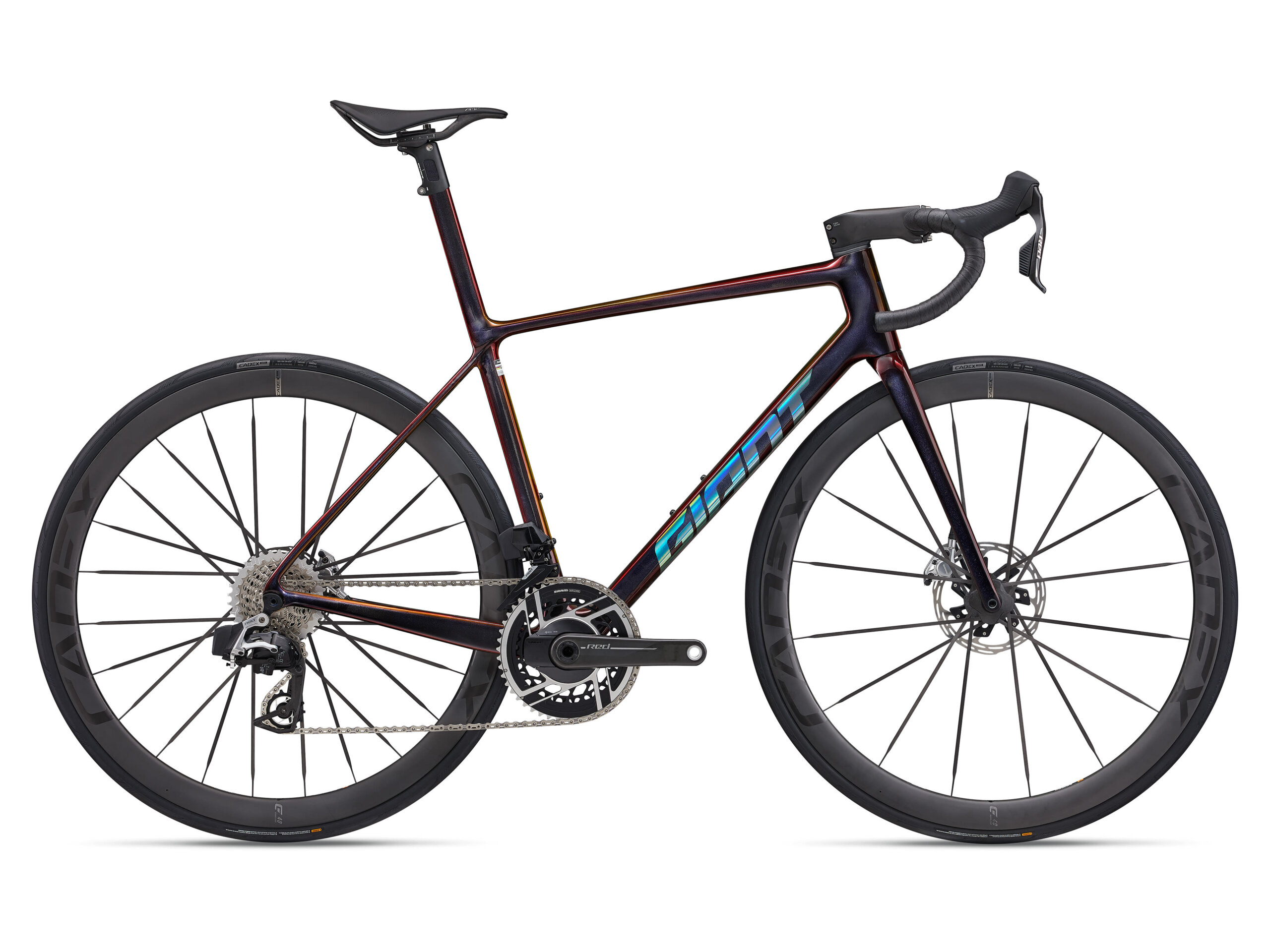

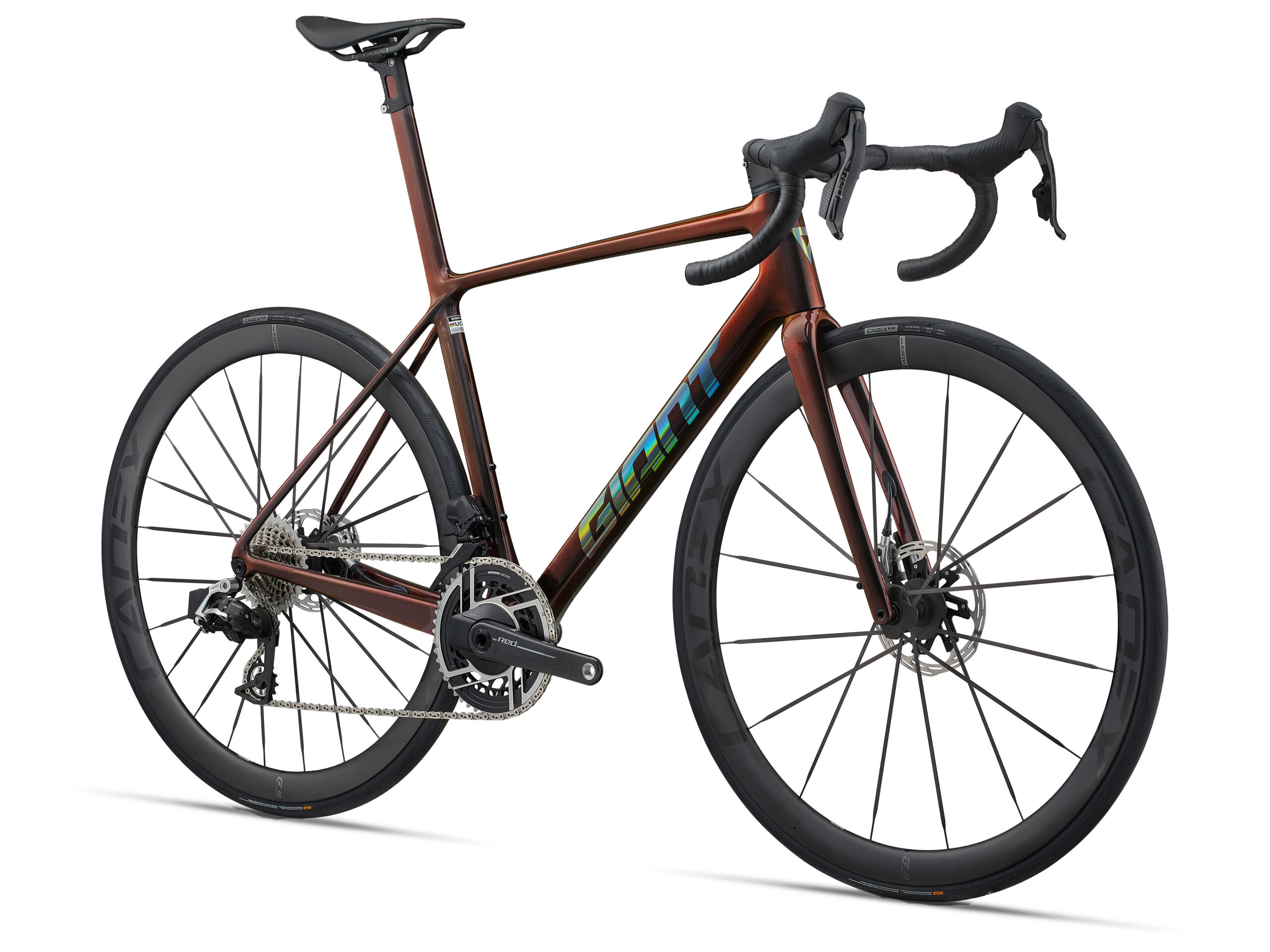

TCR Advanced SL 0 Red

€13,799.00

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

Category: Bikes, Performance & Racing, Road Bikes Tag: 3247, Apply Now, Giant

View

Size L, M, ML, S

Color Black Lava

Specifications

Key Performance Factors

SYSTEM OPTIMIZATION
The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup

WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS
From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

Sizes	S, M, ML, L
Colours	Gloss Black Lava/Iris
Frame	Advanced SL-Grade Composite, 12x142mm thru-axle, Integrated Seatpost, Disc

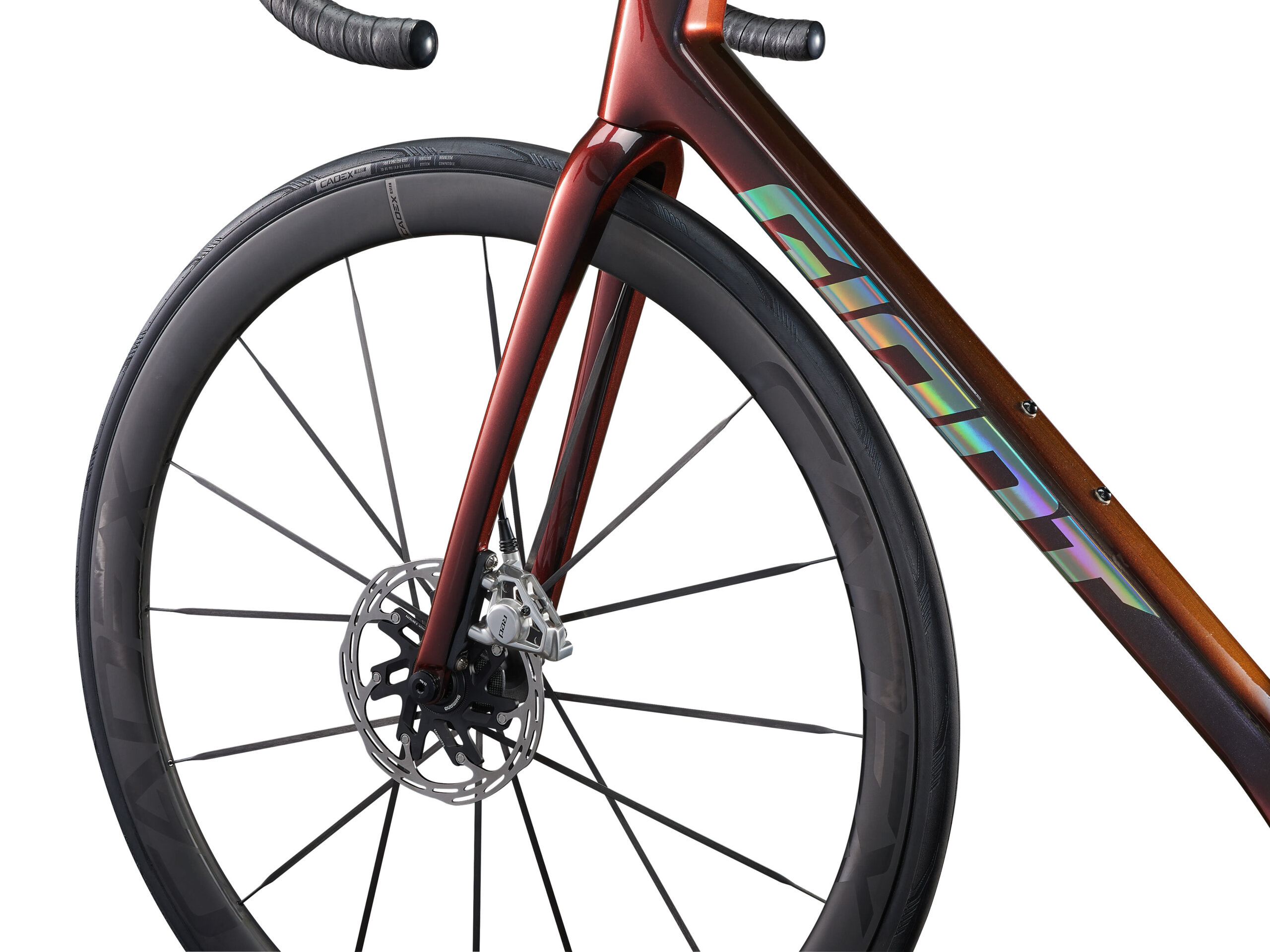

Fork	Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
Shock	N/A
Handlebar	Giant Contact SLR, 10.5 degree flare
Grips	Giant Stratus Lite 2.0 with gel
Stem	Giant Contact SLR Aerolight
Seatpost	Advanced SL-Grade Composite, Integrated Design, ISP Clamps: Standard (25mm) and Long version (45mm) Offset -5/+15mm
Saddle	CADEX Amp With One-piece SMC Base / 9mm Carbon Rail / ParticleFlow technology
Pedals	PEDALS NOT SUPPLIED
Shifters	New SRAM Red AXS 2×12
Front Derailleur	New SRAM Red AXS

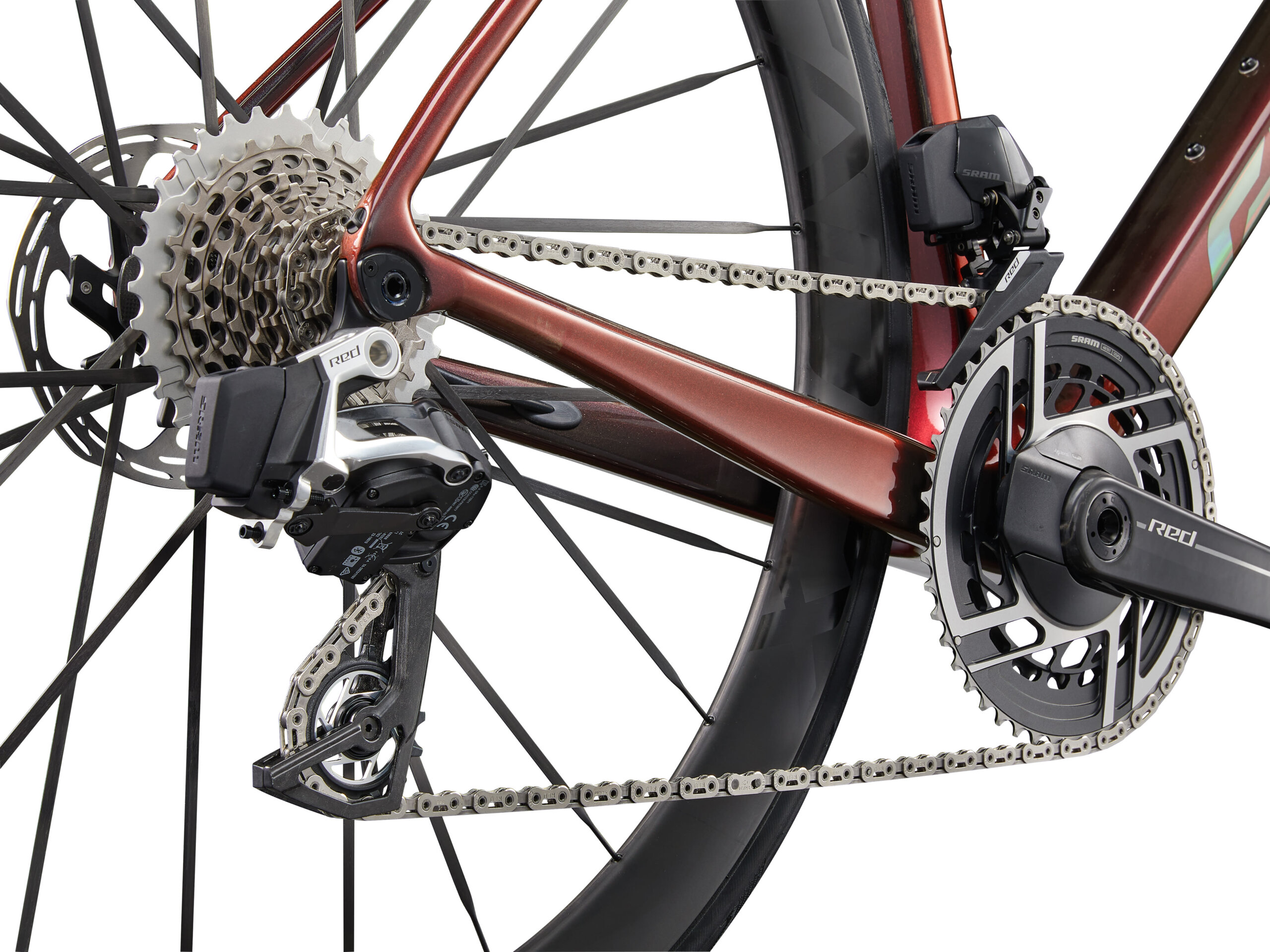

Rear Derailleur	New SRAM Red AXS
Brakes	New SRAM Red AXS HRD, PaceLine 160/140mm rotors
Brake Levers	New SRAM Red AXS HRD
Cassette	New SRAM Red XG-1290, 10×33
Chain	New SRAM Red

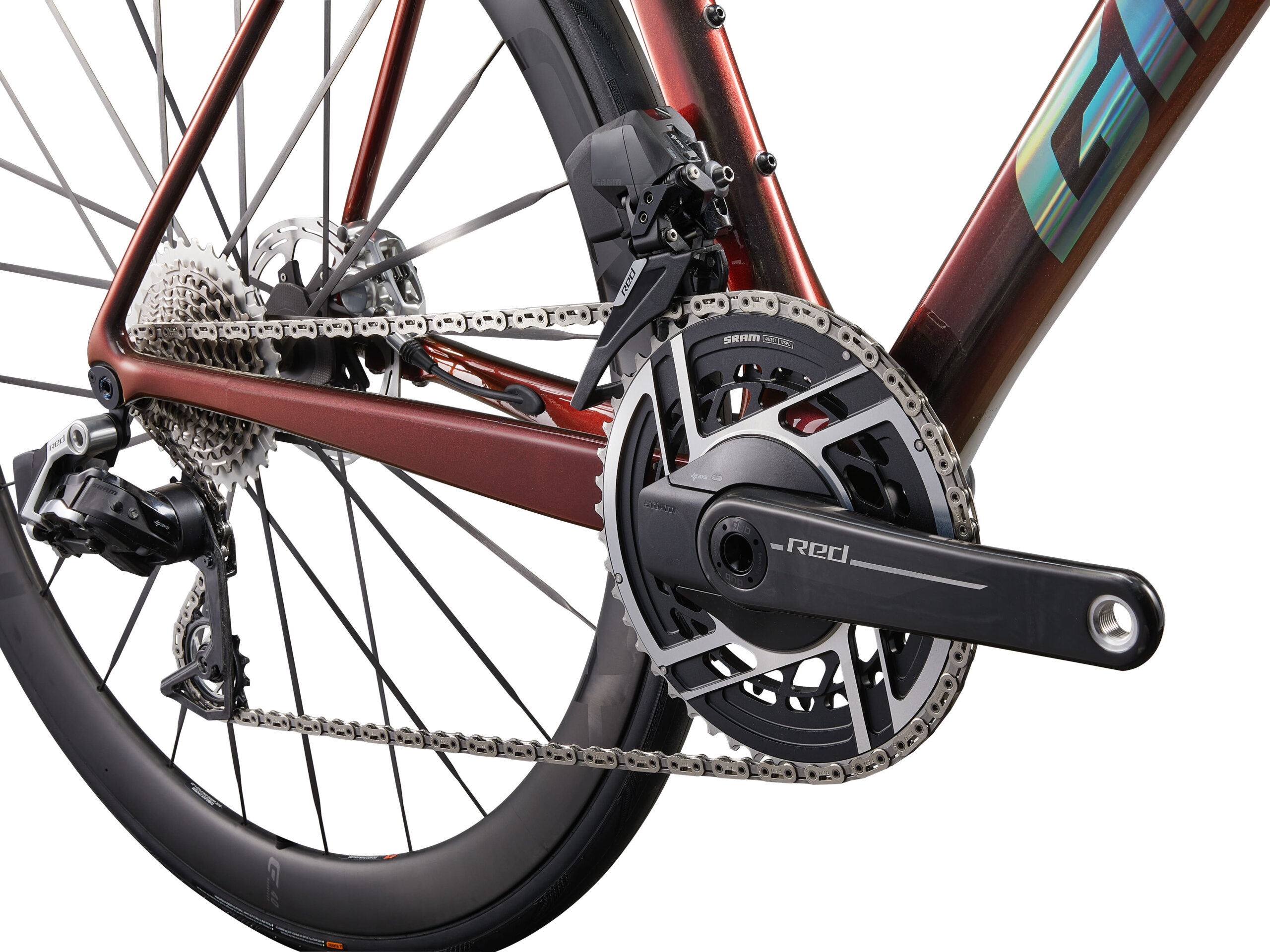

Crankset	New SRAM Red DUB 35/48 with Quarq power meter
Bottom Bracket	SRAM DUB, Press Fit
Rims	New CADEX 40 Max Disc Wheel System Hookless + Carbon spoke with GIANT patented DBL (Dynamic Balanced Lacing) technology
Hubs	[F] CADEX R3 Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle
Spokes	CADEX Aero Carbon Spoke
Tyres	New CADEX Race GC Tubeless 700x28mm effecitve 170 TPI, Folding
Extras	Factory tubeless set up, out front computer mount
Max Tire Clearance	33mm

Highlights

Barcode : 4711291077195

Geometry

		S	M	ML	L
A	SEAT TUBE LENGTH	710	740	770	800
B	SEAT TUBE ANGLE	74	73.5	73	73
C	TOP TUBE LENGTH	535	550	565	580
D	HEAD TUBE LENGTH	130	145	165	185
E	HEAD TUBE ANGLE	72.3	73	73	73
F	FORK RAKE	45	45	45	45
G	TRAIL	64	59	59	59
H	WHEEL BASE	977	980	991	1,006
I	CHAIN STAY LENGTH	405	405	405	405
J	BOTTOM BRACKET DROP	69.5	69.5	67	67
K	STACK	528	545	562	581
L	REACH	383	388	393	402
M	STAND OVER HEIGHT	722	743	771	798
N	HANDLEBAR WIDTH	400	420	420	440
O	STEM LENGTH	90	100	110	110
P	CRANK LENGTH DEC	170	172.5	172.5	175
Q	WHEEL SIZE ALT	700C	700C	700C	700C
