RIDE TO WORK

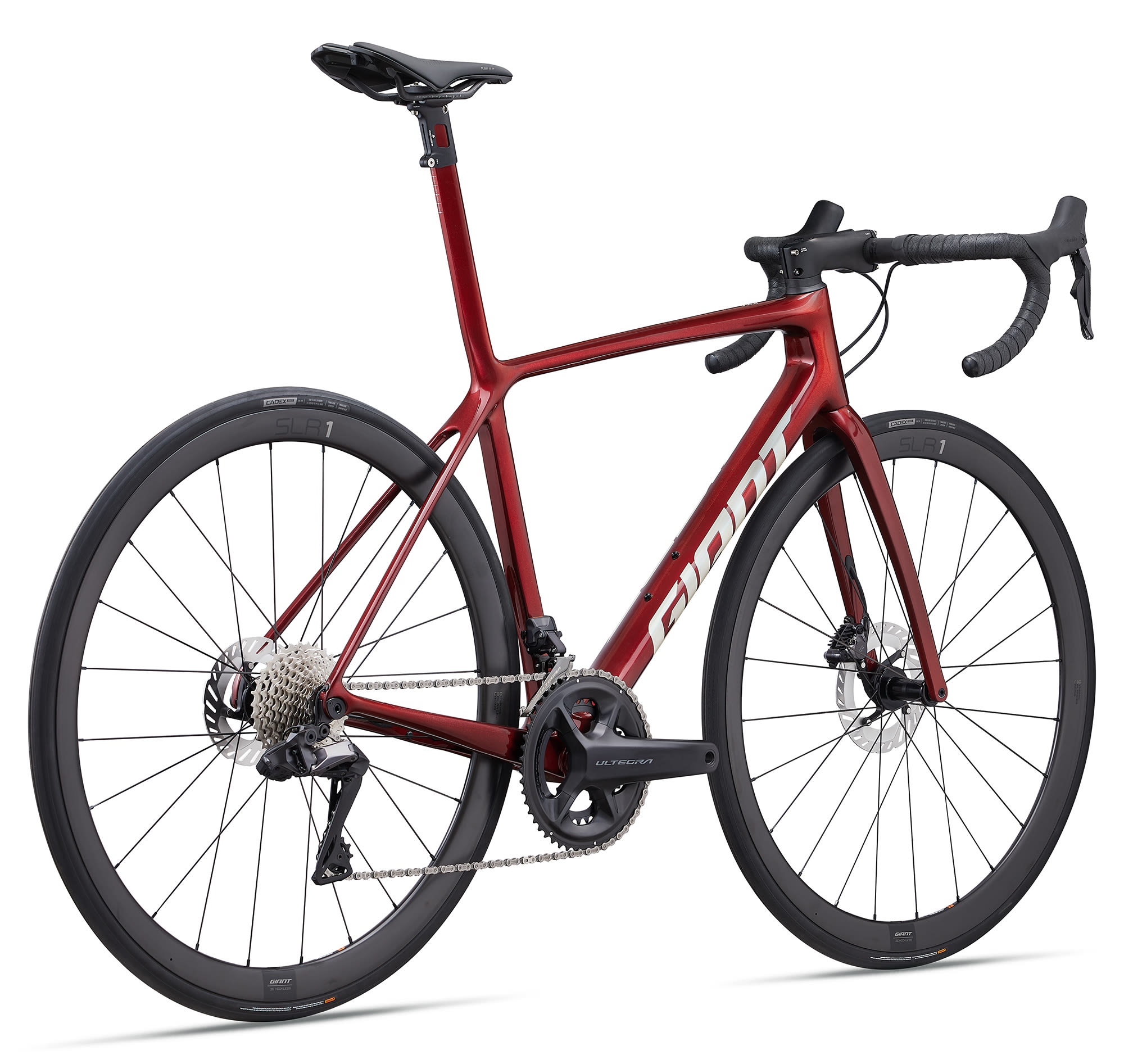

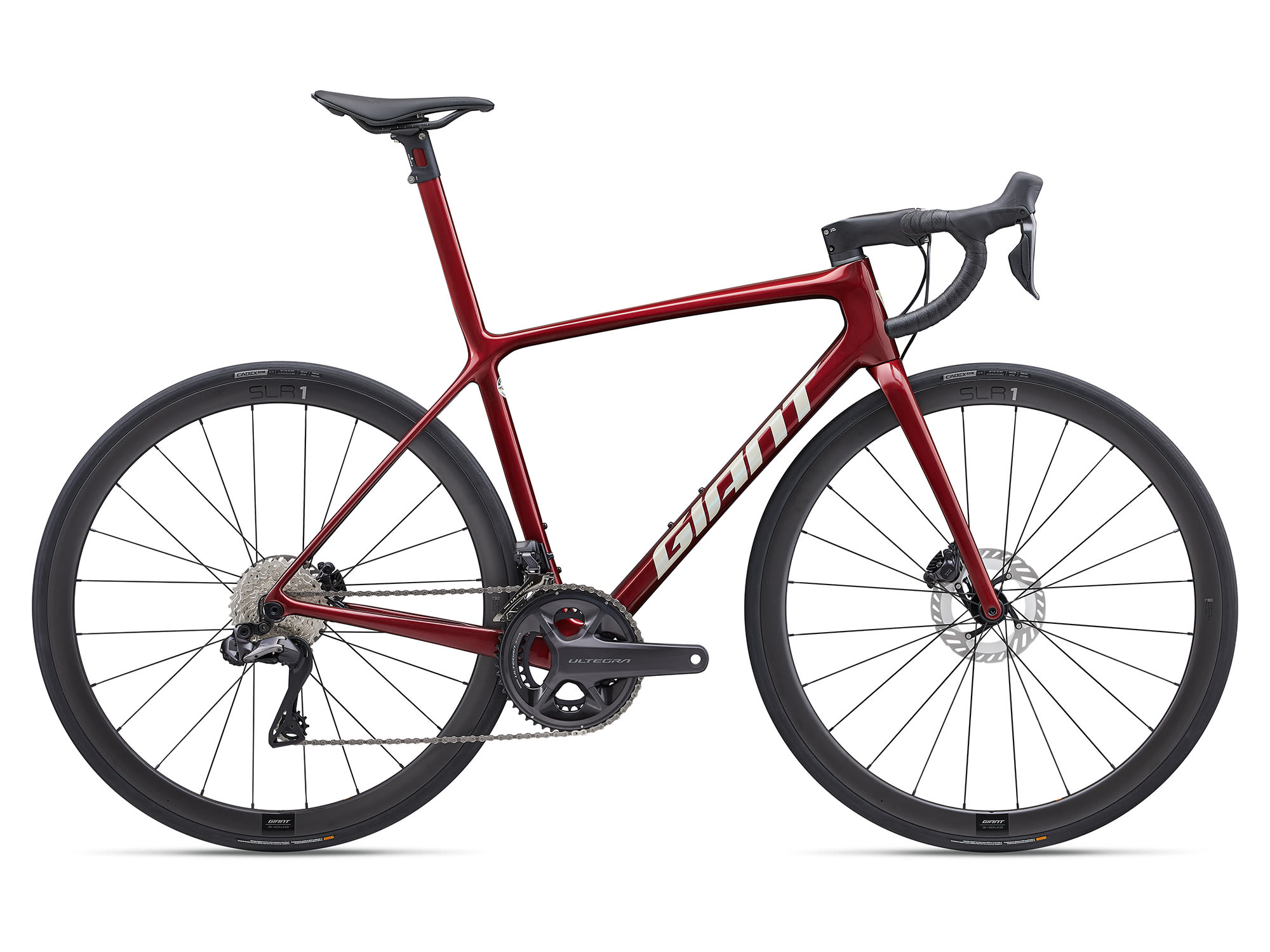

TCR Advanced SL Disc 1 (2024) | bike

€9,199.00

Features:

Clear
SKU: N/A Categories: , , , Tags: , , , ,

Additional information

Colour

Size

, , , ,

Specifications

From the Tour de France to your local KOM, this legendary race bike is a proven winner in all aspects of road racing. Ridden to victory by WorldTour pros like Simon Yates, it’s the ultimate all-rounder for the performance obsessed.

Key Performance Factors

Class-leading efficiency

Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mount disc brakes and new thru-axles boost stiffness and improve overall handling, while added frame and fork cle

Sizes S, M, M/L, L, XL
Colours Gloss Sangria

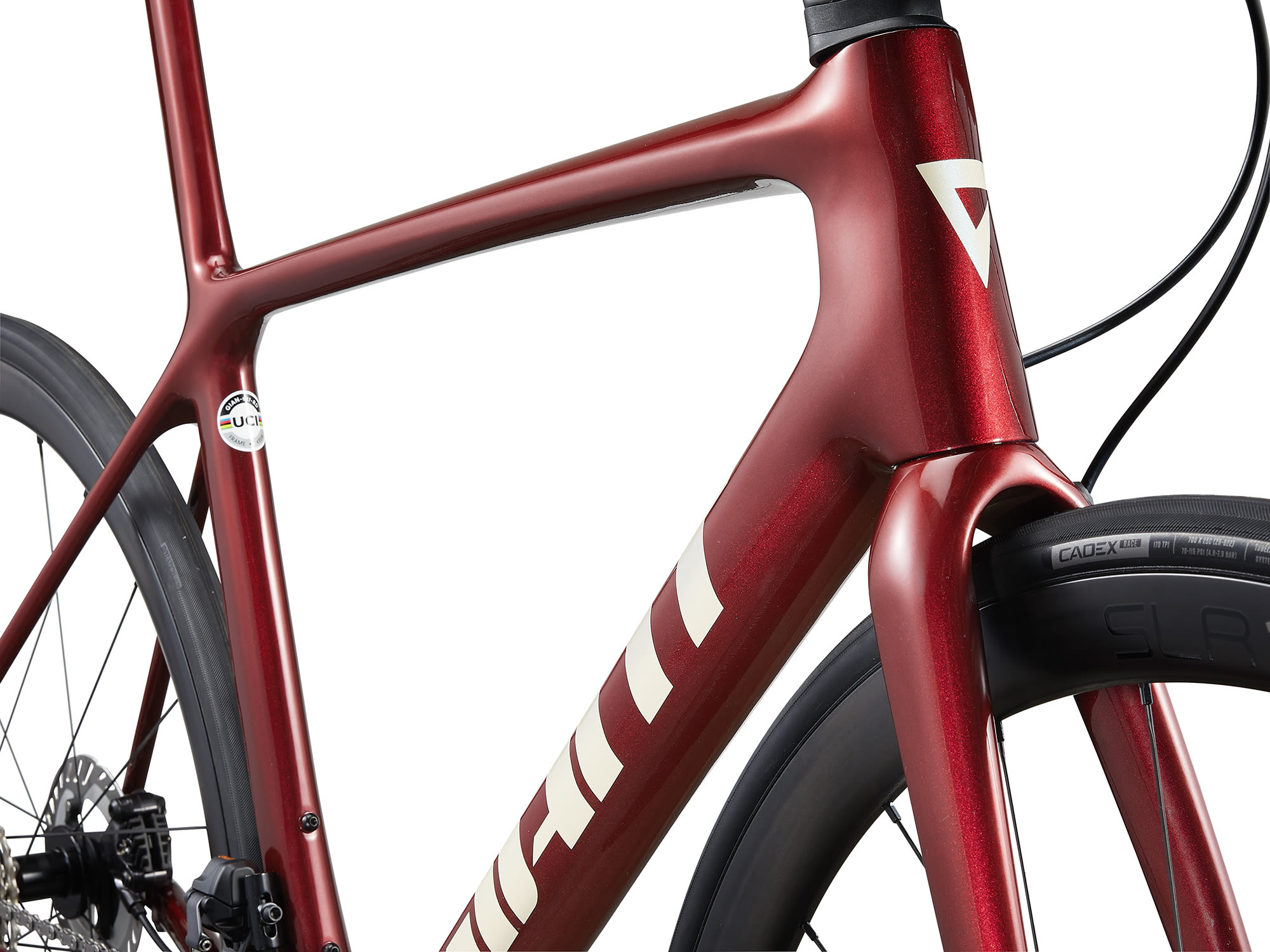

Frame Advanced SL-grade composite, integrated seatpost, disc
Fork Advanced SL-grade composite, full-composite OverDrive 2 steerer, disc
Shock N/A

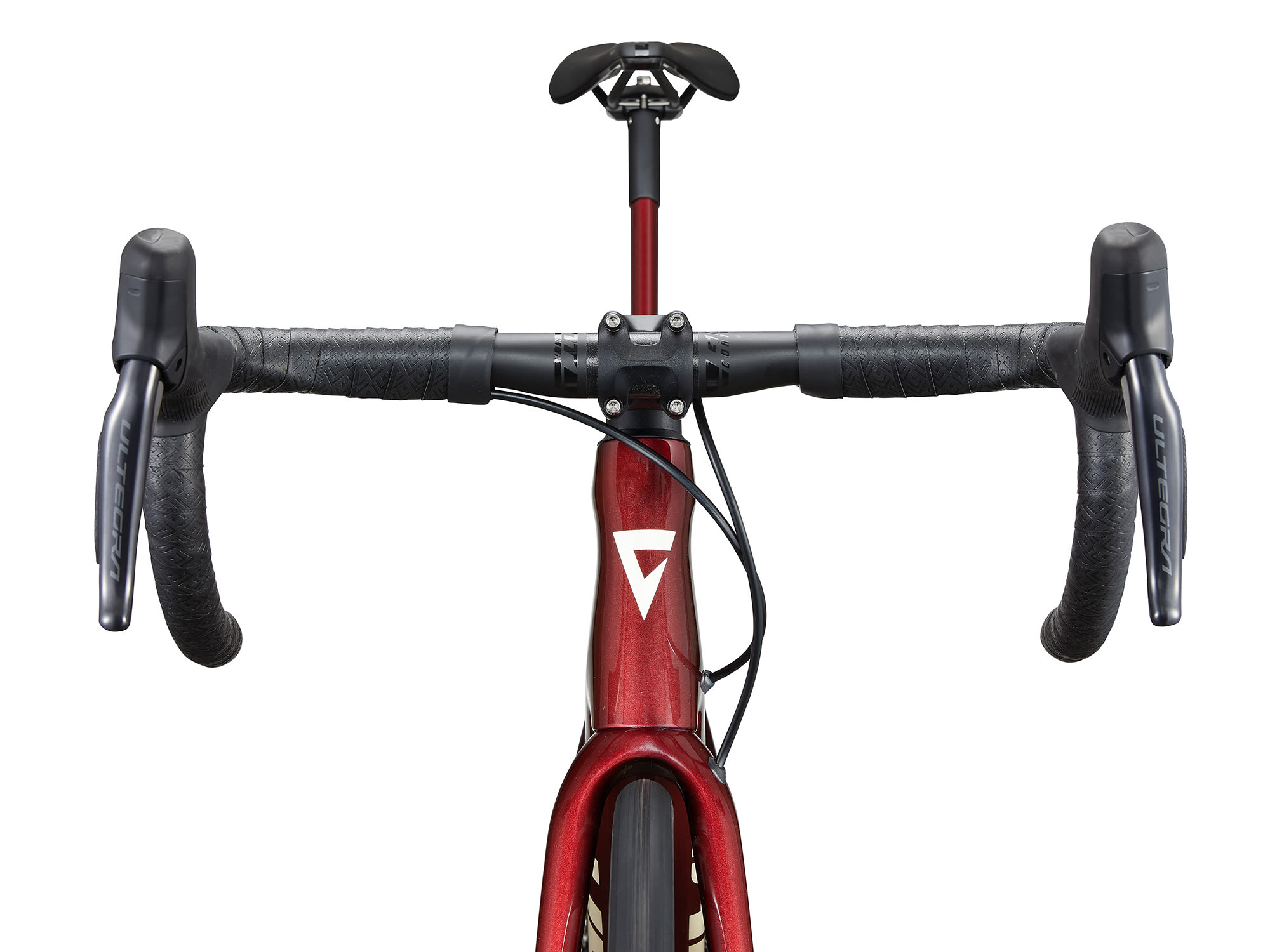

Handlebar Giant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips Stratus Lite 2.0
Stem Giant Contact SLR S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost Advanced SL-grade composite, integrated design, -5/+15mm offset
Saddle Giant Fleet SLR
Pedals PEDALS NOT SUPPLIED
Shifters Shimano Ultegra Di2 ST-R8170 2×12
Front Derailleur Shimano Ultegra Di2 FD-R8150
Rear Derailleur Shimano Ultegra Di2 RD-R8150
Brakes Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
Brake Levers Shimano Ultegra Di2
Cassette Shimano Ultegra, 12-speed, 11×34
Chain Shimano Ultegra

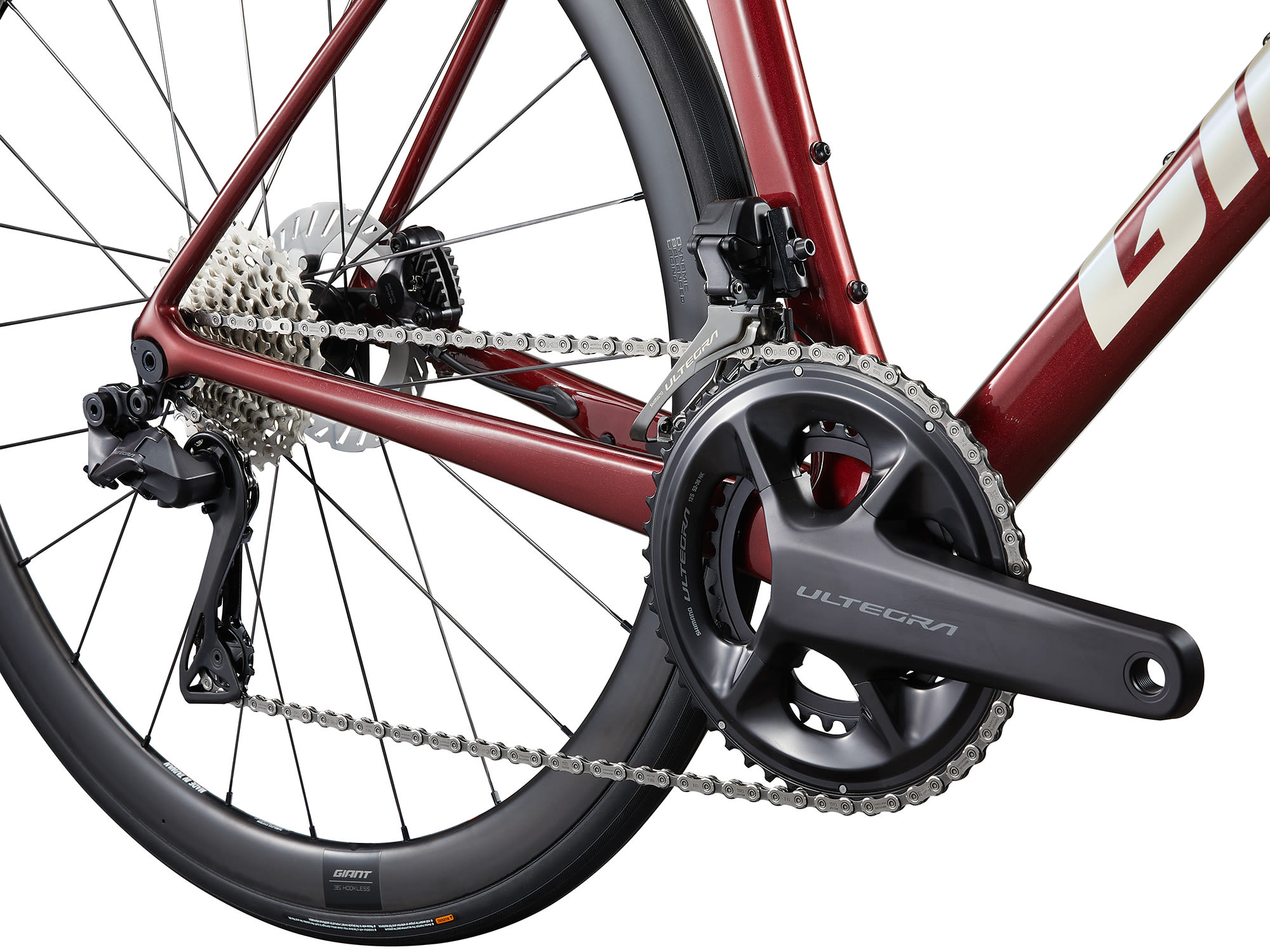

Crankset Shimano Ultegra, 36/52 with Giant Power Pro power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket Shimano, press fit
Rims Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Spokes Sapim CX-Ray
Tyres CADEX Race, tubeless, 700x25c (26.5mm), folding
Extras computer mount, factory tubeless set up, 32mm max tyre size

Geometry

M ML L XL S
A SEAT TUBE LENGTH 740 770 800 830 710
B SEAT TUBE ANGLE 73.5 73 73 72.5 74
C TOP TUBE LENGTH 550 565 580 600 535
D HEAD TUBE LENGTH 145 165 185 200 130
E HEAD TUBE ANGLE 73 73 73 73 72.3
F FORK RAKE 45 45 45 45 45
G TRAIL 59.2 59.2 59.2 59.2 64
H WHEEL BASE 980 991 1006 1020 977
I CHAIN STAY LENGTH 405 405 405 405 405
J BOTTOM BRACKET DROP 70 67 67 67 70
K STACK 545 562 581 596 528
L REACH 388 393 402 412 383
M STAND OVER HEIGHT 747 773 800 816 725
N HANDLERBAR WIDTH 420 420 440 440 400
O STEM LENGTH 100 110 110 120 90
P CRANK LENGTH DEC 172.5 172.5 175 175 170
Q WHEEL SIZE ALT 700C 700C 700C 700C 700C

Technology and Features
