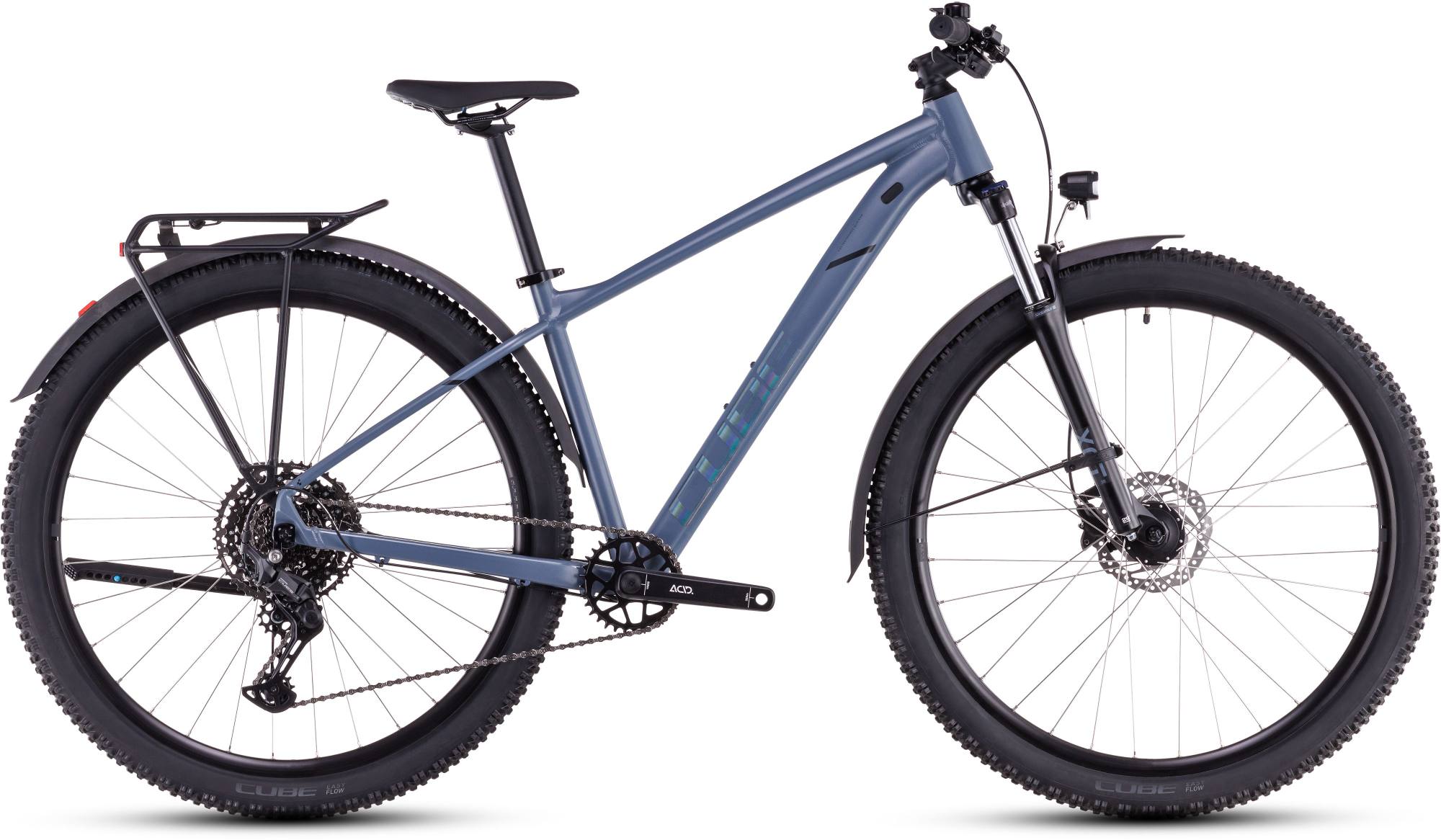

AIM
Can one bike really do it all? At CUBE, we think the answer is ‘yes’ – and you’re looking at it. Fully kitted out with mudguards, a lighting system, luggage carrier and kickstand, the Aim Race Allroad is ready to get you to work or haul your shopping across town. And, with its lockout-equipped 100mm suspension fork, Shimano hydraulic disc brakes and 10-speed Shimano Cues gears, it’s just as ready to take on weekend off-road adventures. Add grippy, comfortable tyres and you’re all set for pretty much anything.
Frame description
With the Aim Allroad frame we’re redefining versatility. The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box. There’s a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance, the tapered head tube helps improve handling, and the flat disc mount integrates seamlessly with the included kickstand. Carefully thought out geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there’ll be an Aim Allroad that fits perfectly.
| Fork |
| Fork Brand |
SUNTOUR |
| Fork Model |
XCT Disc, 100mm, Lockout |
| Fork Suspension |
1 |
| Fork Brand Description |
Suntour |
| Stem |
| Stem Brand |
CUBE |
| Stem Model |
Performance Stem, 31.8mm |
| Stem Brand Description |
Cube |
| Chain |
| Chain Brand |
KMC |
| Chain Model |
eGlide |
| Chain Brand Description |
KMC |
| Frame |
| Frametype |
MEN |
| Framematerial |
ALUMINIUM |
| Framesize Supplier |
L |
| Frametype Description |
Men |
| Framematerial Description |
Aluminium |
| Gears |
| Gear Type |
DERAILLEUR |
| Gear Brand |
SHIMANO |
| Gear Model |
Cues |
| Number Of Gears |
10 |
| Gear Brand Description |
Shimano |
| Gear Type Description |
Derailleur |
| Tyres |
| Tyre Brand |
CUBE |
| Tyre Model |
MTB, 2.25 |
| Tyre Brand Description |
Cube |
| Pedals |
| Pedals Brand |
CUBE |
| Pedals Model |
PP MTB |
| Pedals Brand Description |
Cube |
| Saddle |
| Saddle Brand |
ACID |
| Saddle Model |
Venec Lite |
| Saddle Brand Description |
Acid |
| Wheels |
| Wheels Brand |
CUBE |
| Wheels Model |
ZX20, 32H, Disc |
| Wheels Brand Description |
Cube |
| Carrier |
| Carrier Brand |
ACID |
| Carrier Model |
Semi-Integrated Carrier, RILink Adapter Compatible and Rail |
| Carrier Brand Description |
Acid |
| Headset |
| Headset Brand |
CUBE |
| Headset Model |
FPH868p, Tapered, Semi-Integrated |
| Headset Brand Description |
Cube |
| Cassette |
| Cassette Brand |
SHIMANO |
| Cassette Model |
Cues CS-LG400, 11-48T |
| Cassette Brand Description |
Shimano |
| Crankset |
| Crankset Brand |
PROWHEEL |
| Crankset Model |
CC10Y-NW, 32T, 170mm |
| Crankset Brand Description |
Prowheel |
| Seatpost |
| Seatpost Brand |
CUBE |
| Seatpost Model |
Performance Post, 27.2mm |
| Seatpost Brand Description |
Cube |
| Shifters |
| Shifters Brand |
SHIMANO |
| Shifters Model |
Cues SL-U6000, Rapidfire-Plus |
| Shifters Brand Description |
Shimano |
| Handlebar |
| Handlebar Brand |
CUBE |
| Handlebar Model |
Rise Trail Bar, 680mm |
| Handlebar Brand Description |
Cube |
| Kickstand |
| Kickstand Brand |
ACID |
| Kickstand Model |
FM Pure Kickstand |
| Kickstand Brand Description |
Acid |
| Mudguards |
| Mudguards Brand |
ACID |
| Mudguards Model |
65 |
| Mudguards Brand Description |
Acid |
| Rear Light |
| Rear Light Brand |
ACID |
| Rear Light Model |
Mudguard Rear Light PRO-D, 6V, AC |
| Rear Light Brand Description |
Acid |
| Front Brake |
| Front Brake Type |
SH |
| Front Brake Brand |
SHIMANO |
| Front Brake Model |
BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Front Brake Brand Description |
Shimano |
| Front Brake Type Description |
Disc brake with hydraulic actuation |
| Front Light |
| Front Light Brand |
CUBE |
| Front Light Model |
Shiny 50 |
| Front Light Brand Description |
Cube |
| Seatpost Clamp |
| Seatpost Clamp Brand |
CUBE |
| Seatpost Clamp Model |
Varioclose, 31.8mm |
| Seatpost Clamp Brand Description |
Cube |
| Derailleur Rear |
| Derailleur Rear Brand |
SHIMANO |
| Derailleur Rear Model |
Cues RD-U6000-GS, 10-Speed |
| Derailleur Rear Brand Description |
Shimano |
| Bartape Or Grips |
| Bartape Or Grips Brand |
ACID |
| Bartape Or Grips Model |
React |
| Bartape Or Grips Brand Description |
Acid |
| Primary Rear Brake |
| Primary Rear Brake Type |
SH |
| Primary Rear Brake Brand |
SHIMANO |
| Primary Rear Brake Model |
BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Primary Rear Brake Brand Description |
Shimano |
| Primary Rear Brake Type Description |
Disc brake with hydraulic actuation |
| Physical Specifications |
| Size |
L |
| Colour |
wolfgrey/black |
| Net Weight |
17 |
| Gross Weight |
23 |
| Primary Basecolour |
GREY |
| Secondary Basecolour |
BLACK |
| Primary Basecolour Description |
Grey |
| Secondary Basecolour Description |
Black |
