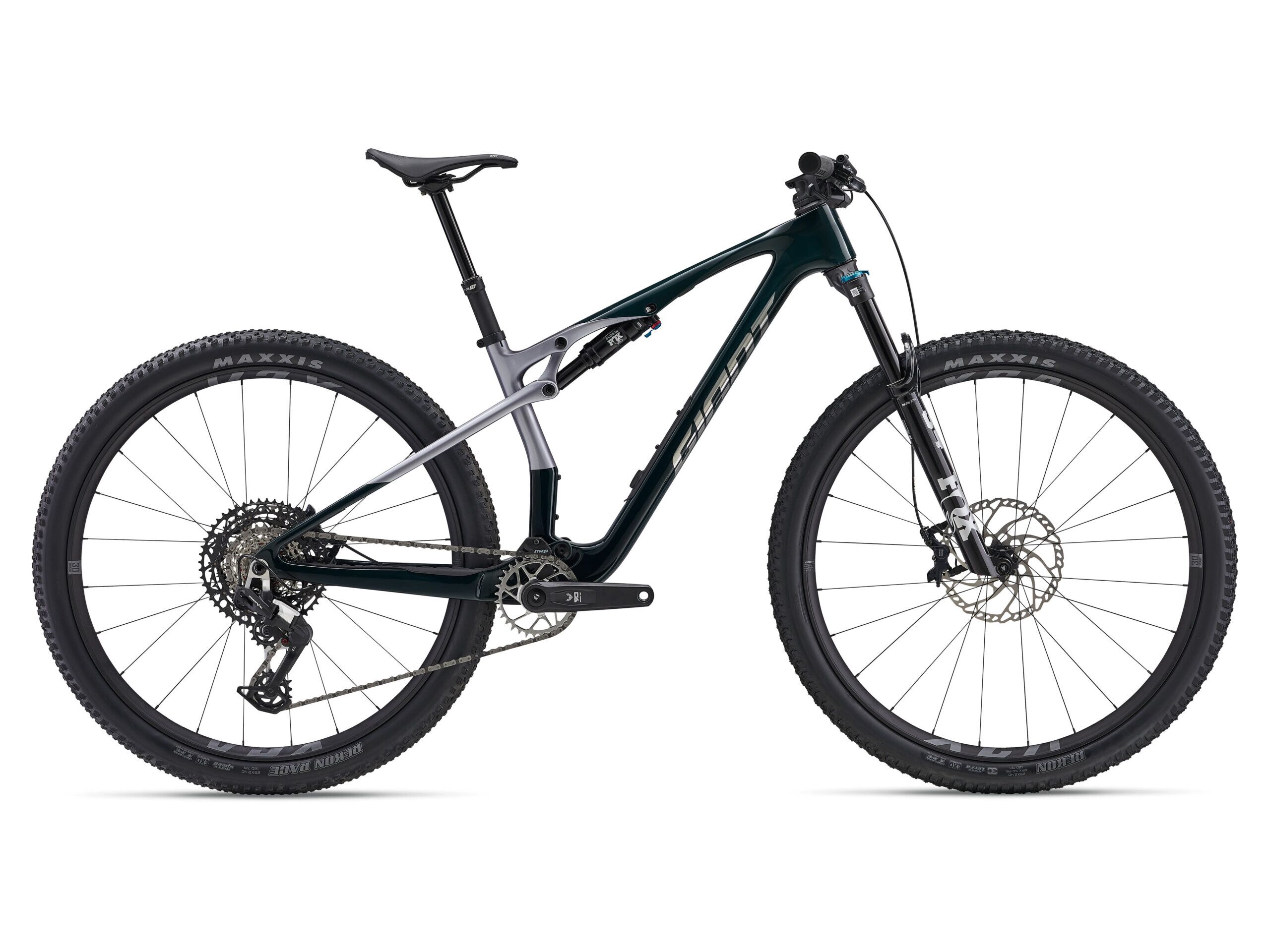

Anthem X Advanced SL 2

Built to slay singletrack with blazing speed, the new Anthem X Advanced SL blurs the lines between XC and trail performance. The lightweight composite frame features a new semi-integrated FlexPoint Pro rear suspension setup with 120mm of travel plus a flip chip to adjust geometry. Combined with a 130mm fork and an integrated handlebar with clean cable routing, it’s fast, fun and ready to rip.

Category: Bikes, Full Suspension, Mountain Bikes Tag: 3247, Apply Now, Giant

View

Size L, M, S, XL

Color Dark Jungle

Specifications

Key Performance Factors

RACE-BRED TRAIL SPEED
A full-composite frameset is both ultra-light and highly efficient to help you power up climbs and make every watt count. The WheelSystems and integrated handlebar/stem units are designed for maximum efficiency and instantaneous response to rider input. The rear shock is repositioned and semi-integrated with the top tube, shaving weight and creating space for a second water bottle cage.

TOTAL CONTROL
The new FlexPoint Pro suspension delivers 120mm of smooth, active rear travel paired with a 130mm fork—helping you fly down rough descents and power up technical climbs. A flip chip lets you fine tune handling for all types of terrain. Superlight composite or alloy Giant WheelSystems (depending on model) with a next-generation 120-tooth helical ratchet drive system for immediate power and robust 5mm rim sidewalls for greater protection against impacts and punctures.

SYSTEM INTEGRATION
A new one-piece integrated handlebar/stem unit adds compliance to reduce shocks and vibrations, improving control and hand comfort. It’s available in two models—the Contact SLR XC Integrated composite and Contact SL XC Integrated alloy. Both feature the same seamless cable routing and versatile sizing with a 780mm standard width and stem lengths ranging from 50-90mm.

Sizes	S, M, L, XL
Colours	Dark Jungle
Frame	Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, internal storage
Fork	Fox 34 SL Performance, 130mm, GRIP damper, Boost 15×110, 44mm offset
Shock	Fox Float SL Performance, 210/50
Handlebar	Giant Integrated XC, alloy, 780mm, 9-degree upsweep
Grips	Giant Tactal, lock on
Stem	Giant Integrated XC Alloy S:50mm, M:50mm, L:60mm, XL:70mm
Seatpost	Giant Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 140-170mm travel / 30.9 x 530mm
Saddle	Giant Grit
Pedals	N/A
Shifters	SRAM Eagle 90 mechanical, 1×12
Front Derailleur	N/A
Rear Derailleur	SRAM Eagle 90 Transmission
Brakes	Shimano SLX BR-M7120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers	Shimano SLX BL-M7100
Cassette	SRAM 70 1270, 10×52
Chain	SRAM 90 Transmission
Crankset	SRAM 90 Transmission, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm
Bottom Bracket	SRAM DUB, press fit
Rims	Giant XCA WheelSystem
Hubs	[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 6-bolt
Spokes	Sapim
Tyres	Maxxis Rekon Race 29×2.4, foldable, 120tpi, EXO, tubeless
Extras	tubeless prepared, 2.4″ max tire size, 34t max chainring size, MRP 1x CS chain guide

Highlights

Barcode : 4711291211803

Geometry

		S	M	L	XL
A	SEAT TUBE LENGTH	400	420	465	495
B	SEAT TUBE ANGLE	75	75.1	75.1	75.1
C	TOP TUBE LENGTH	577	603	625	653
D	HEAD TUBE LENGTH	90	95	105	115
E	HEAD TUBE ANGLE	66	66.1	66.1	66.1
F	FORK RAKE	44	44	44	44
G	TRAIL	119.5	119.3	119.2	119
H	WHEEL BASE	1,145	1,172	1,196	1,225
I	CHAIN STAY LENGTH	437	437	437	437
J	BOTTOM BRACKET DROP	48	48	48	48
K	STACK	606	611	620	629
L	REACH	415	440	460	485
M	STAND OVER HEIGHT	774	770	762	757
N	HANDLEBAR WIDTH	780	780	780	780
O	STEM LENGTH	50	50	60	70
P	CRANK LENGTH DEC	170	170	175	175
Q	WHEEL SIZE ALT
