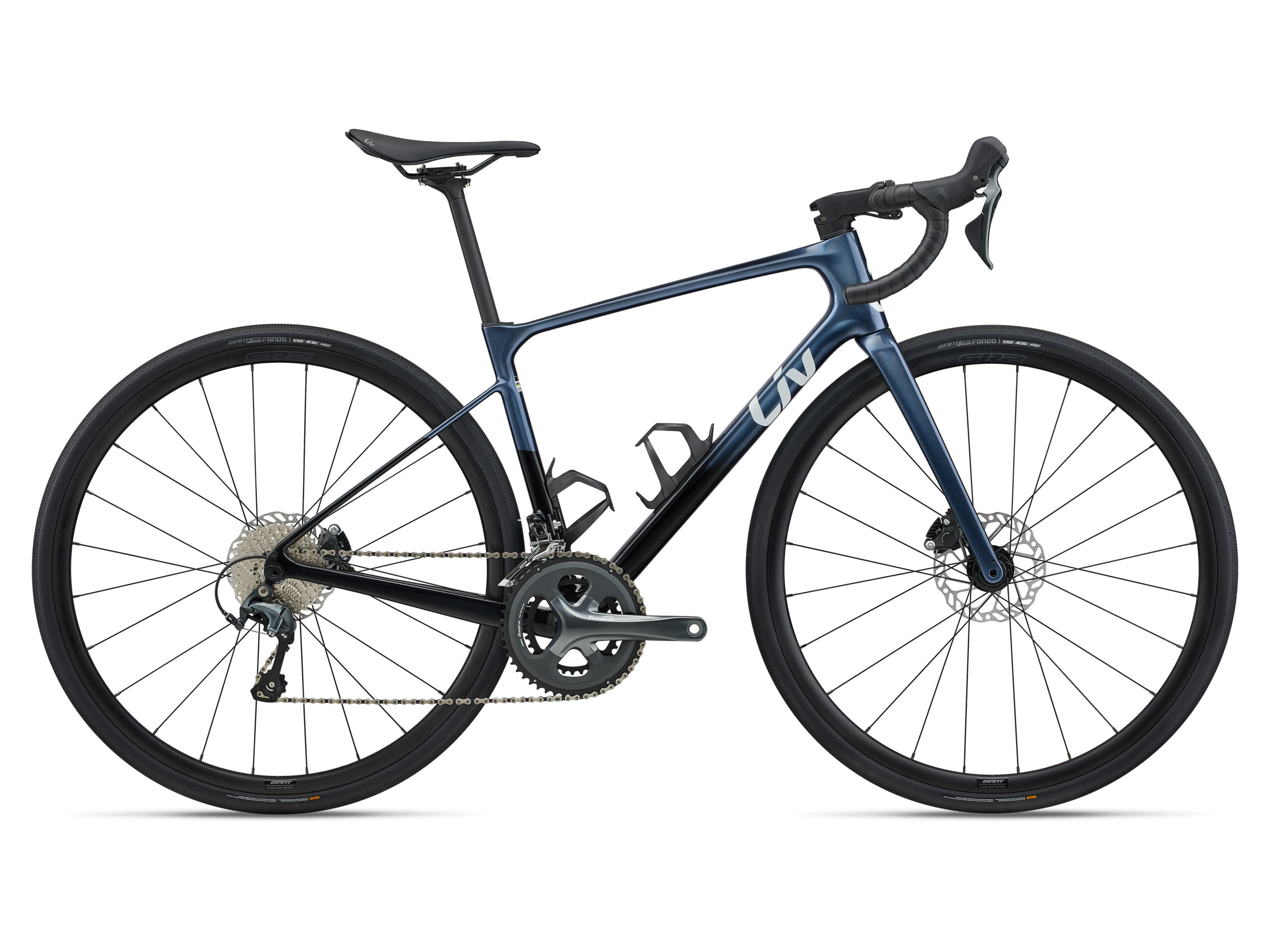

Avail Advanced 3

€2,599.00

The Avail Advanced is that riding buddy who’s up for any adventure on the road—from solo backroad explorations to after-work shop rides to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.

Additional information

Size	M, S, XS
Color	Ice Age

Specifications

Key Performance Factors

Lightweight Advantage
The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.

Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.

Maximum Control
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.

Sizes	XS, S, M
Colours	Ice Age/Carbon
Frame	Advanced-grade composite, 12x142mm thru-axle, disc
Fork	Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Shock	N/A
Handlebar	Liv Contact SL D-Fuse, 31.8mm
Grips	Liv Stratus Elite 2.0
Stem	Giant Contact AeroLight
Seatpost	Giant D-Fuse, composite, -5/+15mm
Saddle	Liv Approach
Pedals	PEDALS NOT SUPPLIED
Shifters	Shimano Tiagra ST-4725 2×10
Front Derailleur	Shimano Tiagra
Rear Derailleur	Shimano Tiagra
Brakes	Shimano Tiagra hydraulic, Giant rotors [F]160mm, [R]160mm
Brake Levers	Shimano Tiagra
Cassette	Shimano Tiagra, 10-speed, 11×34
Chain	KMC X10
Crankset	Shimano Tiagra, 34/50, XS: 165mm, S: 170mm, M: 170mm
Bottom Bracket	Shimano, press fit
Rims	Giant S-R2 Disc wheelset
Hubs	Giant alloy, 12mm thru-axle
Spokes	stainless
Tyres	Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
Extras	Factory tubeless set up, two bottle cages, fender mount
Max Tire Clearance	40mm

Geometry

		XS	S	M
A	SEAT TUBE LENGTH	405	435	465
B	SEAT TUBE ANGLE	74.5	74.5	74
C	TOP TUBE LENGTH	520	525	535
D	HEAD TUBE LENGTH	125	145	165
E	HEAD TUBE ANGLE	71	71	71
F	FORK RAKE	50	50	50
G	TRAIL	68	68	68
H	WHEEL BASE	995	1,002	1,007
I	CHAIN STAY LENGTH	420	420	420
J	BOTTOM BRACKET DROP	75	73	73
K	STACK	528	547	566
L	REACH	373	373	373
M	STAND OVER HEIGHT	712	737	762
N	HANDLEBAR WIDTH	380	400	400
O	STEM LENGTH	70	80	90
P	CRANK LENGTH DEC	165	170	170
Q	WHEEL SIZE ALT	700C	700C	700C
